SKU:T-GT86-SR
2012-2020 Toyota GT86 / Subaru BRZ / Scion FR-S Sequential LED Tail Lights Assembly
Product Videos
Smoked Digital w/ App Control
- Regular price
- $339.00
- Sale price
- $339.00
- Regular price
-
$619.00
Fitment Check
Compatibility
Fits: 2012-2020 first-generation 86 platform (ZN6 / ZC6): Toyota GT86 / 86, Subaru BRZ, and Scion FR-S.
OEM Cross Reference: Subaru BRZ: Left SU003-05489; Right SU003-05488. Toyota 86 / Scion FR-S: Left 81560-18090; Right 81550-18090.
Fitment Note: Toyota, Scion, and Subaru part numbers differ, but the first-generation tail light assemblies share the same physical fitment.
Not sure it fits? Check the fitment guide →
- Regular price
- $339.00
- Sale price
- $339.00
- Regular price
-
$619.00
Free Shipping & Returns
Free Shipping & Returns
Free U.S. shipping on every order. 30-day returns and exchanges, started from your order confirmation email. 2-year Warranty covering LED failure, moisture intrusion, and component malfunctions under normal use.
Standard Shipping · 2–5 business days
Free
Ships via FedEx from our East or West Coast warehouse. Delivery estimates may vary due to carrier or weather delays.
Pre-Order (New Release) · 1-2 Weeks
Free
Applies only to items marked "New Release." These ship about 1–2 weeks after the first batch lands — order now to lock today's price and your spot in line. In-stock items ship in 2–5 business days, as above.
Redesigned from the Lens Out.
Three badges, one car, and a decade of people arguing about whether it needed more power. Nobody argues about the other part: the first-gen 86 is a chassis you keep and modify rather than trade, and the rear end is where most of those builds end up showing.
Built for your rig. Made for the night.

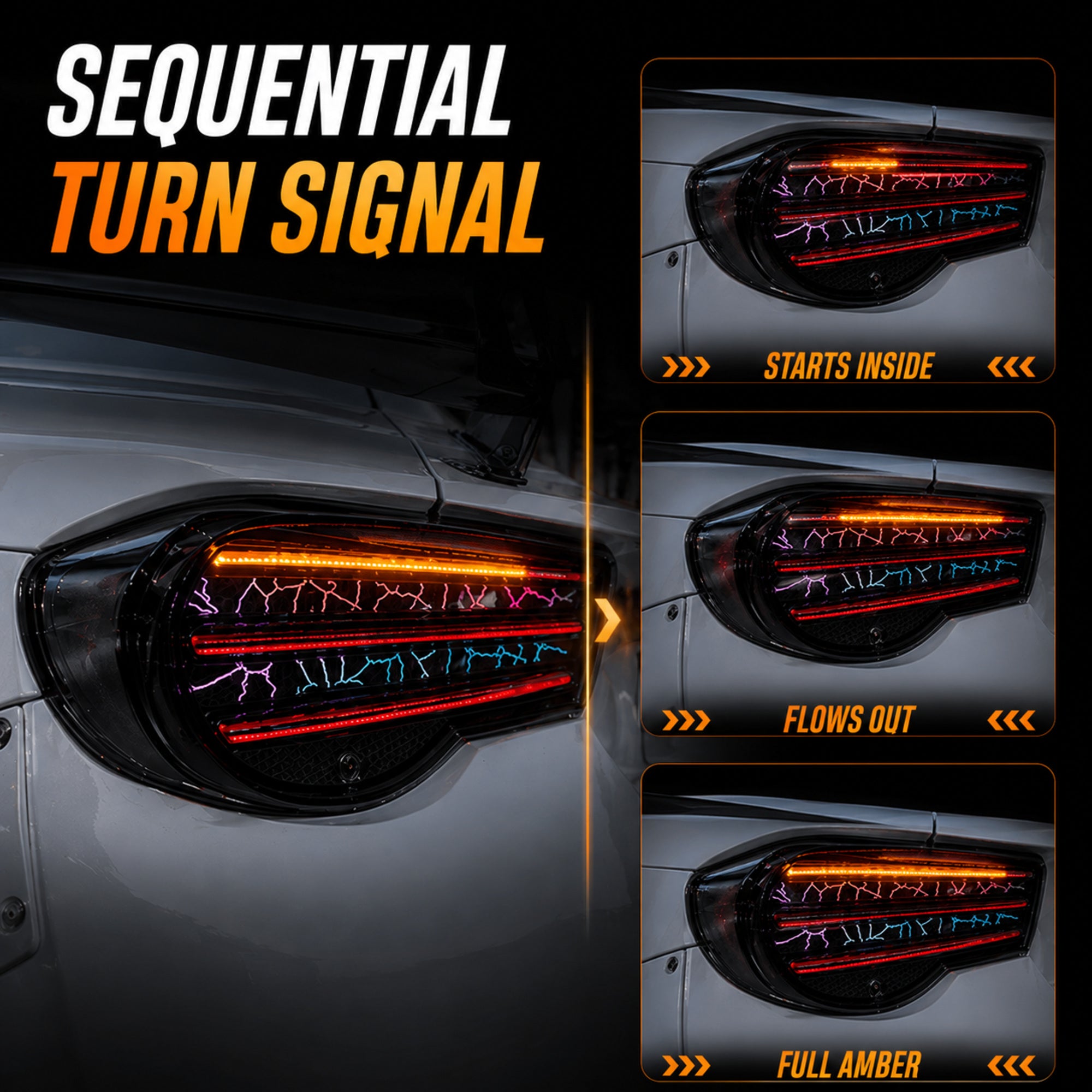

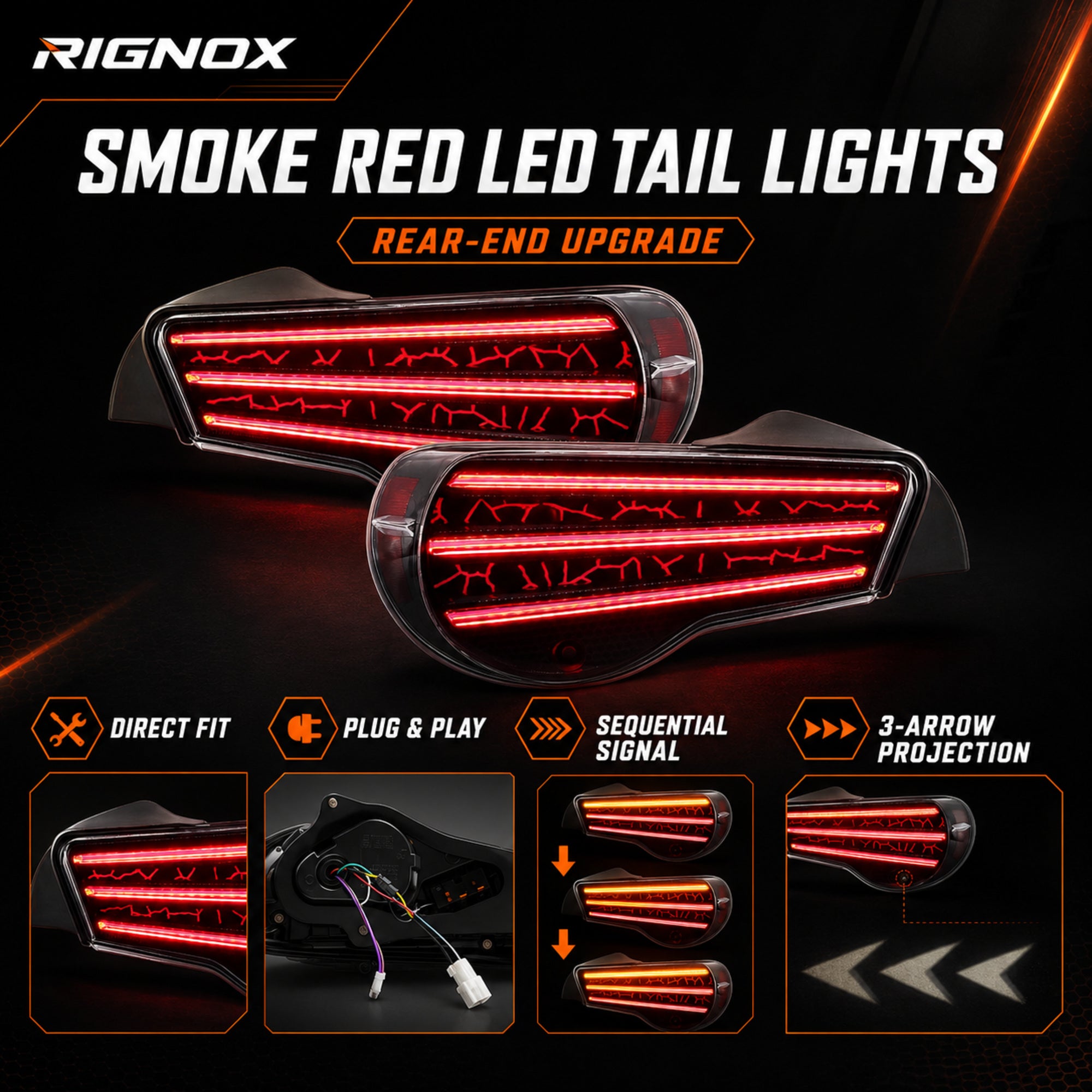

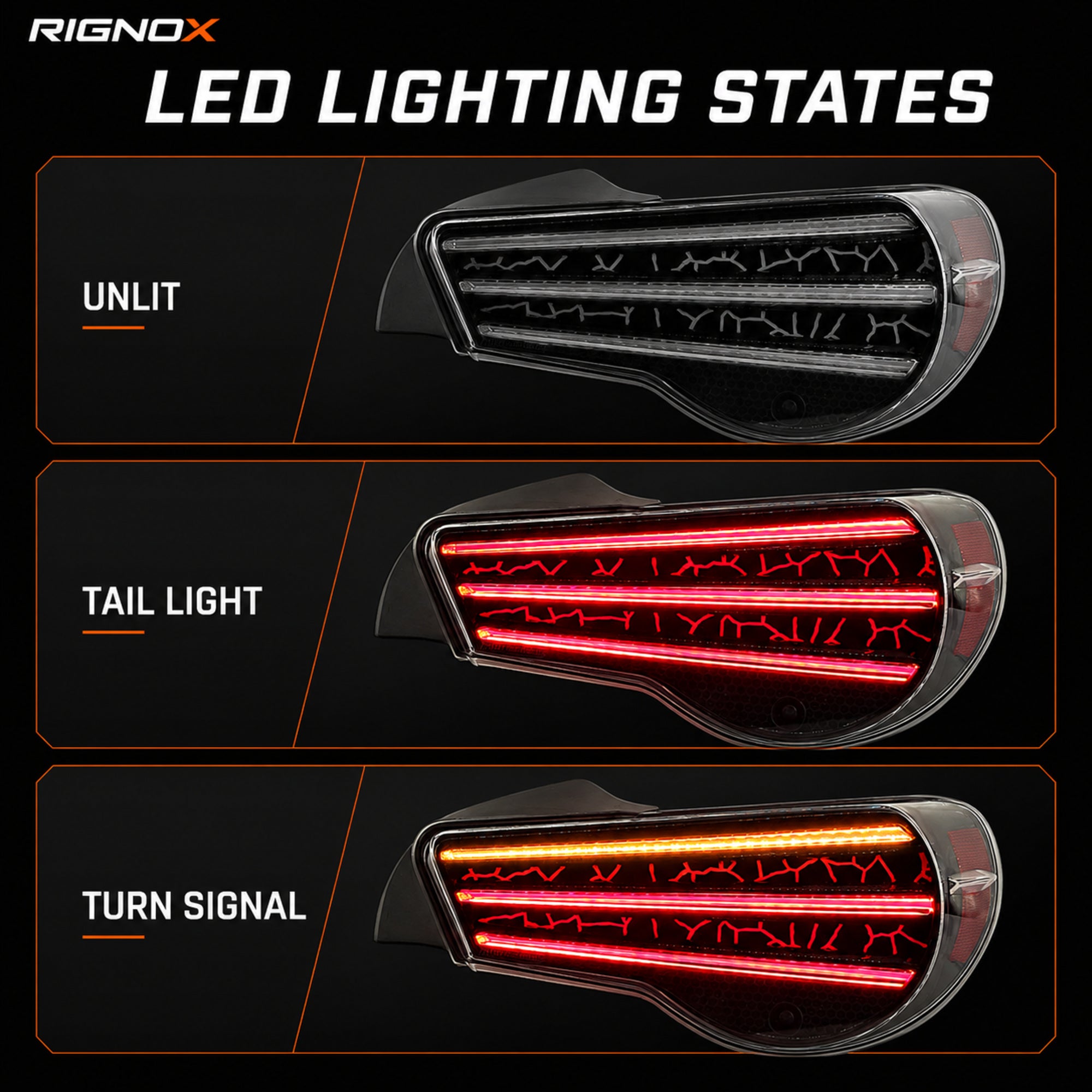

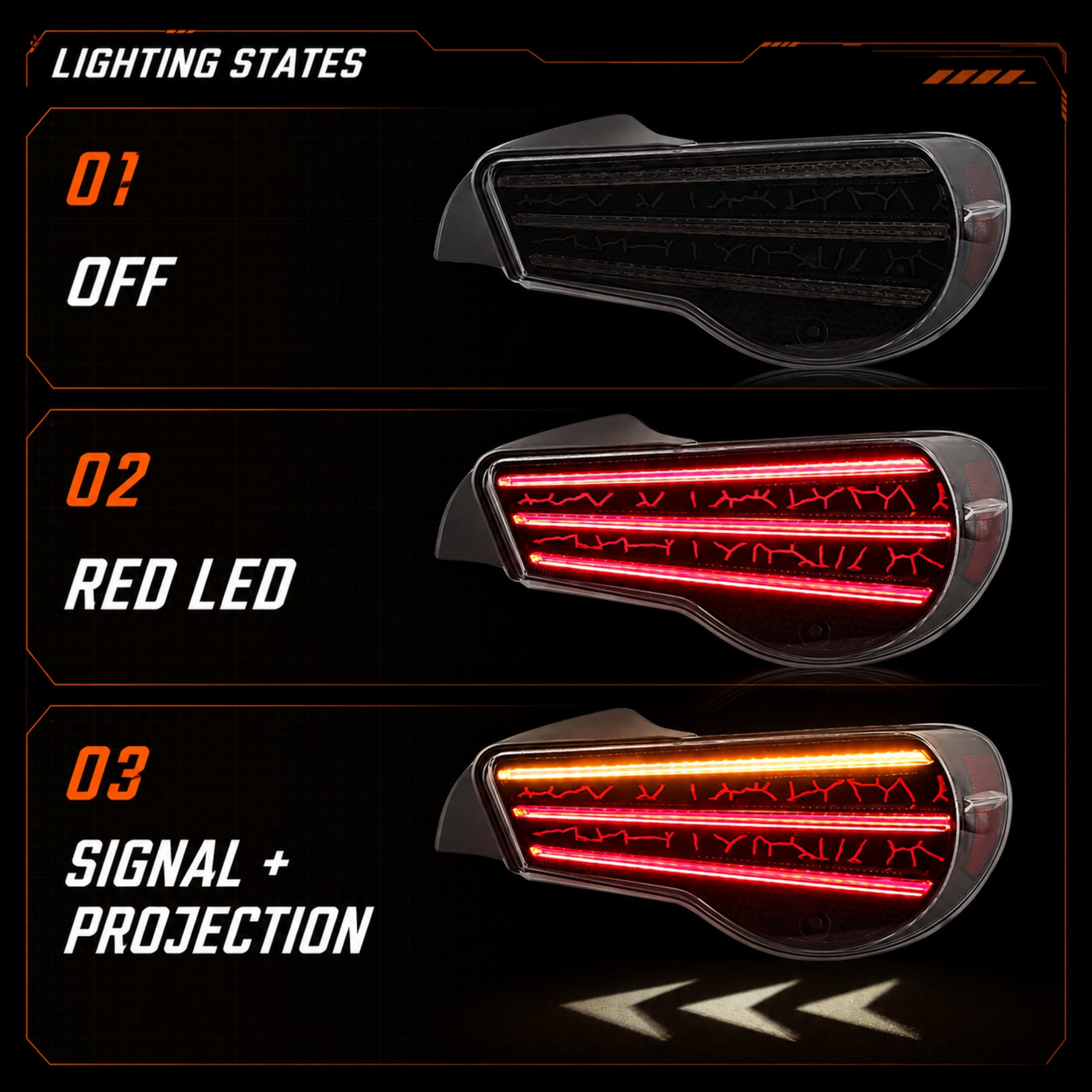

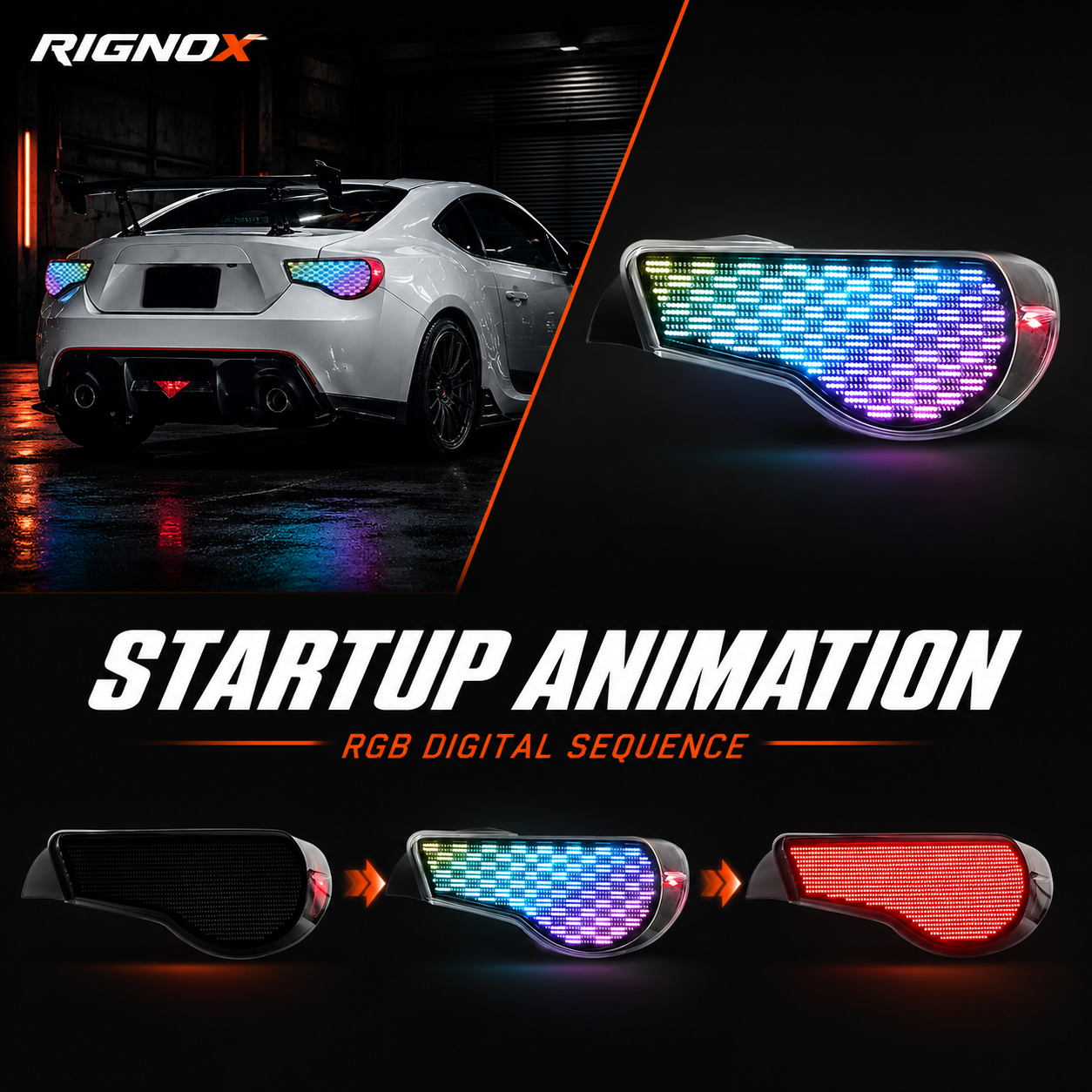

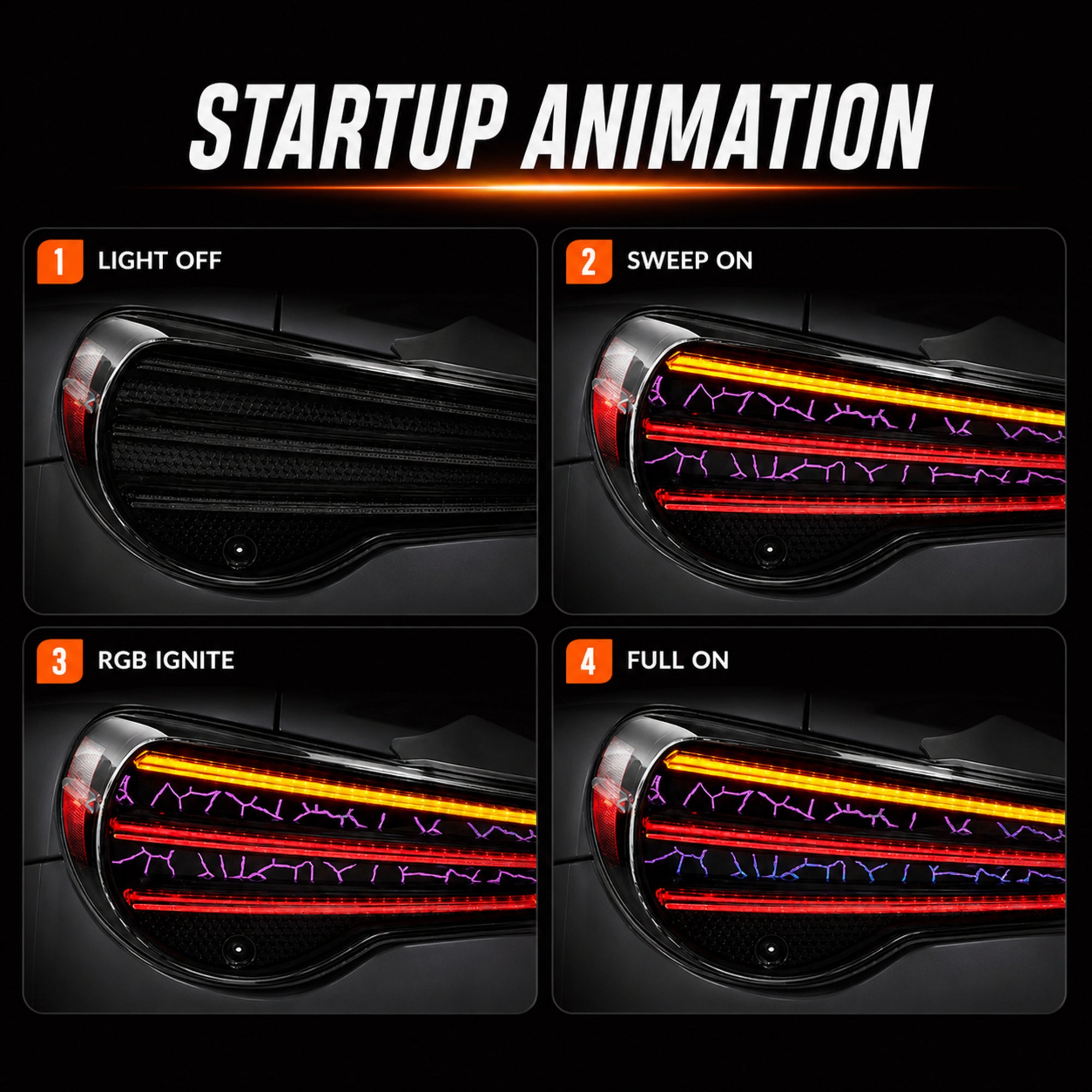

Every function runs on LEDs, so the housing lights instantly and evenly with none of the warm-up lag or burnout cycle of filament bulbs. The turn signal fires as a sweep rather than a single flash, and the full pattern runs once on ignition as a startup animation. No external controller, nothing to configure once the harness is plugged in.
Four builds. Smoked Red and Smoked White are the straightforward pair — red stays close to how the car left the factory, white reads noticeably more custom. Smoked RGB w/ APP Control puts the accent colour on your phone. Smoked Digital w/ App Control is the step up to an addressable panel rather than a single-colour bar, which is where the price difference comes from.
Built on patented optical technology and independently tested for vibration, mechanical shock, and corrosion resistance. The lens is UV-stable polycarbonate, so it holds its clarity instead of yellowing after a few summers.

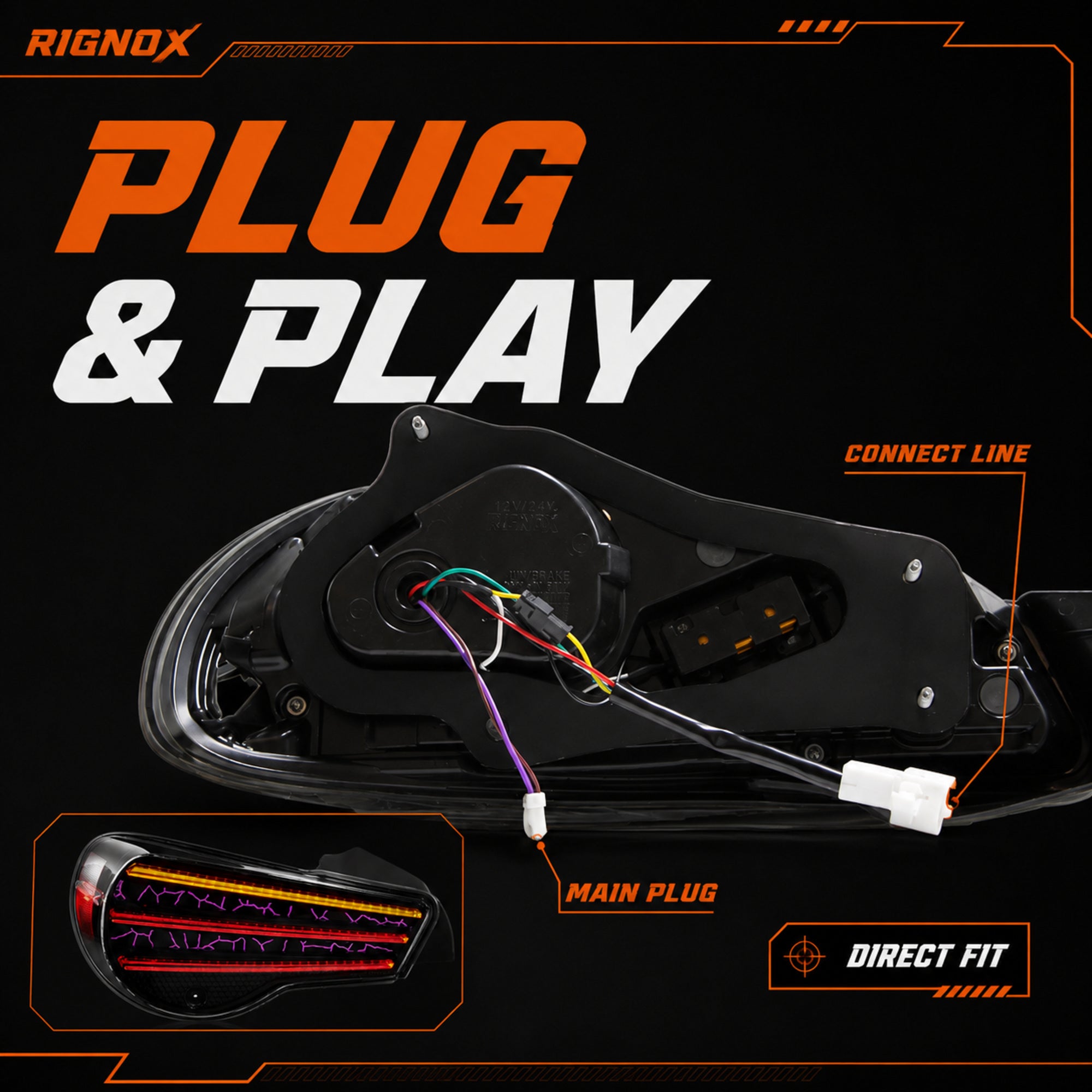

Installation is plug-and-play into the factory harness. Integrated decoders and an LED flash relay hold the correct flash cadence — no hyper-flashing, no dash errors.
Compatibility
Fits: 2012-2020 first-generation 86 platform (ZN6 / ZC6): Toyota GT86 / 86, Subaru BRZ, and Scion FR-S.
OEM Cross Reference: Subaru BRZ: Left SU003-05489; Right SU003-05488. Toyota 86 / Scion FR-S: Left 81560-18090; Right 81550-18090.
Fitment Note: Toyota, Scion, and Subaru part numbers differ, but the first-generation tail light assemblies share the same physical fitment.
Main Characteristics
Light Output
Functions

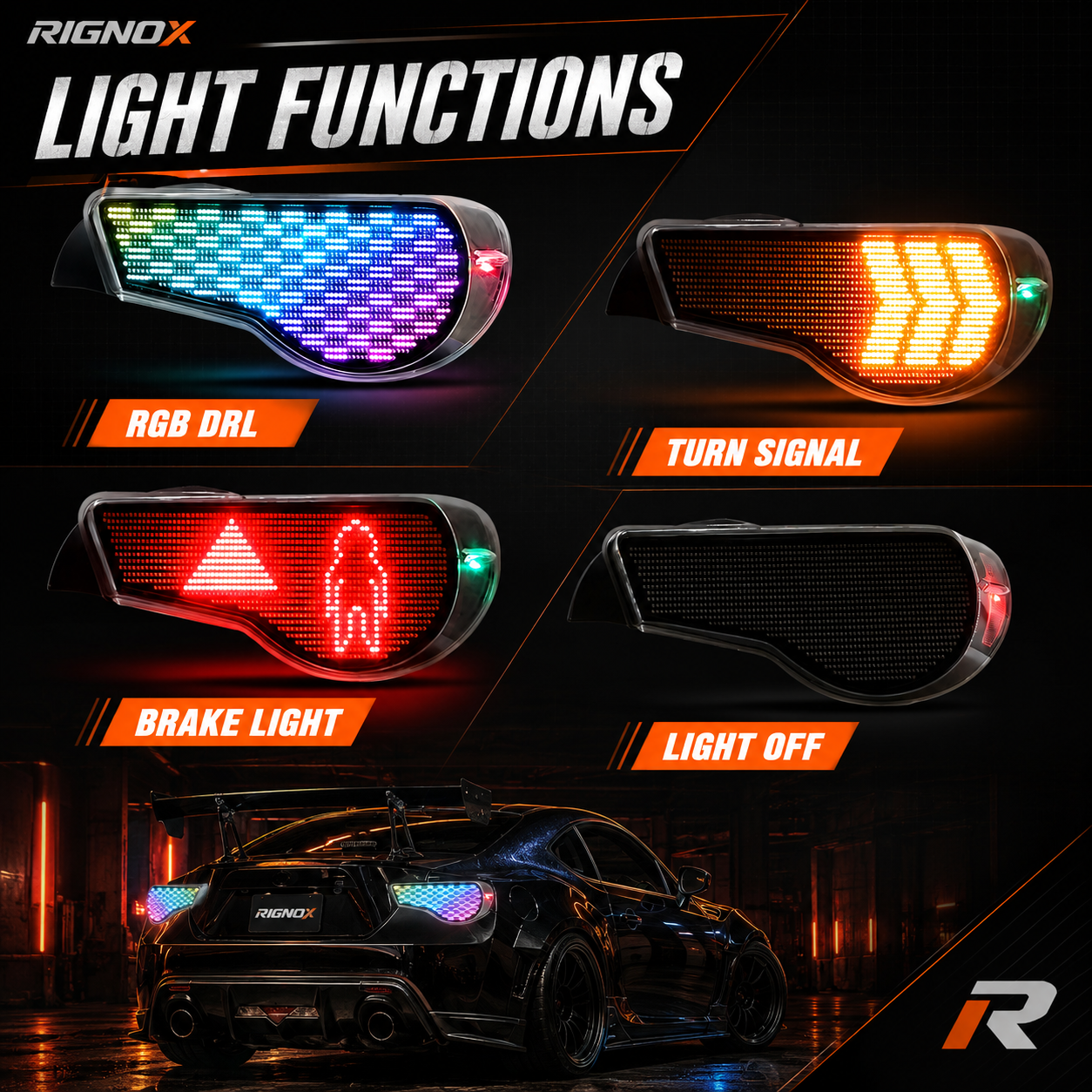

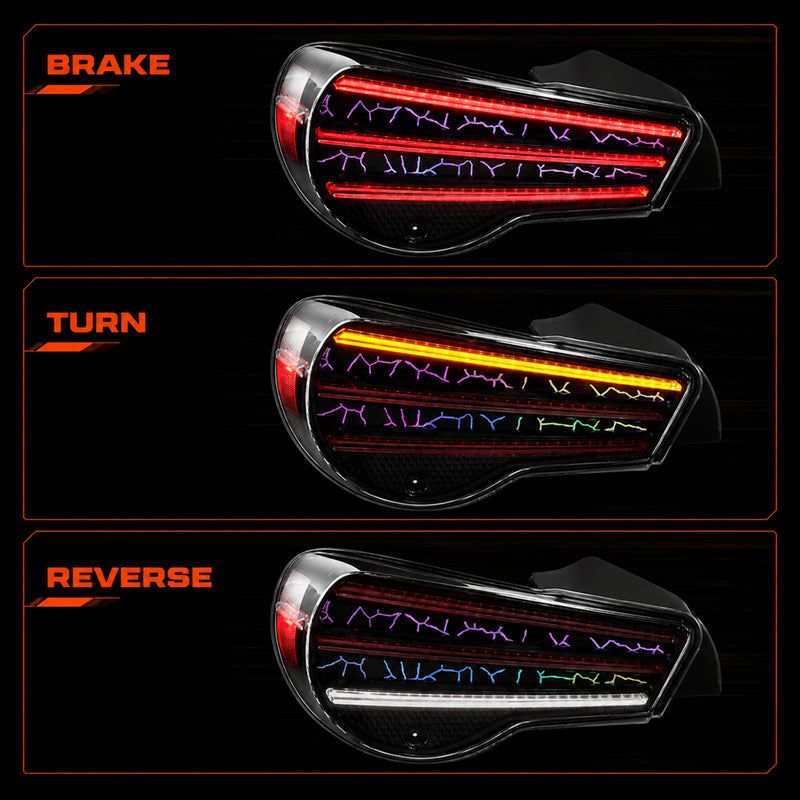

Tail, brake, turn, and reverse — all LED, 25W
Brightness
Up to 6× brighter than halogen, with even output across the lens and no dark spots
Brake Response
Reaches full brightness 200ms sooner than halogen — about 18 feet of extra reaction room for the driver behind you at 60 mph
Reverse
High-output white LED for real backup visibility at night
Street Legal
DOT and SAE compliant (FMVSS 108)
Light Signature
Turn Signal & Animation

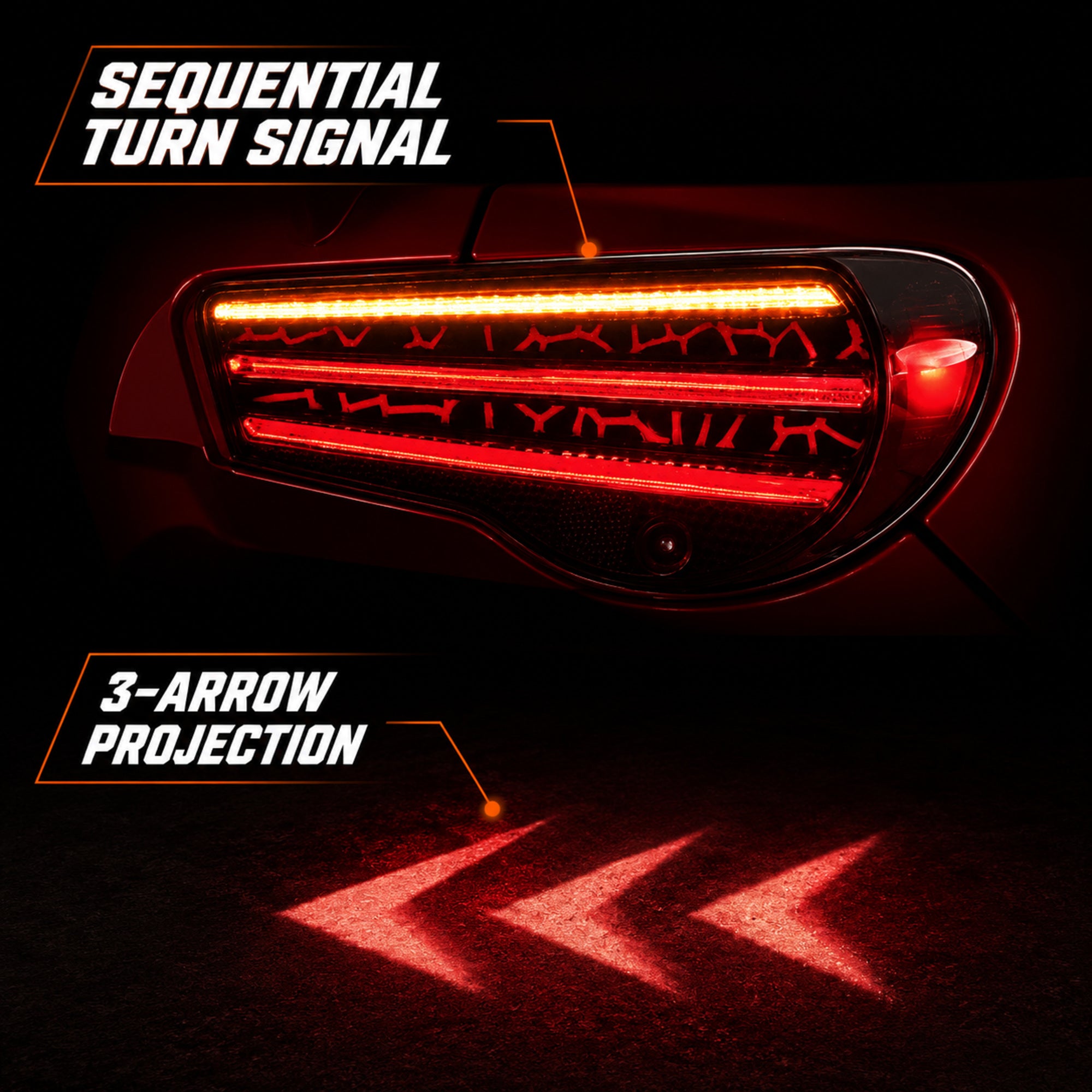

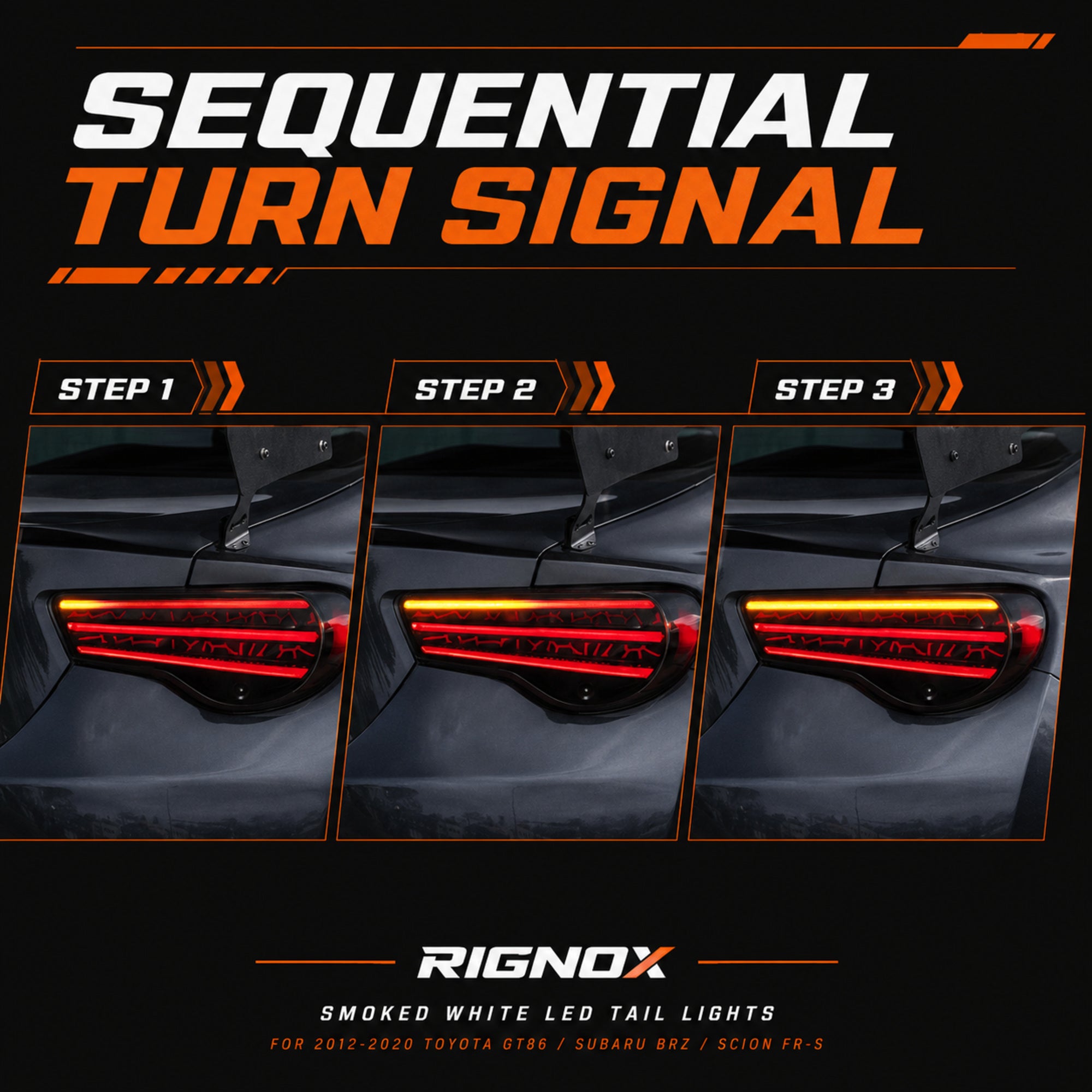

Amber sequential sweep, plus a startup animation on ignition
App Control
Controlled from your phone, with left and right locked in sync — each build's app is named in the Color rows below; Star Light Running builds also include a one-touch red-light remote
Color

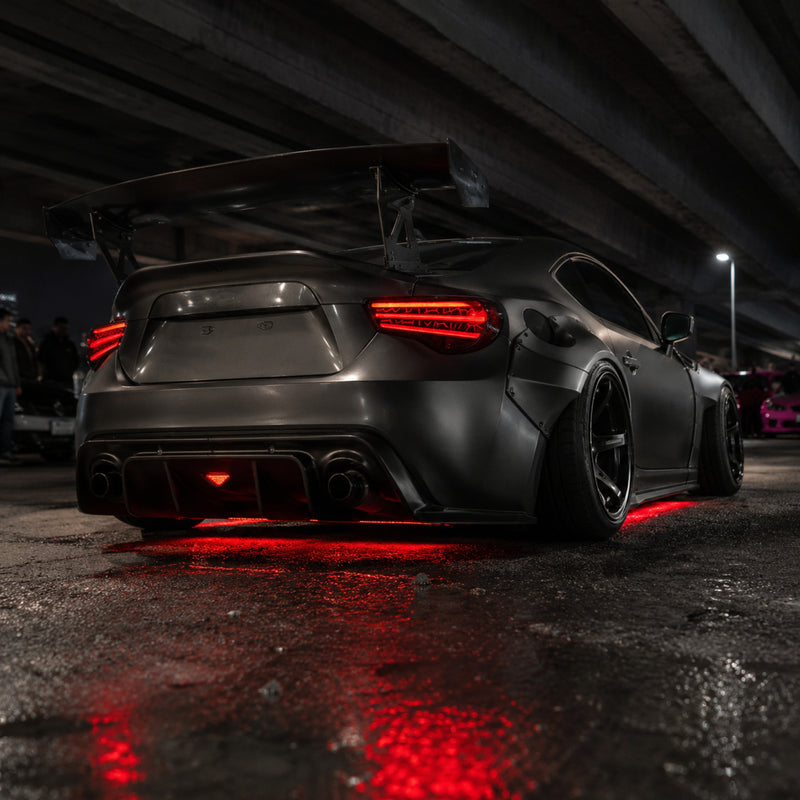

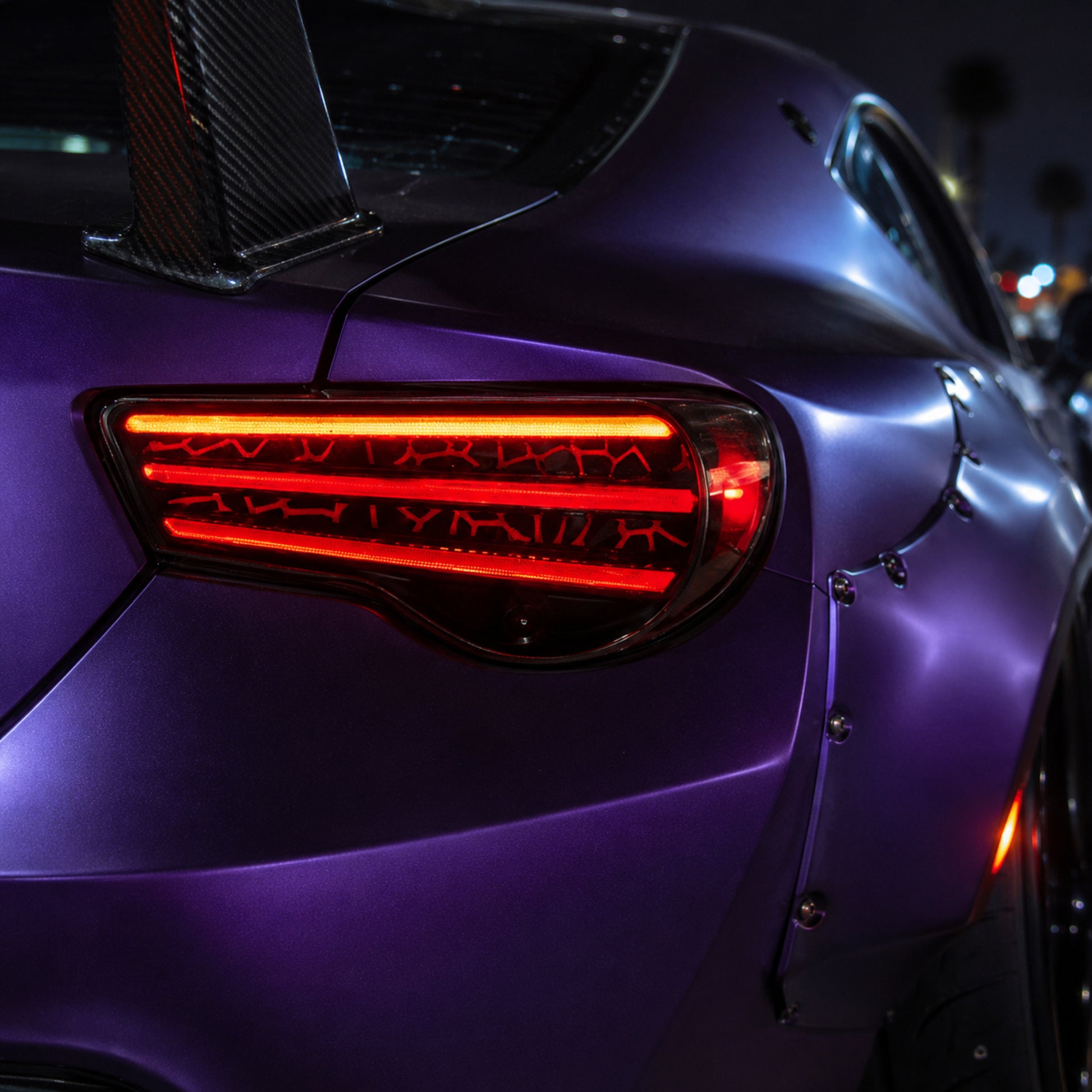

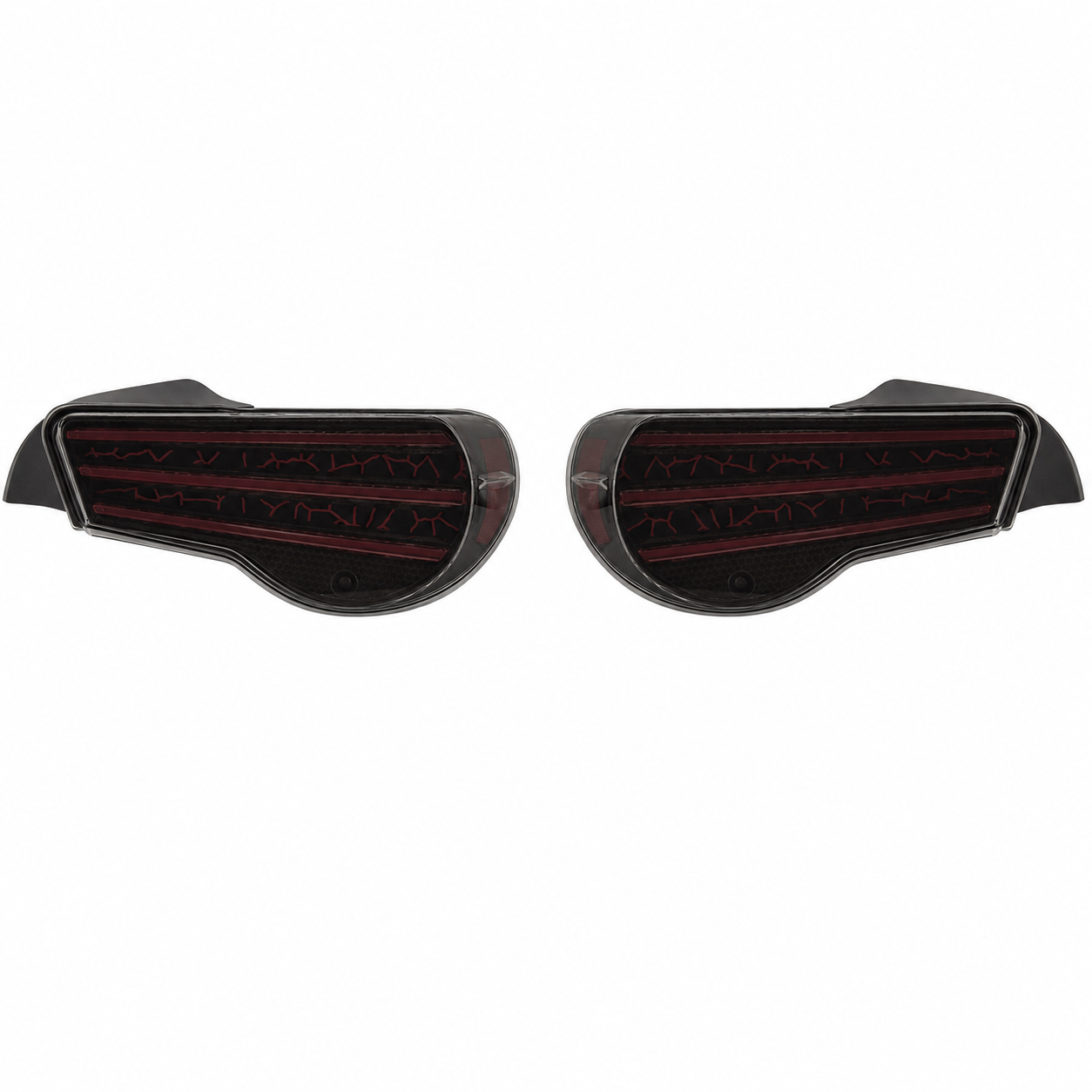

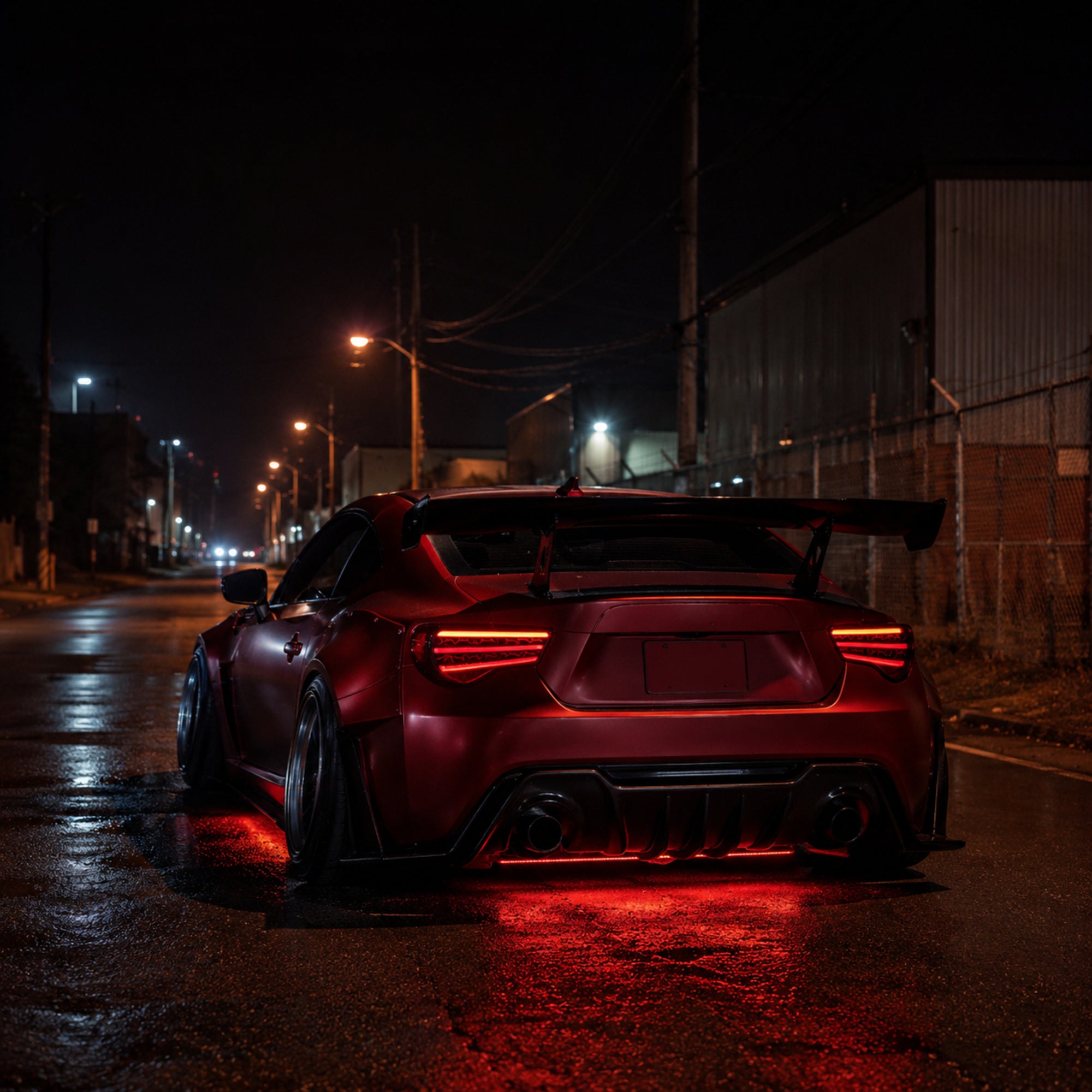

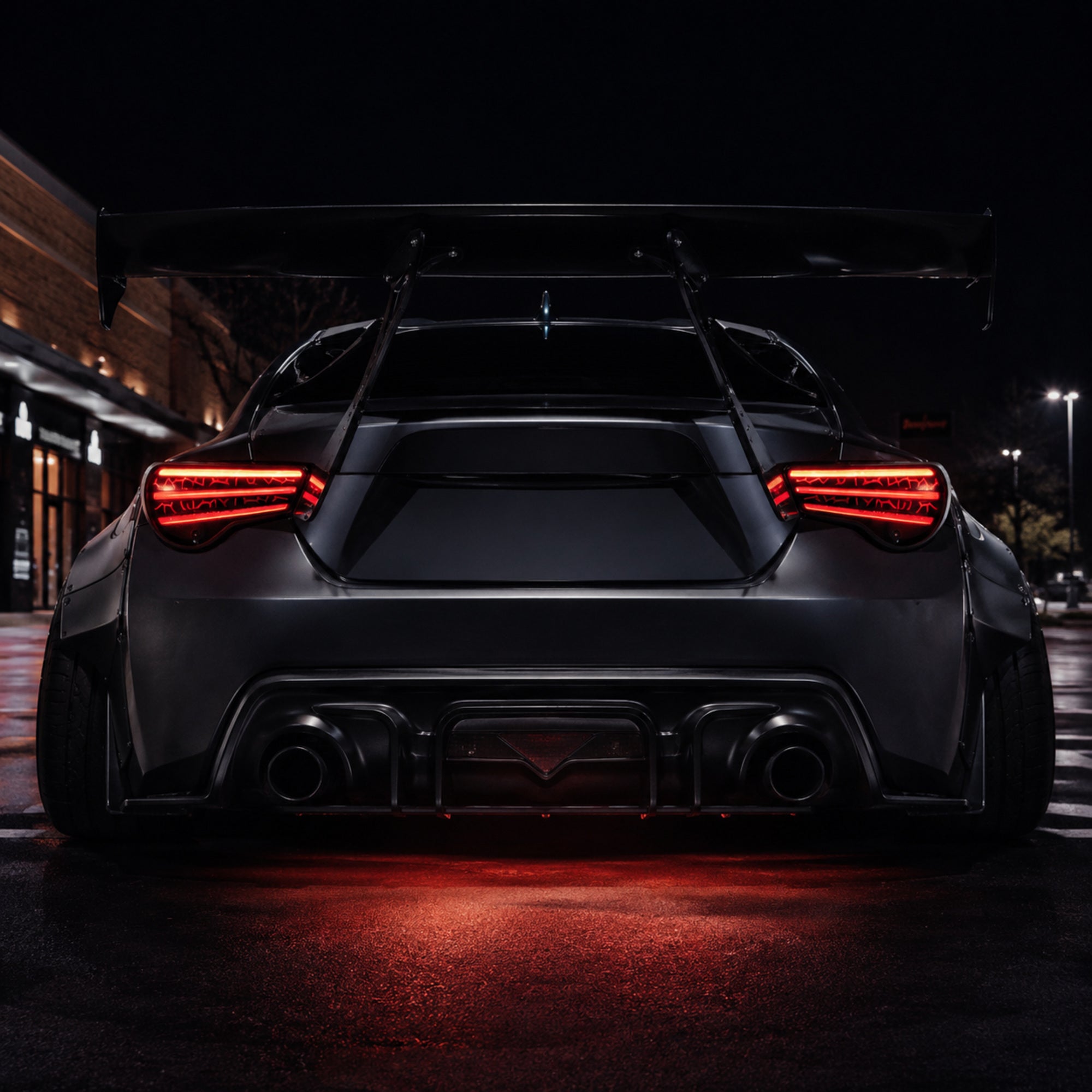

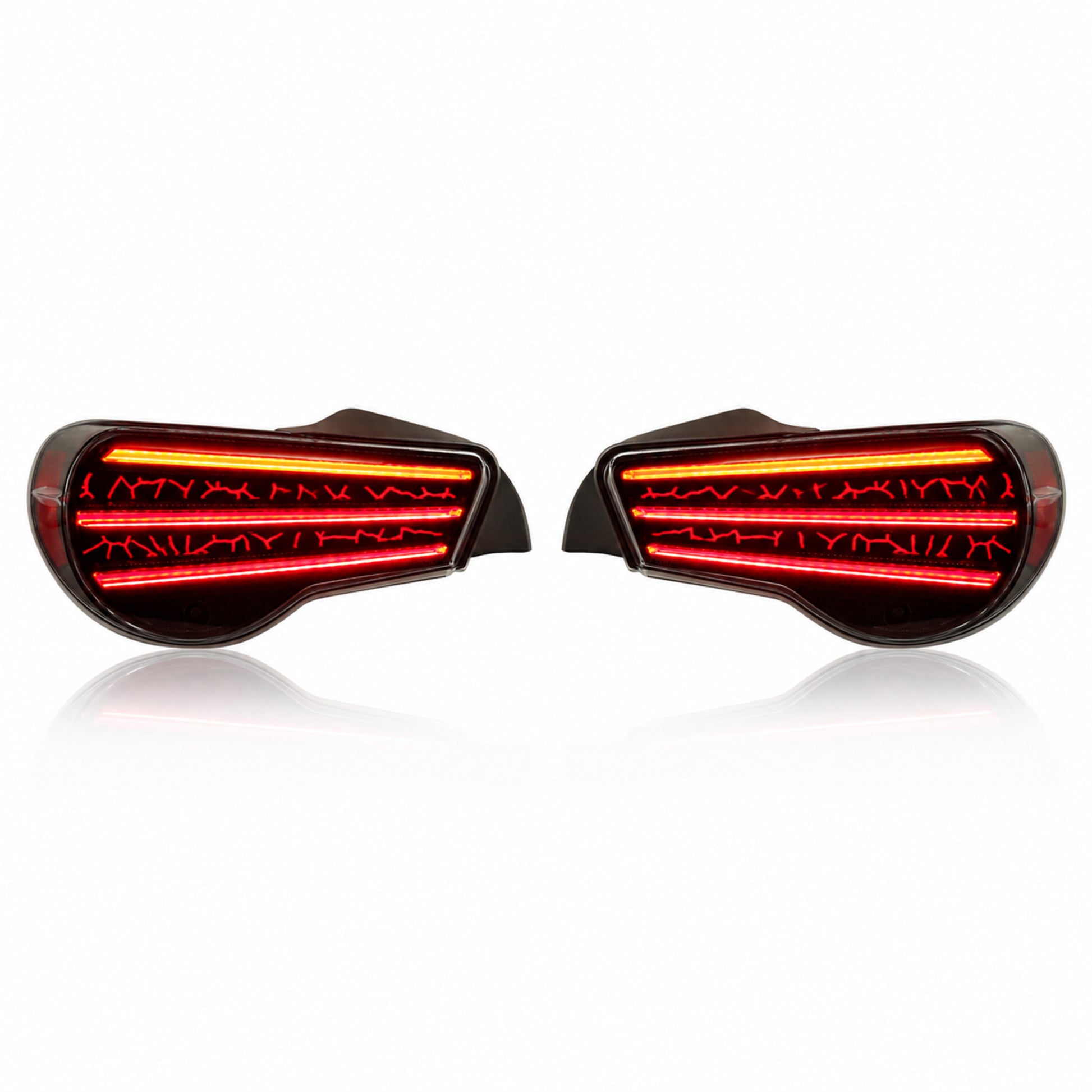

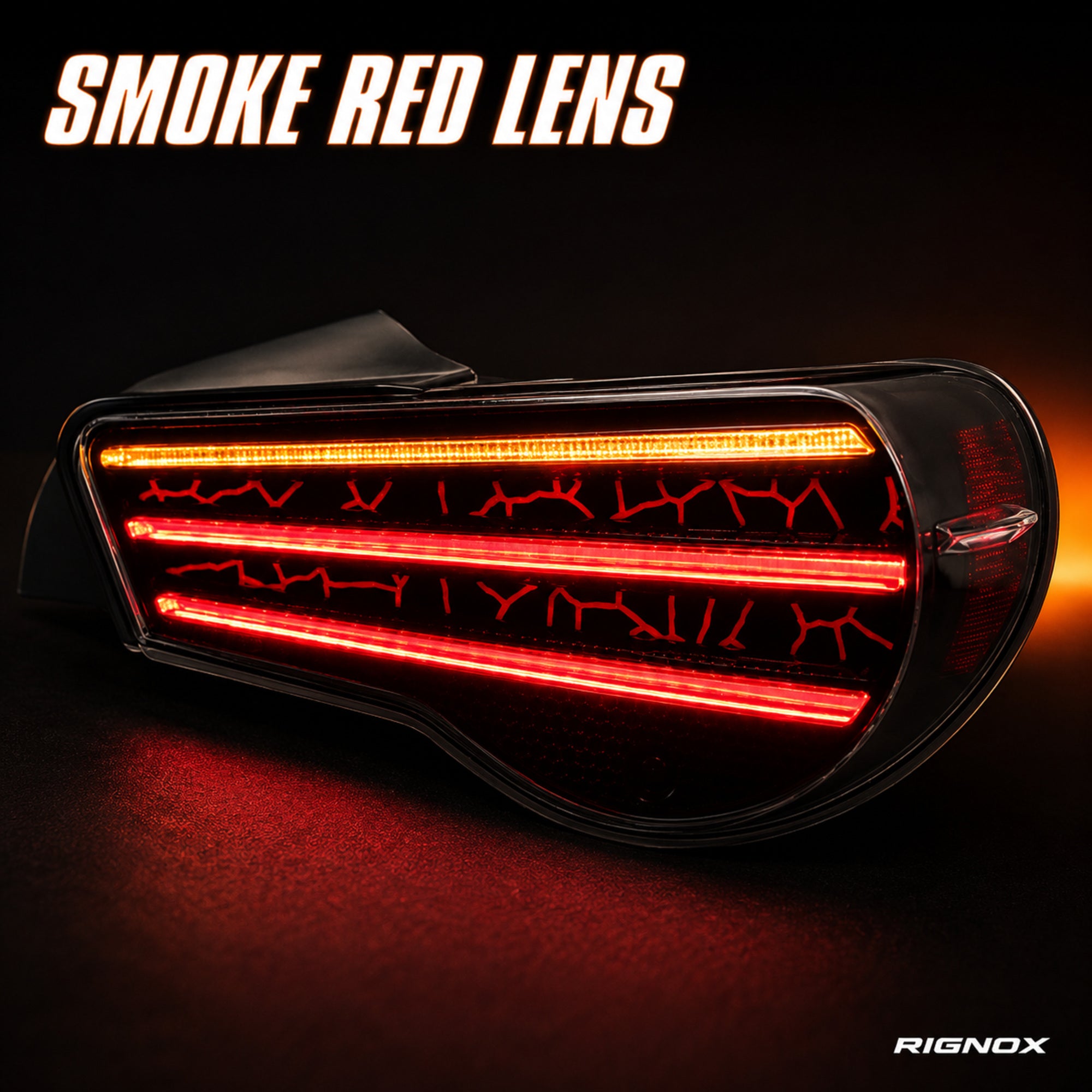

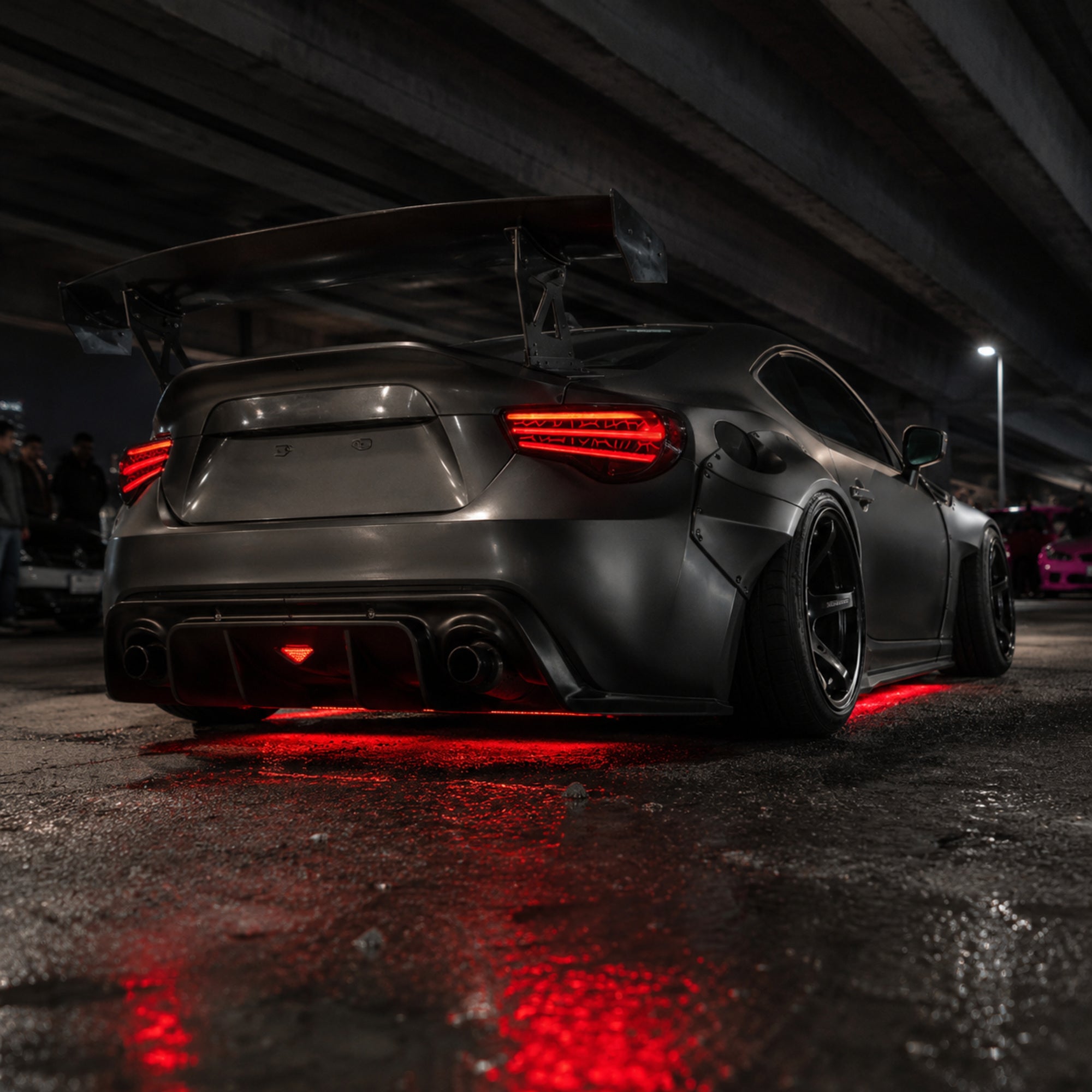

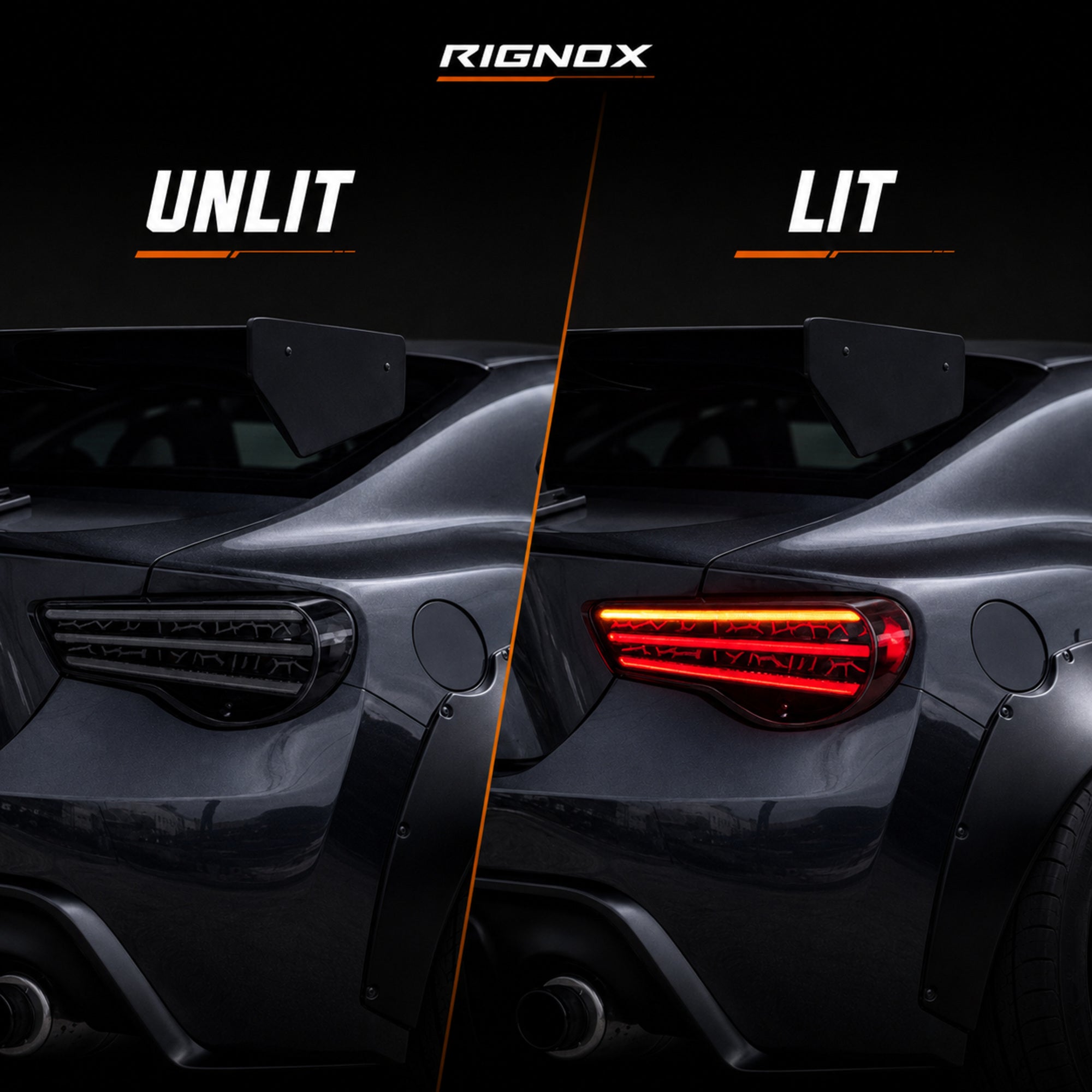

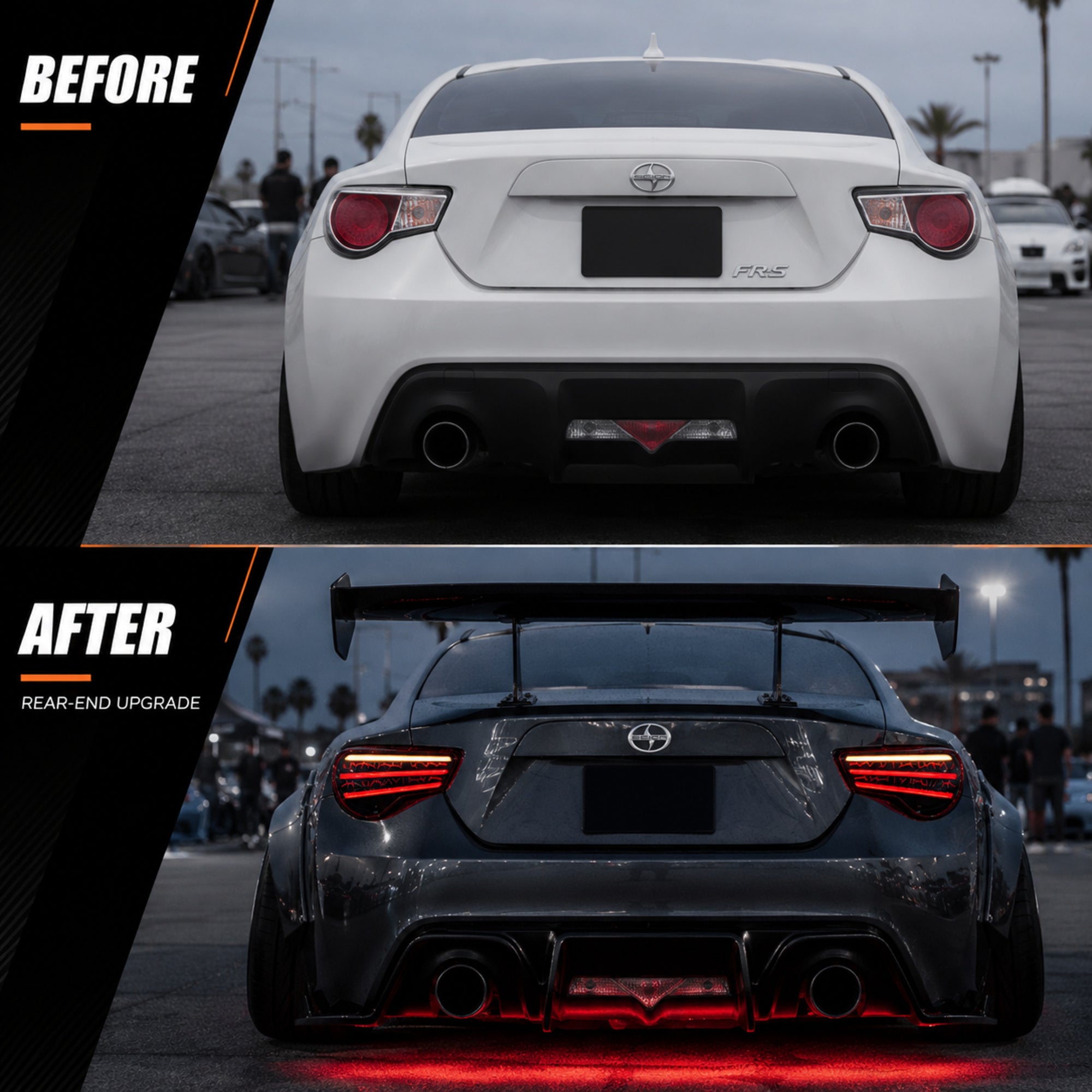

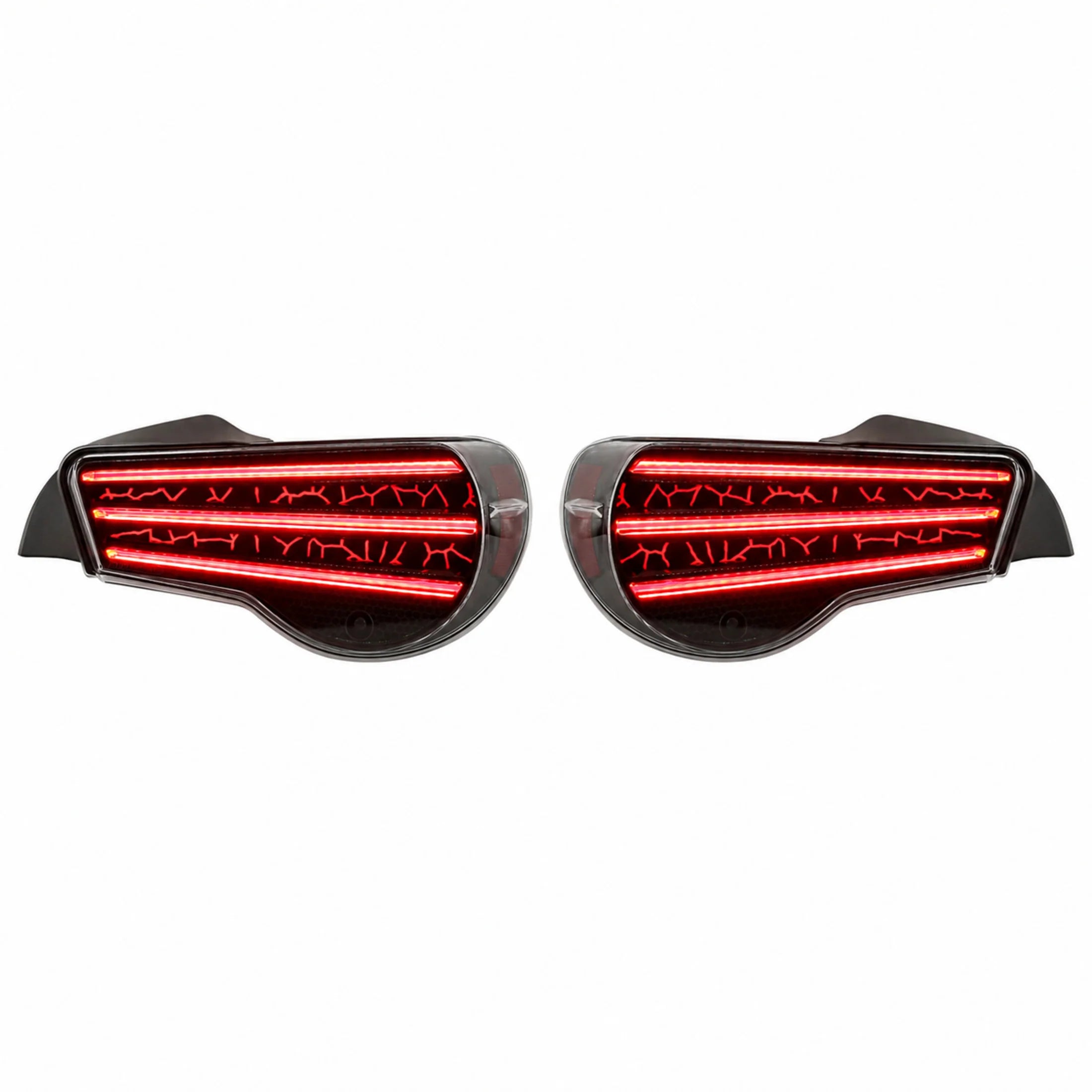

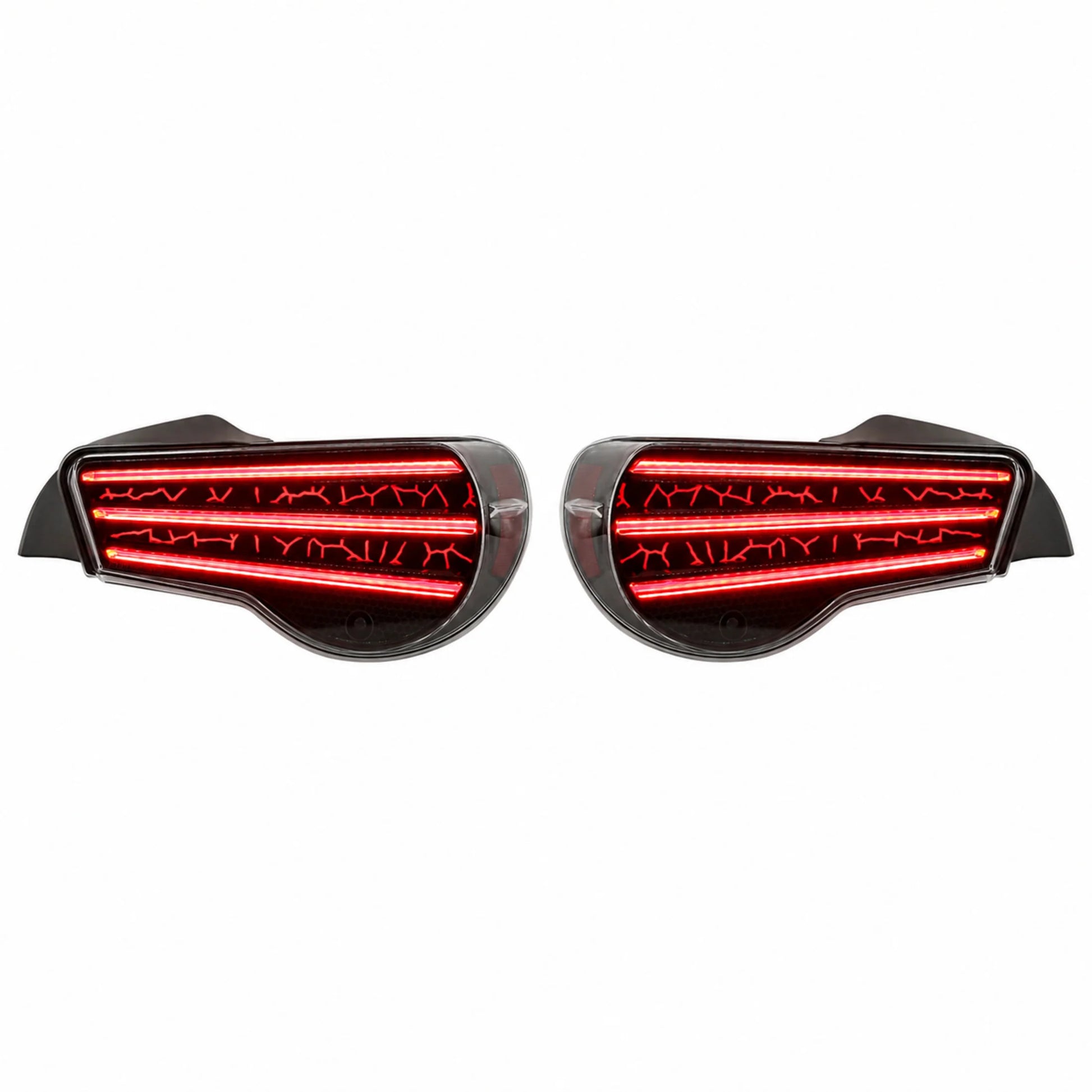

Smoked Red · T-GT86-SR
Smoked lens, Red LED bars

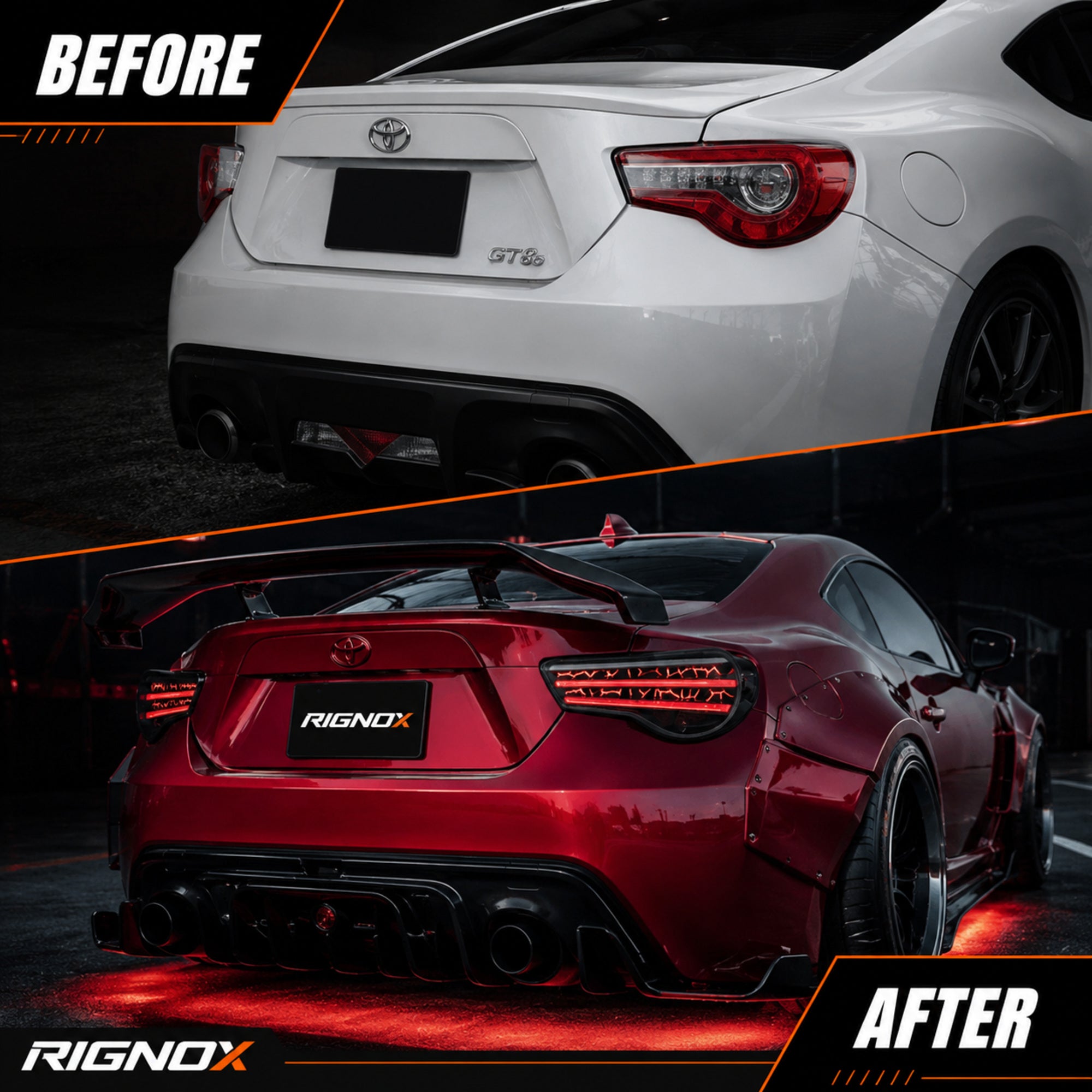

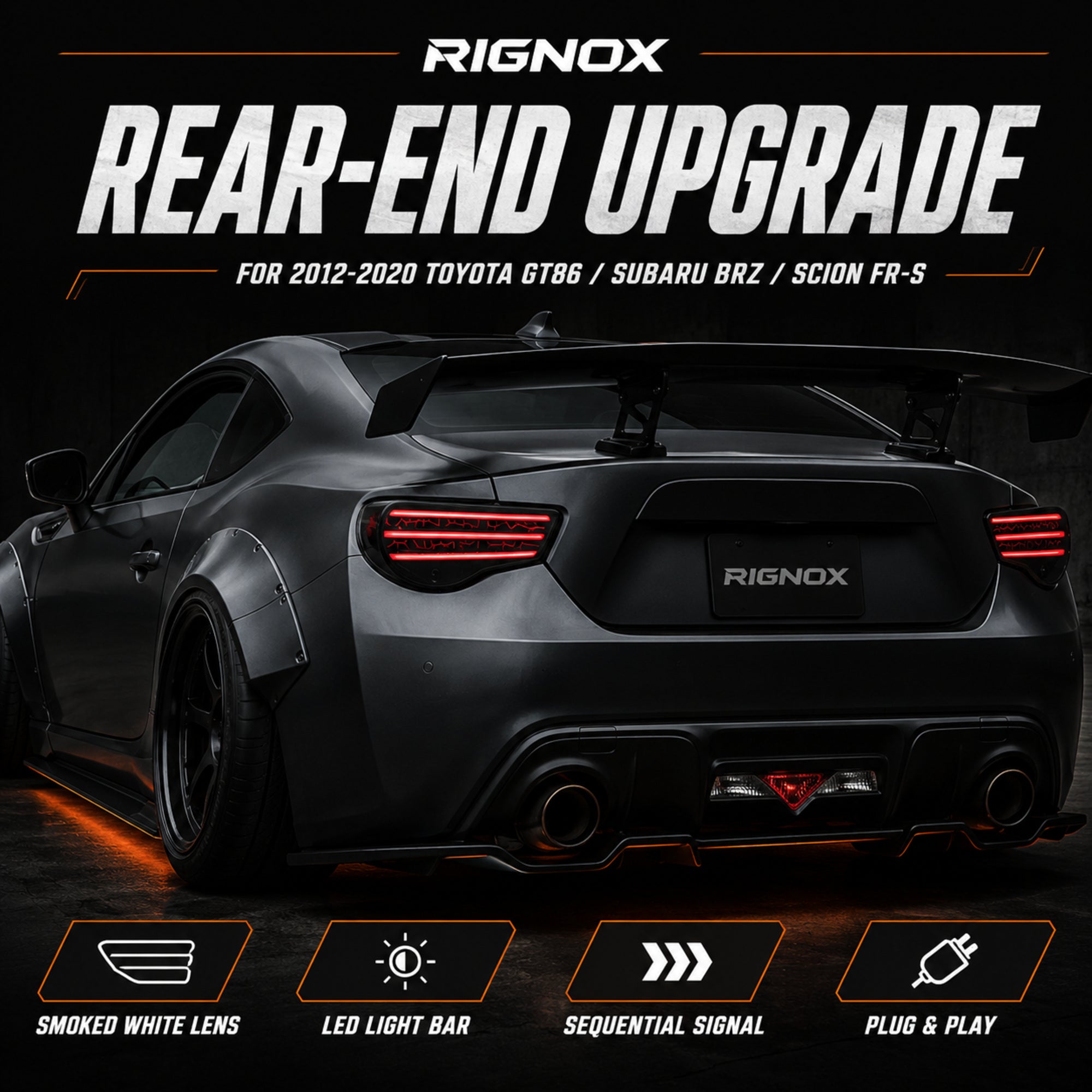

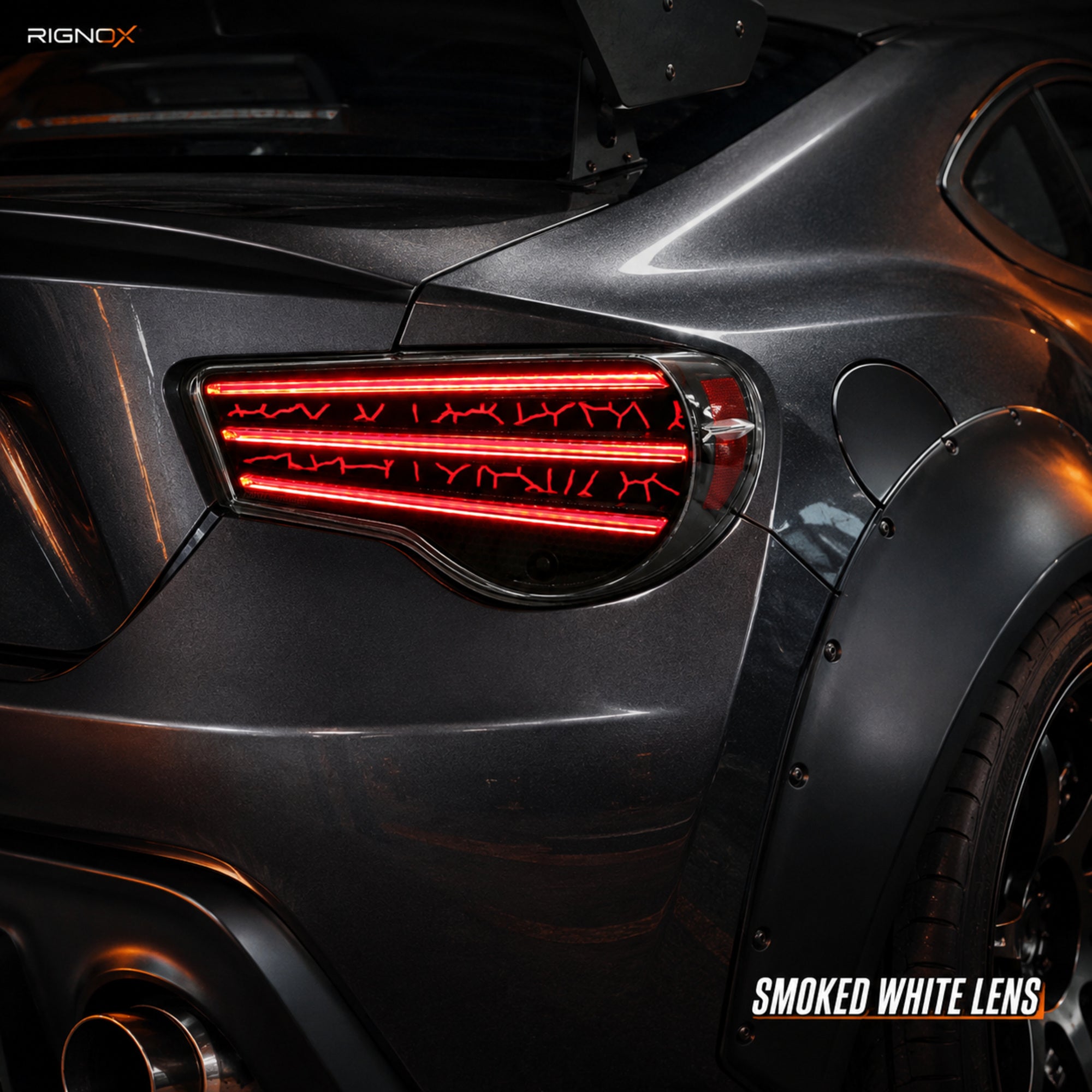

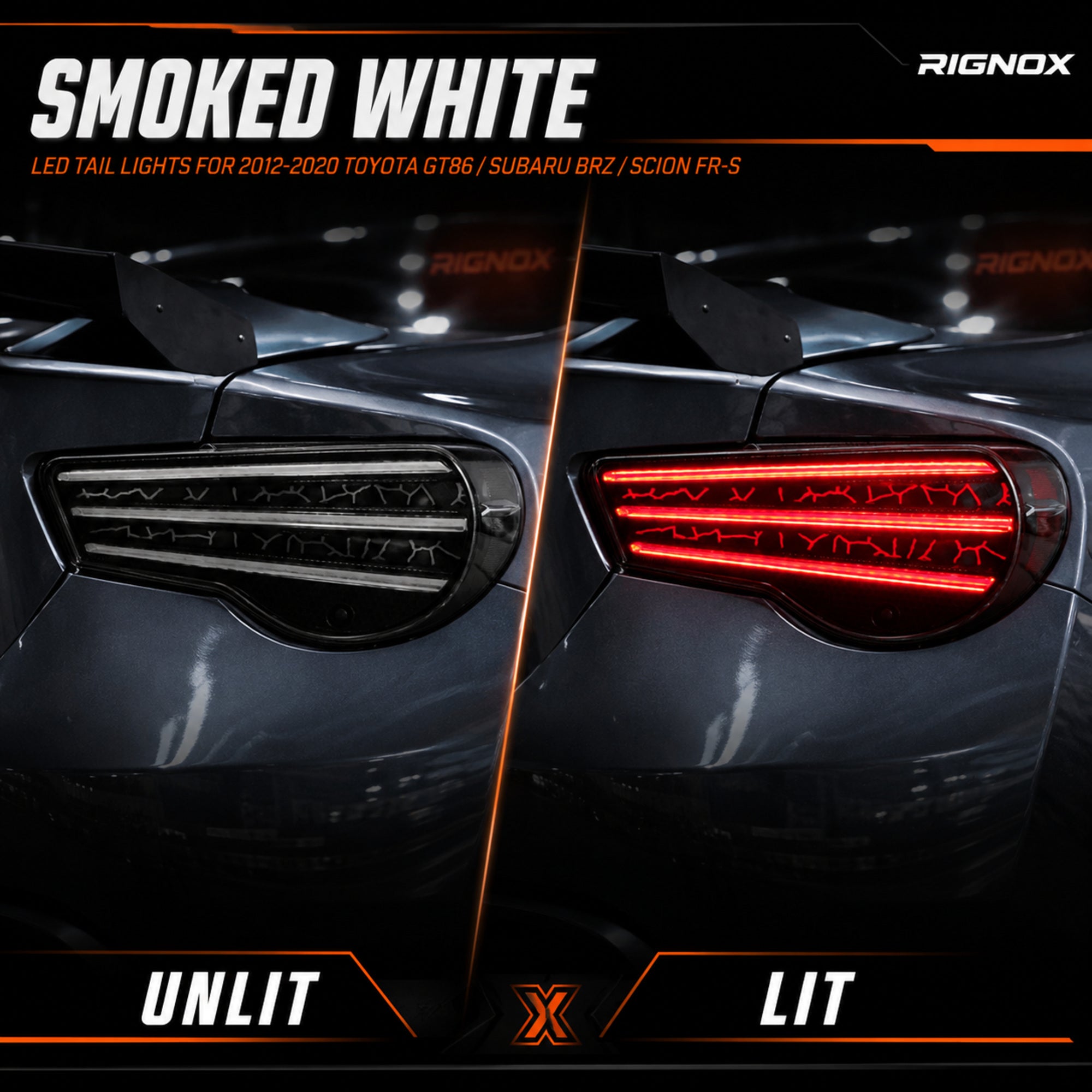

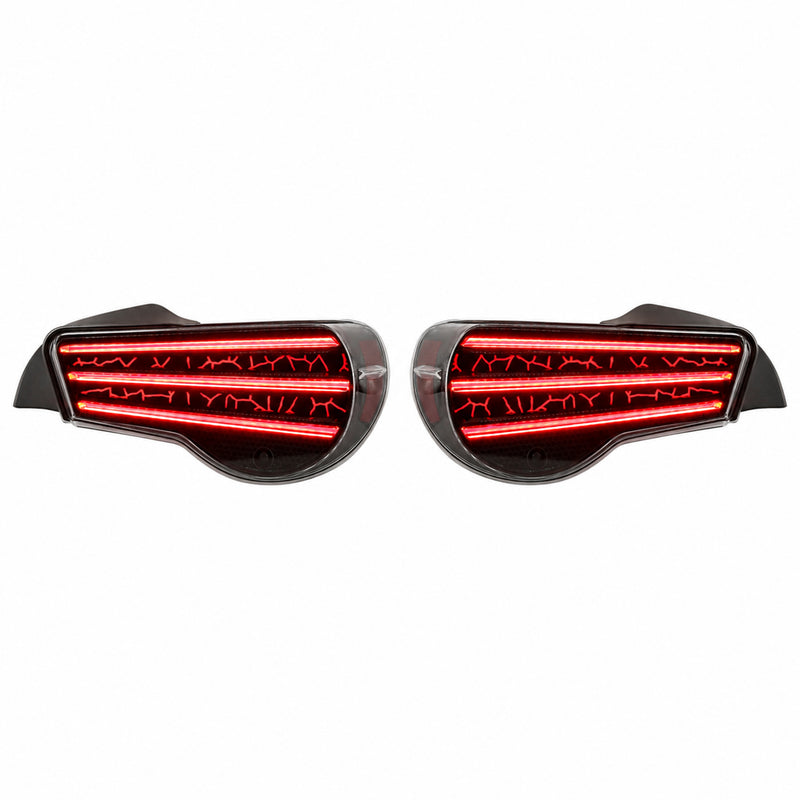

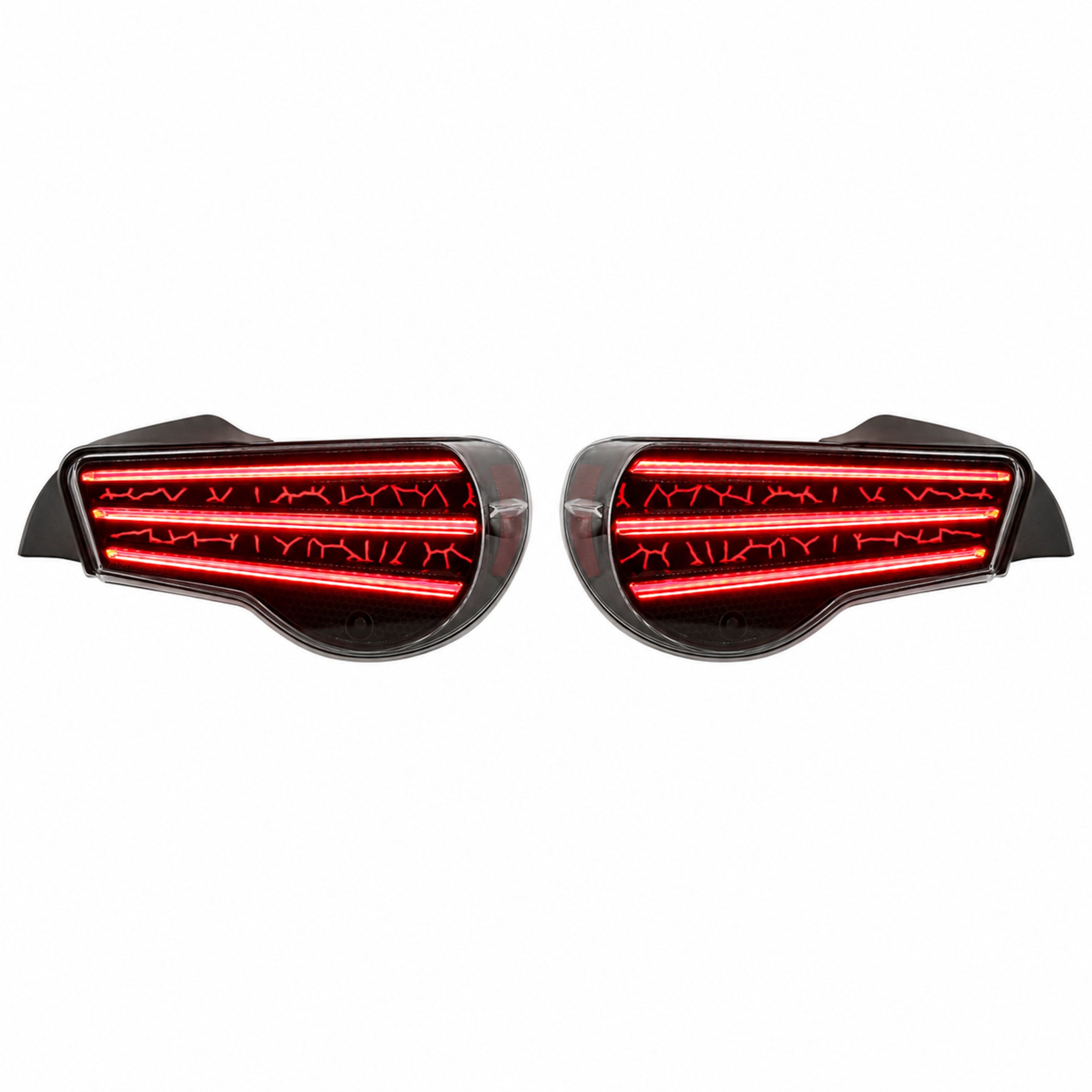

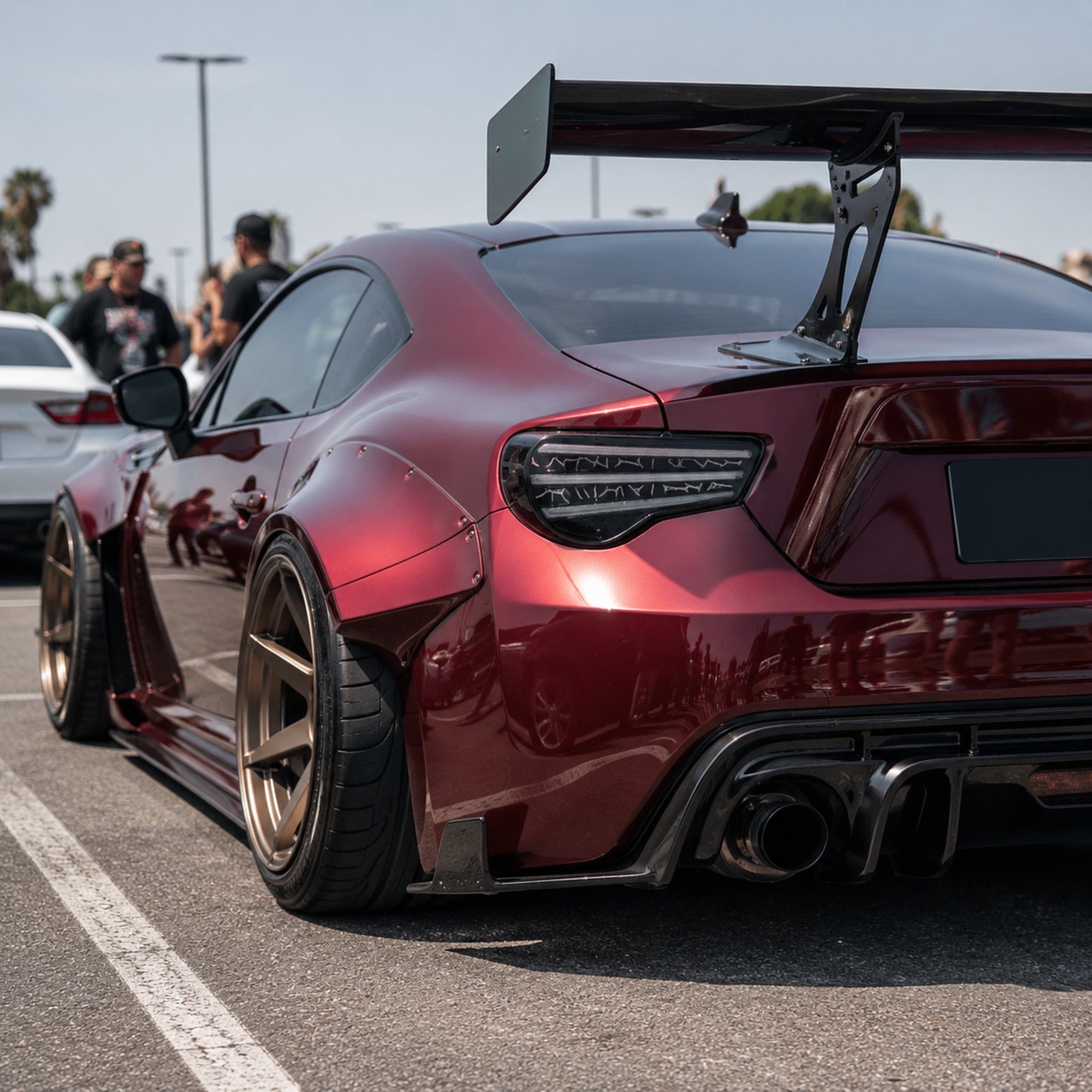

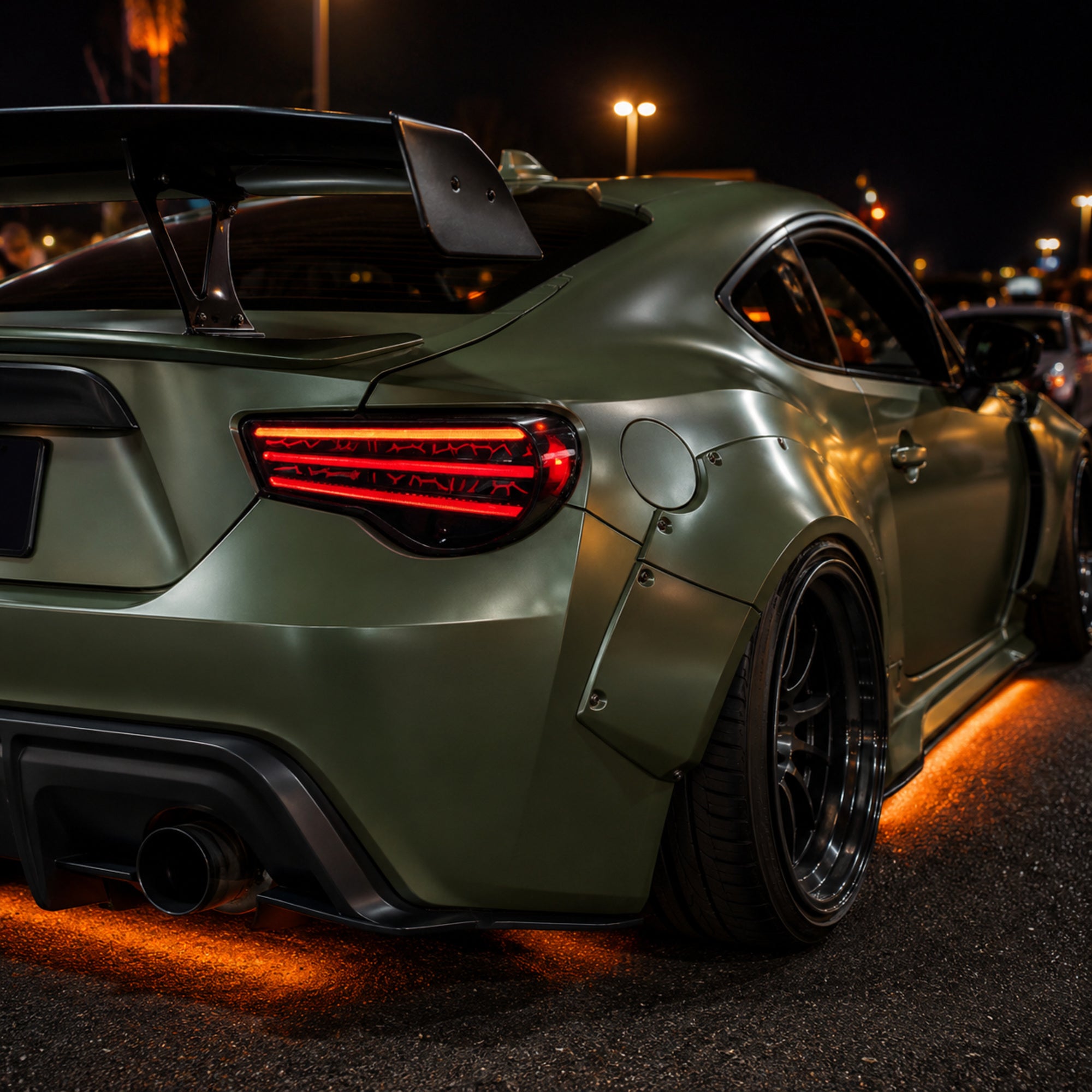

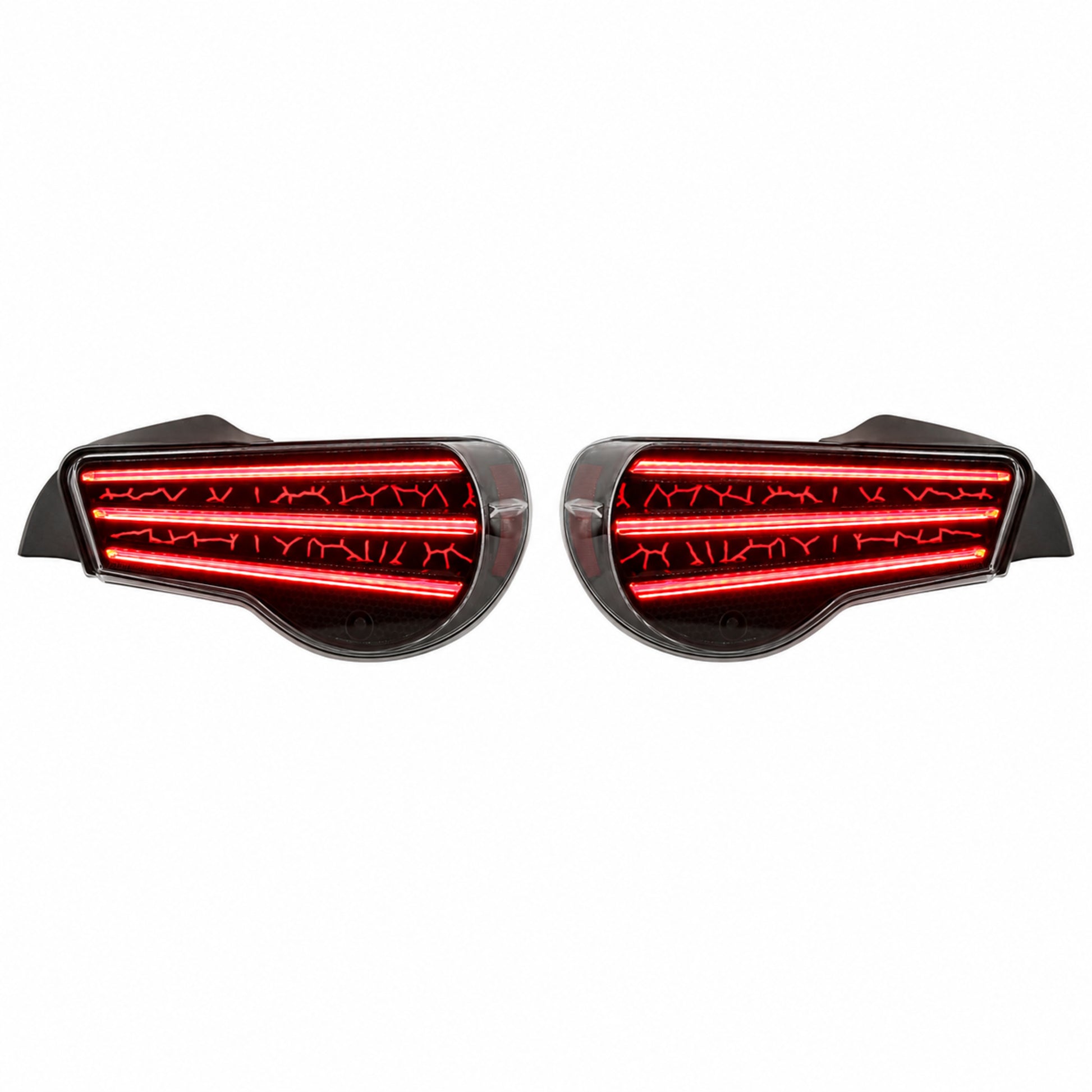

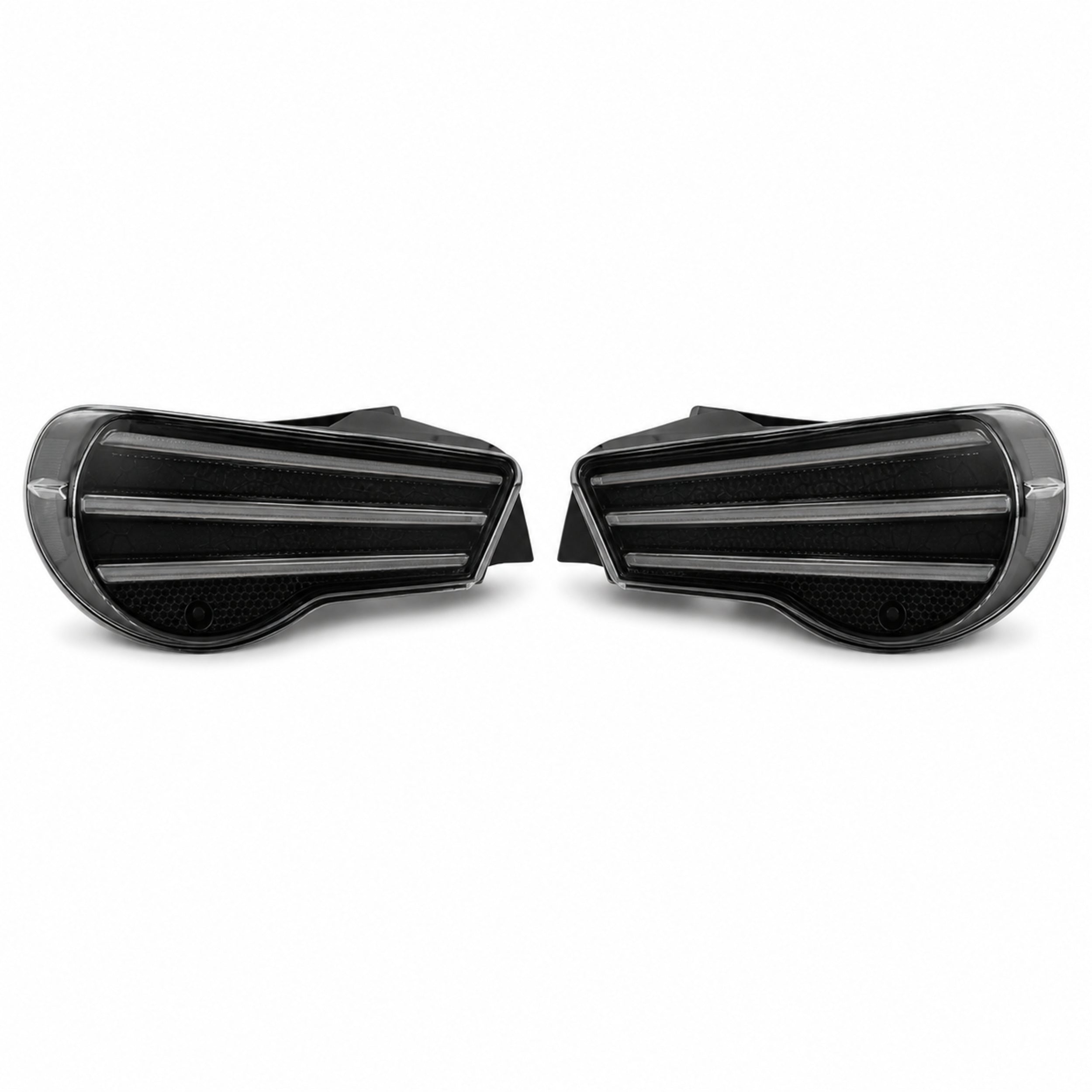

Smoked White · T-GT86-SW
Smoked lens, White LED bars

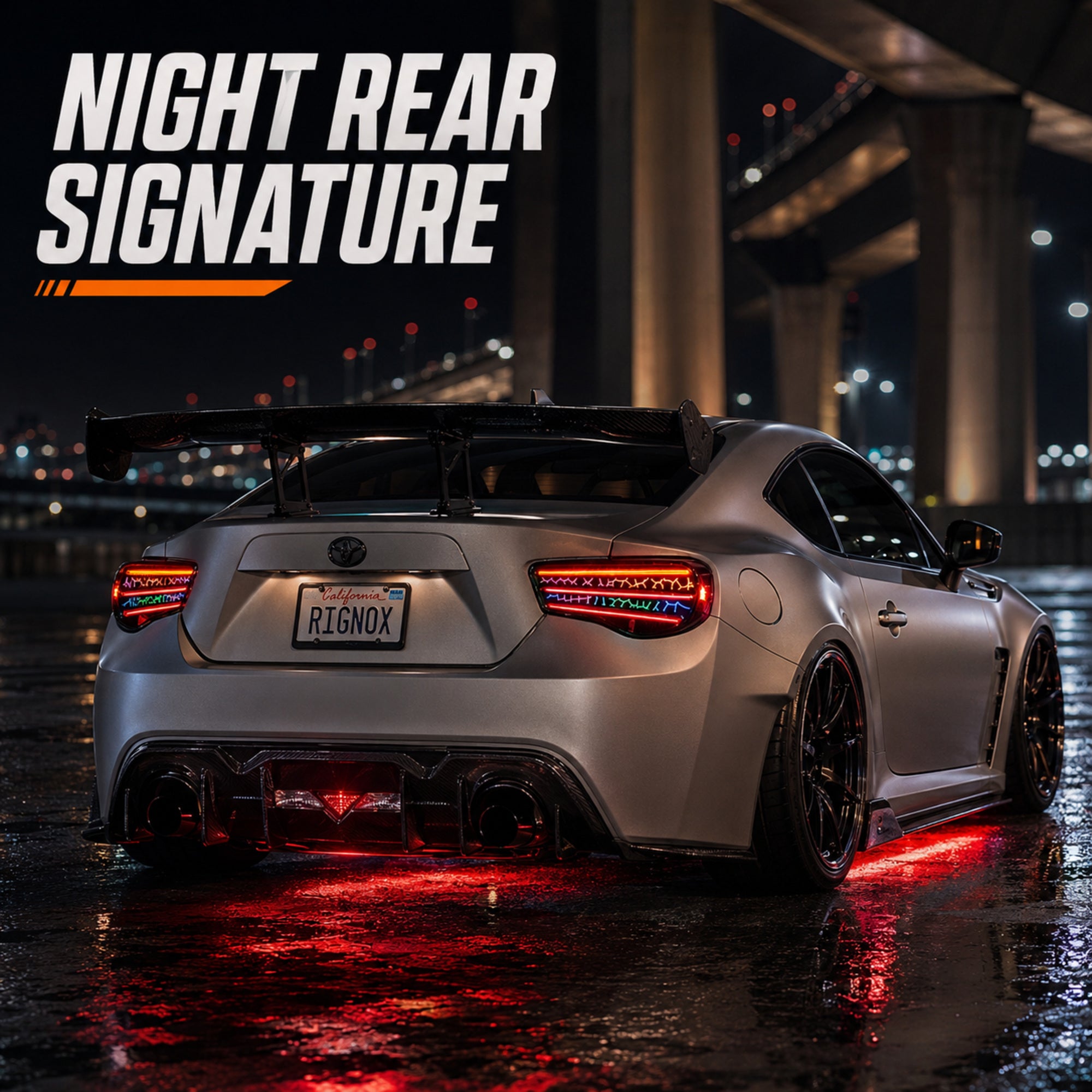

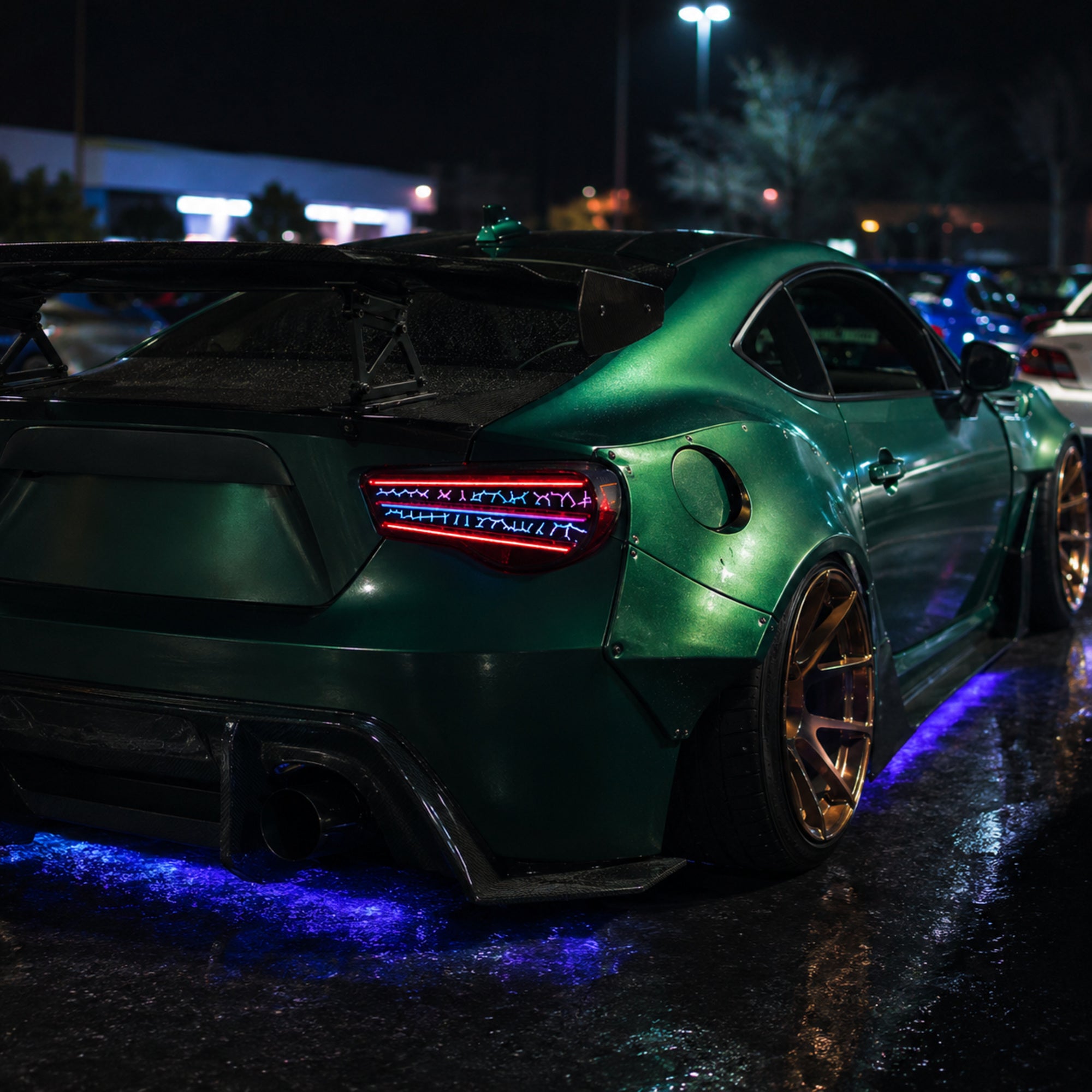

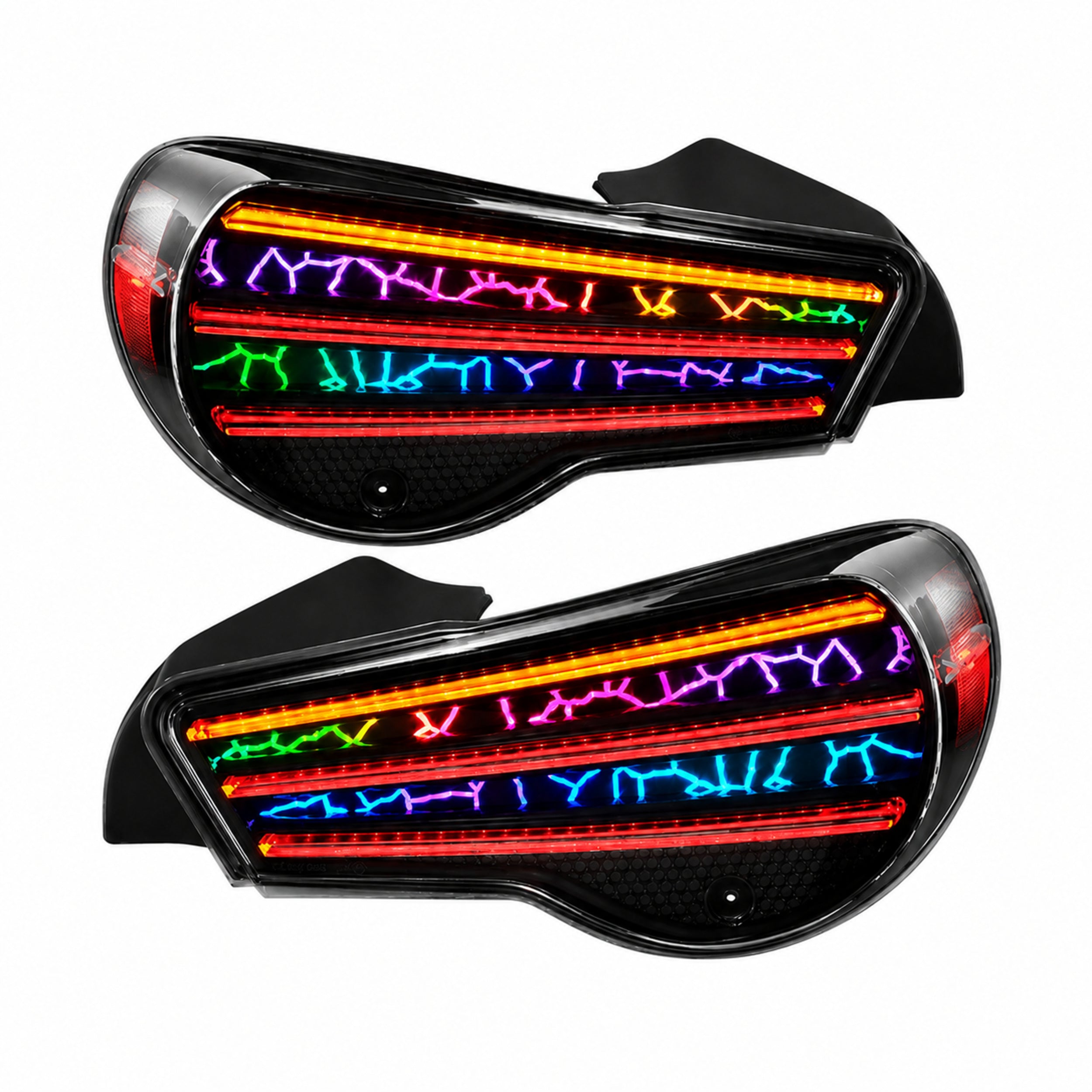

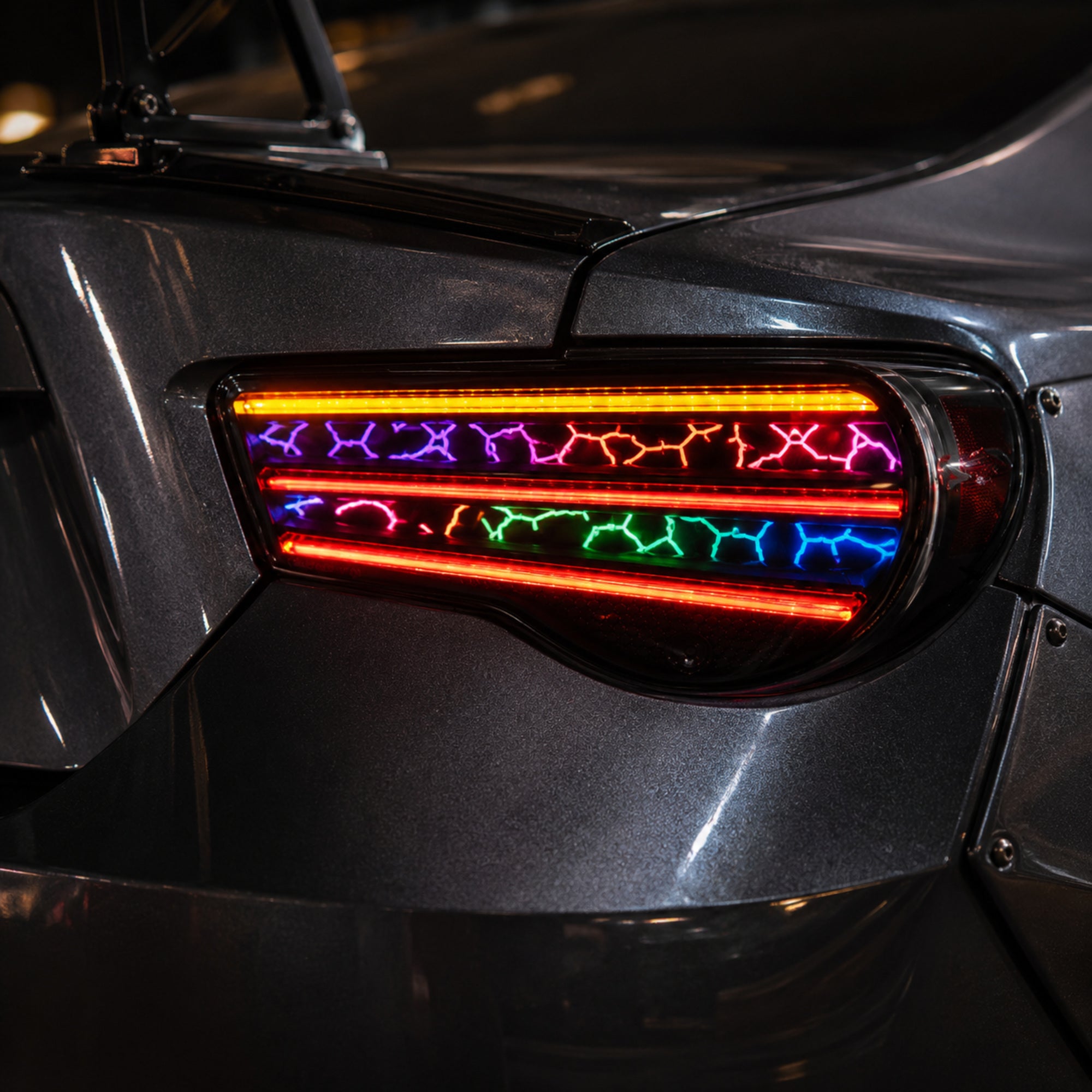

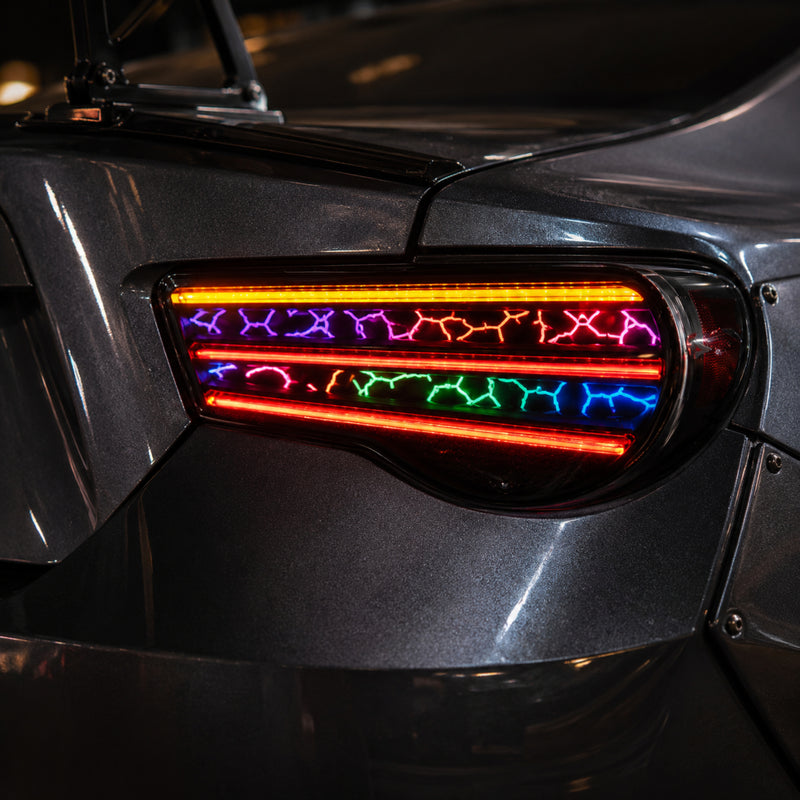

Smoked RGB w/ APP Control · T-GT86-SRGB
Smoked lens, RGB LED bars — Happy Lighting app

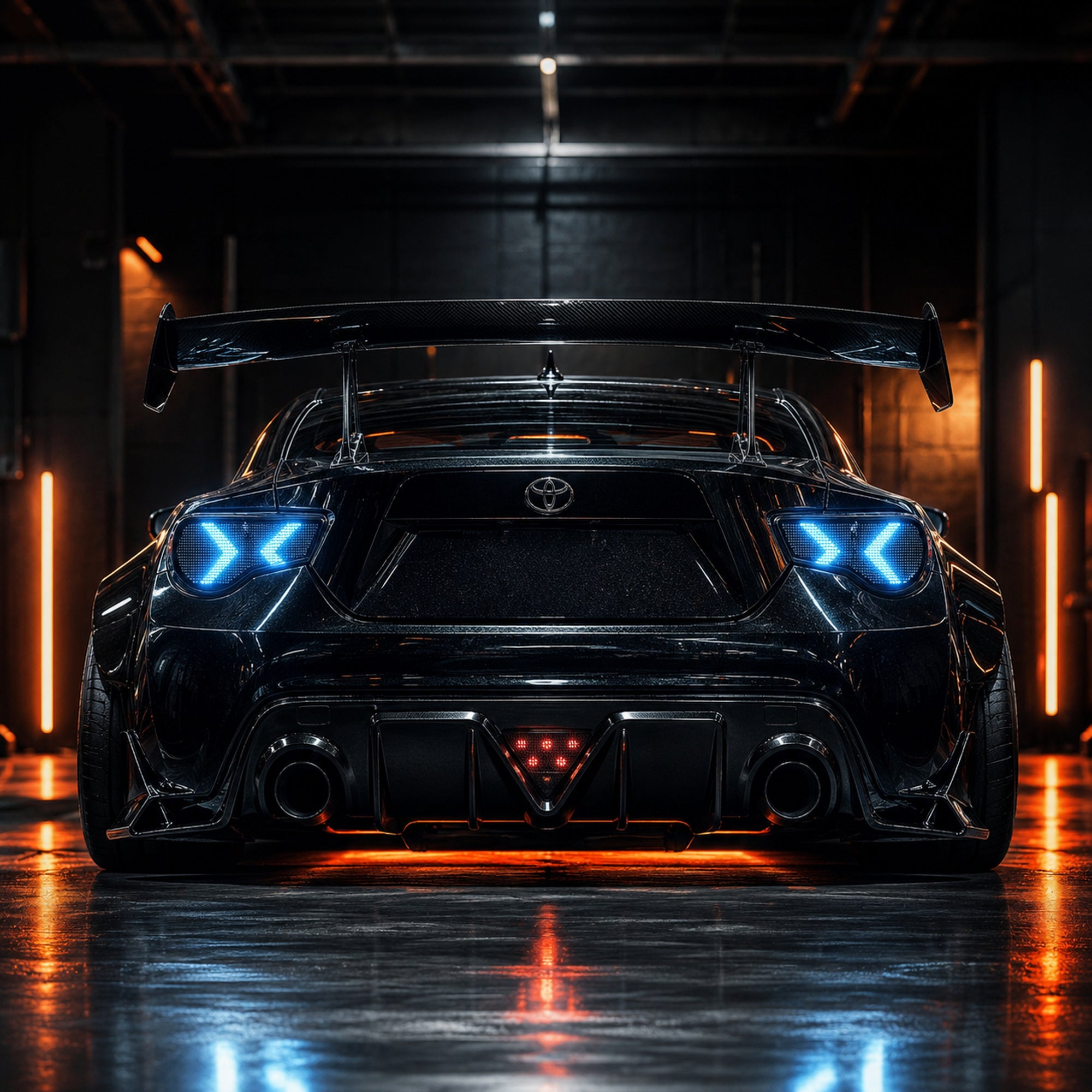

Smoked Digital w/ App Control · T-GT86-SDG
Smoked lens, Digital LED bars — Star Light Running app
Build
Housing & Materials
Black housing, anti-UV polycarbonate lens that won't yellow, pressure-equalizing breather vents
Light Source
Solid-state LED — no filament to burn out, and no warm-up lag
LED Lifespan
50,000 hours
Power Draw
Uses 70% less power than an equivalent halogen assembly
Cooling
Aluminum heat-sink base with a temperature-control IC that holds output steady over time
Weather Sealing
IP67 — sealed against rain, dust, and road spray
Tested For
Water, dust, corrosion, and shock resistance

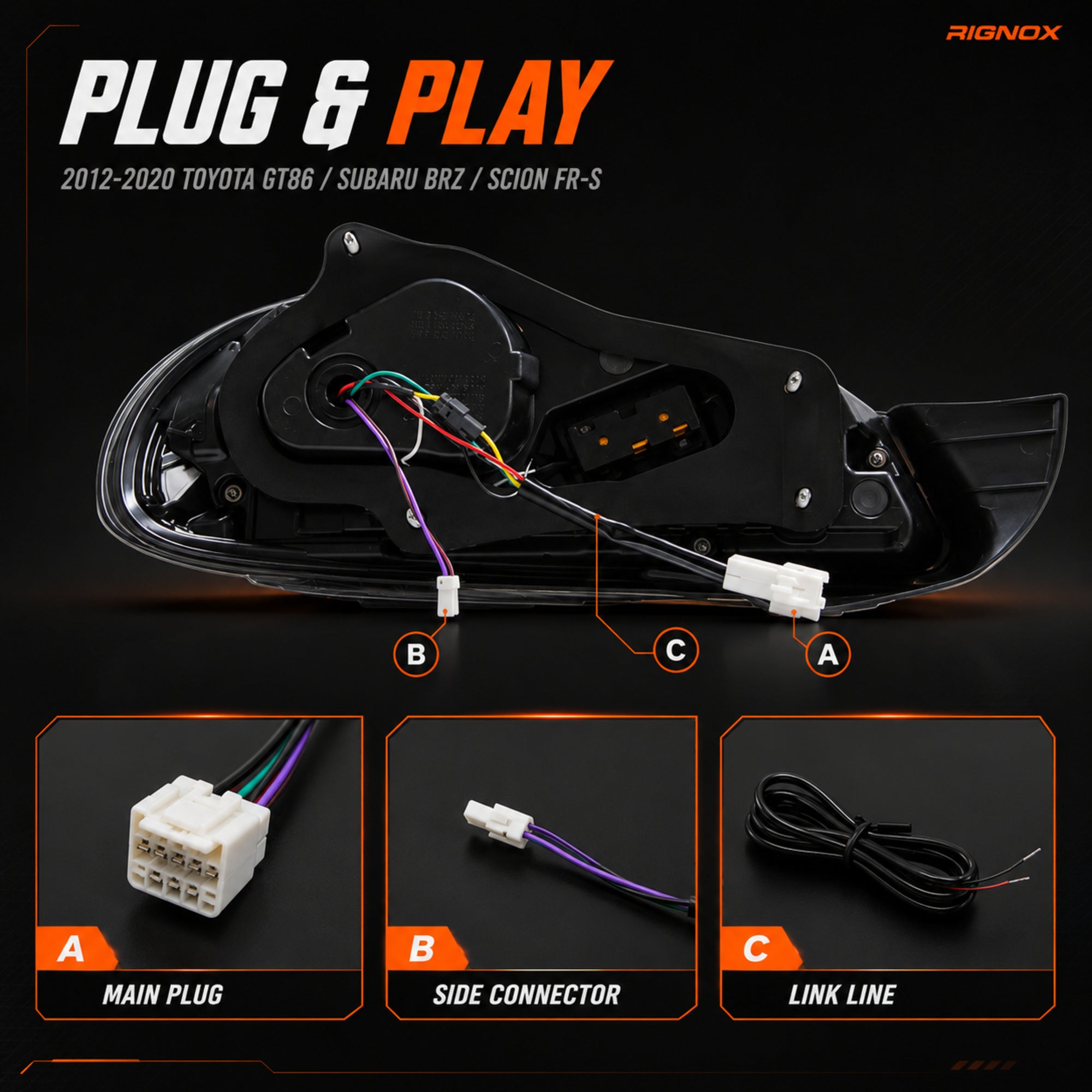

Installation

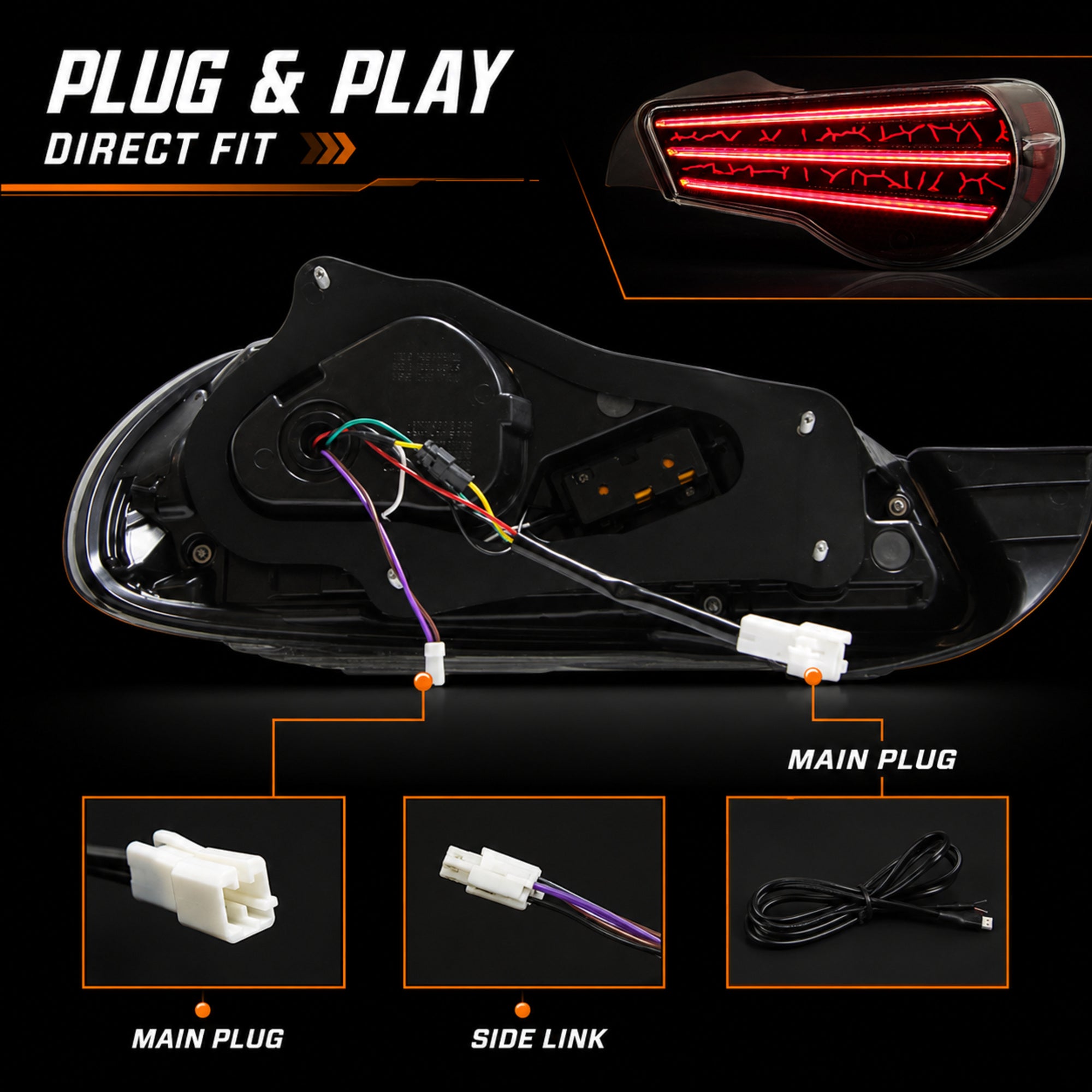

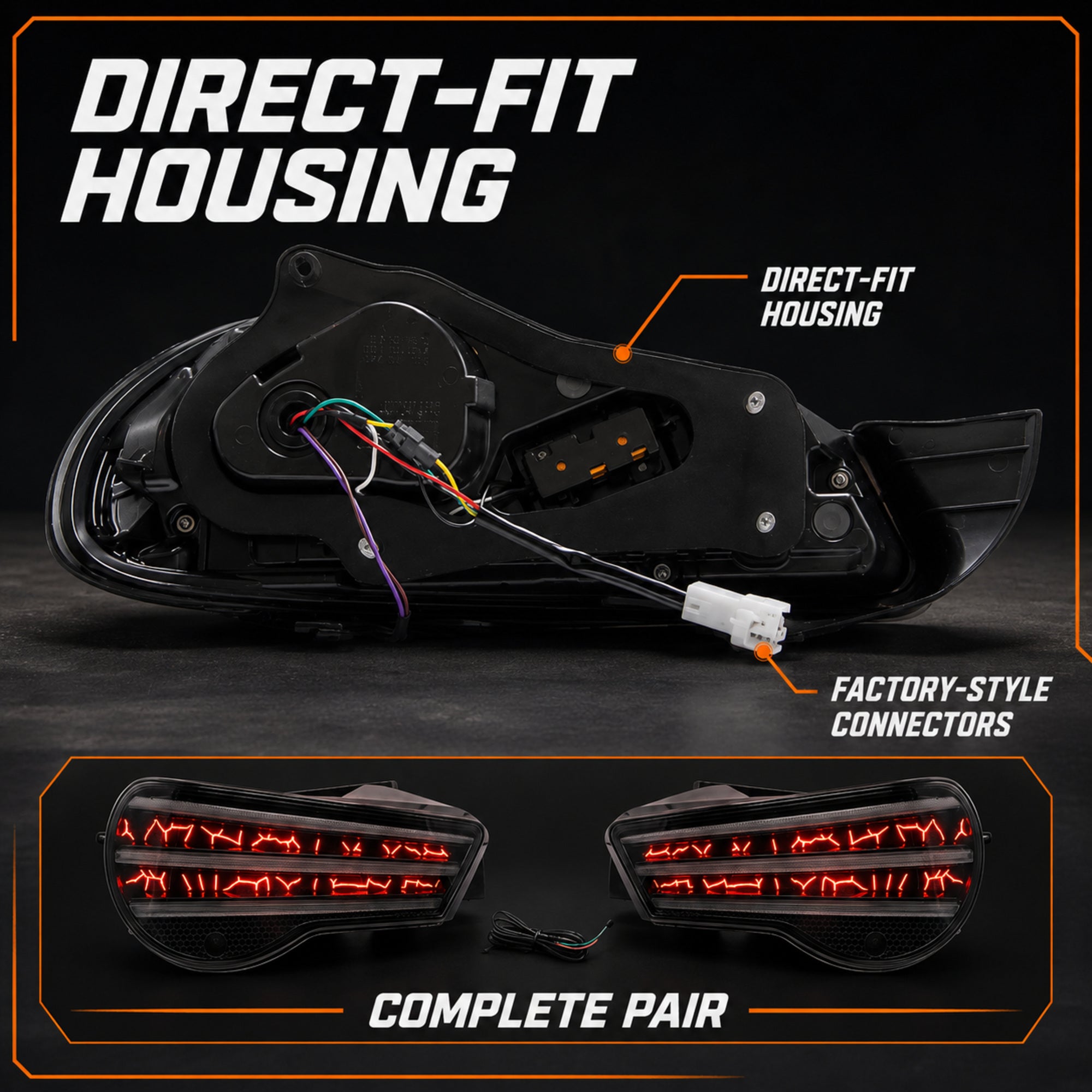

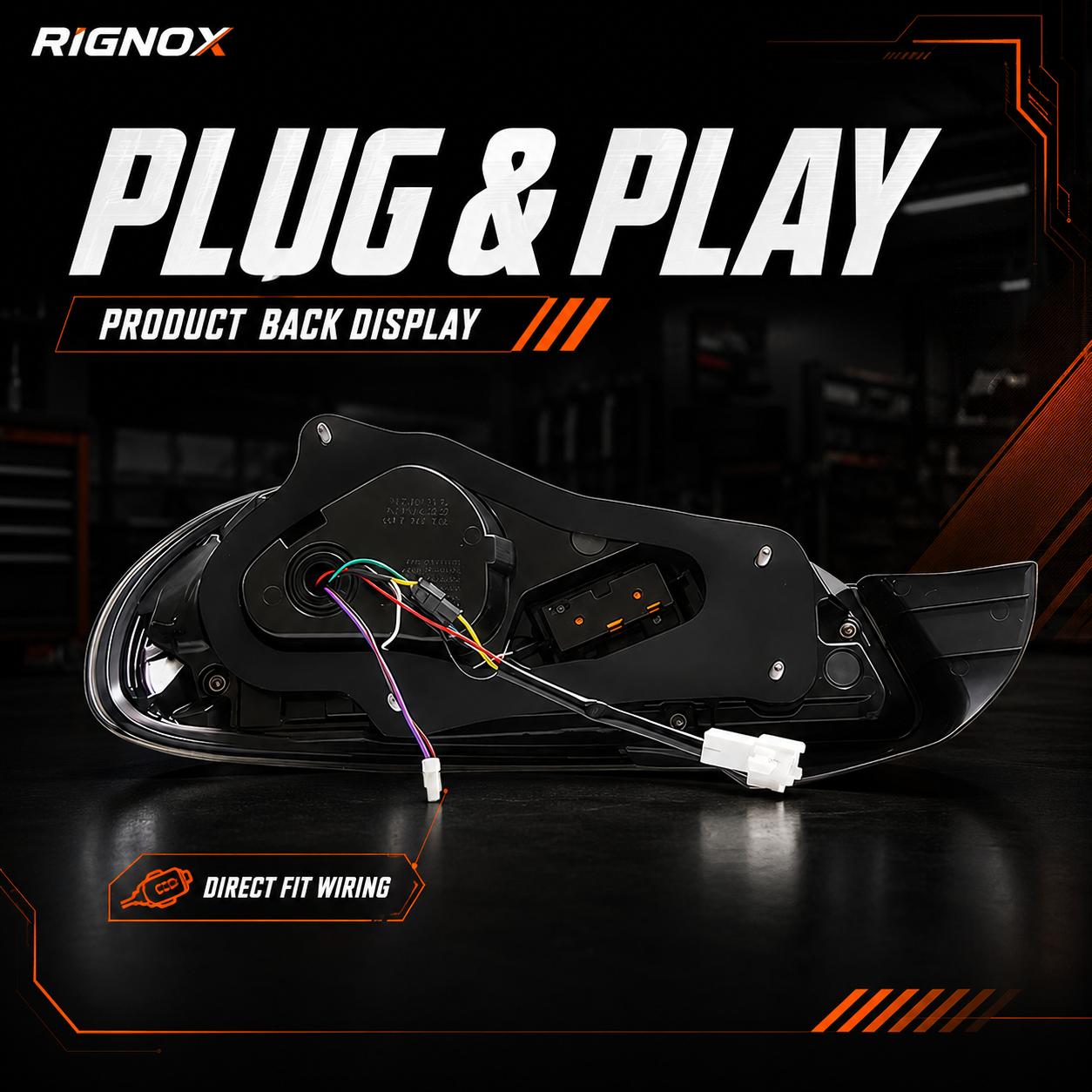

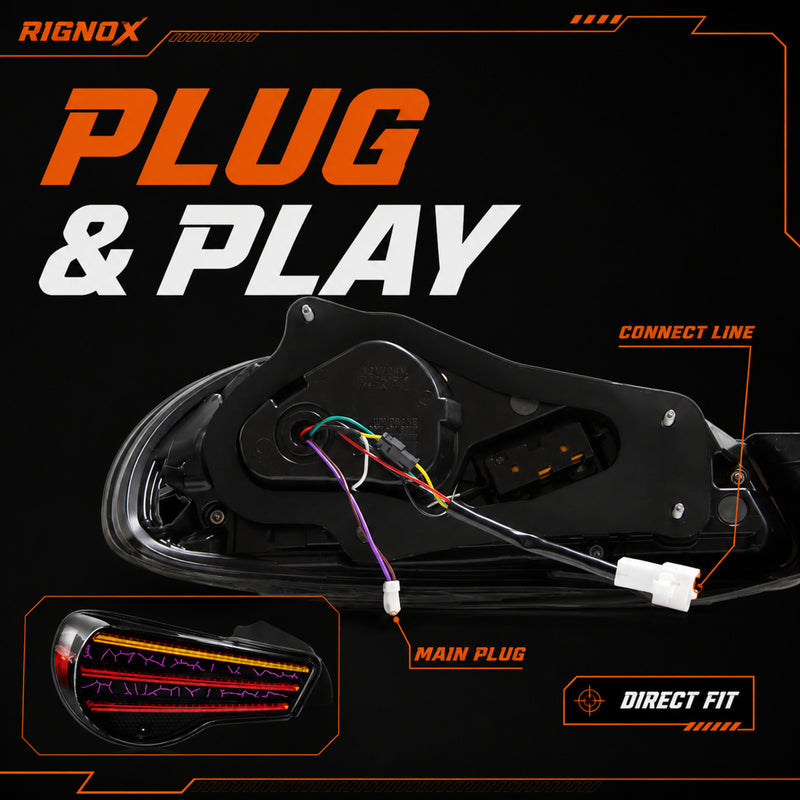

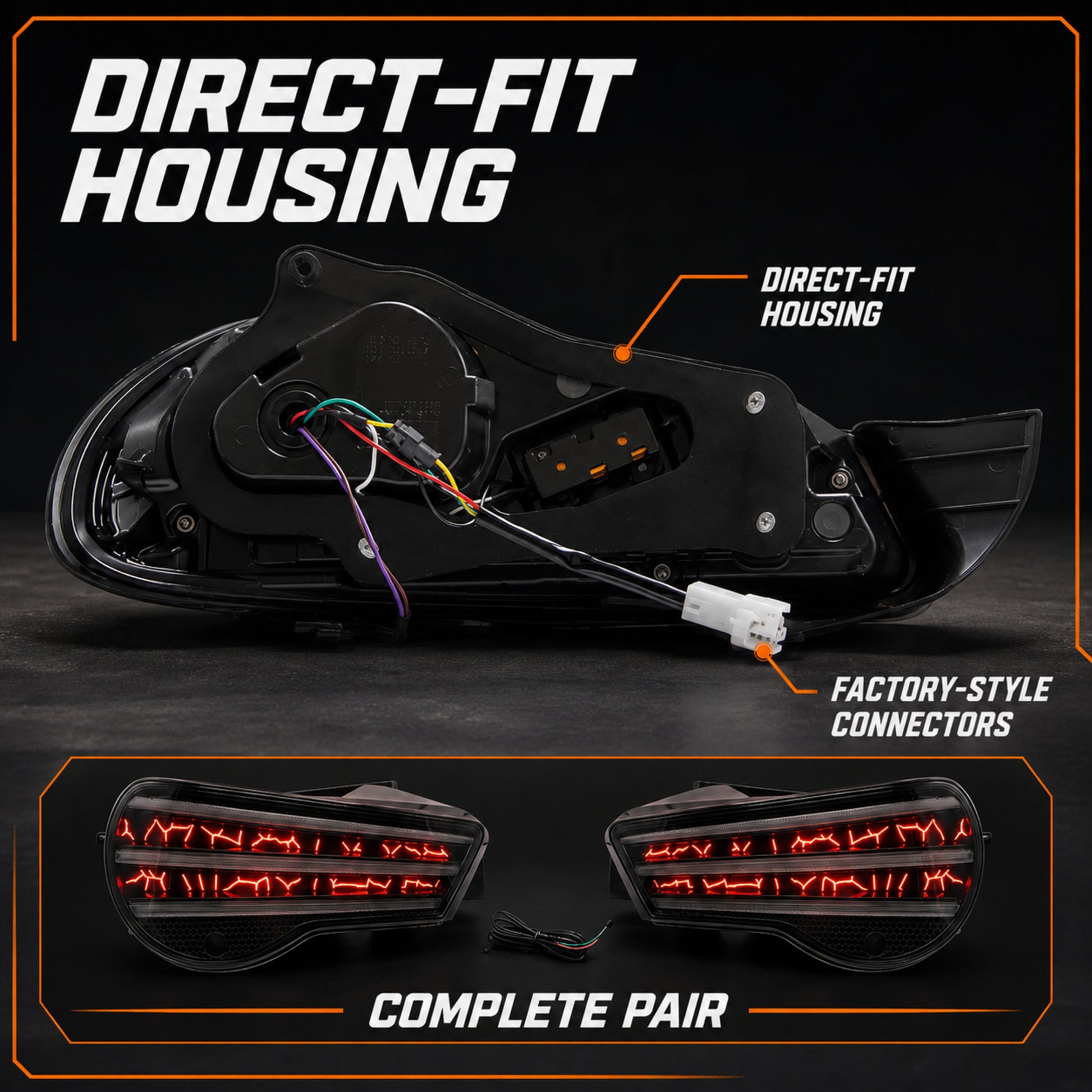

Plug-and-play into the factory harness, with built-in CANBUS decoders and an LED flash relay — no cutting, no splicing, no hyper-flashing, no dash errors
Guides and Documents
- Installation Instructions
- Fitment Guides
Get Seen. Get Noticed. Put On a Show.

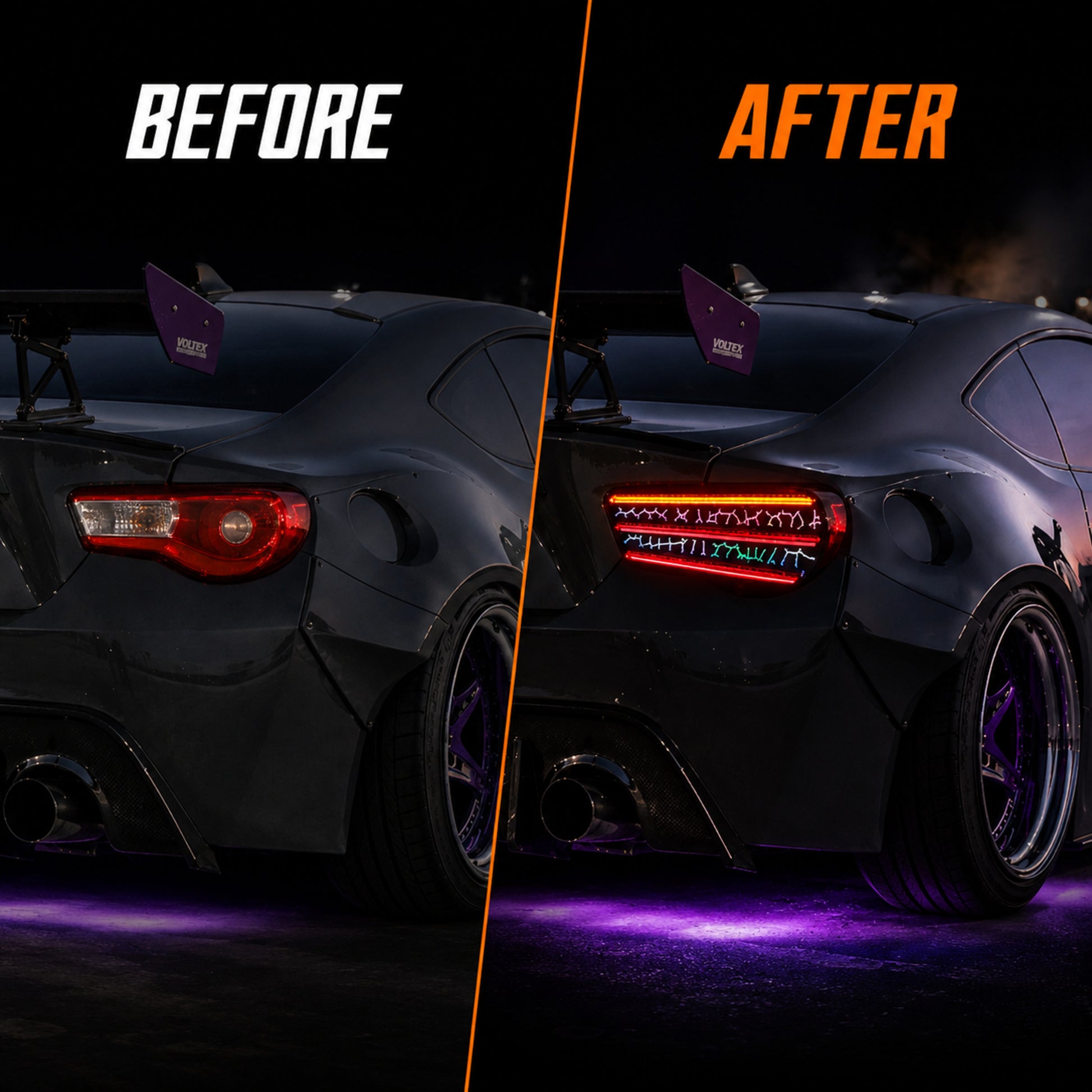

Four things separate a RIGNOX tail light from a stock housing: the signature you wear, the finish that lasts, the brake light that registers sooner, and the show it runs at night.Any Color You Want, Over Bluetooth

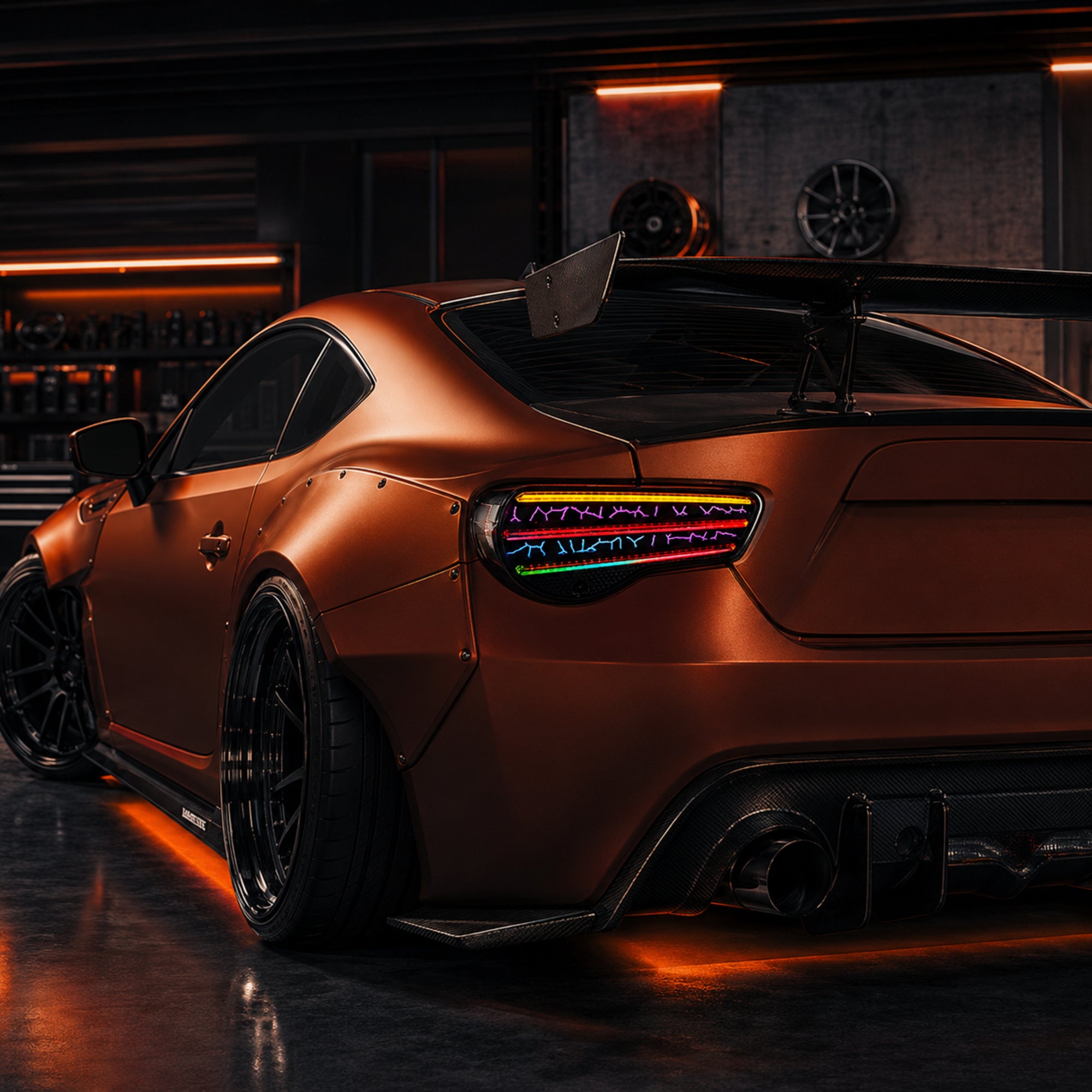

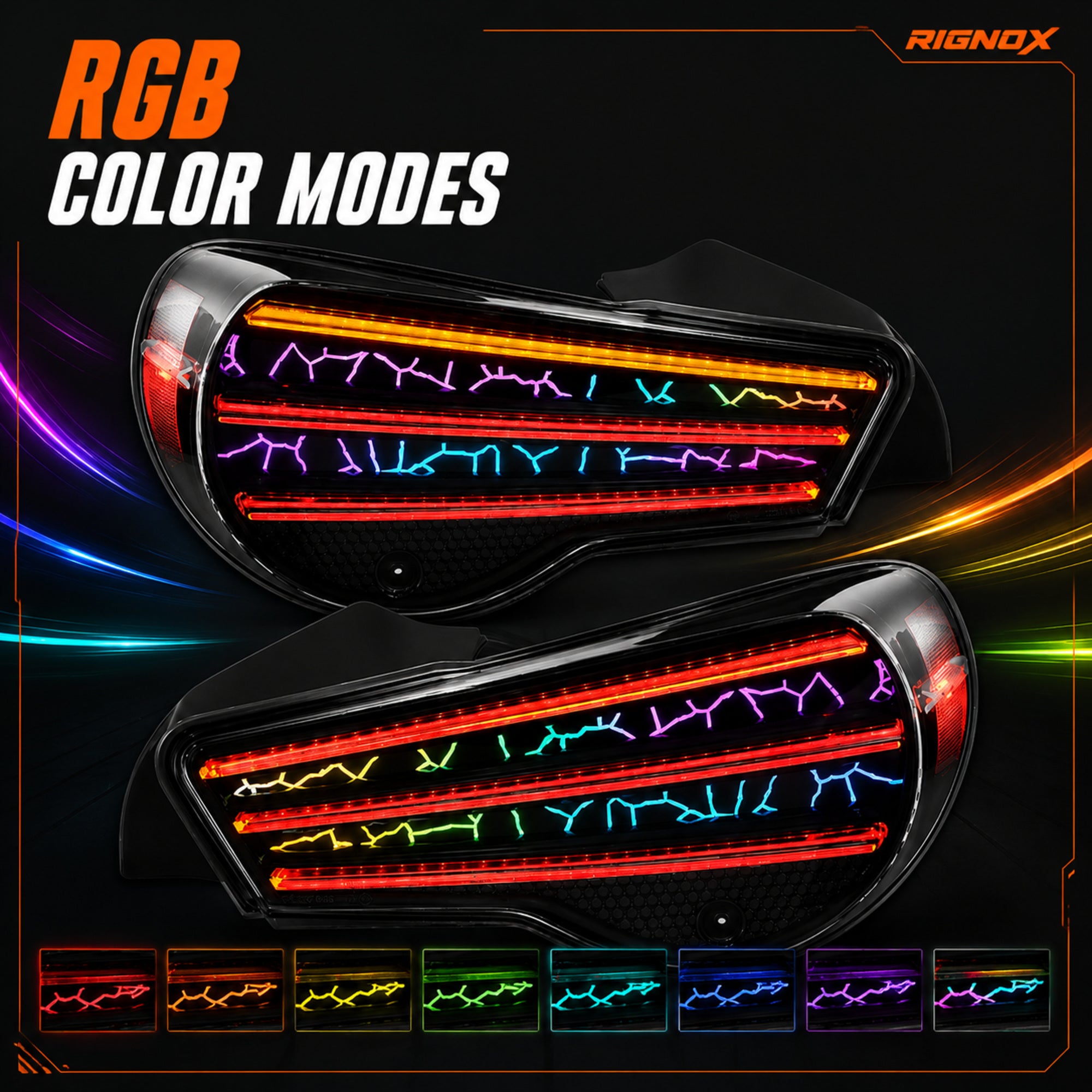

Applies to: Smoked RGB w/ APP Control
Any Color, Anytime
Pair over Bluetooth with the free Happy Lighting app — pick any fixed color from the wheel or a preset to match your paint, your wheels, your mood. No extra controller, no wiring.

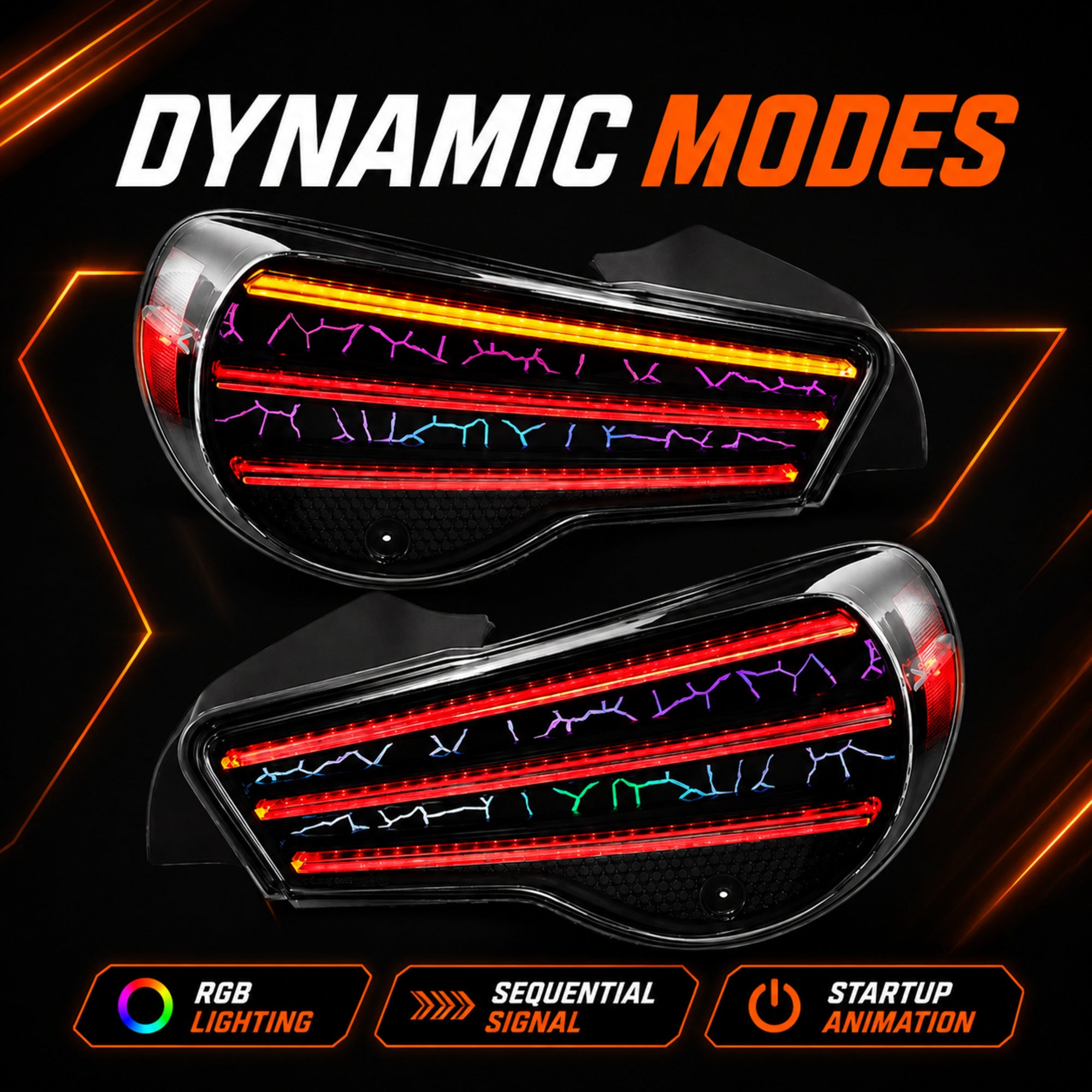

Living Animations
Run dynamic effects — flow, breathing, gradient, chase — across the light bar for a rear end that's never static.
Tuned to Taste
Slide to set animation speed and brightness until it's exactly the look you want.
Lights Stay Honest

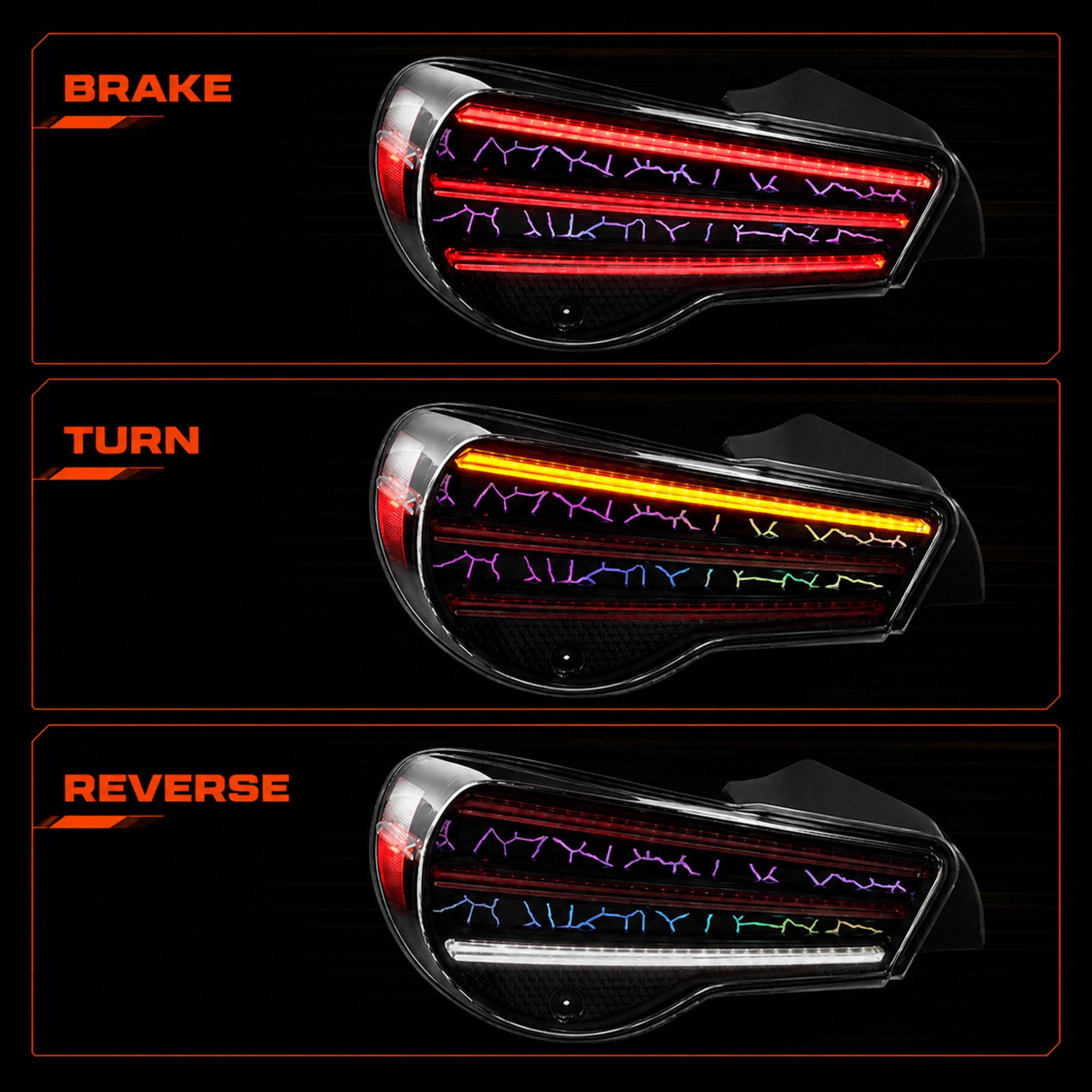

Brake, tail, turn, and reverse always run their correct DOT colors. Color is show; the safety signal is business.

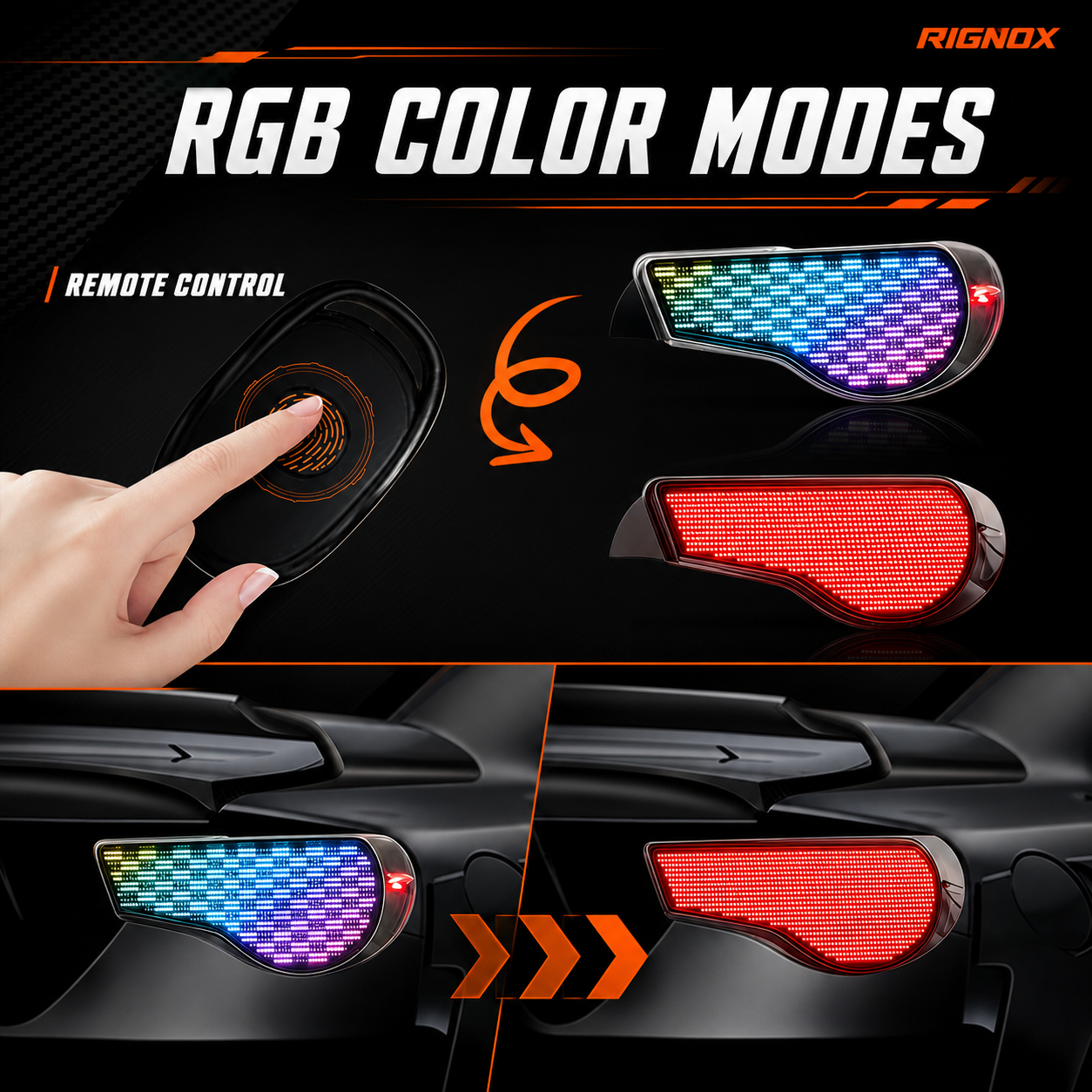

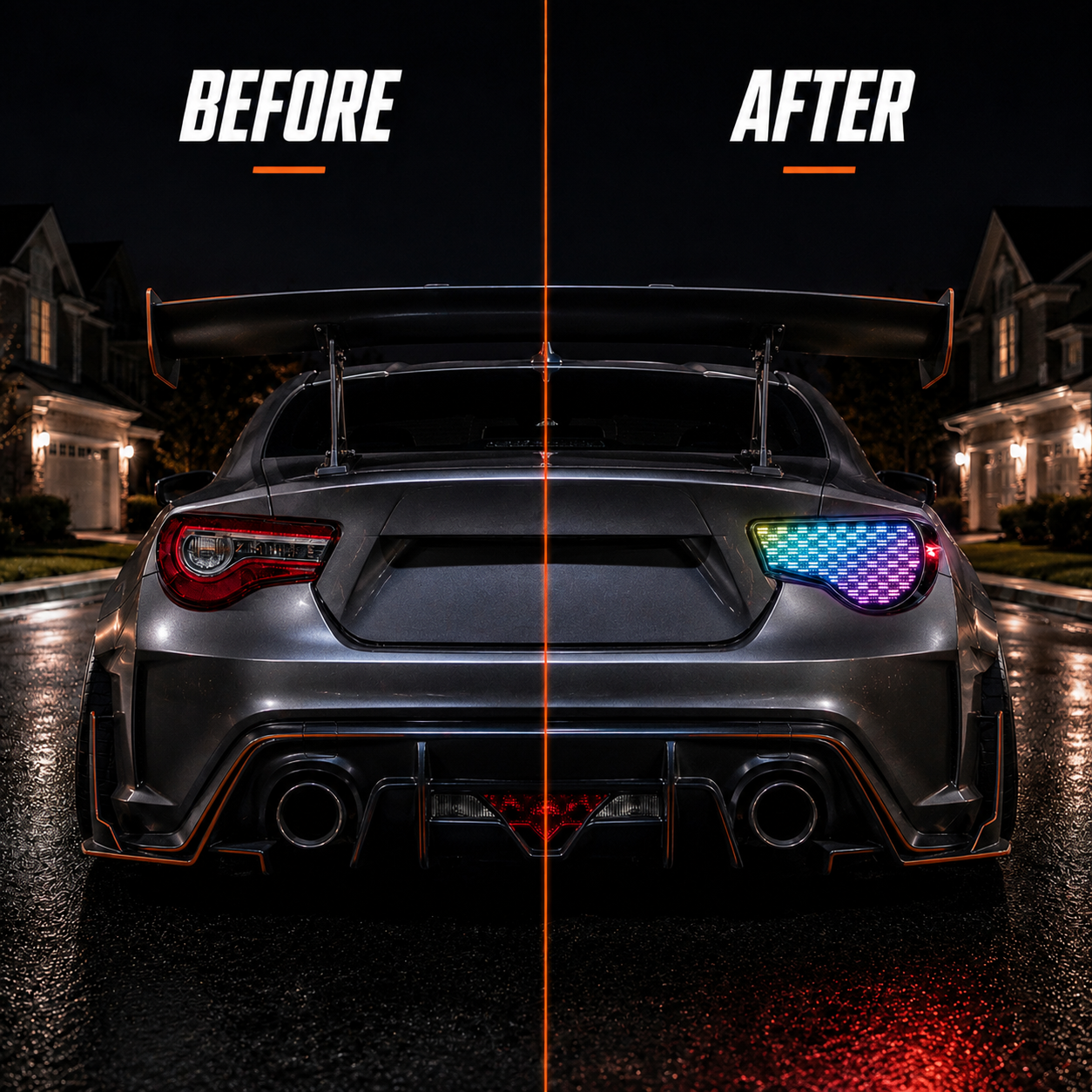

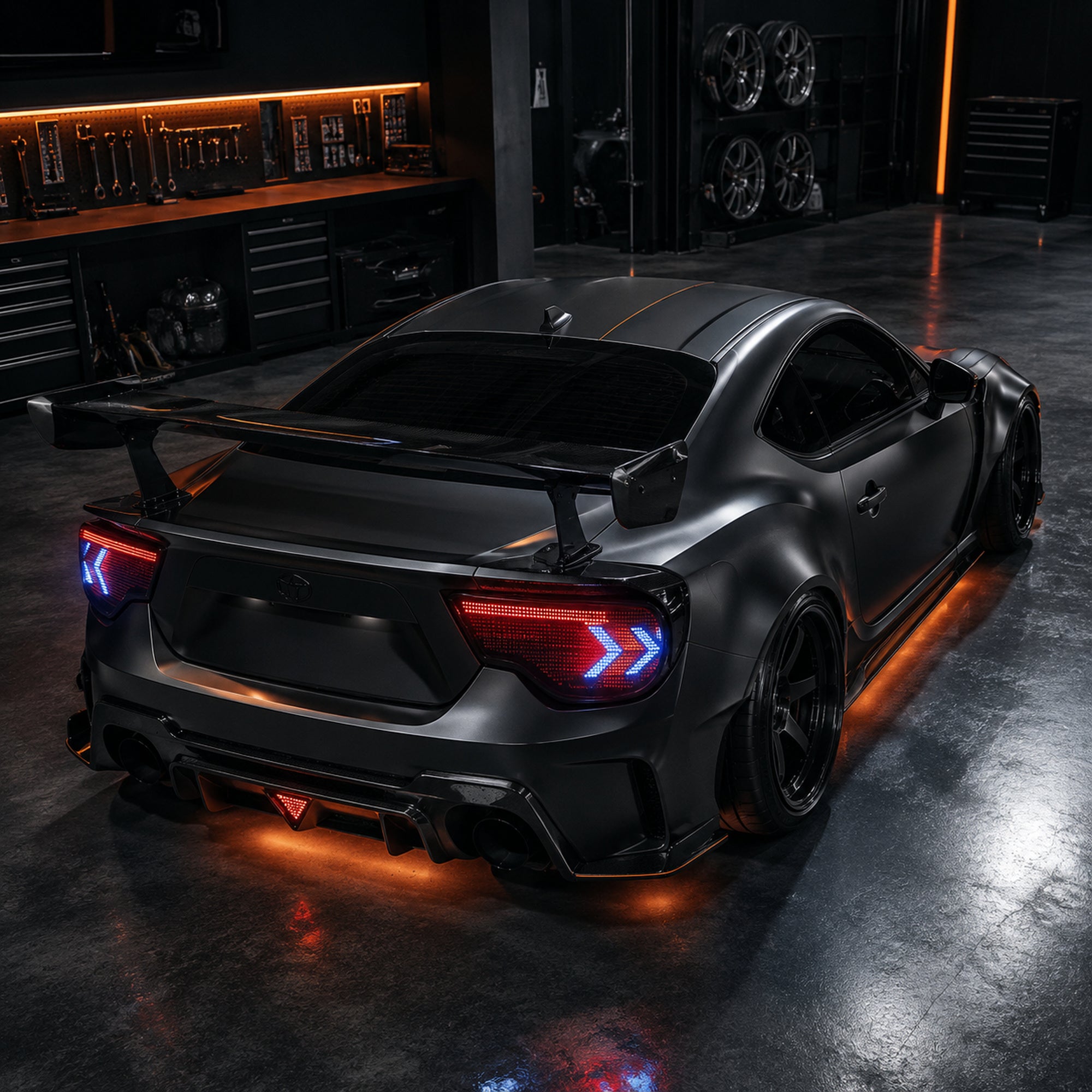

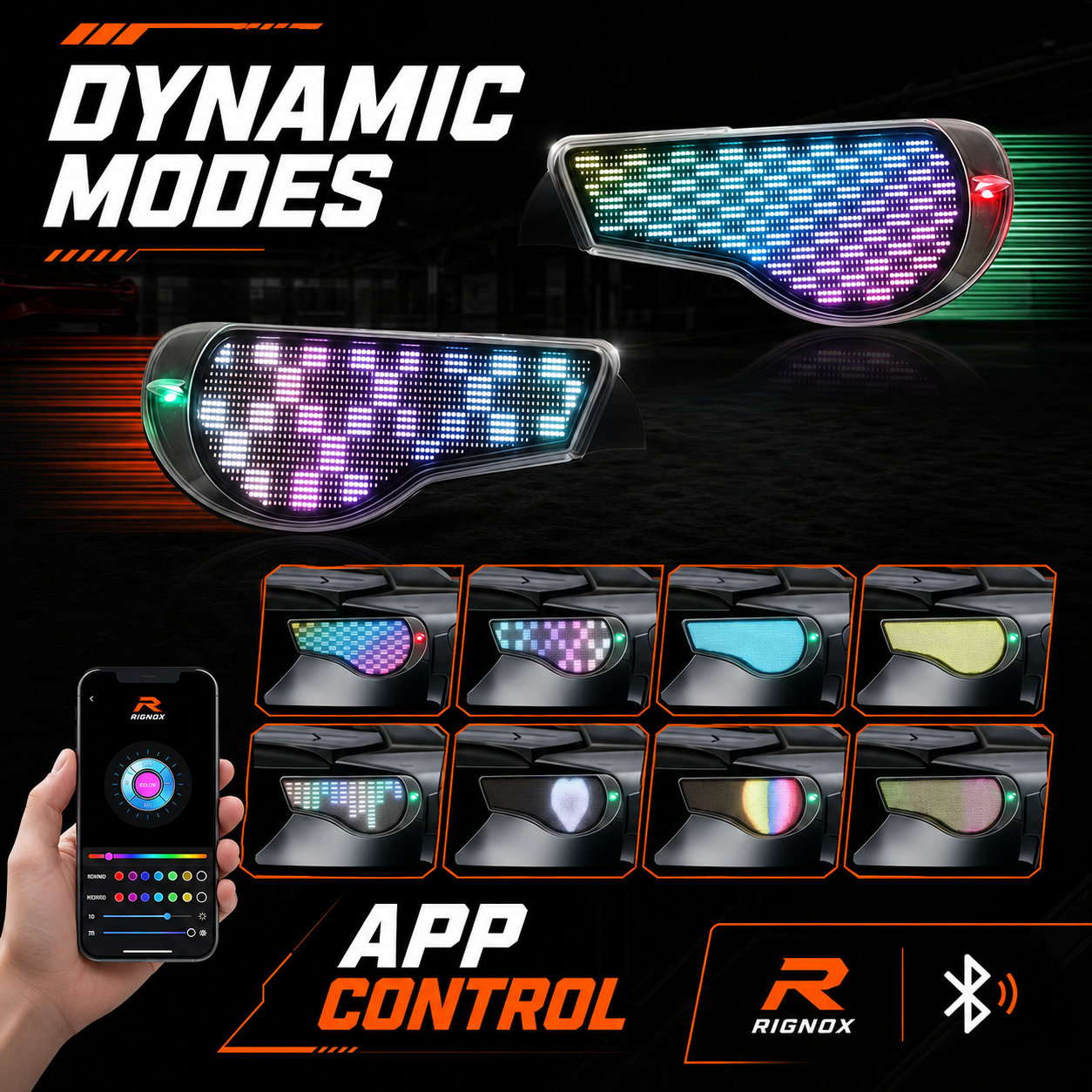

Programmable, Segment by Segment

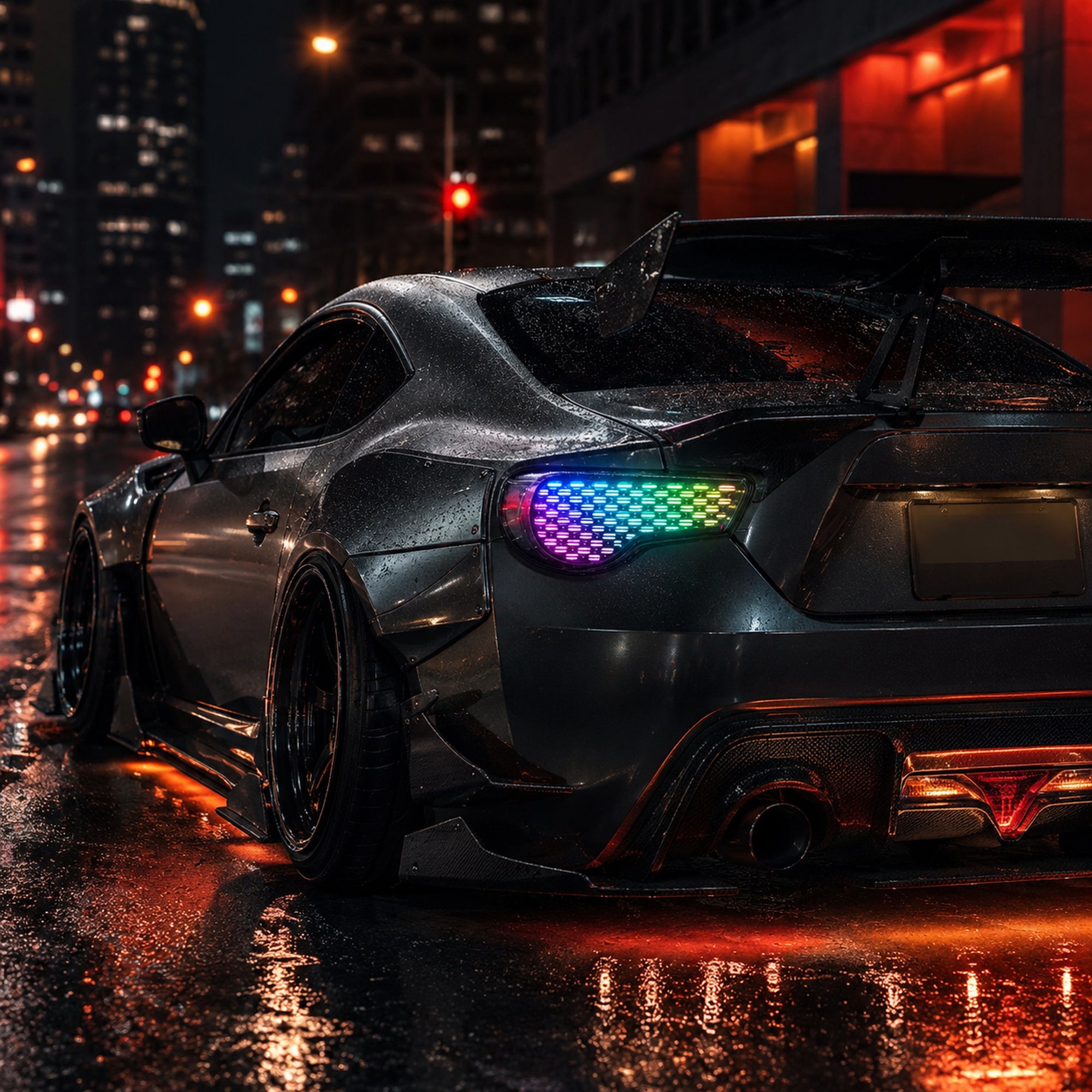

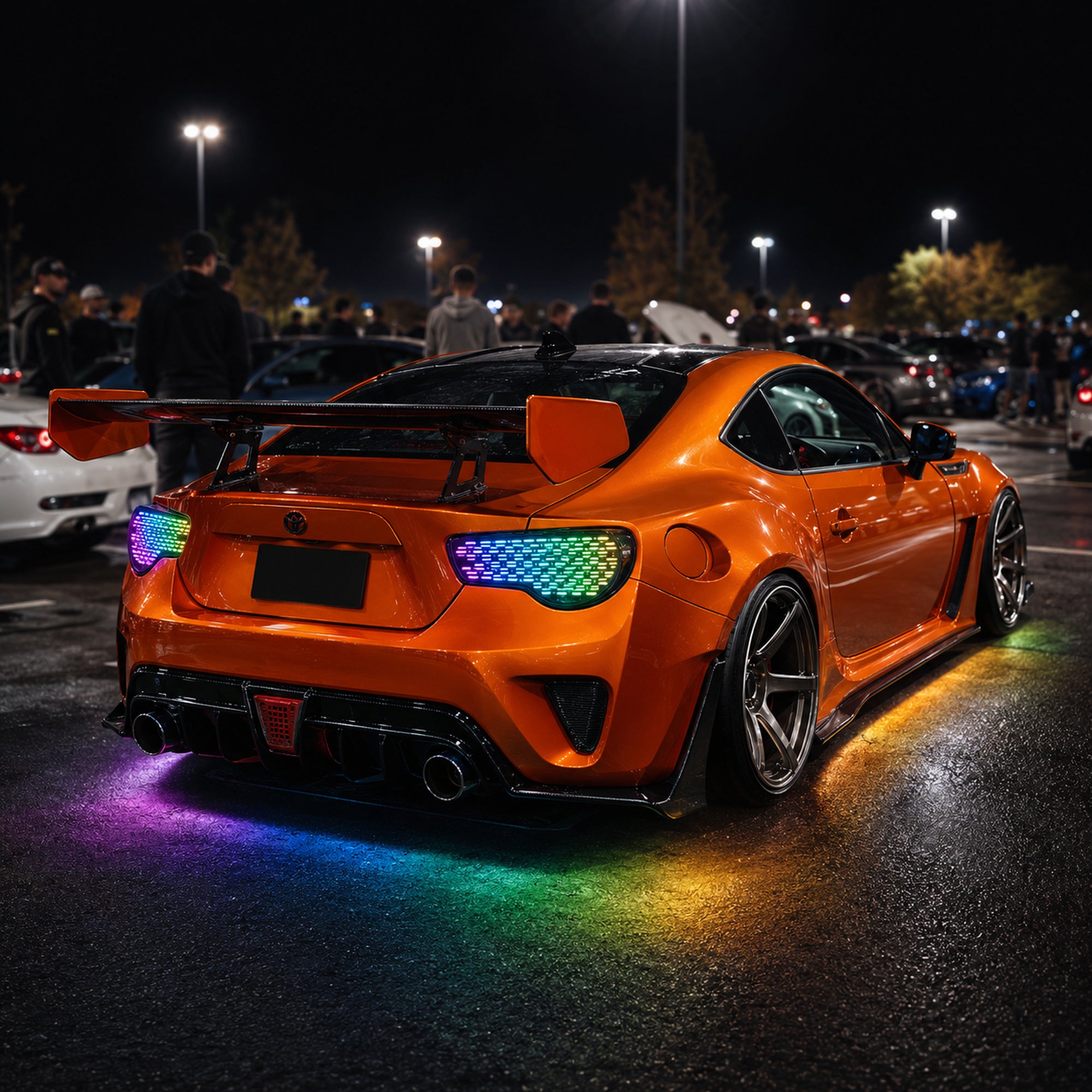

Applies to: Smoked Digital w/ App Control

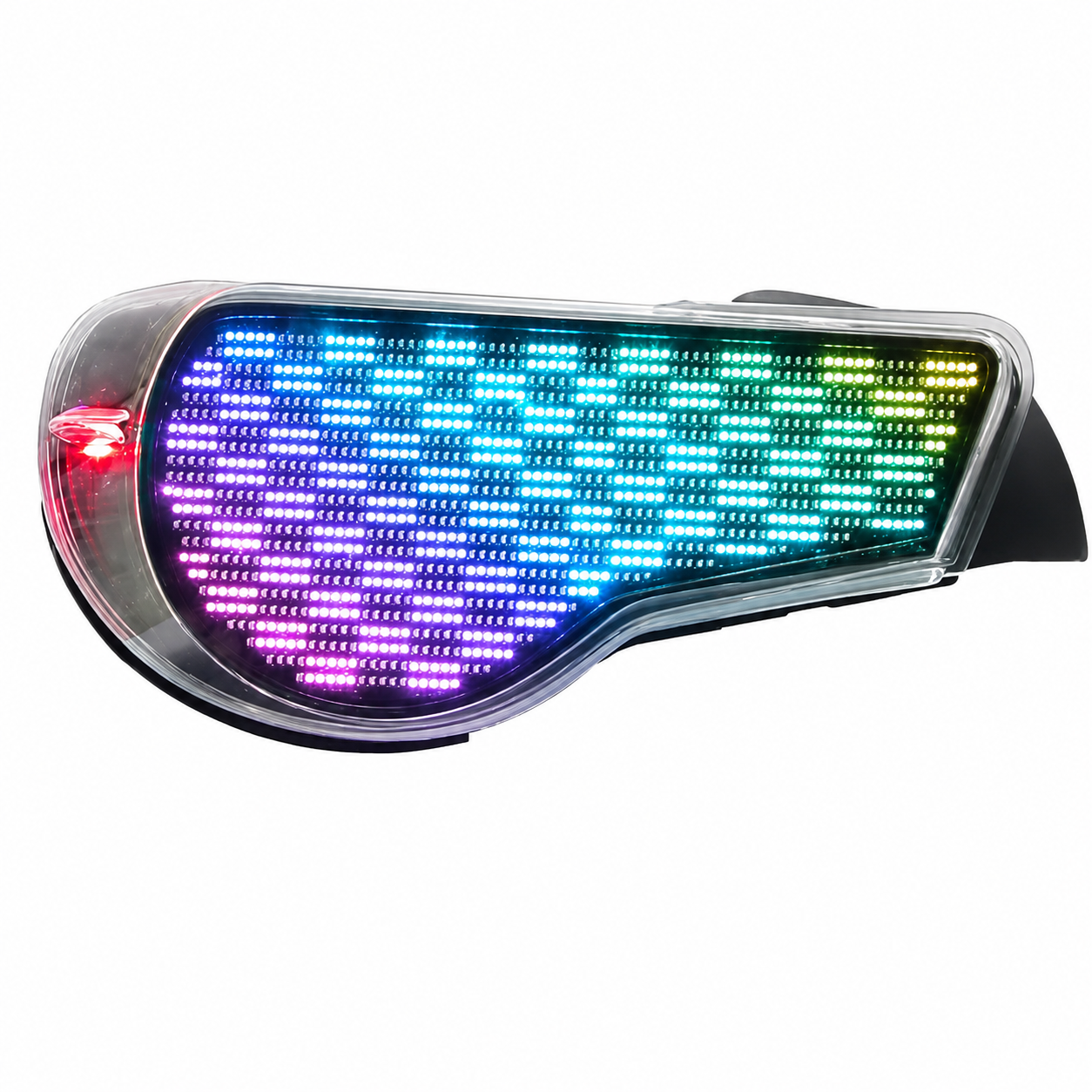

Addressable, Not Just Color
The digital bar is individually addressable — color flows along its length instead of the whole bar changing at once, so you get patterns a standard RGB bar can't run.
A Deeper Library of Patterns

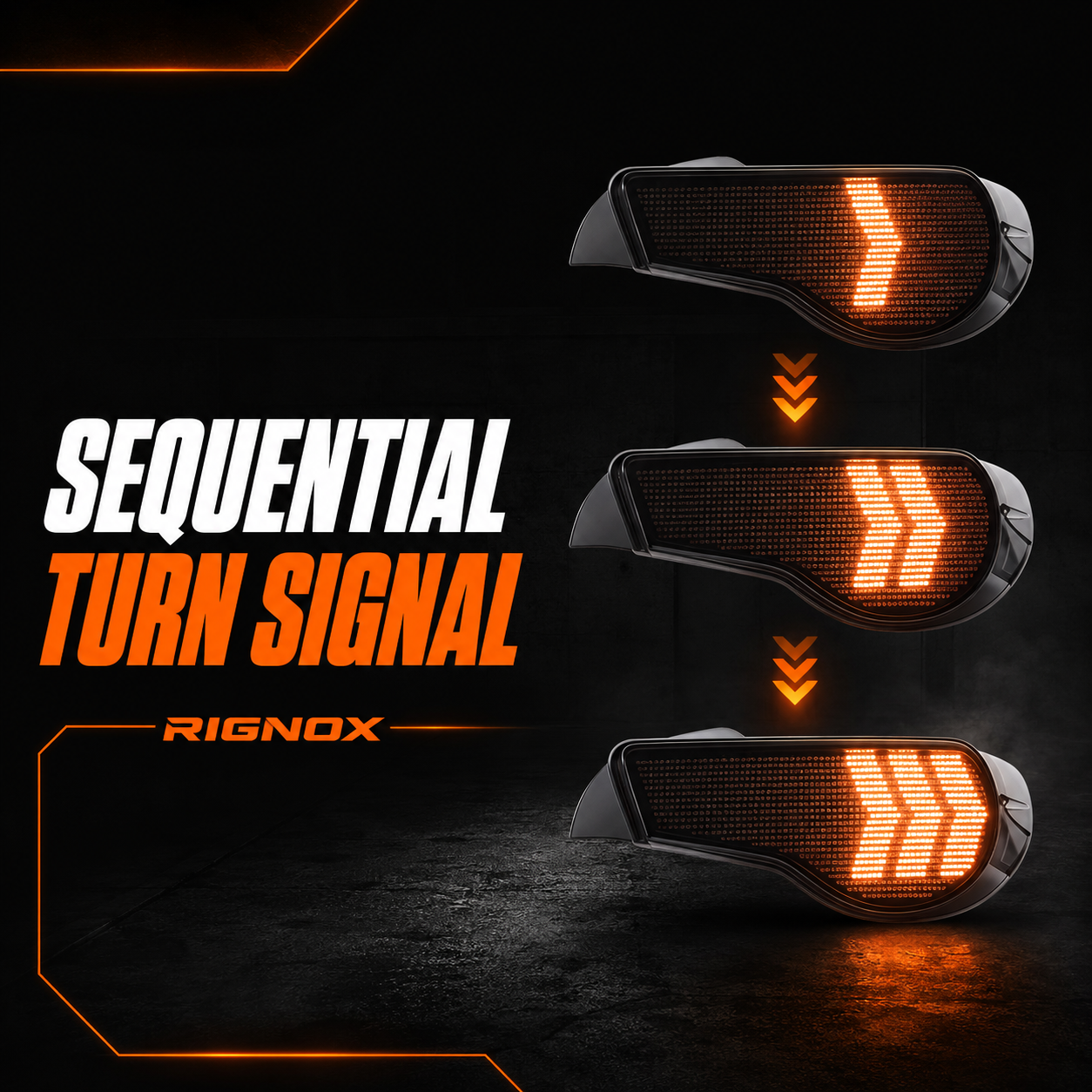

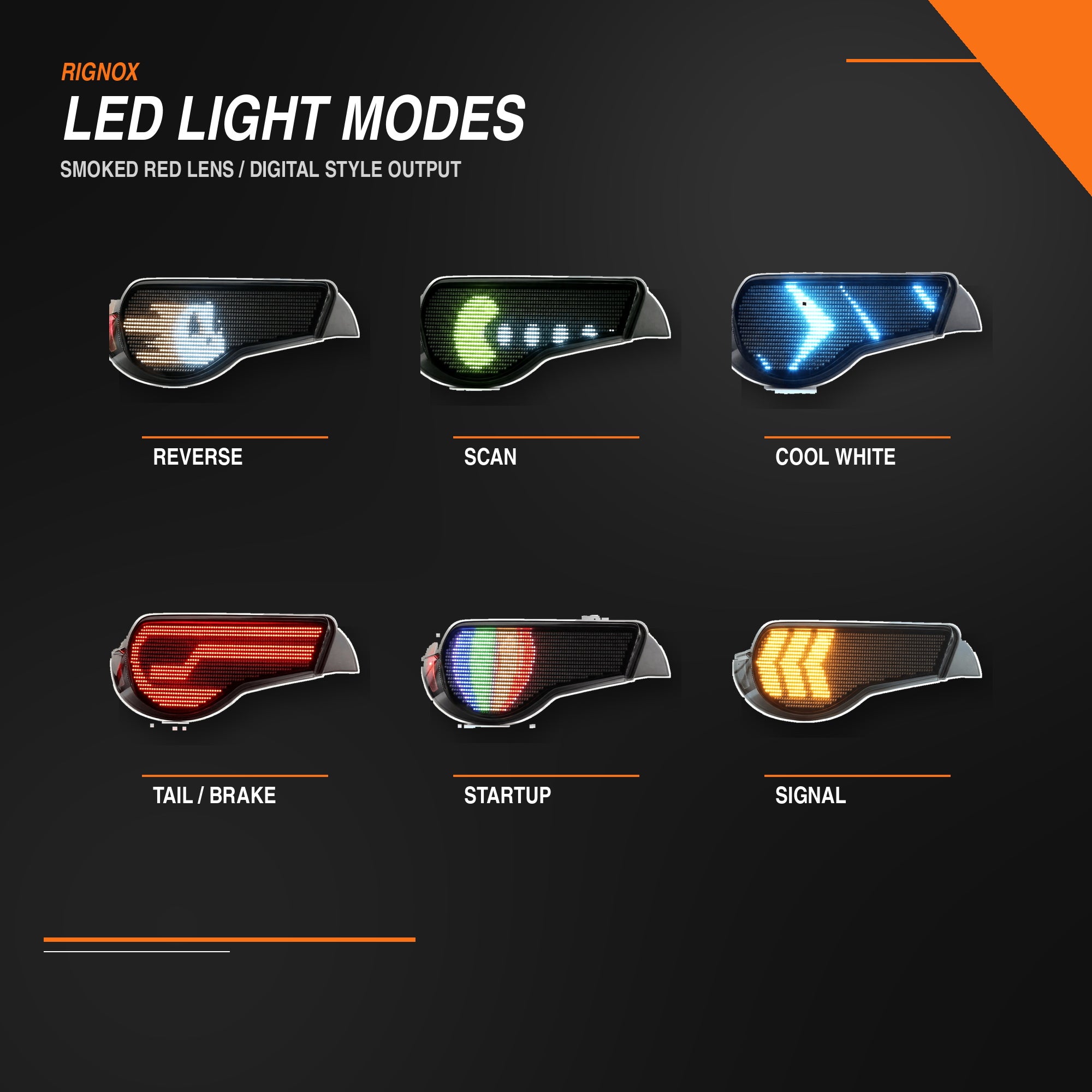

Driving, startup, and turn-signal modes carry far more animation patterns than RGB — chases, gradients, and traveling effects, selectable from the app's Mode list.
Flow, Chase, Segment
Run flowing, chasing, and segmented sequences across the bar, set speed and brightness, or let it auto-cycle the whole library.
Same App + Remote

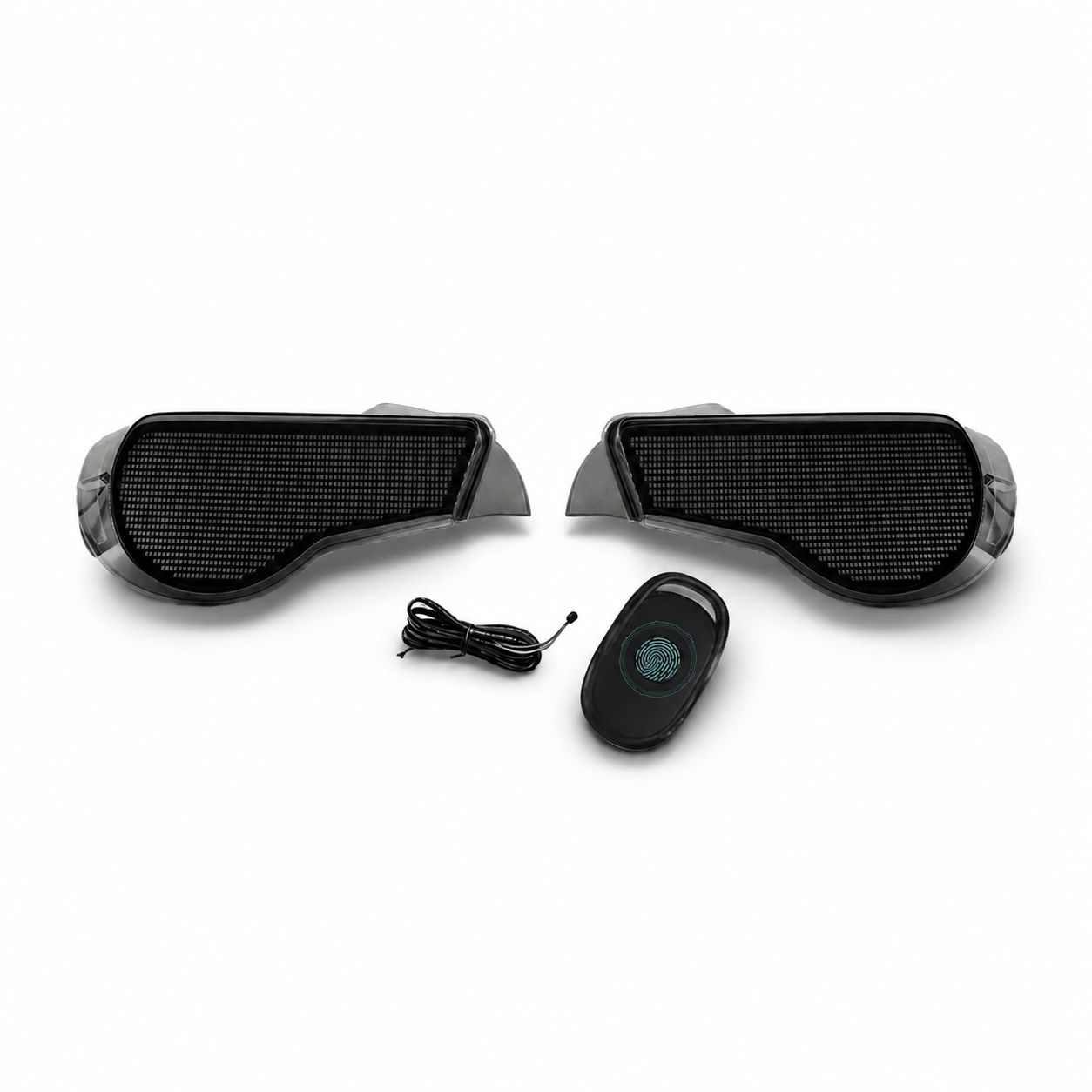

Controlled by the same Starlight Running app and included remote, with master-and-slave cabling keeping both sides in sync.
Full App Setup & Pairing Guide →
Images show lighting concepts for illustration only and may differ from actual output. The app interface shown is representative — see the full app guide for real setup and controls.
Unique Features
hrs
Rated LED Lifespan
% less
Less Power Than Halogen
Matte Black
Aggressive and Sporty Aesthetic
Splicing
Plug-and-Play Harness
The RIGNOX Standard
- 10K+Orders shipped
- 20+Years in lighting
- 60+Vehicle fitments
- Complete assemblies, not bulb kits
- Factory mounts, factory harness
- Patented optical technology
- Vibration, shock & corrosion tested
- DOT / SAE compliant
- Decoders included, no dash errors
