Important: This online guide is a fitment-aware overview for the matched RIGNOX product. Before removing original parts or connecting wiring, compare the product-page image gallery (rear housing, plugs, included harnesses) with your factory lamps and confirm the connector layout, transferred parts, wire routing, and vehicle-specific fastener locations on your exact vehicle.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product

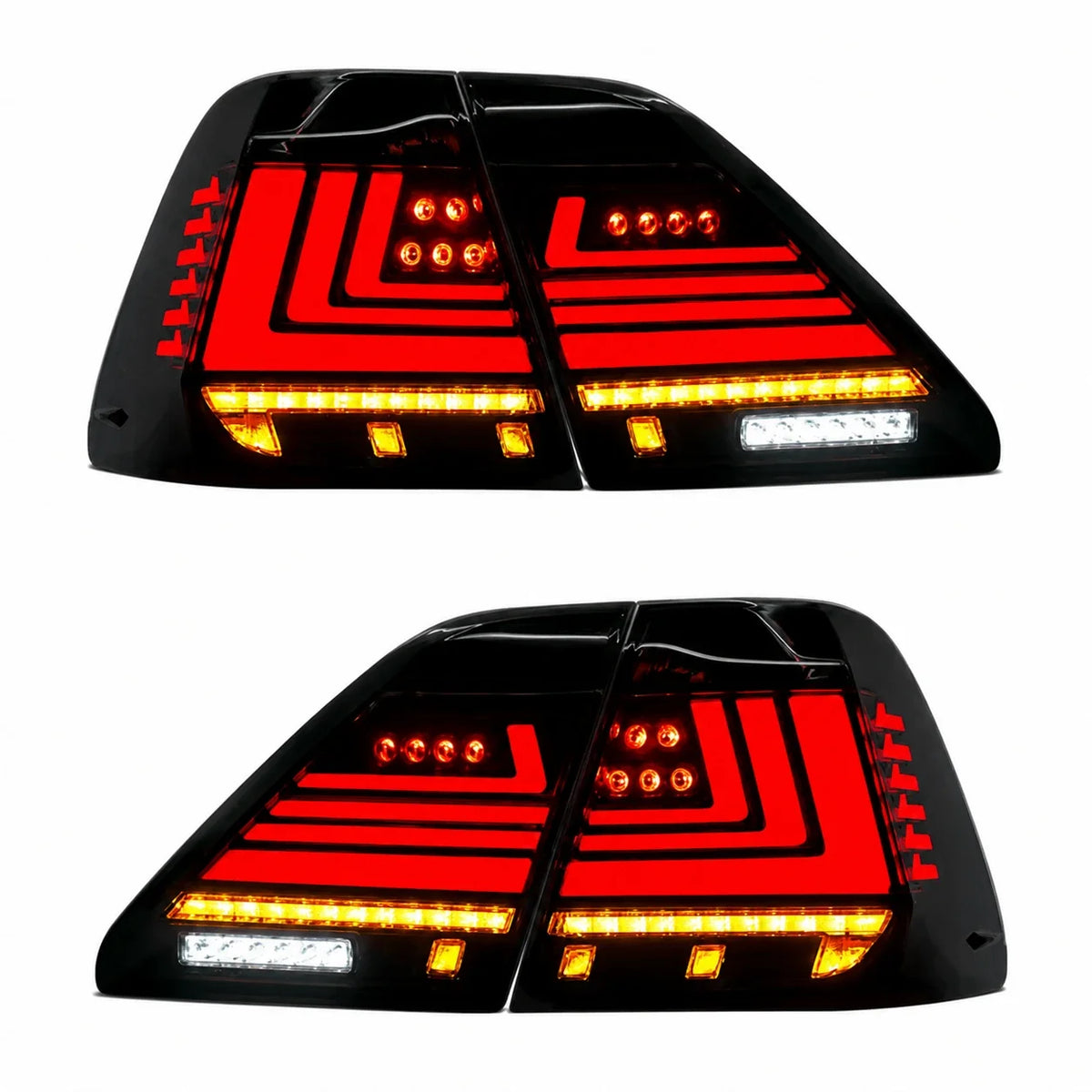

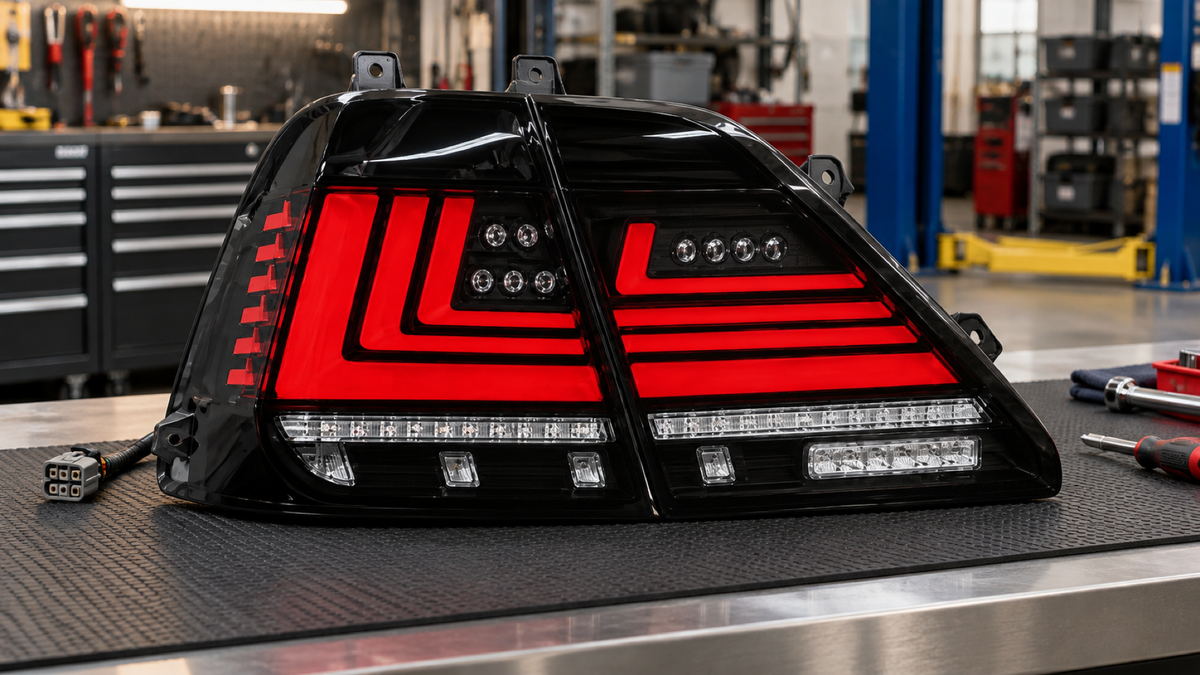

- Product: 2001-2003 Lexus LS430 Sequential LED Tail Lights
- Product type: Tail lights
- SKU: T-LS01-SR
- Variants: Smoked Red
- Fitment: Fits: 2001-2003 Lexus LS430 (UCF30, early build). Complete four-piece set: left and right outer quarter-panel lights plus left and right inner trunk-lid lights.
- Product page: View matching RIGNOX product details
Product notes
- This is a four-piece set. The outer quarter-panel lamps and the inner trunk-lid lamps must both be removed and reinstalled.
- Sequential turn signal and welcome animation run without an external controller once the harness is connected.
- Integrated decoders and load resistors hold the correct flash cadence. Confirm no hyper-flash before final reassembly.
- The matched product page references road-lighting compliance information. Review the product page for the exact compliance language for this item.
Before you begin
- Vehicle/product: 2001-2003 Lexus LS430 Sequential LED Tail Lights.
- SKU check: Confirm your kit SKU matches T-LS01-SR before removing original parts.
- Product-page check: Compare the product-page image gallery with your factory lamps before removing trim or connecting wiring.
- Power and safety: Switch the vehicle off before unplugging connectors. Disconnect the negative battery terminal when handling wiring, fuse taps, or exposed circuits.
- Protect the vehicle: Use clean towels or masking tape around painted panels and trim edges. Do not force clips or pry against painted surfaces.
- No connector grease: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
- Rear lamp note: Leave trunk trim open until every lighting function passes testing.
Checkpoints before you start
- Connector layout: Compare each vehicle connector, adapter harness, and included extension wire against the product-page images before powering the RIGNOX tail lights.
- Inner and outer lamp sequence: Remove the outer quarter-panel lamps first, then the inner trunk-lid lamps; reinstall in the same order.
- Harness routing: Route linking harnesses through the factory grommets or existing trim paths. Keep wiring away from hinges, latch movement, weather seals, exhaust heat, and sharp sheet-metal edges.
- Transferred parts: Move brackets, bulb holders, seals, or decorative plates only when the removed original lamp clearly carries a part the new one does not.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; confirm the exact socket sizes on the vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape for painted trunk and quarter-panel edges
- Electrical tape and zip ties for securing included harnesses only
- A helper for brake-light and turn-signal testing
Remove the original tail lights
- Open rear access: Open the trunk and remove only the trim panels, access covers, cargo liners, or clips needed to reach the lamp fasteners.
- Expose lamp fasteners: Fold back liners or sound insulation carefully so clips can be reused during reassembly.
- Support the lamp: Hold the lamp with one hand while removing nuts, bolts, screws, clips, or bulb holders.
- Disconnect vehicle connectors: Press each lock tab and pull by the connector body, not by the wires.
- Release locating pins or ball studs: Pull the lamp straight out along its locating pins. Do not pry against painted body panels.
- Repeat for the inner lamps: Remove the left and right inner trunk-lid lamps using the same sequence.
Install the RIGNOX tail lights
- Compare assemblies before mounting: Compare each removed original lamp with its RIGNOX counterpart. Transfer bulb holders, seals, brackets, or decorative pieces only when the original clearly carries a part the new one does not.
- Connect the main harness: Match each included connector to the corresponding vehicle connector and confirm the lock tab clicks into place.
- Route linking harnesses: Run extension wires and decoder wires along the factory trim or grommet path.
- Secure wiring before mounting: Use zip ties to prevent rubbing, pinching, water pooling, or contact with hinges, latch movement, weather seals, exhaust heat, and sharp metal edges.
- Seat and fasten each lamp: Align locating pins, ball studs, clips, and body gaps on both the outer and inner lamps. Tighten original retainers evenly without over-tightening plastic mounts.
- Reinstall trim last: Leave trim open until every electrical function passes testing.
Electrical and function test
- Test parking/running lights, brake lights, left and right turn signals, hazards, reverse lights, and the welcome animation.
- Confirm the turn signal fires as a sequential sweep on both sides.
- Test both outer and inner lamps before reinstalling trunk trim.
- Confirm the brake gradient ramps correctly and the reverse section throws clean white light.
- After all tests pass, reinstall trim panels and close the trunk slowly to confirm no wire is stretched or pinched.
Final check
- All connectors are fully seated and locked.
- All included harnesses are secured away from movement, sharp edges, water paths, and heat sources.
- All four lamps sit flush with even body gaps, properly seated seals, and no trapped harness under the weather seal.
- All tail light functions test correctly on both sides with a helper operating the controls.
- No warning lights, hyperflash, flickering, abnormal heat, moisture entry, or loose modules remain after a short function check.
Troubleshooting
- One tail light does not turn on: Recheck the main connector, side-specific extension wire, and any plug-in adapter supplied with the kit.
- Inner trunk-lid lamp does not light: Confirm the trunk-lid harness passes through the correct grommet and the connector is fully seated with the lid closed.
- Brake, reverse, running, or turn function is wrong: Stop and recheck the connector choice and wire routing against the product-page images before moving pins or changing wiring.
- Warning, flicker, or hyperflash appears: Confirm the included decoder or load resistor is installed exactly for this product and vehicle trim.
- Trim will not sit flush: Check for a trapped harness, misaligned clip, folded weather seal, or incorrect grommet position.
Need help?
If the connector, transferred part, or trim layout does not match the product-page images, stop before modifying the vehicle. Contact RIGNOX support with your order information, vehicle year/model/trim, product variant, and clear photos of the tail light, connector, and harness layout.
End of installation guide. (c) RIGNOX - All Rights Reserved.
