Important: This online guide is a fitment-aware overview for the matched RIGNOX product. Before removing original parts or connecting wiring, confirm the connector layout, transferred parts, wire routing, and vehicle-specific fastener locations on your exact vehicle.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product

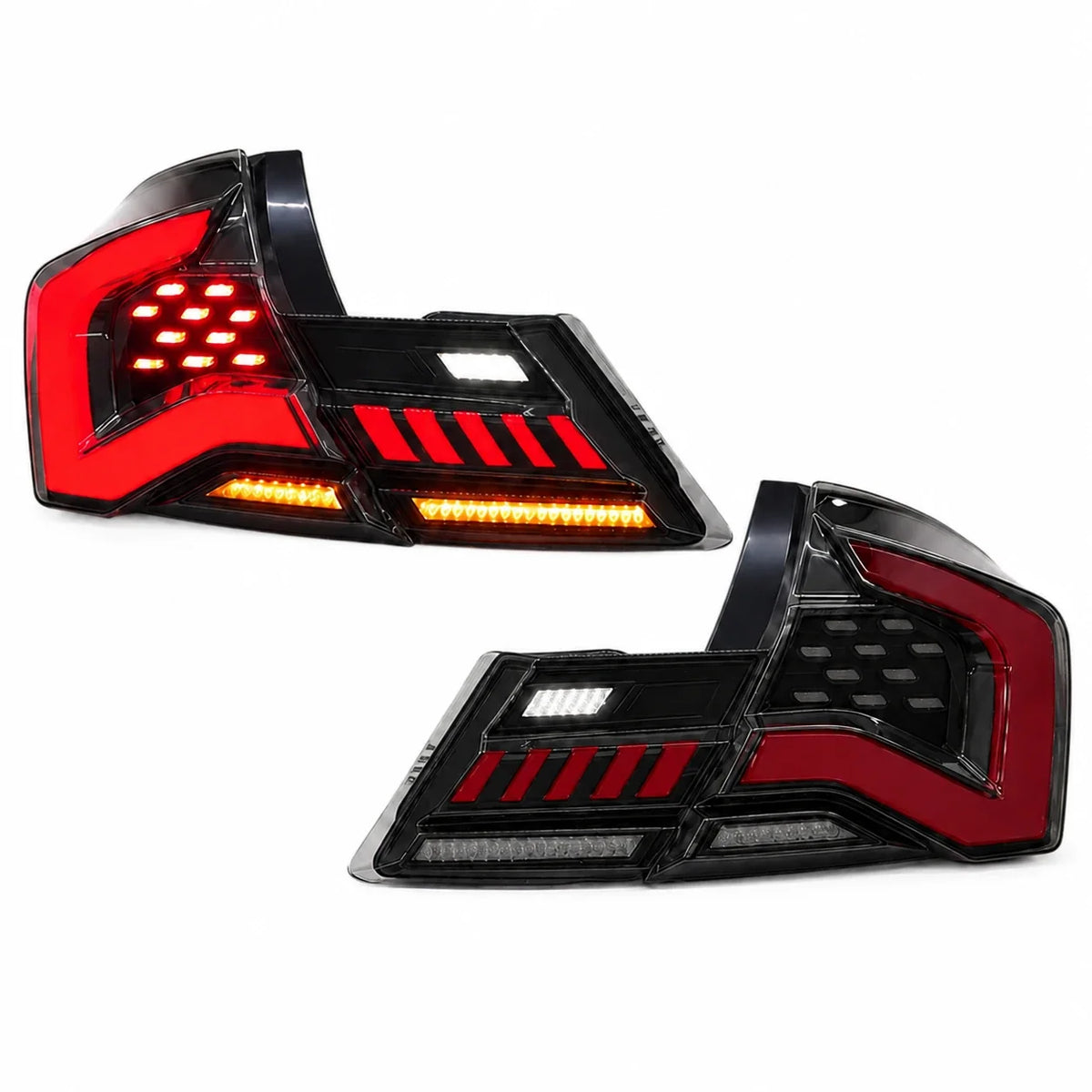

- Product: 2013-2015 Honda Civic 9th Gen Sedan Sequential LED Tail Lights
- Product type: Tail Lights
- SKU: T-CIV13-SR
- Variants: Single configuration
- Fitment: 2013-2015 Honda Civic (9th generation, FB) four-door sedan. Does not fit Civic Coupe.
- Product page: View matching RIGNOX product details
Product notes
- This assembly is for the 2013 facelift sedan. The 2012 car and the Civic Coupe use different lamps.

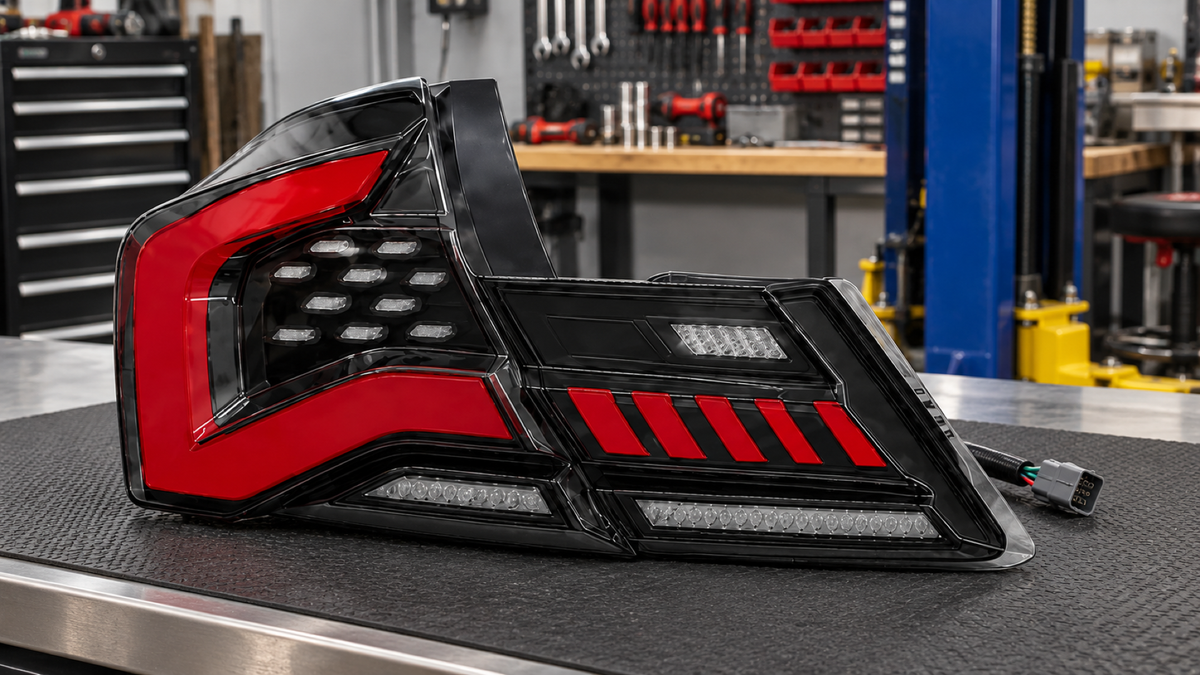

- Smoked lens over a red bar. The housing reads dark unlit and red when lit.
- Compliance and off-road/show-use language is product specific. Review the matching RIGNOX product page for the exact wording for this item.
Before you begin
- Confirm the exact product: Check your kit SKU against the list above before removing original parts.
- Work powered down: Park on level ground, switch the vehicle off, and disconnect the negative battery terminal when handling wiring.
- Protect body panels: Use clean towels or masking tape near painted edges around the trunk, tailgate, hatch, or cargo trim area.
- Do not force clips: If a lamp or trim panel does not move, stop and look for another fastener or locating pin.
- No connector grease: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
- Rear-end note: Leave access covers and trim panels loose until every lighting function passes testing.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; confirm the exact socket sizes on your vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape
- Replacement plastic clips
- Electrical tape and zip ties for securing included harnesses only
- A helper for brake-light and reverse-light testing
Remove the original tail lights
- Open the rear access area: Open the trunk, tailgate, hatch, or cargo area and remove the access cover or liner needed to reach the lamp retainers.
- Support the original lamp: Hold the lamp while removing its nuts, bolts, screws, or clips.
- Pull the lamp straight out: Release locating pins by pulling in line with the original lamp. Do not lever against painted body panels.
- Disconnect the wiring: Press the connector lock tab and pull by the connector body, not by the wires.
- Compare before transfer: Compare the removed lamp with the RIGNOX lamp. Transfer seals, sockets, brackets, or modules only where your kit and vehicle configuration require it.
Install the RIGNOX tail lights
- Pre-check the plug layout: Confirm the rear plug, connector count, and mounting points match before committing to the swap.
- Connect the main harness: Seat the vehicle connector fully into the RIGNOX connector and confirm the lock tab clicks into place. Where an adapter is supplied, connect through the adapter rather than forcing a direct plug.
- Route add-on wiring carefully: Secure any link harnesses, decoders, or relays away from hinges, latch movement, exhaust heat, water paths, and sharp edges.
- Seat the lamp evenly: Align locating pins and body gaps before tightening. Do not over-tighten plastic mounting points.
- Test before closing trim: Test every function before refitting access covers and liners.
- Reinstall trim: Refit covers, liners, and clips only after confirming no wires are pinched.
Electrical and function test
- Confirm running/parking lights on both sides.
- Confirm brake lights with a helper pressing the brake pedal.
- Confirm left and right turn signals, hazards, and sequential behaviour.
- Confirm reverse lights with the vehicle safely in reverse and the parking brake applied.
- Confirm the startup animation only after normal road-light functions pass.
- Check for dashboard warnings, hyperflash, flicker, or intermittent operation before reinstalling final trim.
Final check
- All connectors are locked, dry, and routed without tension.
- Included adapters, link harnesses, and relays are secured away from heat, water paths, moving parts, and sharp edges.
- Every lamp sits flush with even body gaps and properly seated seals.
- All lighting functions pass on both sides.
- No warning lights, flicker, hyperflash, abnormal heat, moisture issue, or loose wiring remains after a short check drive.
Troubleshooting
- One lamp does not turn on: Recheck the main connector lock, related fuse, and battery connection.
- One function does not work: Verify the connector is fully seated, and that the correct adapter is used where one is supplied.
- Warning message, flicker, or hyperflash: Confirm any included decoder or LED flash relay is connected and secured.
- Moisture appears: Light condensation may clear as the lamp warms. Heavy or persistent moisture should be documented with photos before continued use.
Need help?
If the original lamp, vehicle connector, transferred part, or included harness does not match what this guide describes, stop before modifying wiring. Contact RIGNOX support with your order information, vehicle year/model/trim, product variant, and clear photos of the connector area, the tail light housing, the mounted body gap, and each lighting function.
End of installation guide. (c) RIGNOX - All Rights Reserved.
