Important: This online guide is a product-image-verified overview for the matched RIGNOX product. It uses the product page, product reference images, and visible lighting-function details to guide product-side checks. Confirm hidden vehicle-side fasteners, trim clips, and wiring access points on your exact vehicle before removal.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product

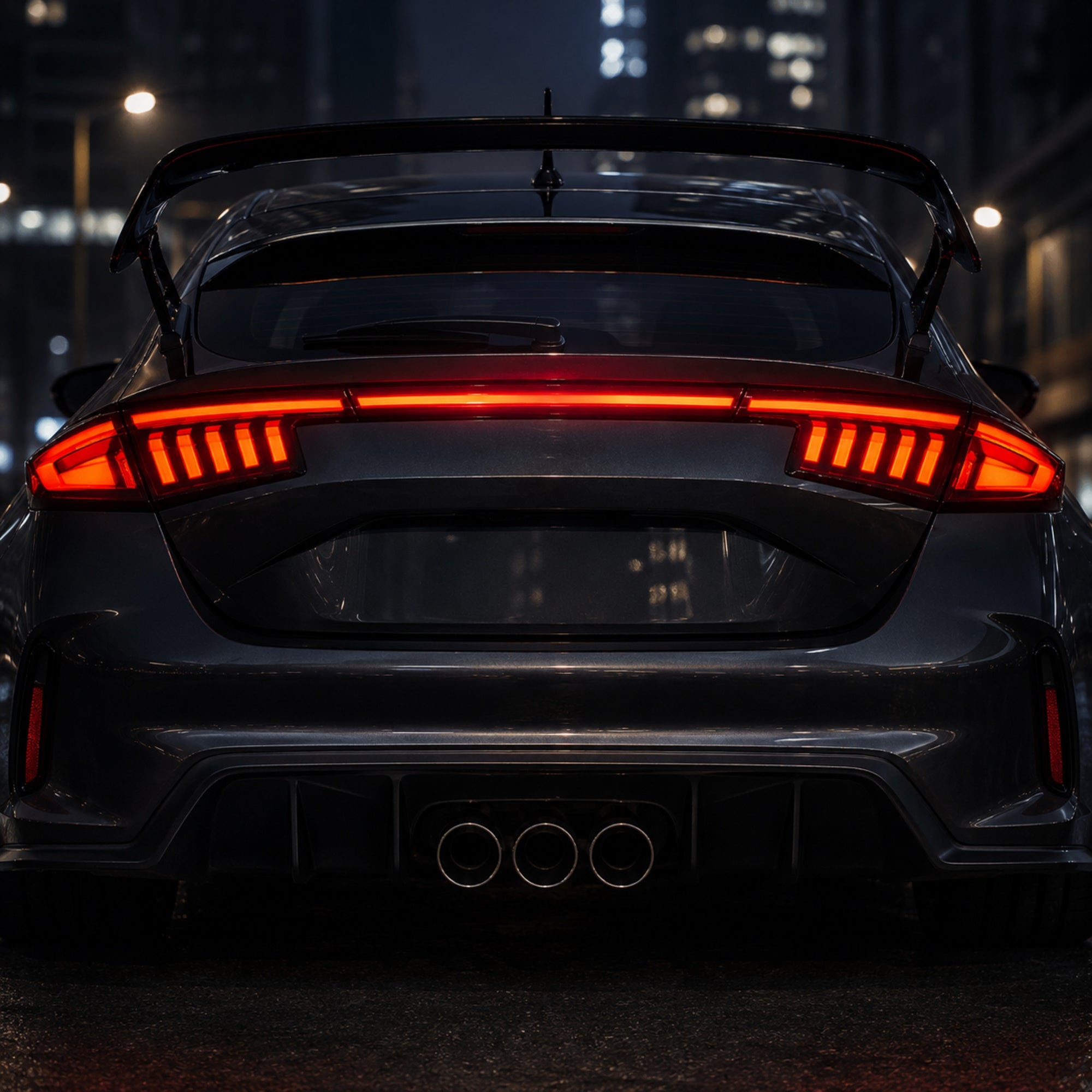

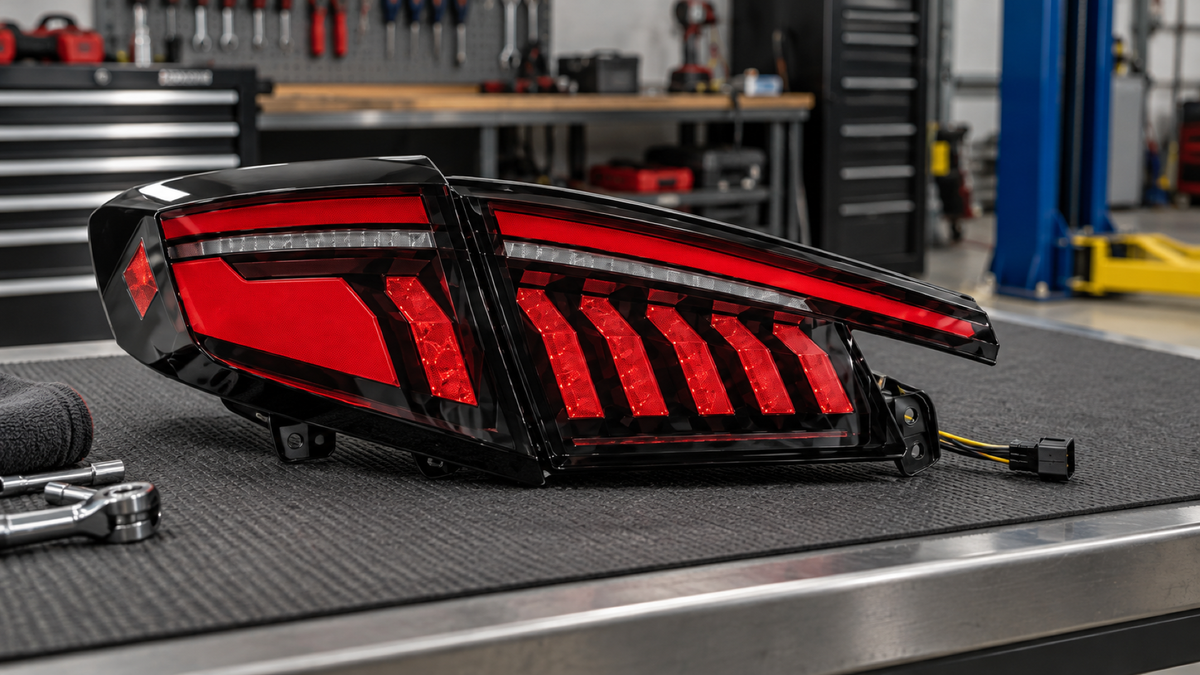

- Product: 2022-2026 Honda Civic Hatchback Sequential LED Tail Lights
- Product type: tail lights
- SKU: T-CIVR-SR, T-CIVR-SW
- Variants: Smoked Red; Smoked White
- Fitment: Fits: Honda Civic Hatchback (FL1/FL2) 2022+ / Civic Type R (FL5) 2023+.
- Product page: View matching RIGNOX product details
Product image checkpoints
- The product reference images show direct-fit, plug-and-play style connection details. Match the supplied connector to the vehicle connector and confirm the lock tab seats fully before reinstalling trim.
- Back-side or plug detail images are available for this item. Compare those photos with the removed original lamp before routing the harness.
- The visible product-function references indicate running/parking light, brake light, reverse light, startup animation checks for this product. Test each supported function before tightening the lamp and closing the access area.
- If the kit includes a decoder, resistor, control module, or relay, secure it away from heat, moving parts, water paths, and sharp metal edges. Do not add universal electrical parts unless support confirms they are needed.
Product notes
- Use the product reference images on this page as the product-side visual check for connector layout, rear housing shape, and lighting functions.
- Original vehicle trim, clip style, and fastener locations can vary by year, trim, and previous repairs. Remove panels slowly and verify each fastener before pulling.
- Road-lighting compliance and off-road/show-use notes are product specific. Review the matching RIGNOX product page for the exact language for this item.
Before you begin
- Confirm the exact product: Compare the RIGNOX tail lights to the product reference images, including rear housing, plug layout, lens style, and included modules.
- Work powered down: Park on level ground, switch the vehicle off, and disconnect the negative battery terminal when handling wiring.
- Protect body panels: Use clean towels or masking tape near painted edges around the tailgate, trunk, hatch, bed-side access, or cargo trim area.
- Do not force clips: If a lamp or trim panel does not move, stop and look for another fastener or locating pin.
- No grease on connectors: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; verify exact sizes on the vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape
- Electrical tape and zip ties for securing included harnesses only
- A helper for brake-light and reverse-light testing
Remove the original tail lights
-
Remove the trunk lid trim: Open the trunk and use a plastic trim tool to remove the upper center trim piece. Remove the lower trim panel around the grab handle to expose the inner tail light mounting points.
-
Remove the factory center light: Remove the 8 mm nuts securing the factory center light bar, disconnect the electrical connector, and carefully pull the light assembly away from the vehicle.
-
Remove the outer tail lights: Remove the two 8 mm bolts securing each outer tail light. Pull each light straight back firmly to release the clips. Do not pull sideways.
-
Route the wires through the grommet: Run the connection wires from the outer fenders to the trunk lid. Use a stiff guide wire or coat hanger to feed the harness through the factory rubber grommet. Do not cut the grommet. Apply a small amount of soapy water or silicone spray if needed.
Install the RIGNOX tail lights
-
Install the new outer tail lights: Connect the factory plugs to the new outer tail lights. Align the guide pins, push each light into its original position, and secure it with the two 8 mm bolts.
-
Connect and install the center light: After connecting all routed wires to the new center light bar connectors, push the center light assembly into its original position and secure it with the factory nuts.
-
Test all lighting functions: Activate each rear lighting function and confirm that the new LED tail lights operate correctly.
Electrical and function test
- Confirm running/parking lights on both sides.
- Confirm brake lights with a helper pressing the brake pedal.
- Confirm left and right turn signals, hazards, and sequential behavior where supported.
- Confirm reverse lights with the vehicle safely in reverse and the parking brake applied.
- Confirm startup animation or RGB/app functions only after normal road-light functions pass.
- Check for dashboard warnings, hyperflash, flicker, or intermittent operation before reinstalling final trim.
Final check
- All connectors are locked, dry, and routed without tension.
- Included modules or extra harnesses are secured away from heat, water paths, moving parts, and sharp edges.
- Both tail lights sit flush with even body gaps and properly seated seals.
- All supported lighting functions pass on both sides.
- No warning lights, flicker, hyperflash, abnormal heat, moisture issue, or loose wiring remains after a short check drive.
Troubleshooting
- One lamp does not turn on: Recheck the main connector lock, related fuse, and battery connection.
- One function does not work: Compare the plug area to the product reference images and verify the connector is fully seated.
- Warning message, flicker, or hyperflash: Confirm the correct product variant was installed and that any included decoder, resistor, or relay is connected and secured.
- Moisture appears: Light condensation may clear as the lamp warms. Heavy or persistent moisture should be documented with photos before continued use.
Need help?
If the original lamp, vehicle connector, or included harness does not match the product reference images, stop before modifying wiring. Contact RIGNOX support with your order information, vehicle year/model/trim, product variant, and clear photos of the connector area, rear housing, mounted body gap, and each lighting function.
End of installation guide. (c) RIGNOX - All Rights Reserved.
