Important: This online guide is a fitment-aware overview for the matched RIGNOX product. Before removing original parts or connecting wiring, confirm the connector layout, transferred parts, wire routing, and vehicle-specific fastener locations on your exact vehicle.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product

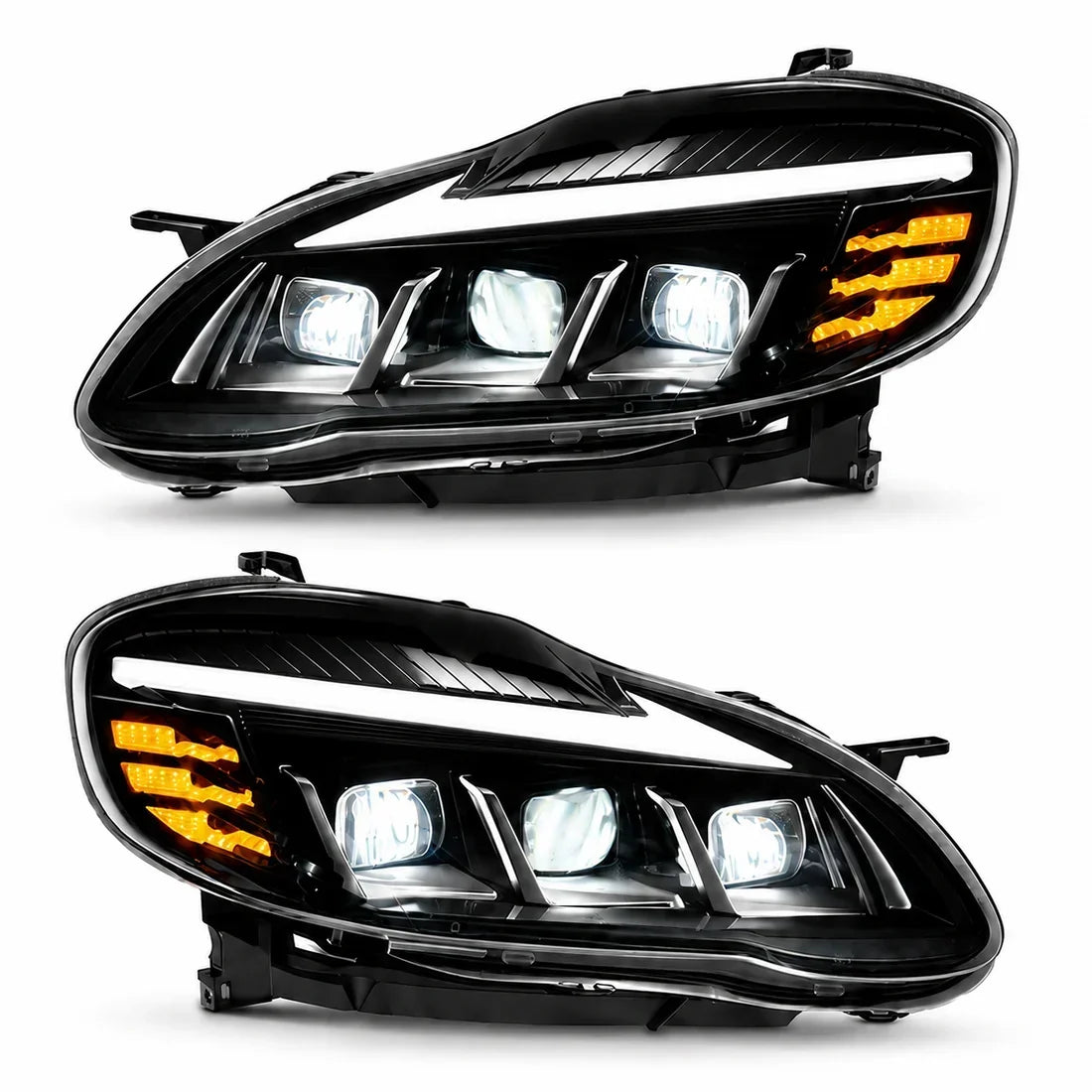

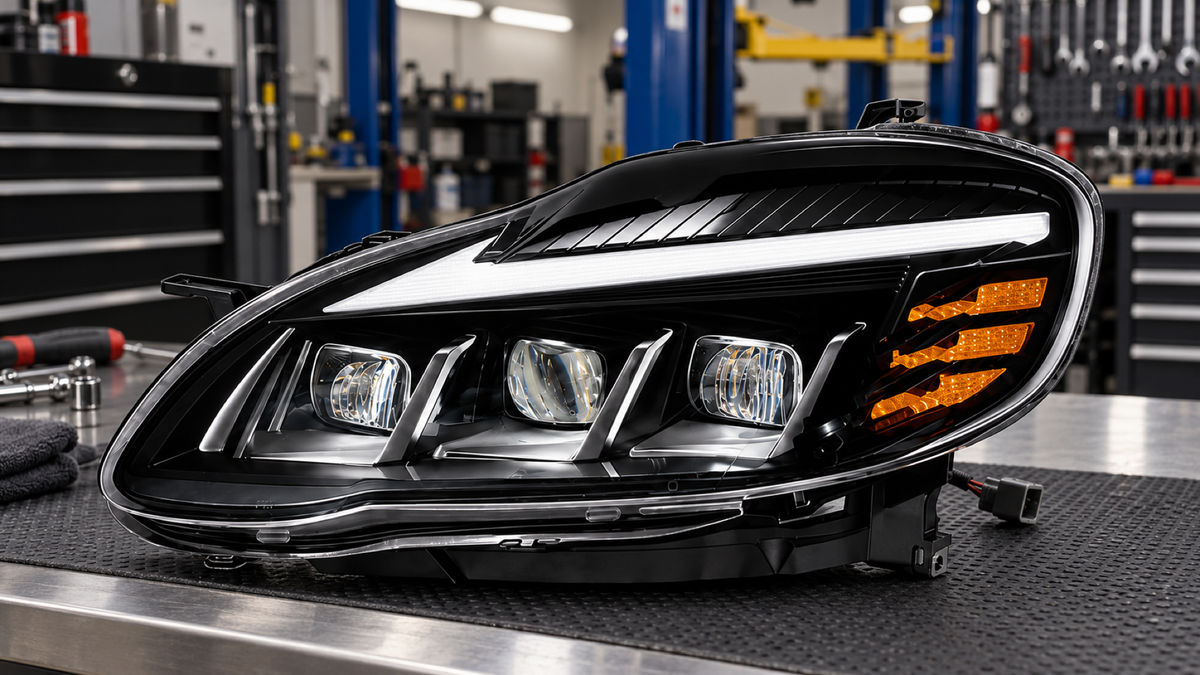

- Product: 2003-2008 Toyota Corolla LED Triple Projector Headlights | White DRL, Yellow Reflector
- Product type: Headlights
- SKU: H-COR03
- Variants: Single configuration
- Fitment: Fits: 2003-2008 Toyota Corolla US-spec E120/E130 sedan, including S, CE, and LE trims. Built for US-spec E120 sedan front-end fitment.
- Product page: View matching RIGNOX product details
Product notes
- Three projector cups per side, a white LED daytime running light, and a yellow reflector accent.
- On a vehicle of this age, plastic grille and bumper clips have become brittle. Have replacement clips on hand before starting.
- Sequential, startup, or animation functions are product/variant dependent. Test them before final reassembly.
- The matched product page references road-lighting compliance information. Review the product page for the exact compliance language for this item.
Before you begin
- Vehicle/product: 2003-2008 Toyota Corolla LED Triple Projector Headlights.
- SKU check: Confirm your kit SKU matches H-COR03 before removing original parts.
- Power and safety: Switch the vehicle off before unplugging connectors. Disconnect the negative battery terminal when handling wiring, fuse taps, or exposed circuits.
- Protect the vehicle: Use clean towels or masking tape around painted panels, the bonnet edge, and grille trim. Do not force clips or pry against painted surfaces.
- Aged fasteners: Expect one or two brittle clips to break during removal. Warming the plastic slightly on a cold day reduces the risk.
- No connector grease: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
- Front-end note: Leave grille and bumper trim loose until every lighting function passes testing and beam aim is set.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; confirm the exact socket sizes on your vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape for painted bonnet, wing, and grille edges
- Replacement plastic clips
- Electrical tape and zip ties for securing included harnesses only
- A helper for turn-signal testing, and a flat wall for beam aiming
Remove the original headlights
- Open front access: Open the bonnet and remove only the grille trim, upper bumper fasteners, and access covers required to reach the headlight fasteners.
- Expose lamp fasteners: Release clips with a trim tool rather than a screwdriver. On this generation the clips are brittle; work slowly and expect breakage.
- Support the lamp: Hold the headlight with one hand while removing the remaining bolts or clips.
- Disconnect vehicle connectors: Press each lock tab and pull by the connector body, not by the wires. Locking tabs on originals this age are often stiff.
- Release locating pins: Draw the headlight straight forward. Do not pry against painted body panels.
- Repeat on the opposite side: Complete one side fully before starting the other, so the original assembly remains available as a reference.
Install the RIGNOX headlights
- Compare assemblies before mounting: Compare the removed original headlight and the RIGNOX headlight. Transfer brackets, seals, or adjuster hardware only where the original assembly clearly carries a part the new one does not.
- Connect the main harness: Match each included connector to the corresponding vehicle connector and confirm the lock tab clicks into place.
- Secure wiring before mounting: Use zip ties to prevent rubbing, pinching, water pooling, or contact with the bonnet latch, radiator support, and exhaust heat.
- Seat and fasten the lamp: Align locating pins and check the panel gap against the bonnet, wing, and grille before tightening. Tighten retainers evenly without over-tightening plastic mounts.
- Reinstall trim last: Leave grille and bumper trim loose until every electrical function passes testing.
Electrical and function test
- Test daytime running lights, low beam, high beam, left and right turn signals, hazards, and startup animation if equipped.
- Confirm the turn signal sweeps in sequential amber on the correct side.
- Confirm no hyperflash or flicker appears after two ignition cycles.
- After all tests pass, reinstall grille and bumper trim and confirm no wire is stretched or pinched.
Set the beam aim
- Park square to a flat wall about 25 feet away on level ground, with a normal fuel load and no unusual weight in the boot.
- Mark the height of each beam centre on the wall and compare the two sides.
- Use the headlight adjusters to bring the cut-off line level and even across both sides.
- This step matters more than usual here, because the vehicle is moving from a worn halogen reflector to a projector with a sharp cut-off. A projector aimed too high is worse for oncoming traffic than the lamp it replaced.
Final check
- All connectors are fully seated and locked.
- All included harnesses are secured away from movement, sharp edges, water paths, and heat sources.
- Both lamps sit flush with even body gaps and no trapped harness behind the assembly.
- All headlight functions test correctly on both sides with a helper operating the controls.
- Beam aim is set and even.
- No warning lights, hyperflash, flickering, abnormal heat, moisture entry, or loose modules remain after a short function check.
Troubleshooting
- One headlight does not turn on: Recheck the main connector on that side and the corresponding fuse. On a vehicle of this age, a corroded fuse or earth point is a likely culprit.
- Warning, flicker, or hyperflash appears: Confirm the connector is fully seated before assuming a fault in the assembly.
- Trim will not sit flush: Check for a trapped harness, a broken or missing clip, or a locating pin that has not seated.
- Beam pattern looks uneven: Recheck aim against a flat wall before adjusting anything else.
Need help?
If the connector, transferred part, or trim layout does not match what this guide describes, stop before modifying the vehicle. Contact RIGNOX support with your order information, vehicle year/model/trim, product variant, and clear photos of the headlight, connector, and harness layout.
End of installation guide. (c) RIGNOX - All Rights Reserved.
