Important: This online guide is a product-image-verified overview for the matched RIGNOX product. It uses the product page, product reference images, and visible lighting-function details to guide product-side checks. Confirm hidden vehicle-side fasteners, trim clips, and wiring access points on your exact vehicle before removal.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product
- Product: 2009-2012 Toyota RAV4 LED Dual Projector Headlights
- Product type: headlights
- SKU: H-RAV4-09
- Fitment: Fits: 2009-2012 Toyota RAV4 (OE 81170-42470 / 81130-42470). Replaces stock halogen or HID/Xenon trims via included high/low harness adapters. DRL: White
- Product page: View matching RIGNOX product details

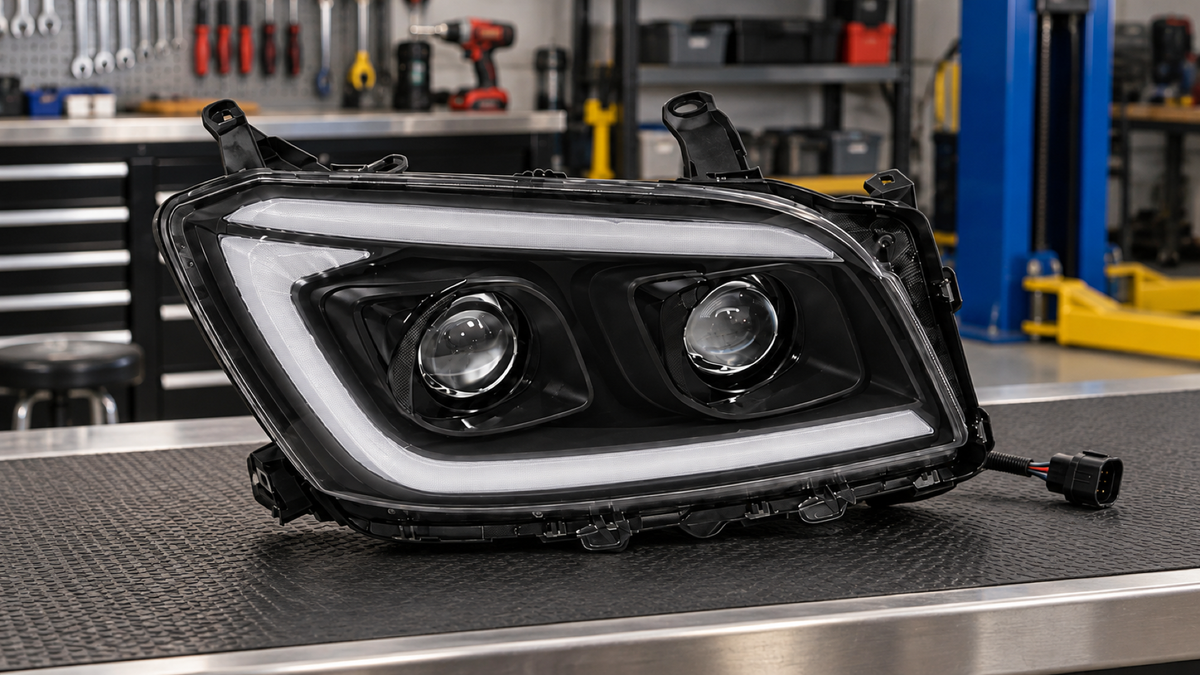

Product reference images
Use these images to compare the lamp shape, rear housing, visible plug layout, and lighting functions before final assembly.
Product image checkpoints
- The product reference images show direct-fit, plug-and-play style connection details. Match the supplied connector to the vehicle connector and confirm the lock tab seats fully before reinstalling trim.
- The visible product-function references indicate projector beam output, low beam, high beam, DRL, sequential turn signal, white/amber switchback behavior checks for this product. Confirm beam pattern and function behavior before final bumper or grille reassembly.
- If the kit includes a decoder, resistor, control module, or relay, secure it away from heat, moving parts, water paths, and sharp metal edges. Do not add universal electrical parts unless support confirms they are needed.
Product notes
- Use the product reference images on this page as the product-side visual check for connector layout, rear housing shape, and lighting functions.
- Original vehicle trim, clip style, and fastener locations can vary by year, trim, and previous repairs. Remove panels slowly and verify each fastener before pulling.
- Road-lighting compliance and off-road/show-use notes are product specific. Review the matching RIGNOX product page for the exact language for this item.
Before you begin
- Confirm the exact product: Compare the RIGNOX headlights to the product reference images, including rear housing, plug layout, lens style, and included modules.
- Work powered down: Park on level ground, switch the vehicle off, and disconnect the negative battery terminal when handling wiring.
- Protect body panels: Use clean towels or masking tape near painted edges around the hood, grille, bumper edge, or fender liner area.
- Do not force clips: If a lamp or trim panel does not move, stop and look for another fastener or locating pin.
- No grease on connectors: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; verify exact sizes on the vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape
- Electrical tape and zip ties for securing included harnesses only
- A wall or flat vertical surface for beam-pattern checking
Remove the original headlights
- Open the front access area: Open the hood and remove only the covers, clips, grille pieces, bumper-edge fasteners, or fender-liner fasteners needed to reach the headlight retainers.
- Support the original headlight: Hold the lamp while removing its bolts or screws so it cannot drop against the bumper or fender.
- Release the headlight from locating points: Pull the lamp forward in line with its mounting tabs. Do not pry against painted panels or lens edges.
- Disconnect the wiring: Press each lock tab and pull by the connector body, not by the wires.
- Compare before transfer: Compare the removed lamp with the RIGNOX product reference images. Transfer bulbs, brackets, dust caps, seals, or modules only when the product configuration requires it.
Install the RIGNOX headlights
- Pre-check the rear housing: Confirm the rear plug area, dust caps, and mounting tabs match the product reference images.
- Connect the main plug: Seat the vehicle connector fully into the RIGNOX connector and confirm the lock tab clicks into place.
- Route add-on wiring carefully: If your kit includes DRL, turn-signal, RGB, decoder, or control wiring, secure it away from radiator fans, belts, hot parts, sharp edges, and water paths.
- Set the lamp in place: Align all mounting tabs before tightening. Do not use bolts to force a misaligned headlight into position.
- Test before closing the front end: Test low beam, high beam, DRL, turn signals, hazards, startup, and RGB/app features where supported.
- Check beam aim: After both headlights are installed, verify beam height and cutoff on a flat surface and adjust if required.
Electrical and function test
- Confirm low beam and high beam operate on both sides.
- Confirm DRL, parking light, amber turn signal, hazard, sequential, and switchback behavior where supported by this product.
- Confirm startup animation or RGB/app functions only after normal road-light functions pass.
- Check for dashboard warnings, flicker, or intermittent operation before reinstalling final trim.
- Verify beam aim after installation so the cutoff is safe and even.
Final check
- All connectors are locked, dry, and routed without tension.
- Included modules or extra harnesses are secured away from heat, water paths, moving parts, and sharp edges.
- Both headlights sit flush with even body gaps and properly seated seals.
- All supported lighting functions pass on both sides.
- No warning lights, flicker, hyperflash, abnormal heat, moisture issue, or loose wiring remains after a short check drive.
Troubleshooting
- One lamp does not turn on: Recheck the main connector lock, related fuse, and battery connection.
- One function does not work: Compare the plug area to the product reference images and verify the connector is fully seated.
- Warning message, flicker, or hyperflash: Confirm the correct product variant was installed and that any included decoder, resistor, or relay is connected and secured.
- Moisture appears: Light condensation right after installation is normal and usually clears within about a week of regular driving as the lamp warms up. If water collects inside or the moisture doesn't clear, contact RIGNOX support.
- Beam pattern is too high or uneven: Recheck lamp seating first, then adjust aim on a flat surface.
Need help?
If a plug, part or trim piece doesn't match this guide, stop before modifying anything and get installation help. Our install team replies within one business day and will know which guide you're following.
