SKU:H-F150-09

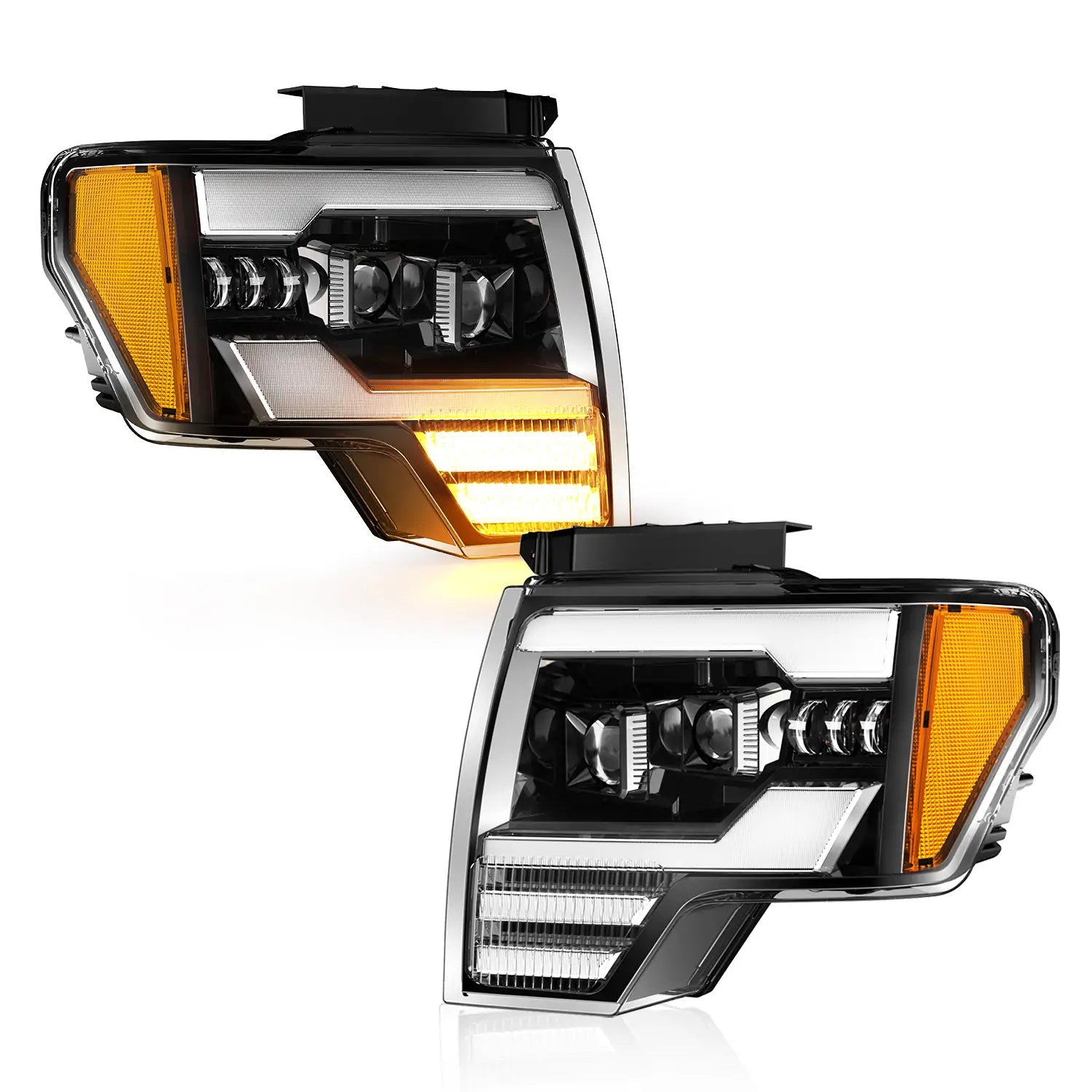

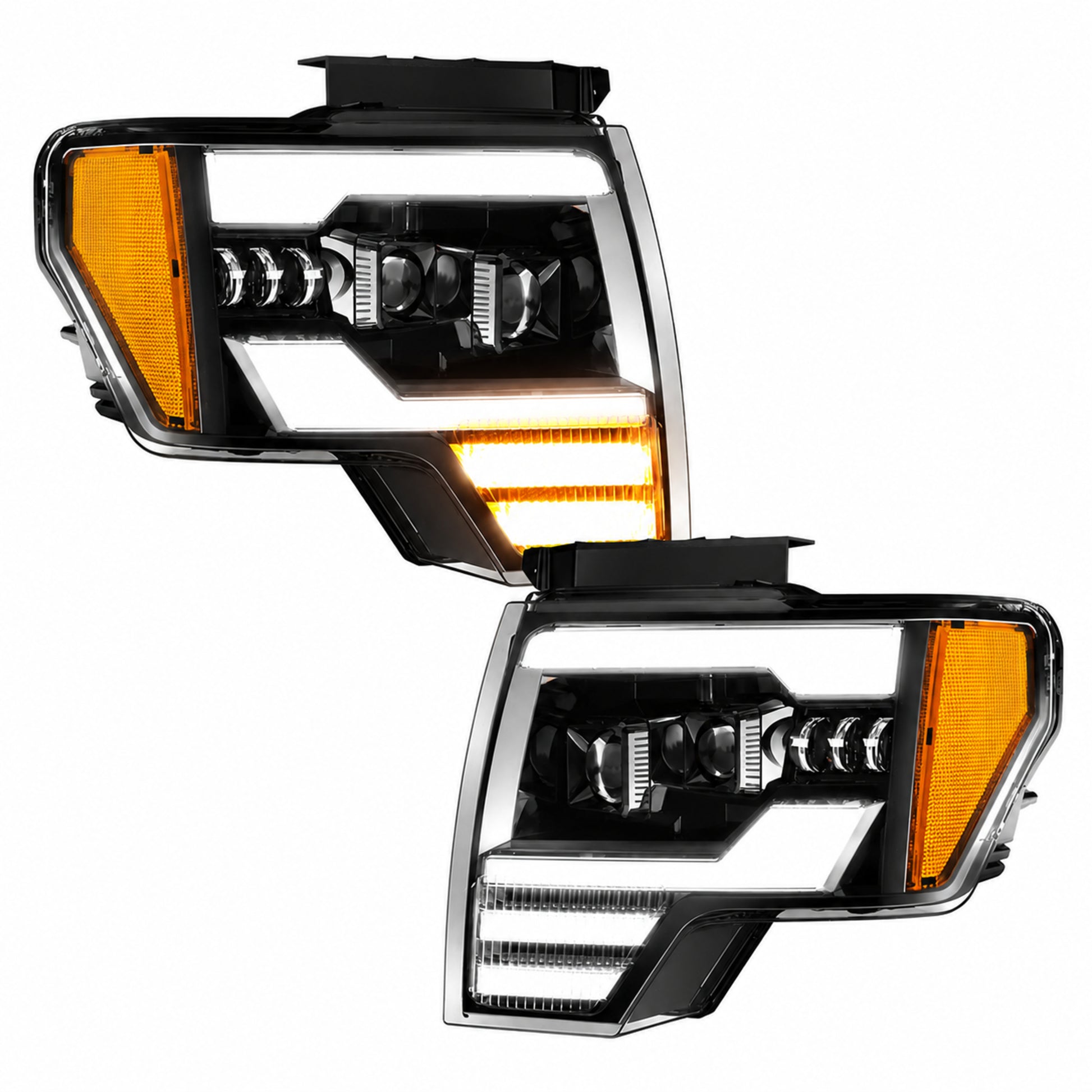

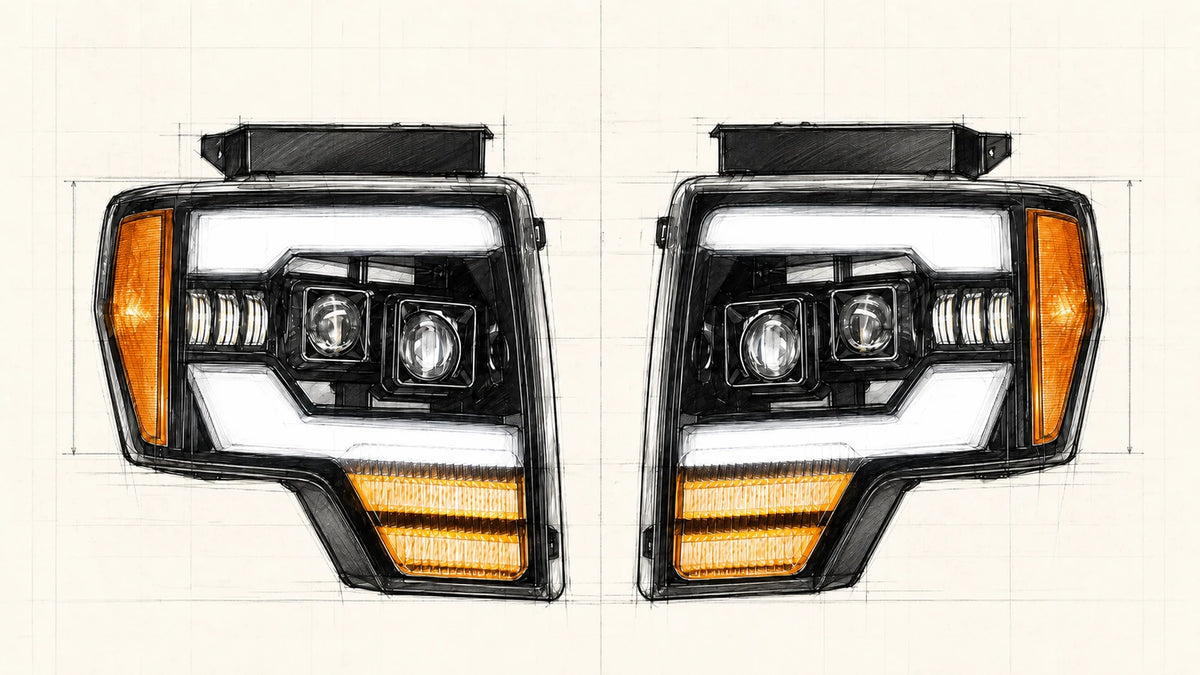

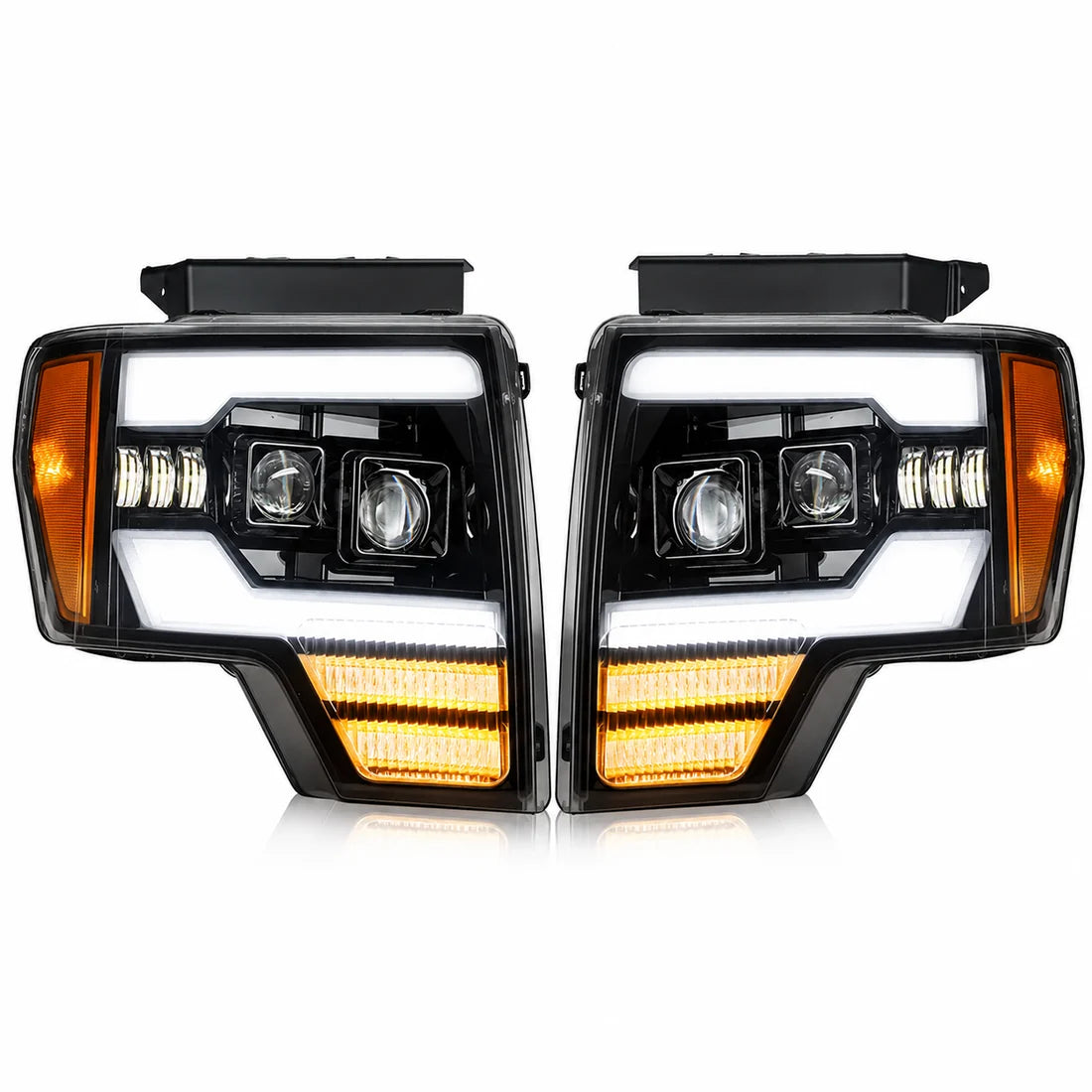

2009-2014 Ford F-150 & SVT Raptor LED Dual Projector Headlights Assembly
Product Videos
Dual Projector
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
$719.00
Fitment Check
Compatibility
Fits: 2009-2014 Ford F-150 (12th Generation, P415) — all trims including the SVT Raptor and Harley-Davidson editions, both factory halogen and factory HID, any cab (Regular / SuperCab / SuperCrew), bed length, powertrain, or drivetrain. HID adapter harness included.
OEM Cross Reference: Halogen: Left CL3Z-13008-A / DL3Z-13008-A (Partslink FO2502287); Right CL3Z-13008-B / DL3Z-13008-B (FO2503287). Factory HID: Left DL3Z-13008-EB (FO2502289); Right DL3Z-13008-EC (FO2503289). SVT Raptor / Harley-Davidson: Left AL3Z-13008-B; Right AL3Z-13008-A.
DRL: C-shaped, switchback White to Amber
Not sure it fits? Check the fitment guide →
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
$719.00
Free Shipping & Returns
Free Shipping & Returns
Free U.S. shipping on every order.
30-day returns and exchanges, started from your order confirmation email.
2-year Warranty covering LED failure, moisture intrusion, and component malfunctions under normal use.
Standard Shipping · 2–5 business days
Free
Ships via FedEx from our East or West Coast warehouse. Delivery estimates may vary due to carrier or weather delays.
Pre-Order (New Release) · 1-2 Weeks
Free
Applies only to items marked "New Release." These ship about 1–2 weeks after the first batch lands — order now to lock today's price and your spot in line. In-stock items ship in 2–5 business days, as above.
Built to Be Noticed. Day or Night.

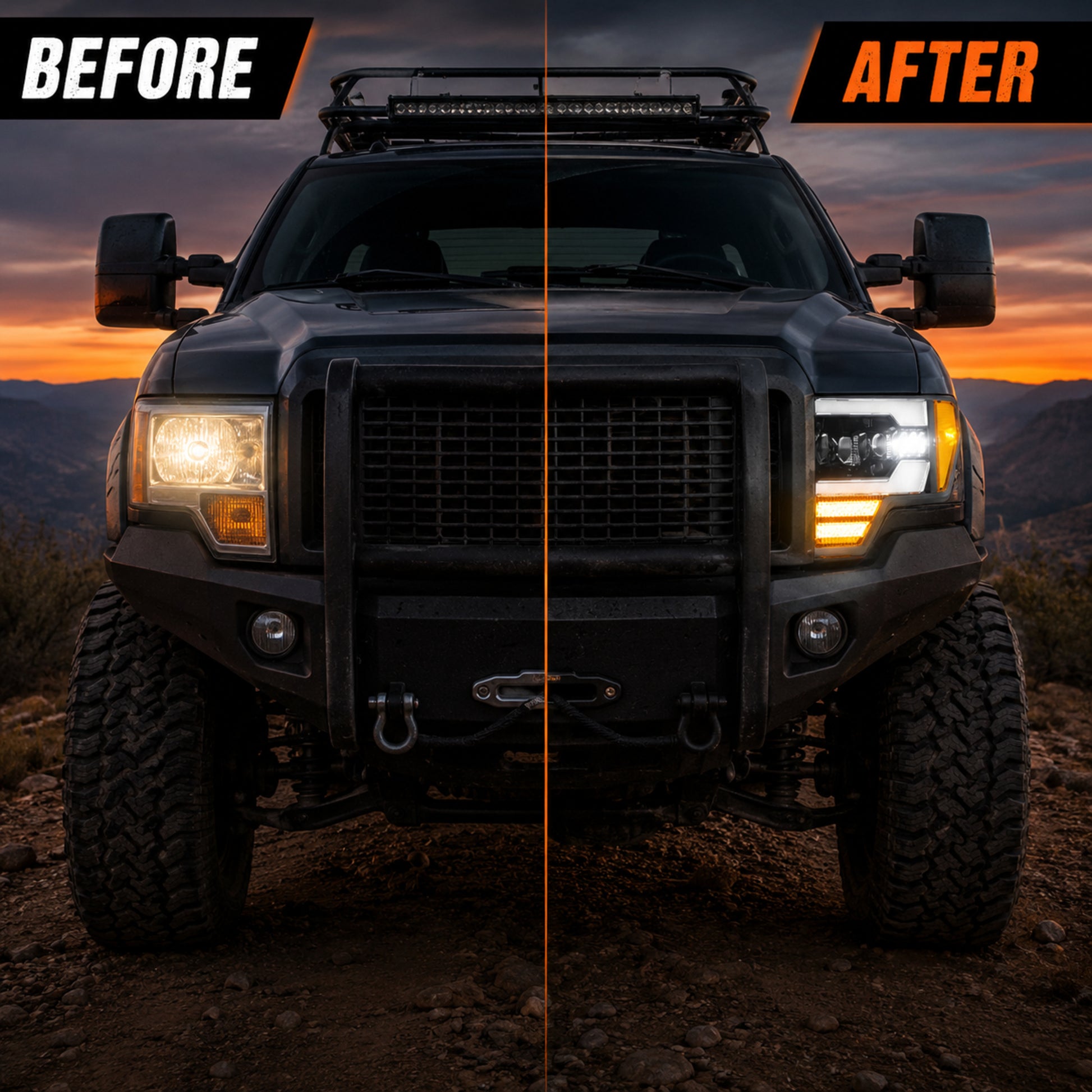

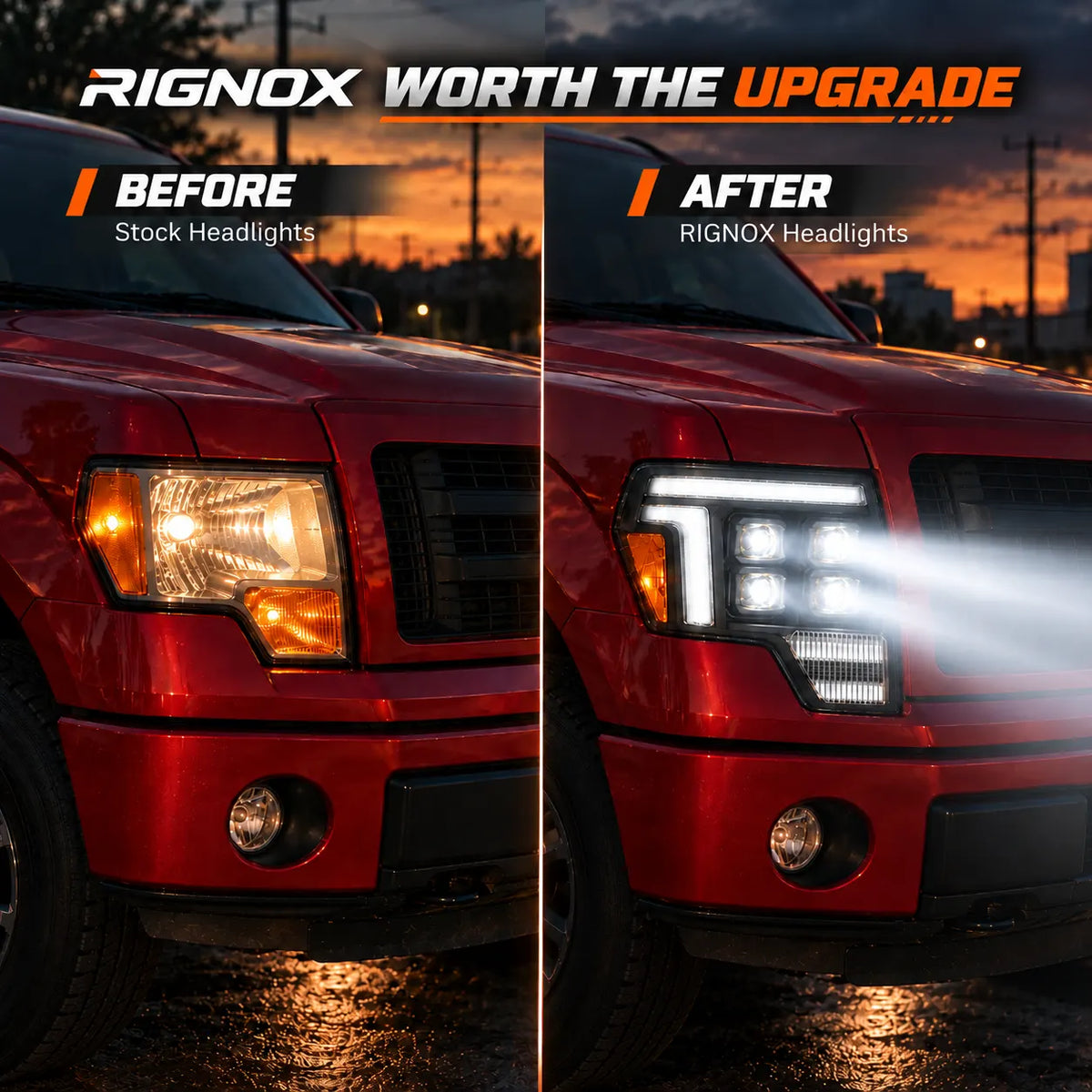

The 12th-gen F-150 never got a factory LED headlight — Ford ran halogen reflectors across the range and offered HID projectors only on the late luxury trims. Fifteen years on, most of these trucks are still staring through the same yellowing lenses they left the dealer with.
Built for your rig. Made for the night.

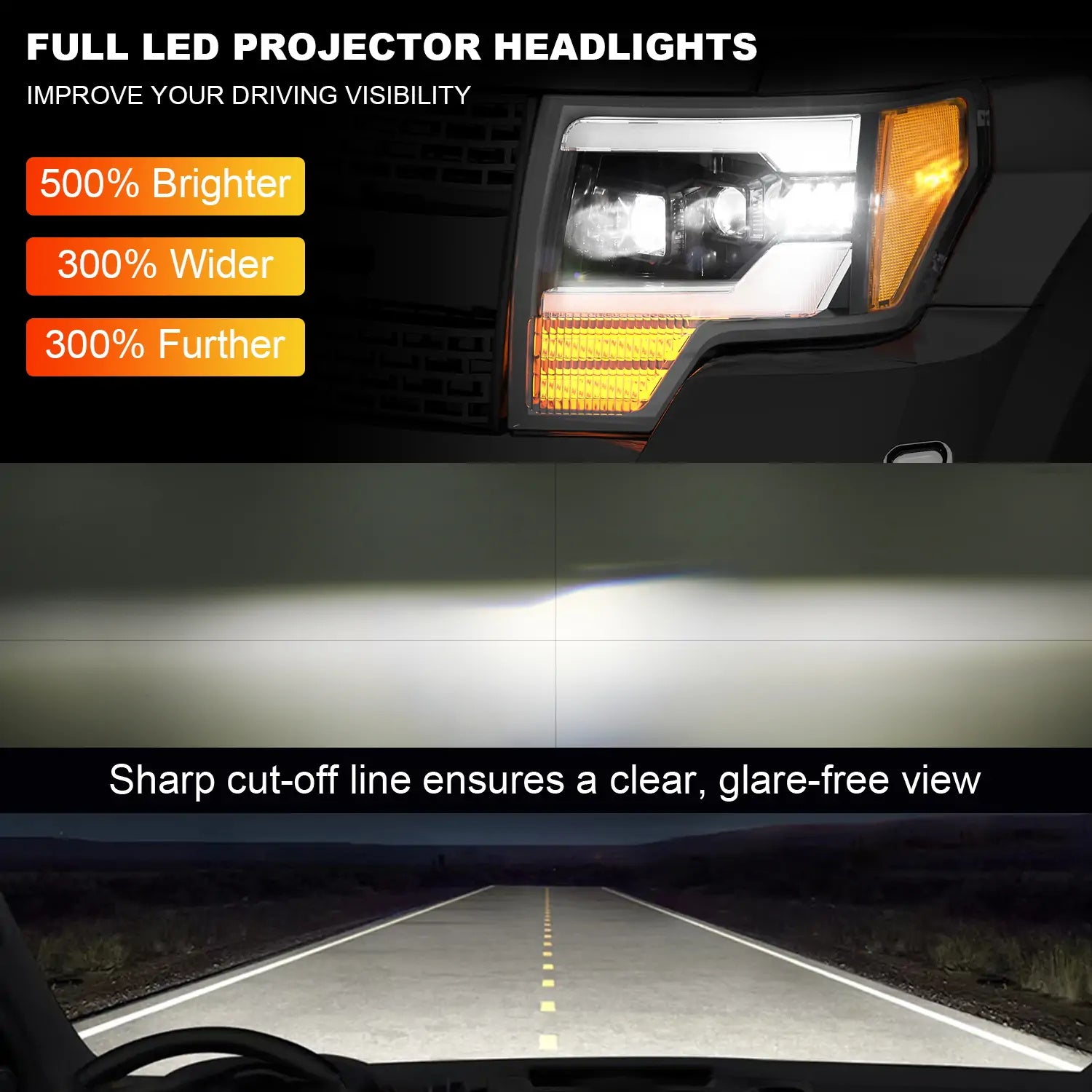

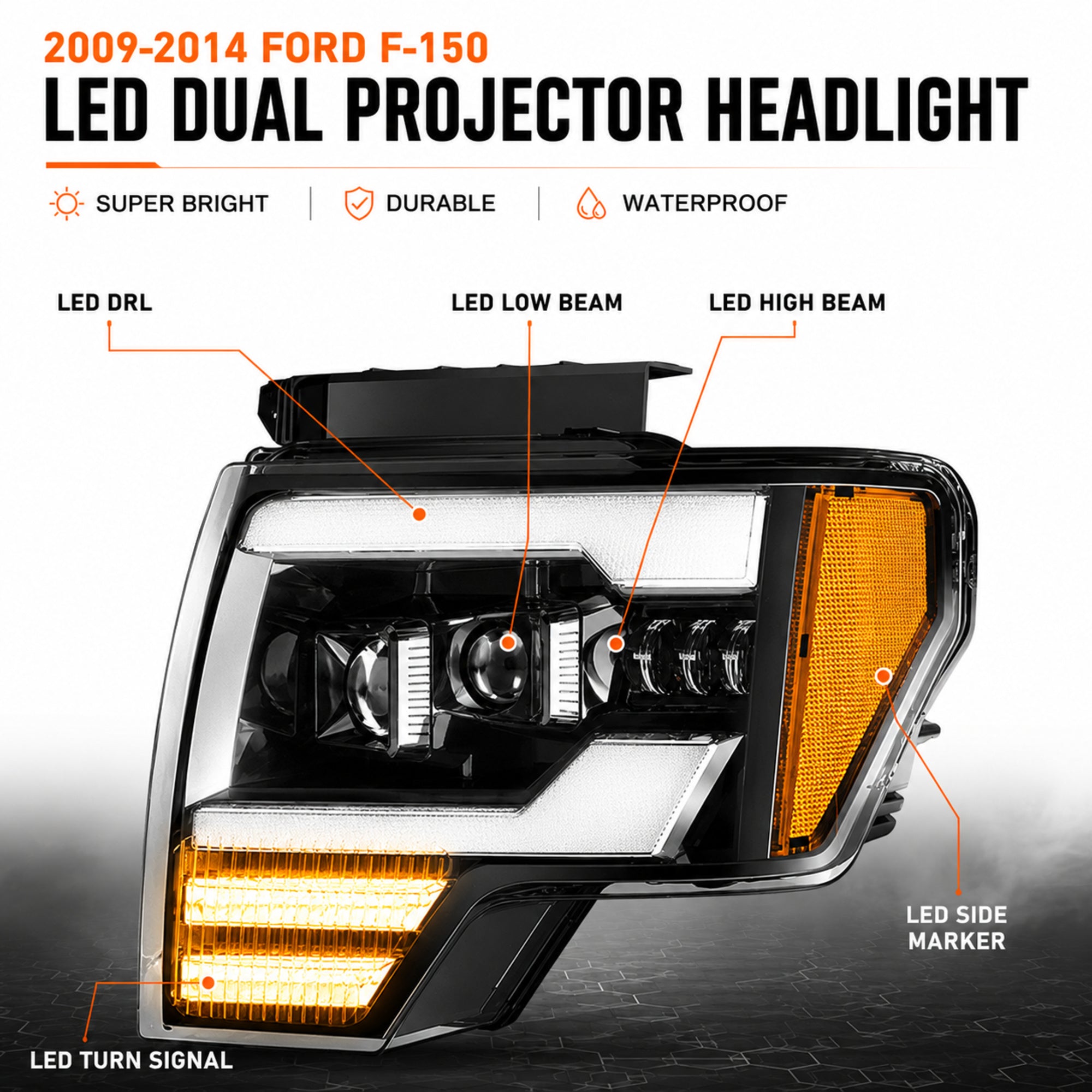

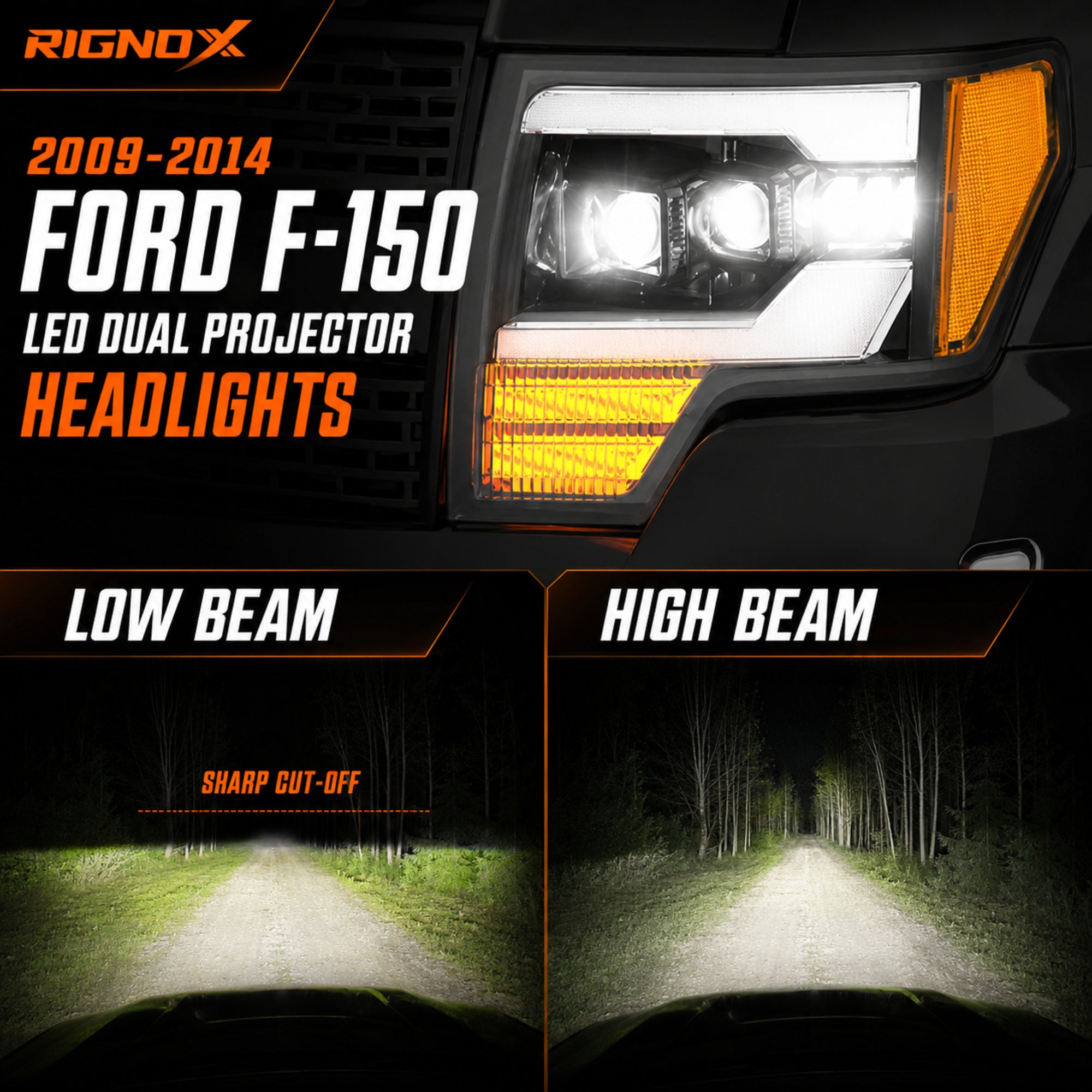

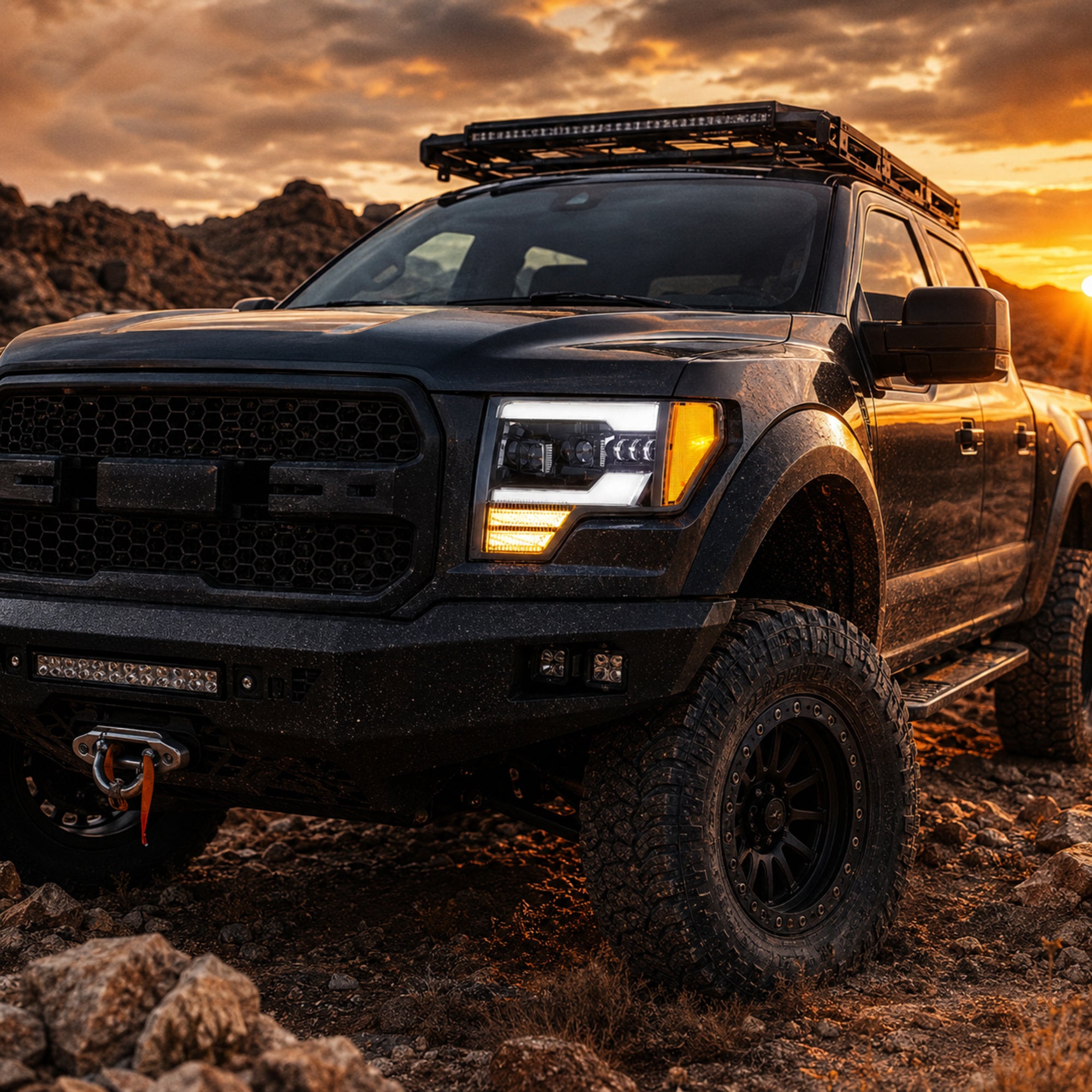

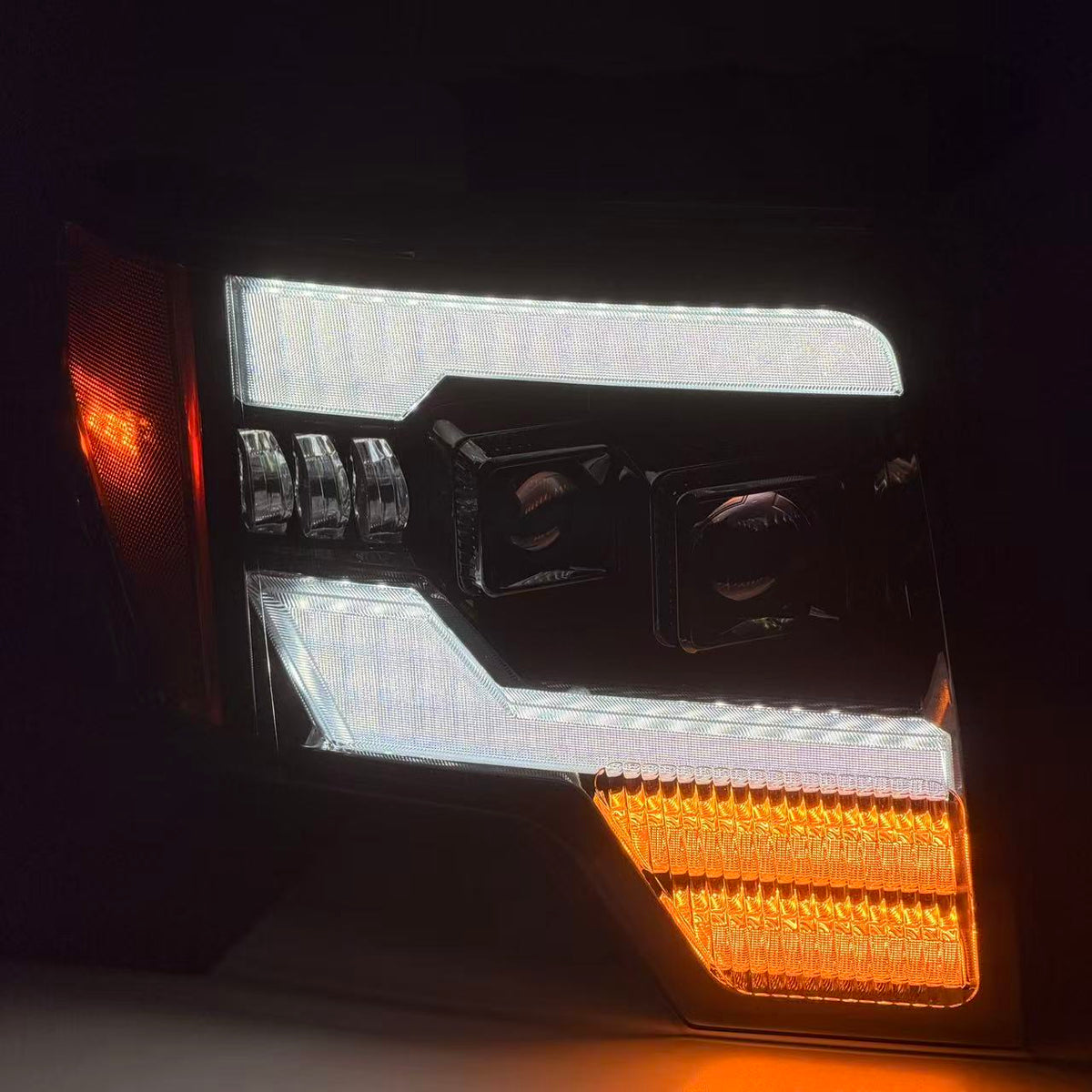

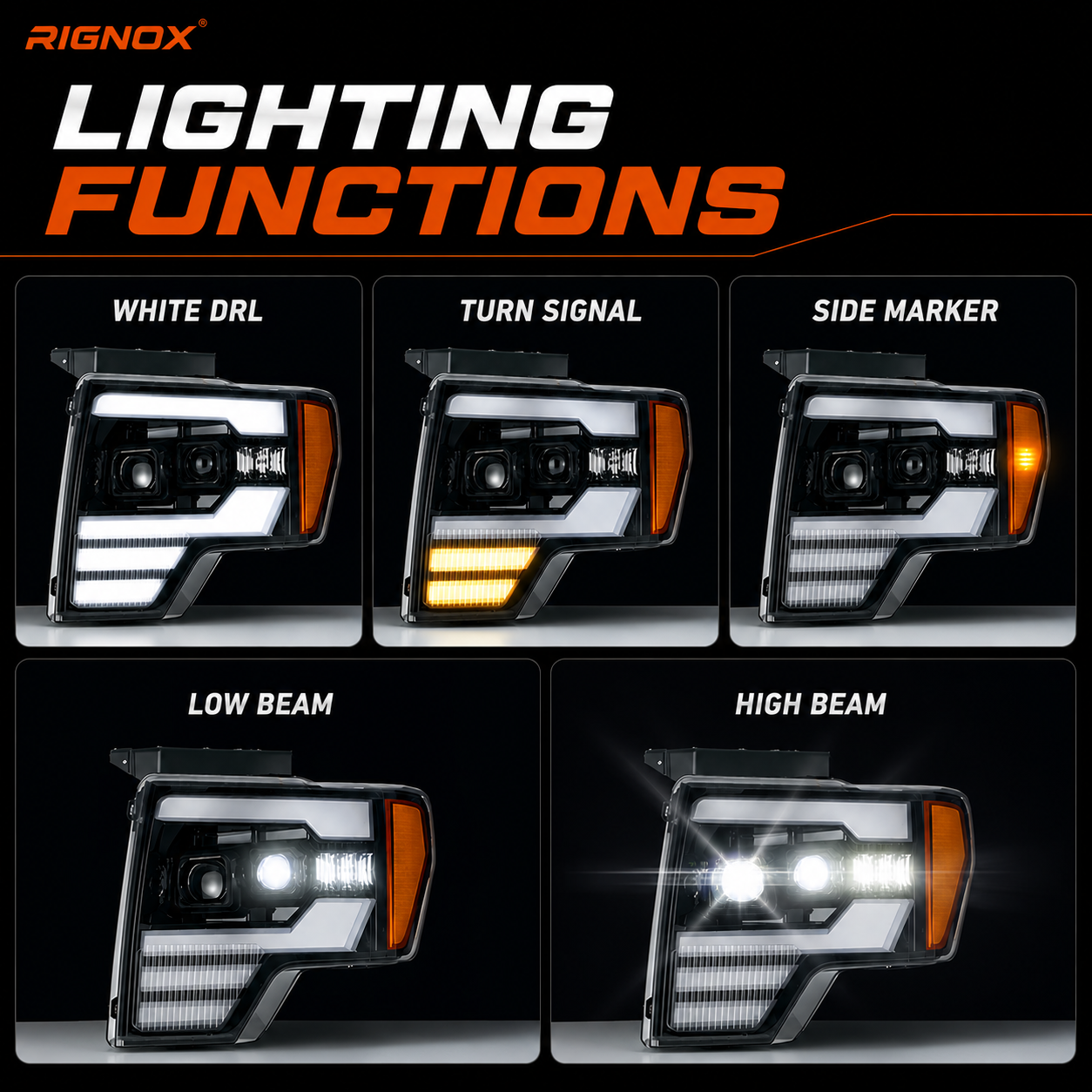

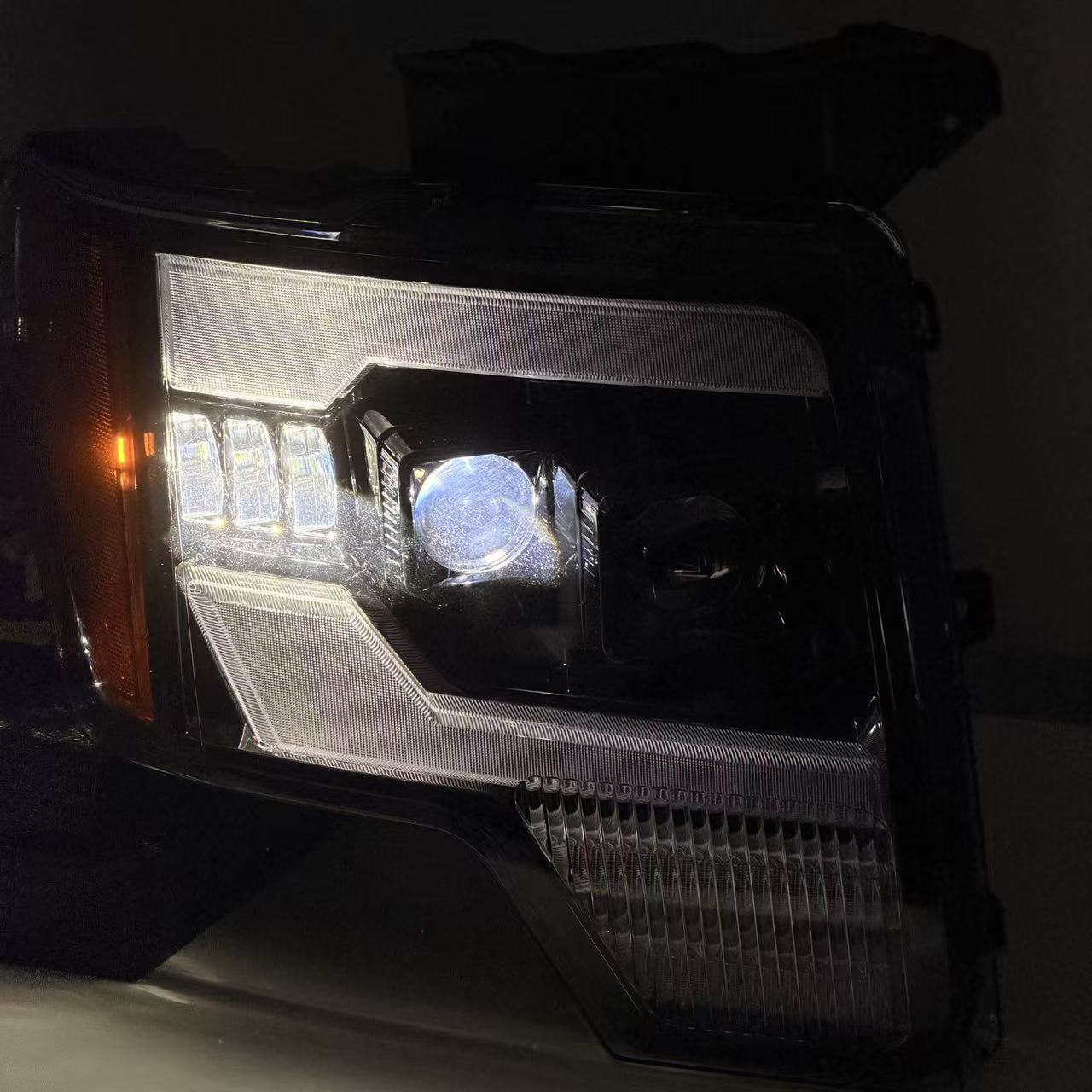

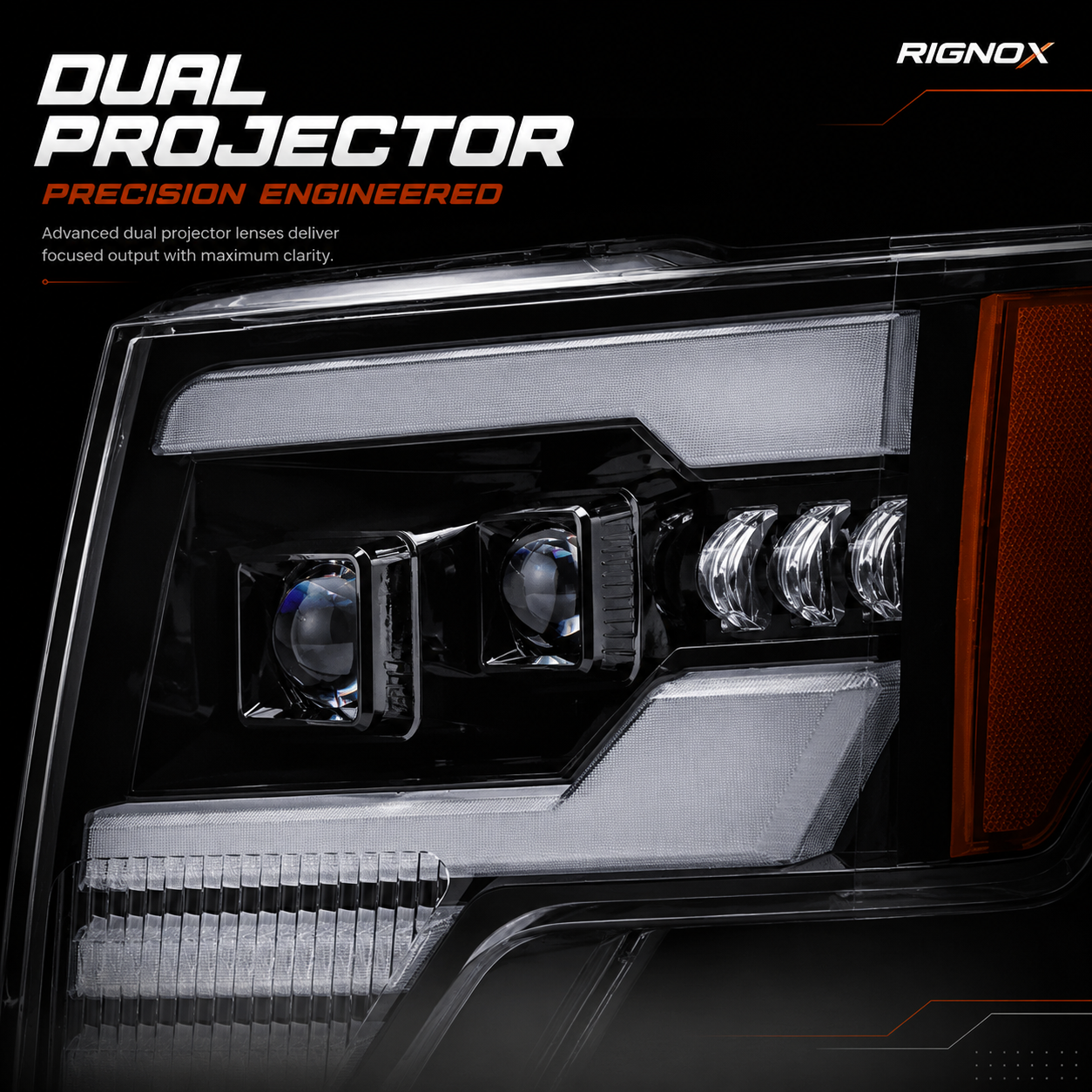

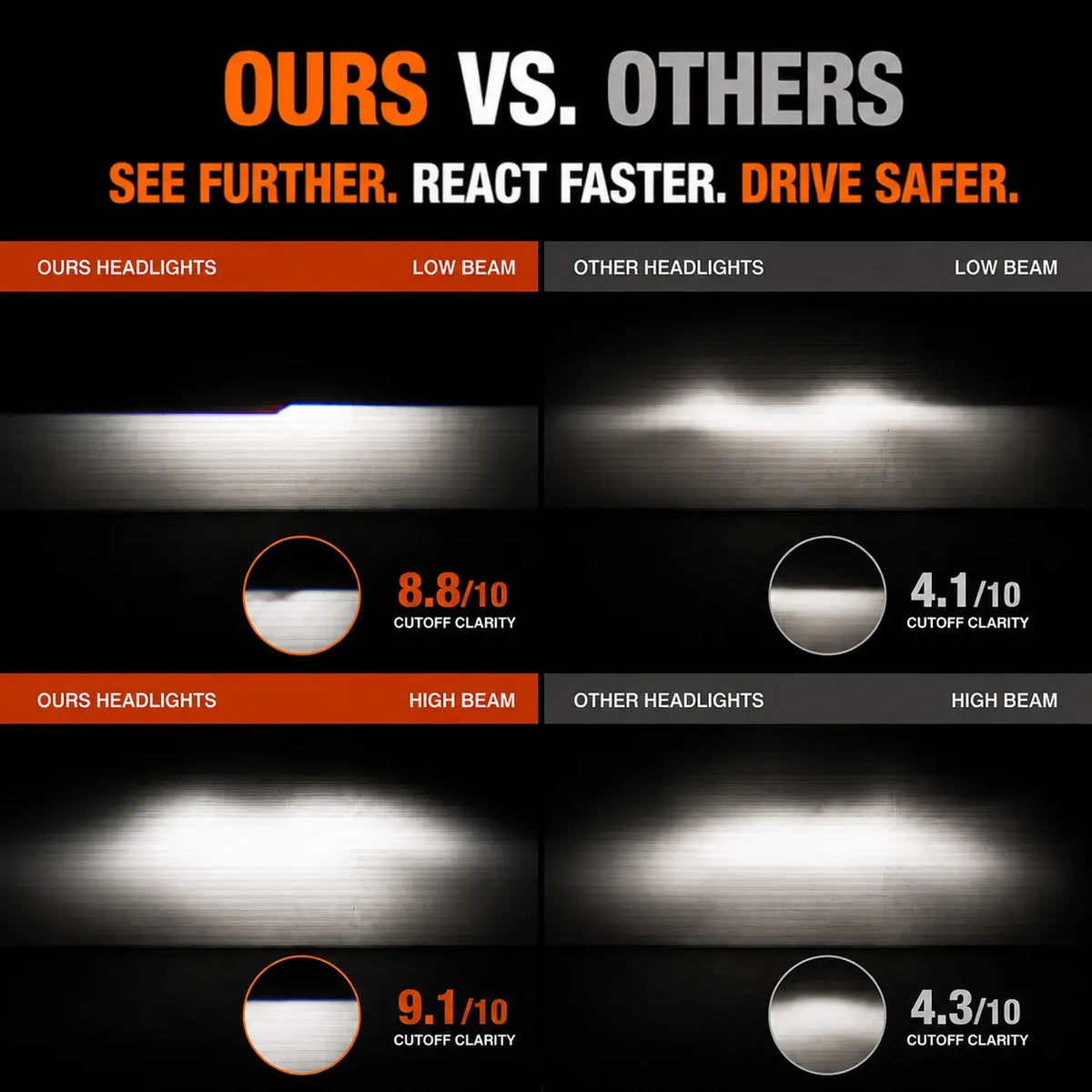

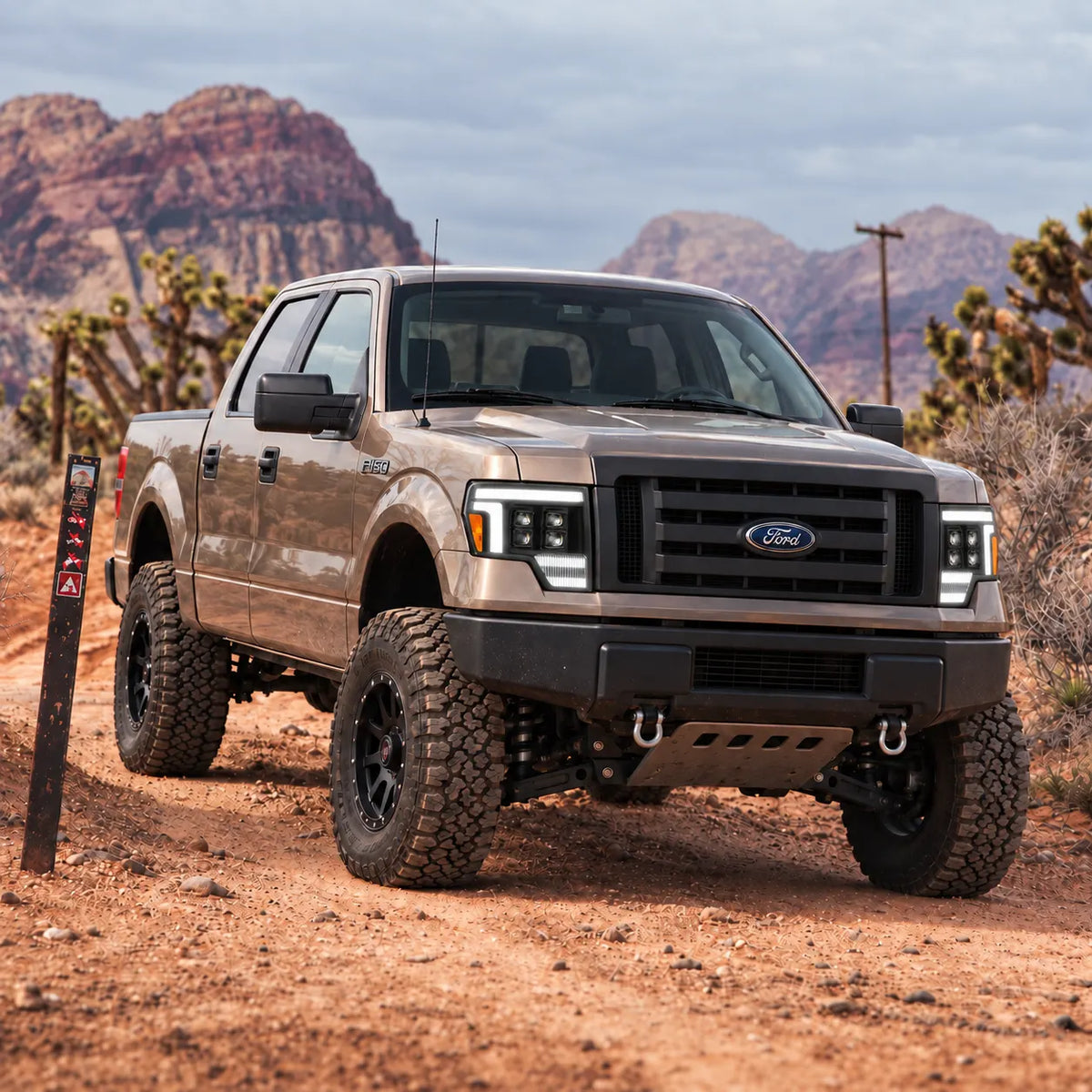

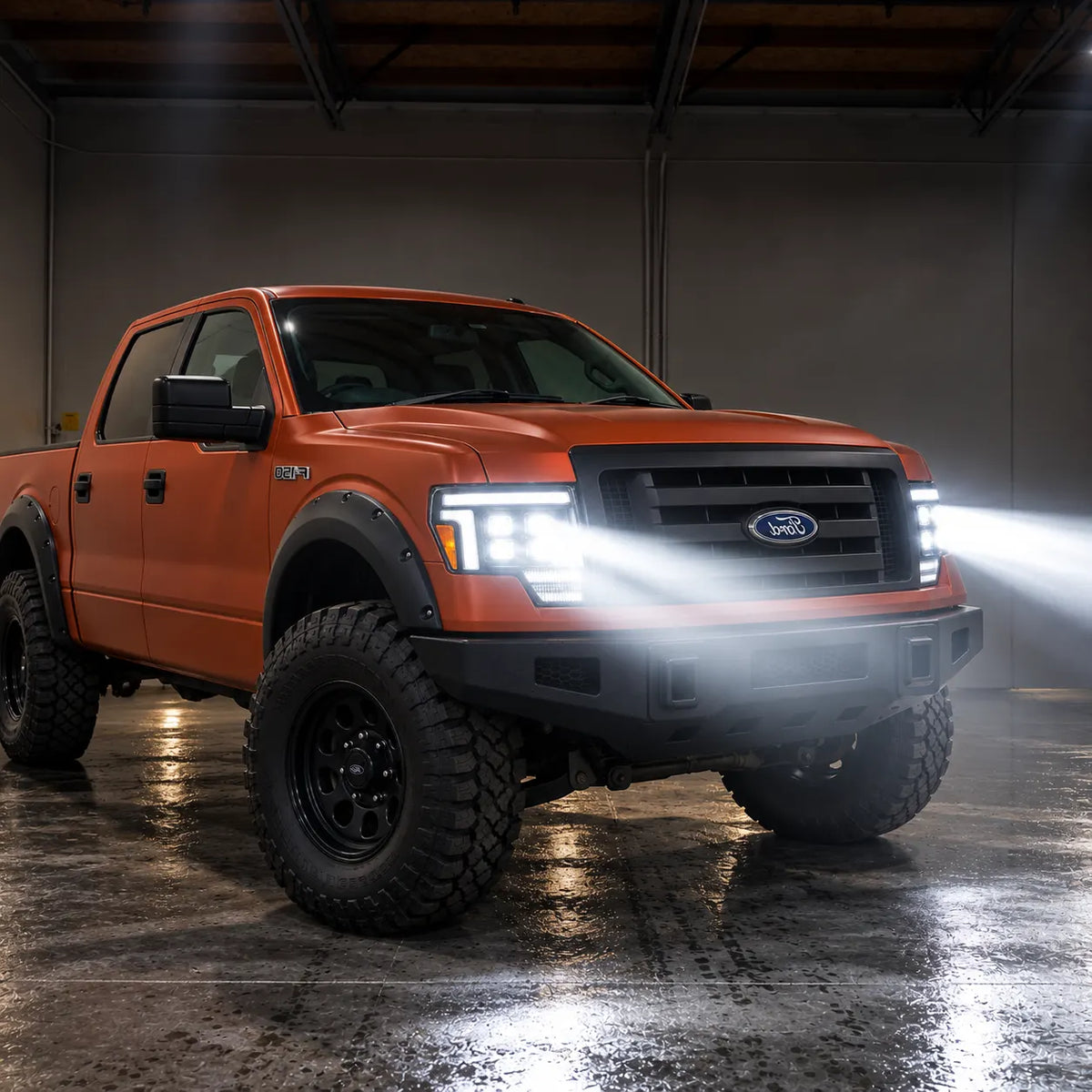

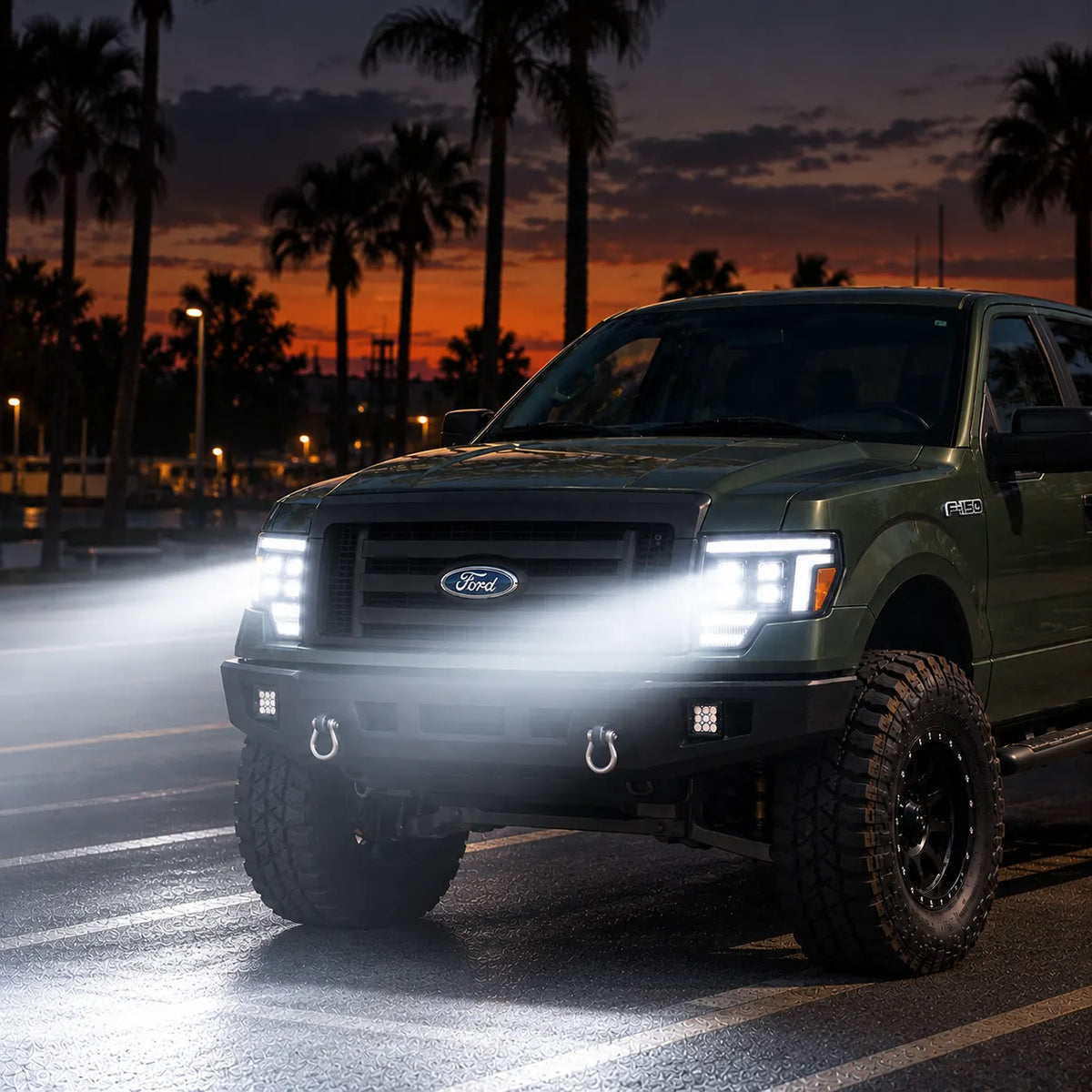

Two projector cups per side lay down a controlled beam with a defined cutoff — light on the road ahead, not in oncoming eyes — running roughly two to three times the output of the factory halogen. A C-shaped LED daytime running light glows bright white by day and switches to amber the moment you signal, then sweeps outward in sequence. High and low beam step through a single smart module, a startup animation runs when you fire the truck up, and a breathing welcome animation greets you on approach.

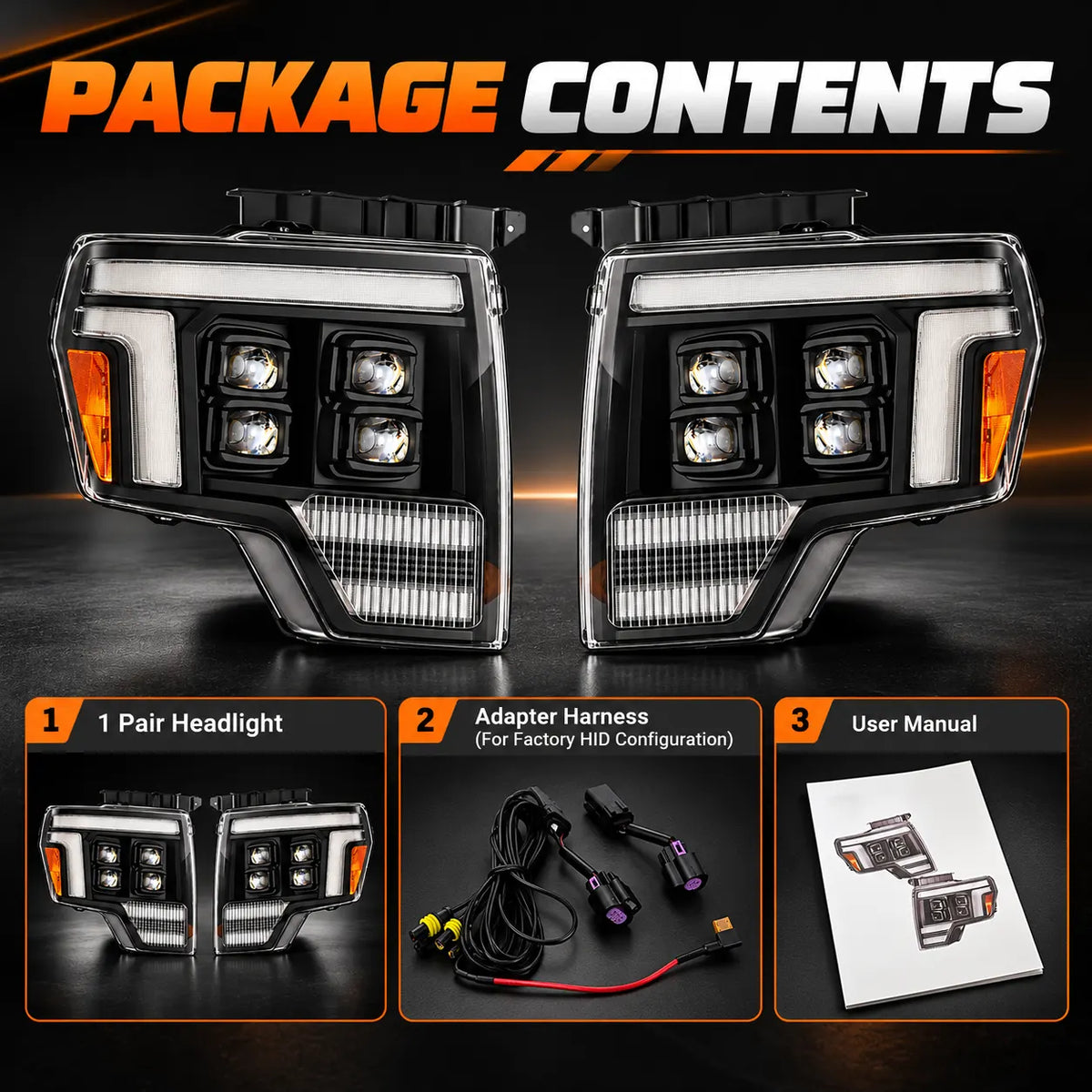

Fits every trim. One assembly covers the whole range — every factory-halogen truck, the 2013-2014 factory-HID luxury trims, and the SVT Raptor and Harley-Davidson editions. The mounting points, housing footprint, and harness plug are shared across all of them; the factory part numbers split only for appearance, never for fit. The HID adapter harness is in the box for the factory-HID trucks.

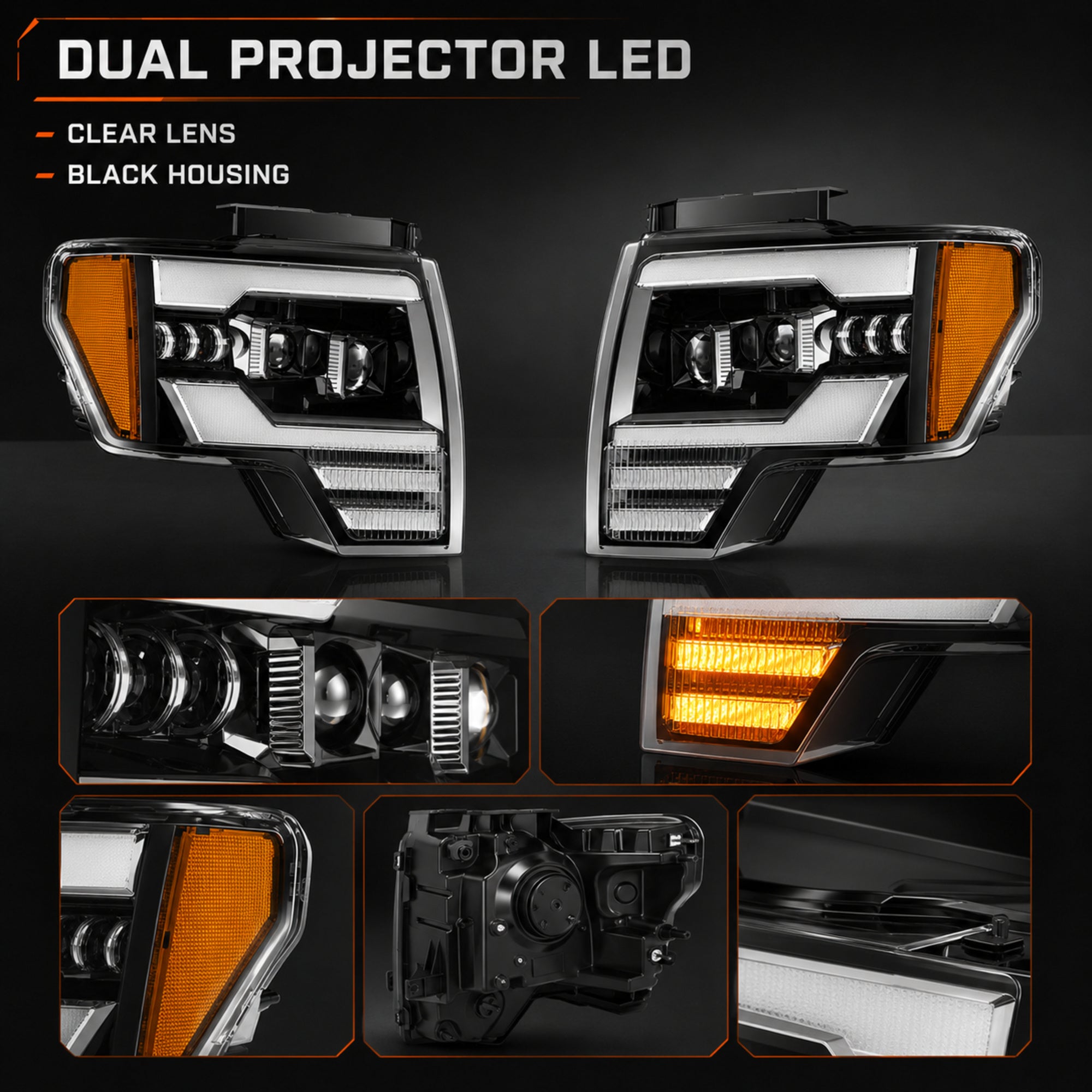

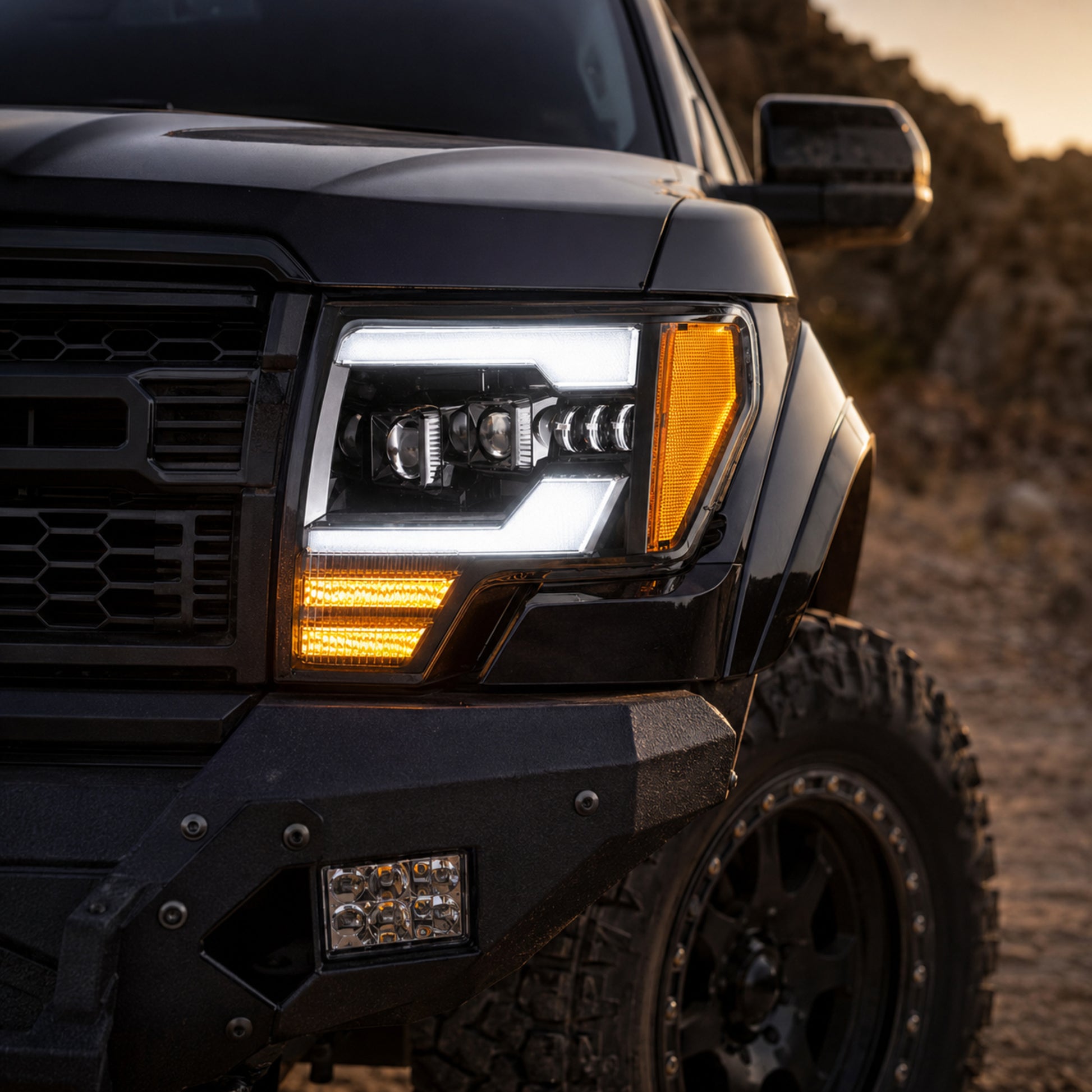

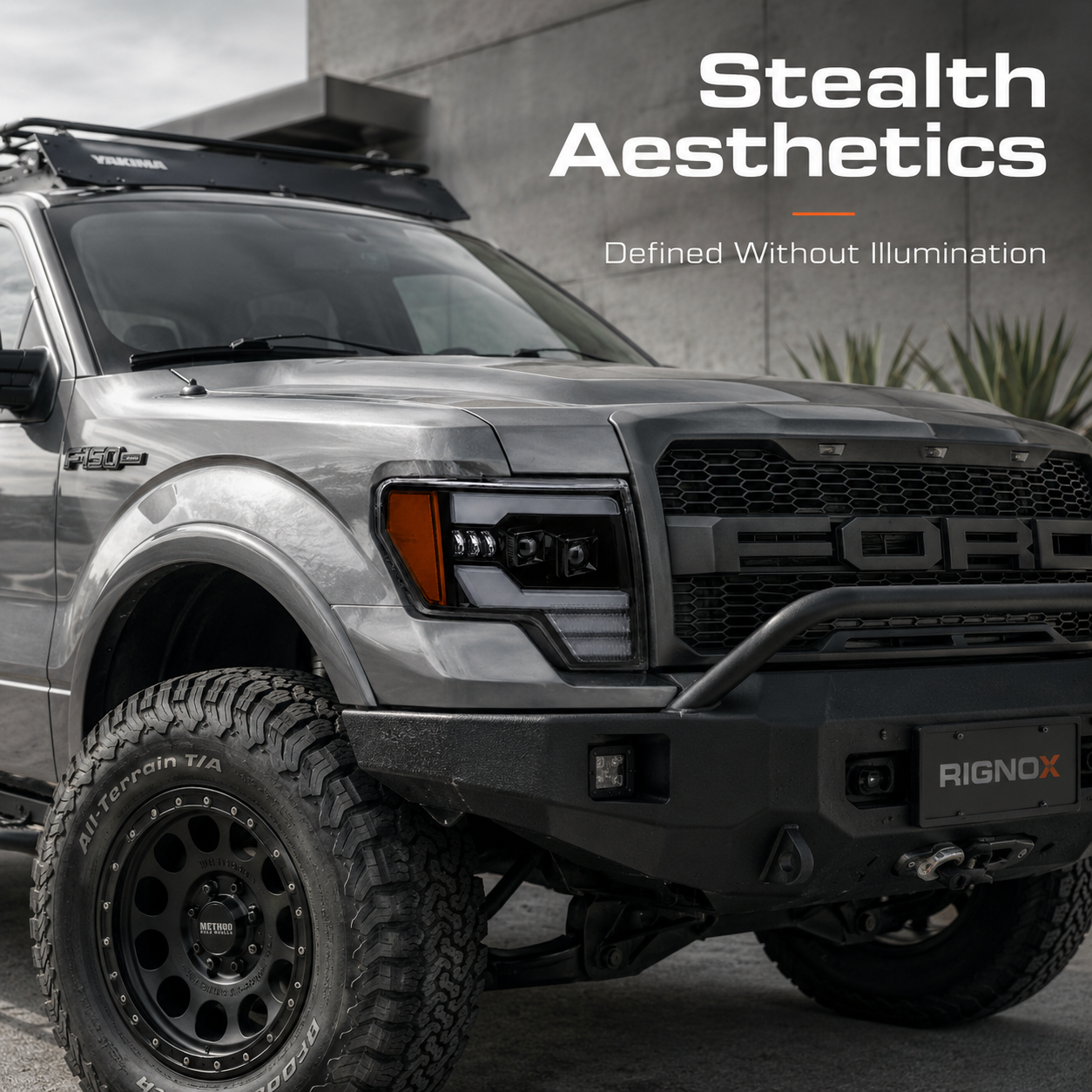

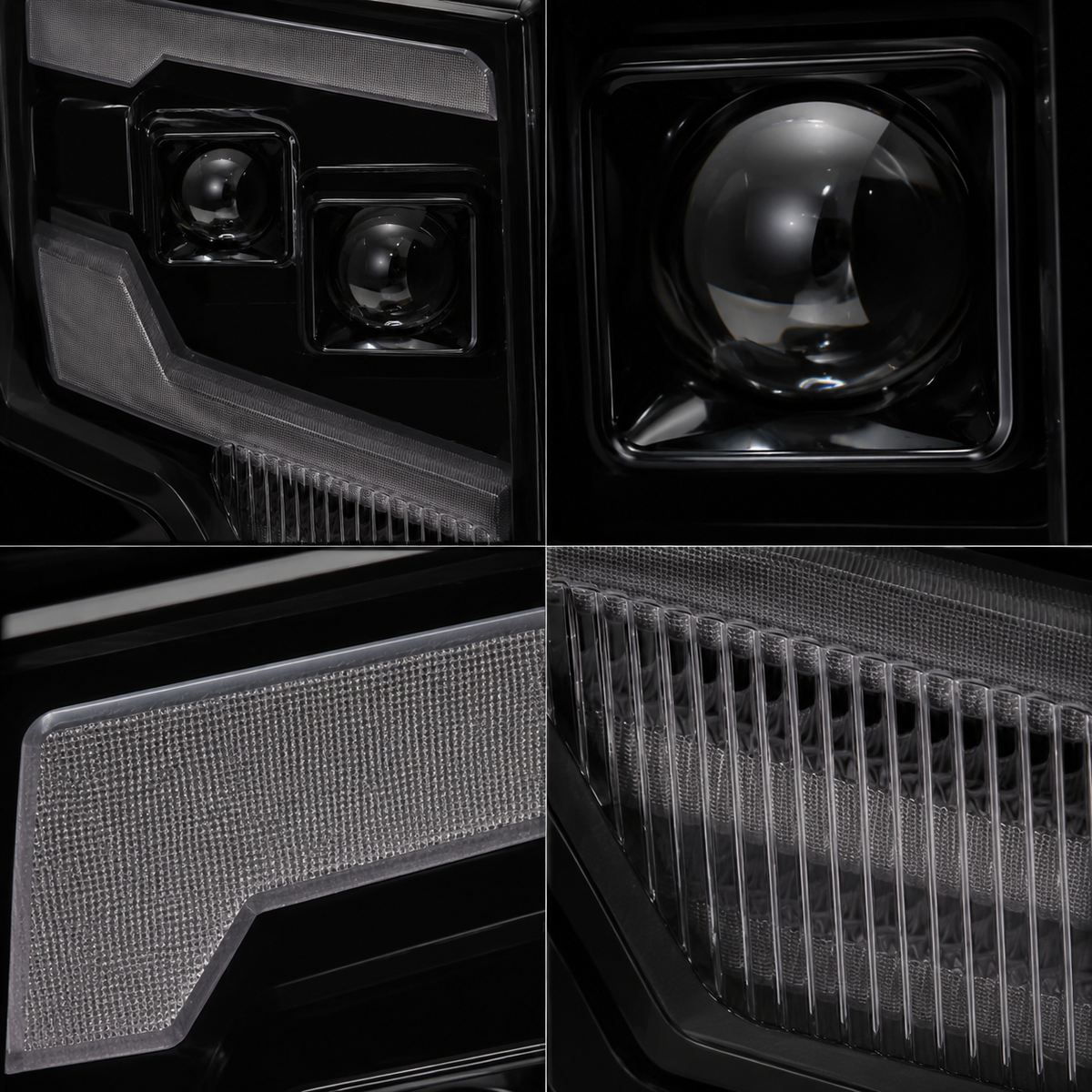

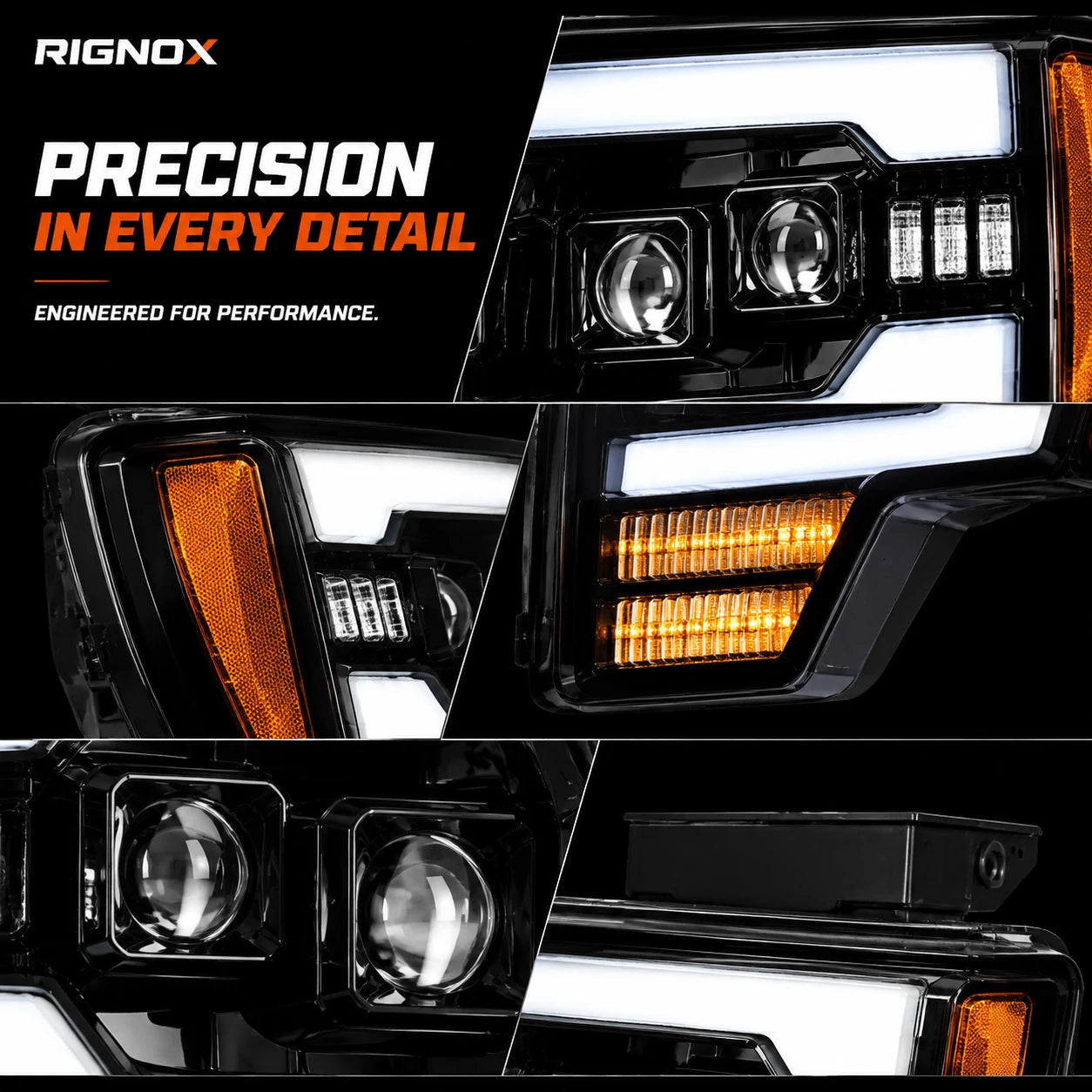

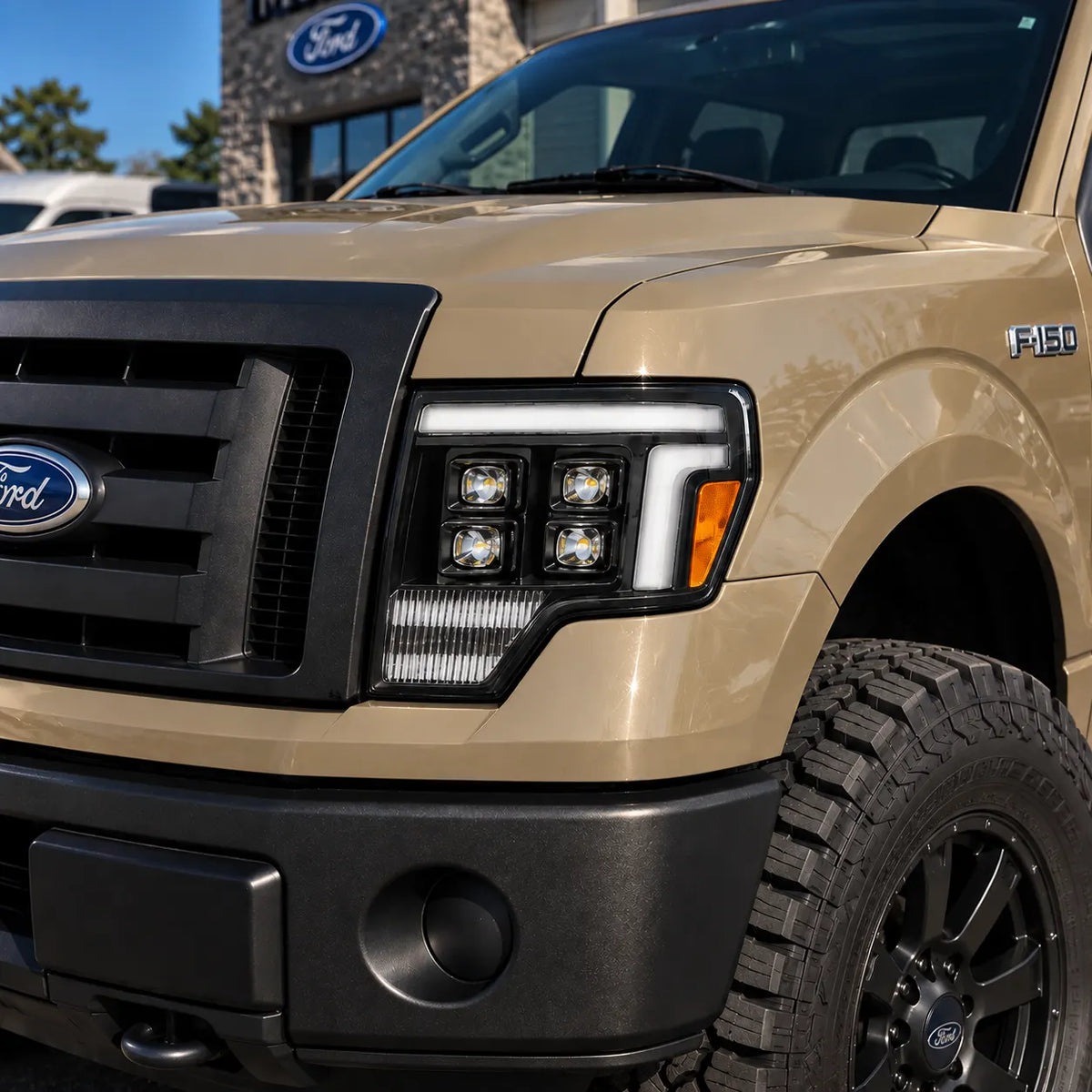

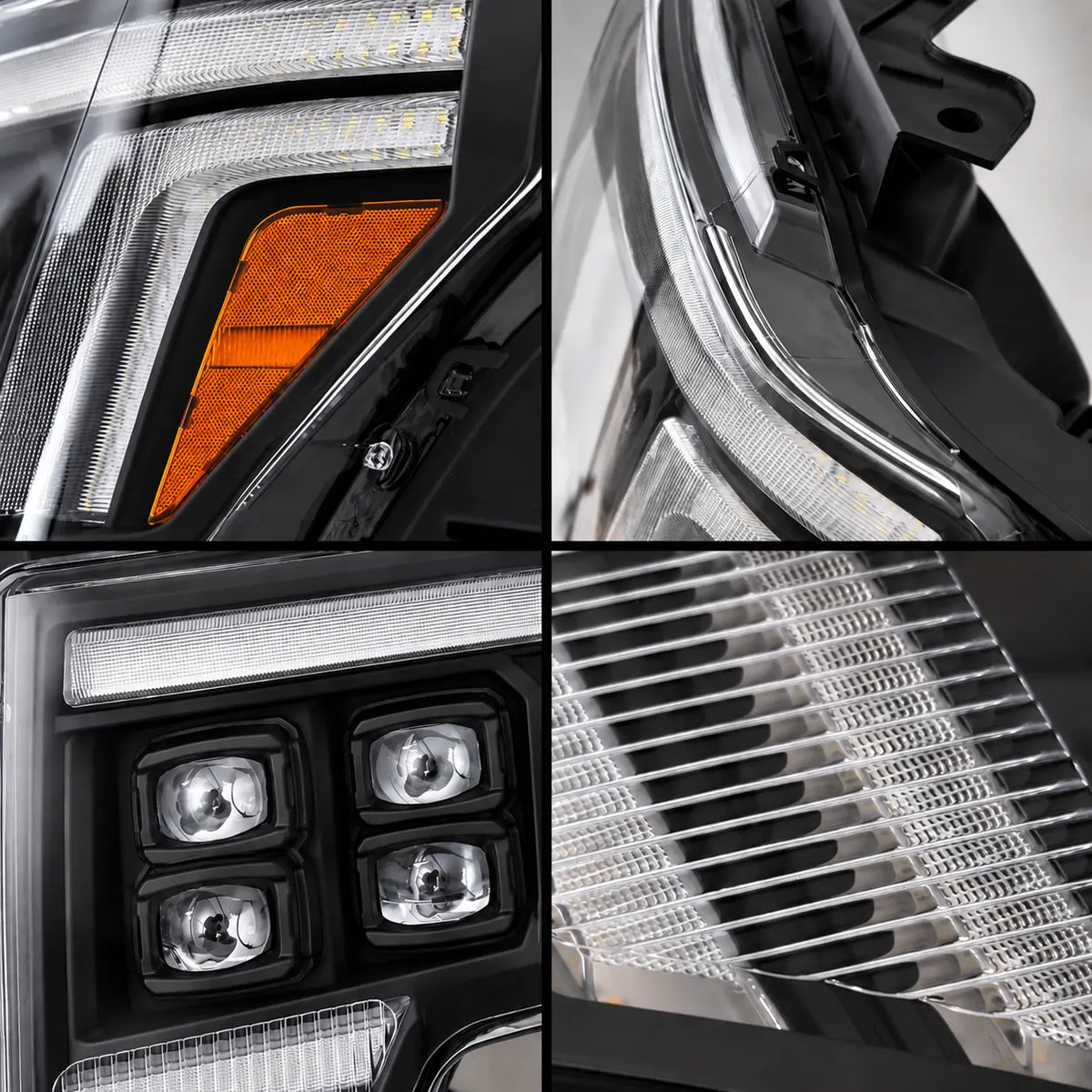

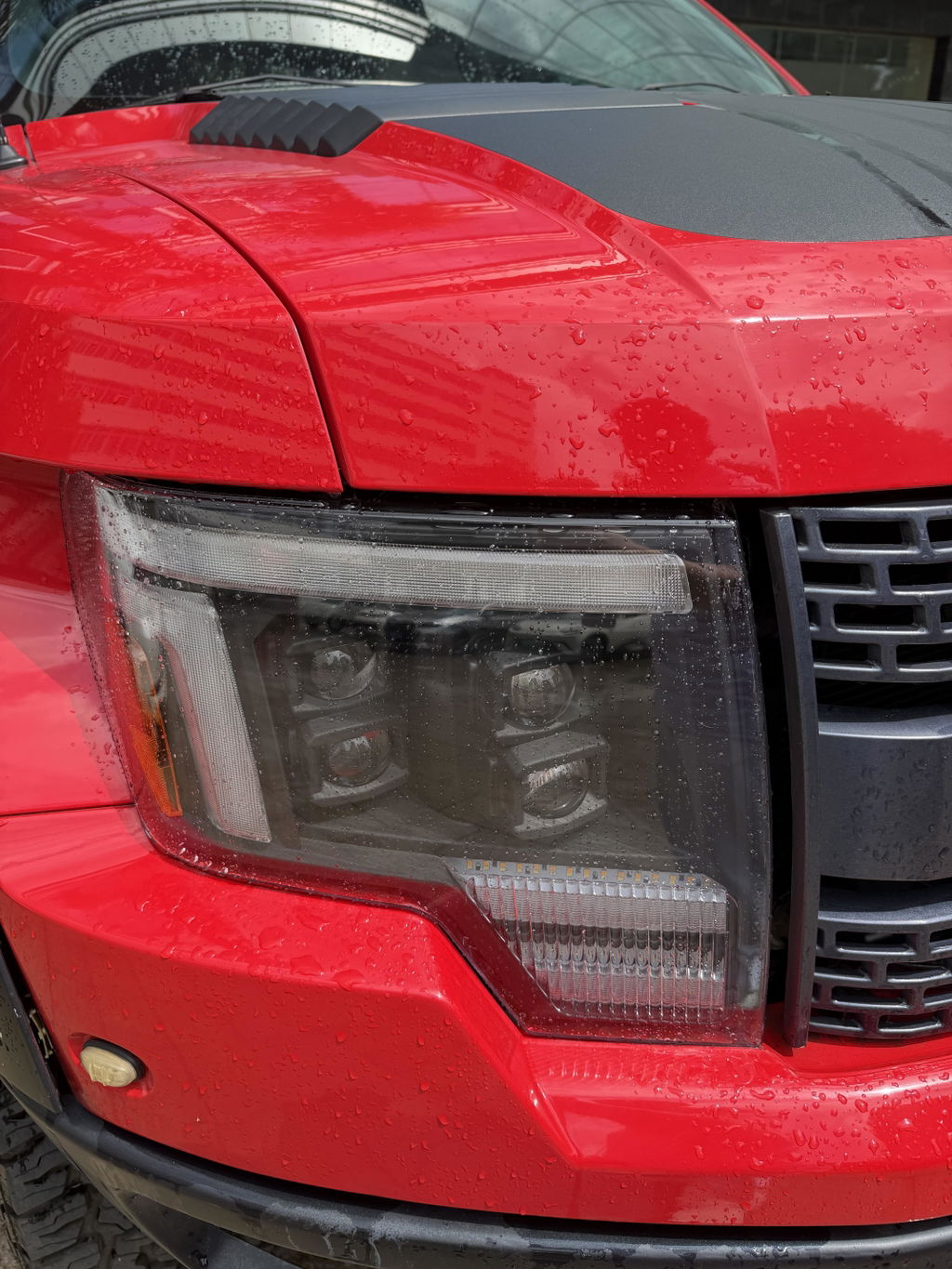

Blacked-out internals, clear lens. The dark housing gives the assembly its smoked attitude when the lights are off, while the lens stays optically clear so the projector cutoff arrives on the road intact.
Built on patented optical technology and independently tested for vibration, mechanical shock, and corrosion resistance. The LED engine is seated on an aluminum base with active cooling, so output holds steady instead of fading as the housing heats up.
Installation is plug-and-play into the factory harness, with integrated CANbus anti-flicker decoders — no hyper-flashing, no dash errors. Plan on about an hour to ninety minutes per truck.
Compatibility
Fits: 2009-2014 Ford F-150 (12th Generation, P415) — all trims including the SVT Raptor and Harley-Davidson editions, both factory halogen and factory HID, any cab (Regular / SuperCab / SuperCrew), bed length, powertrain, or drivetrain. HID adapter harness included.
OEM Cross Reference: Halogen: Left CL3Z-13008-A / DL3Z-13008-A (Partslink FO2502287); Right CL3Z-13008-B / DL3Z-13008-B (FO2503287). Factory HID: Left DL3Z-13008-EB (FO2502289); Right DL3Z-13008-EC (FO2503289). SVT Raptor / Harley-Davidson: Left AL3Z-13008-B; Right AL3Z-13008-A.
DRL: C-shaped, switchback White to Amber
Main Characteristics
Light Output
Projectors
Dual (per side)
Beam & Output
160W LED with a defined low / high beam cutoff
Brightness

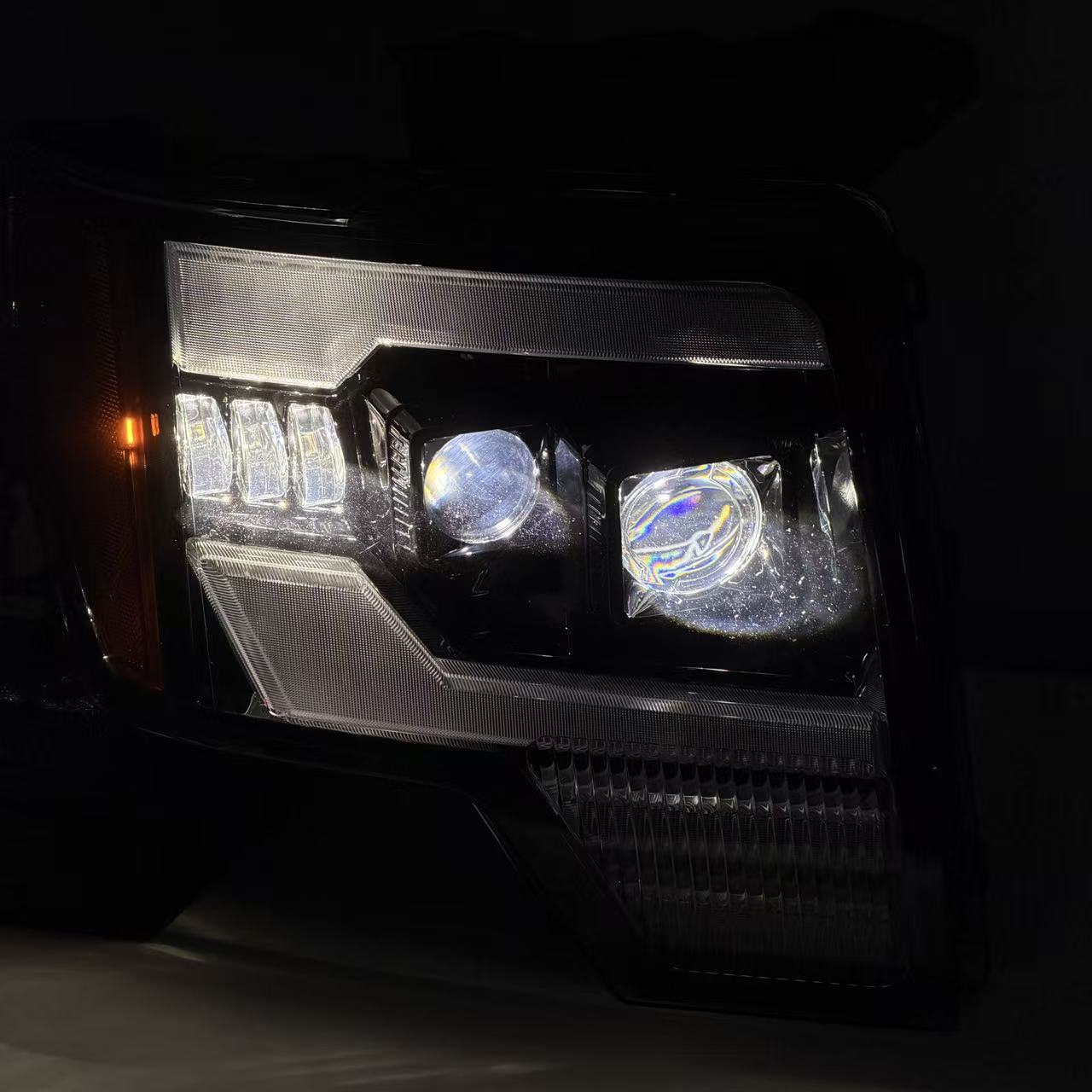

3,000–4,000 lumens on low beam and 5,000–6,000 on high — 3 to 5× the output of stock halogen
Beam Range
200–300 m of effective high-beam reach, with a low beam that covers 4 to 6 lanes wide
Color Temperature
6000K cool white — close to natural daylight, easier on the eyes on long night drives
Street Legal
DOT and SAE compliant (FMVSS 108)

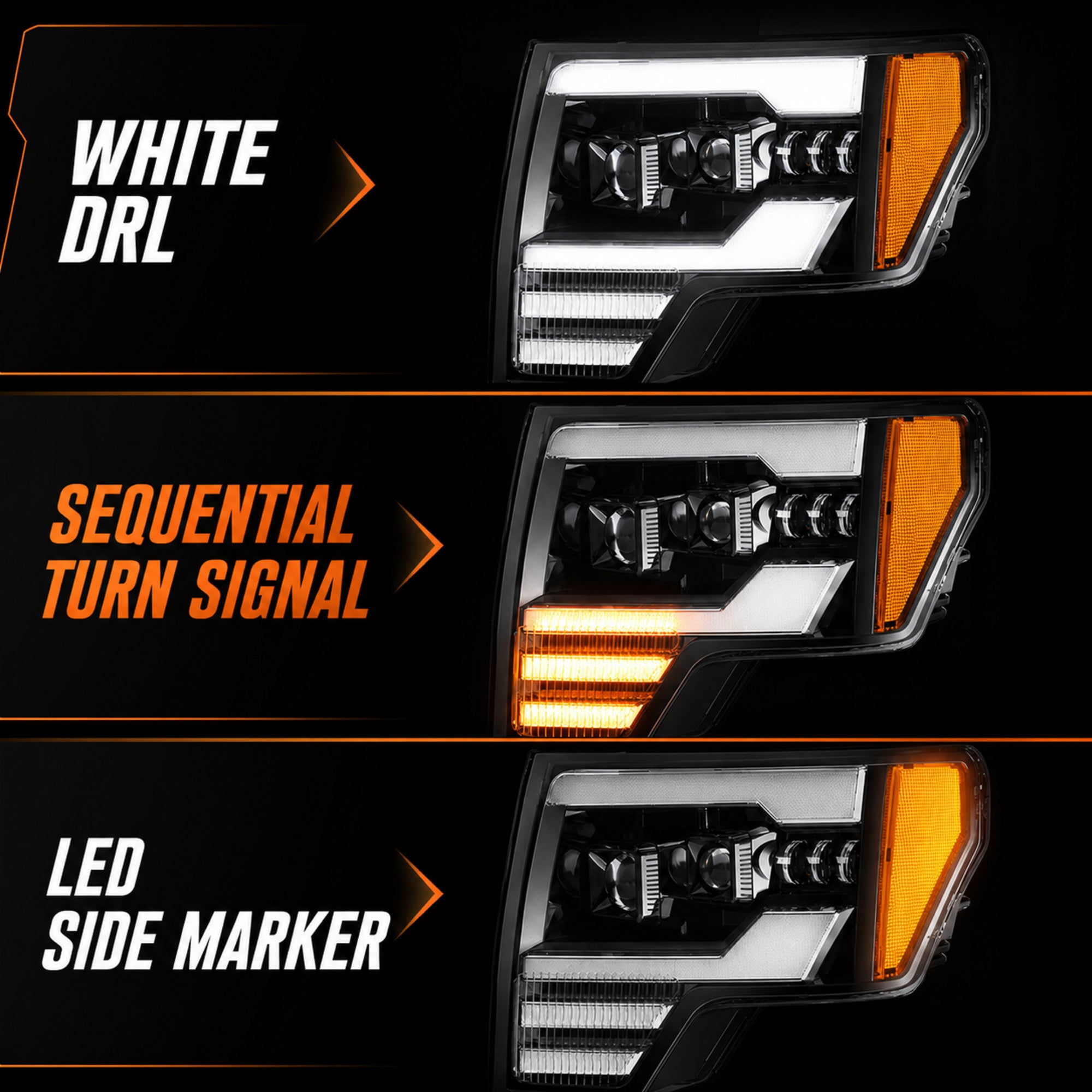

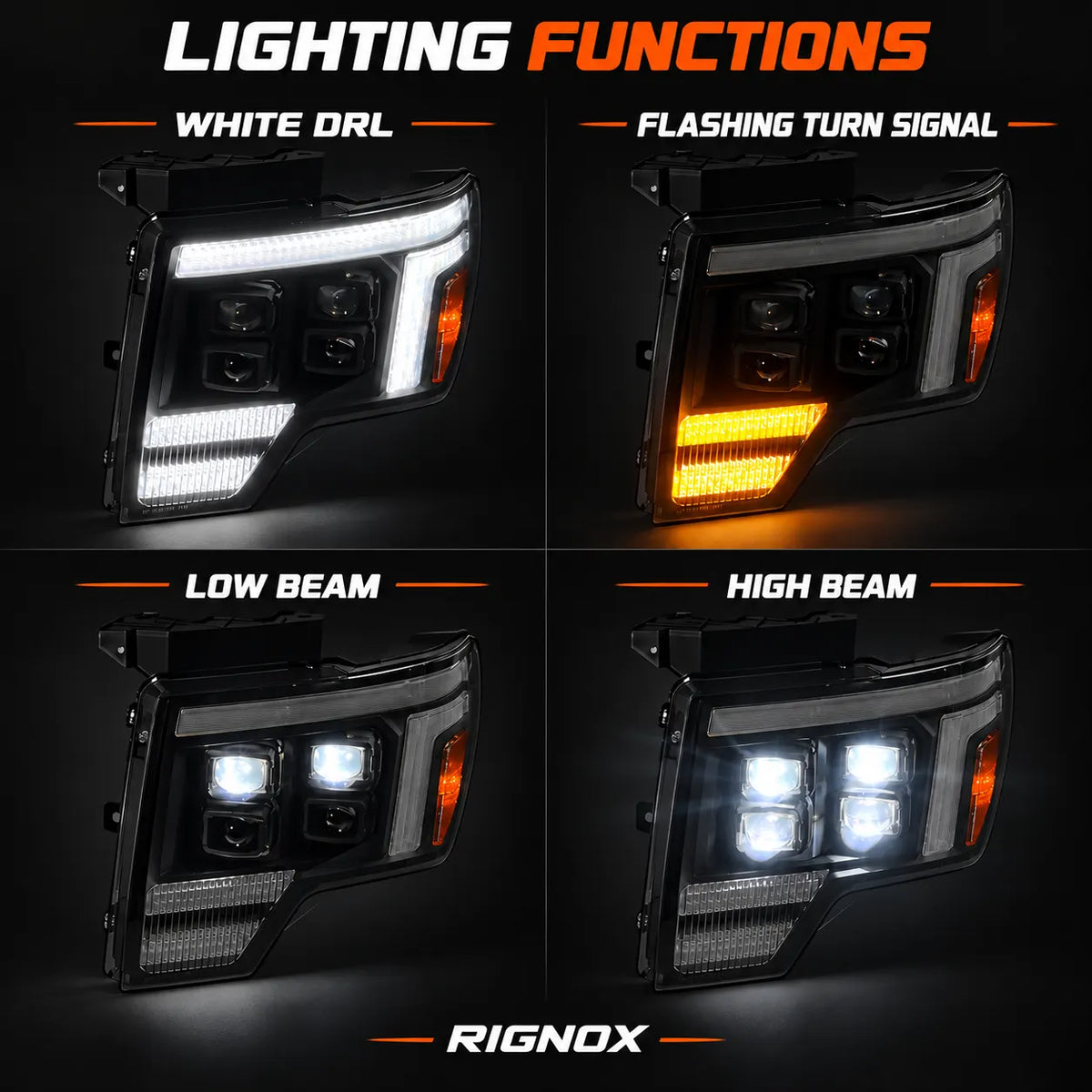

Light Signature

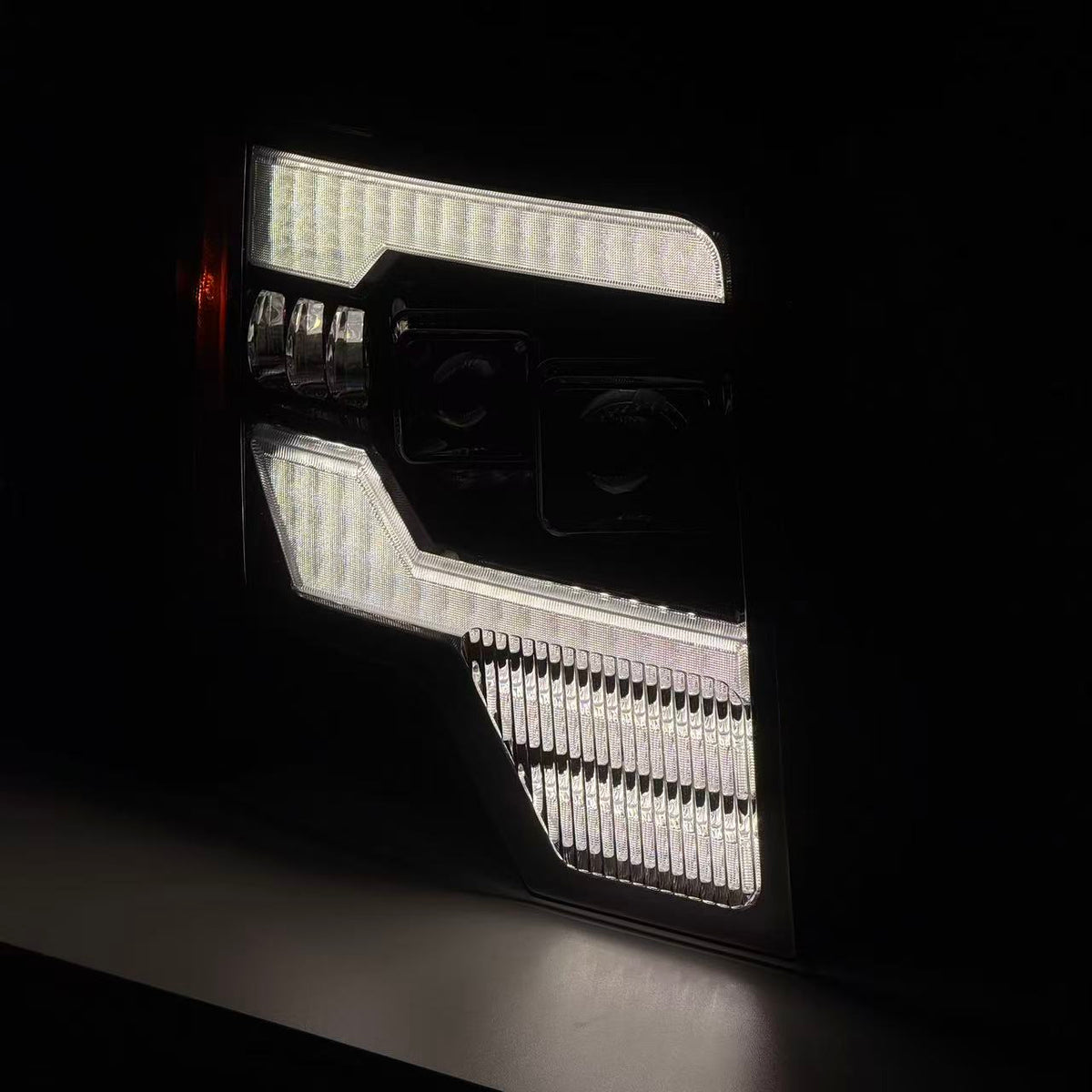

Daytime Running Light
White, switches to amber with the turn signal

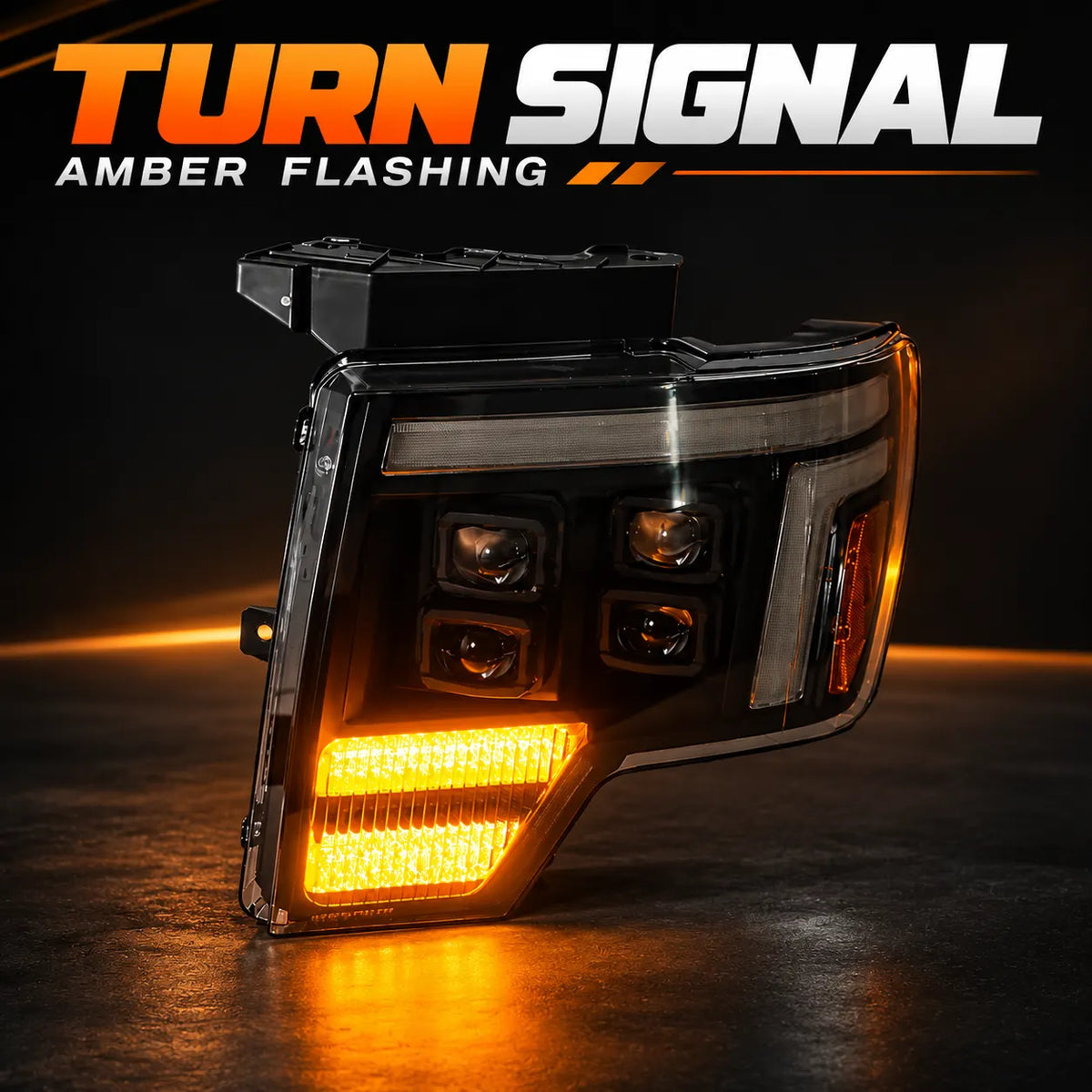

Turn Signal & Animation

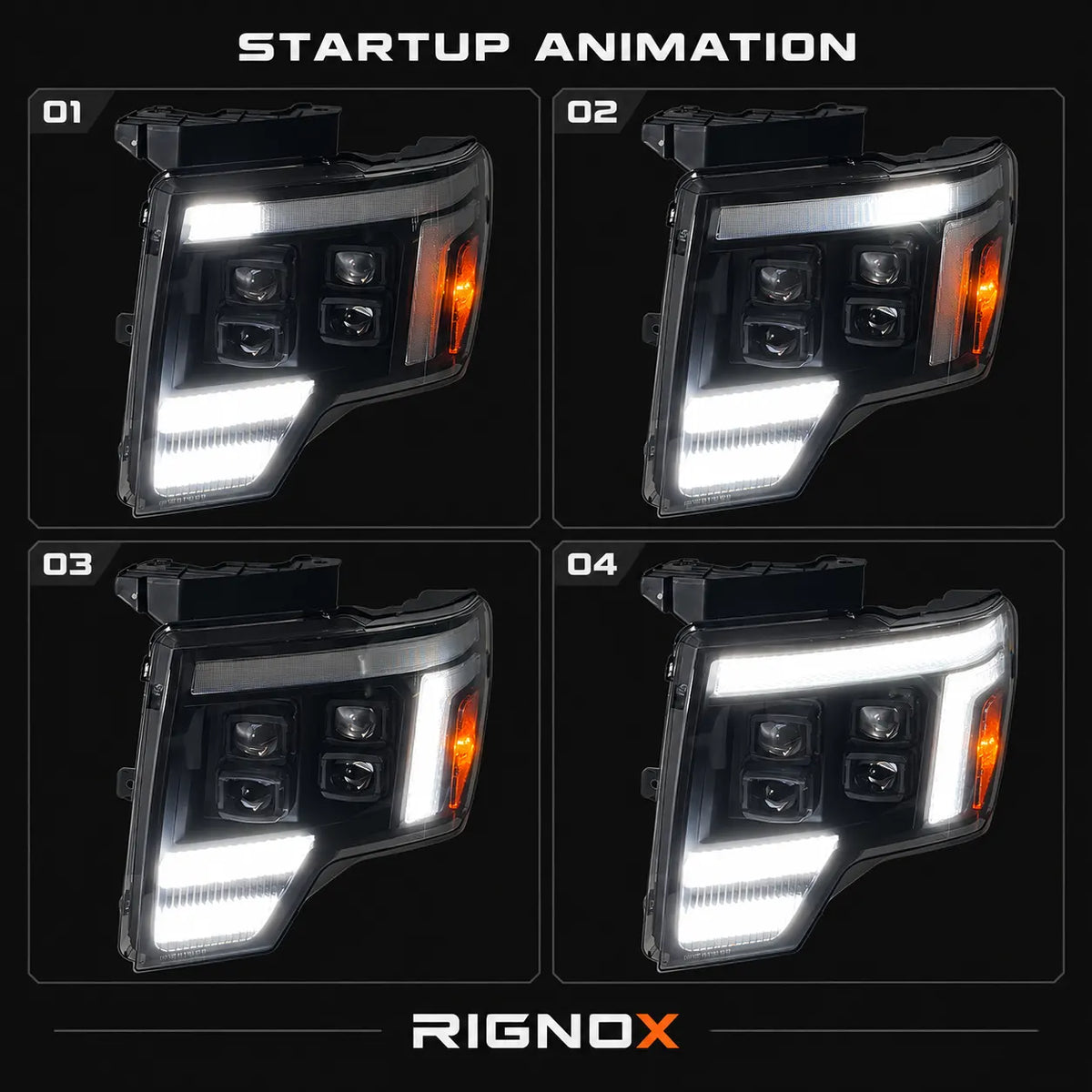

Amber sequential sweep, plus a startup animation on ignition
Color
Finish
Clear lens, White LED bars
Build

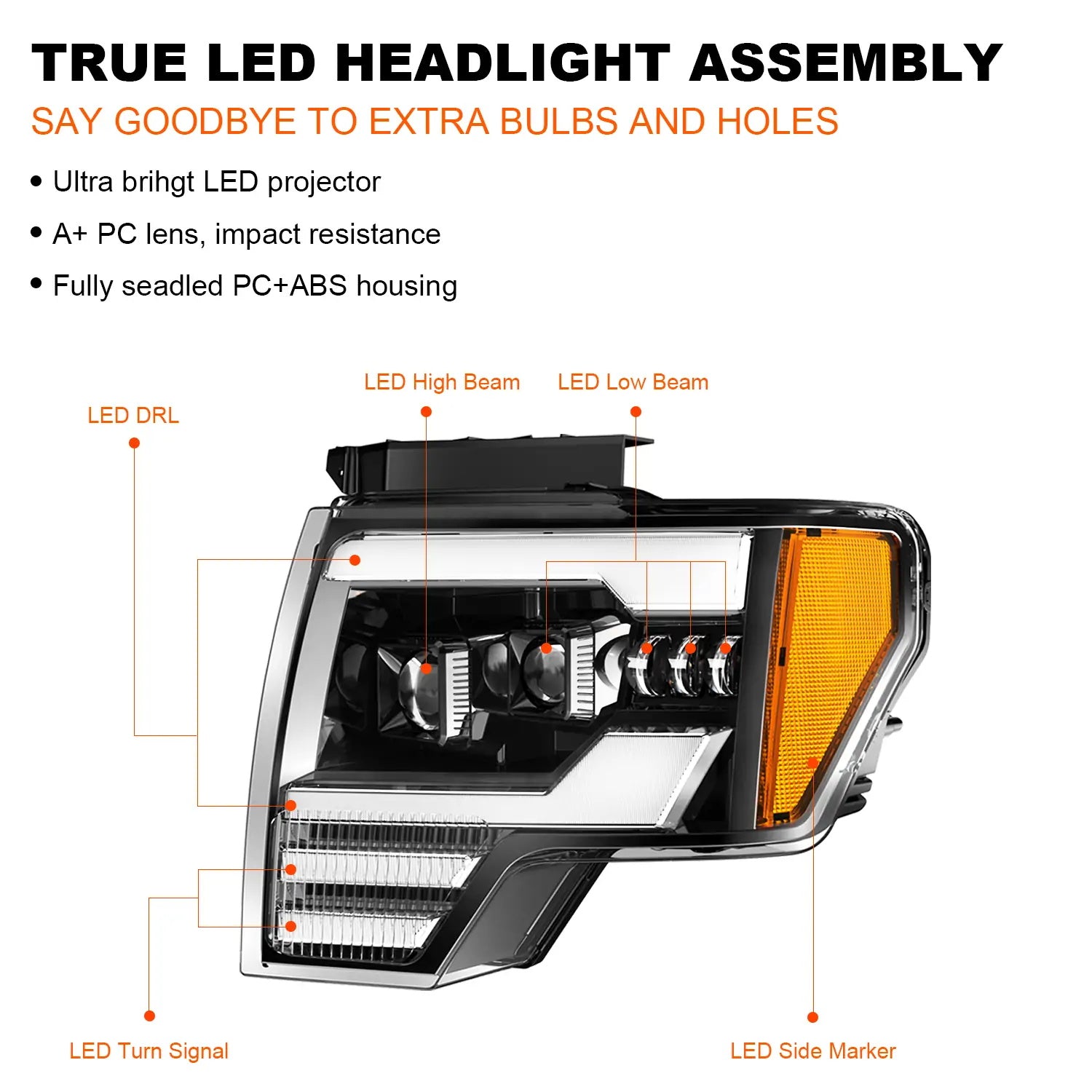

Housing & Materials

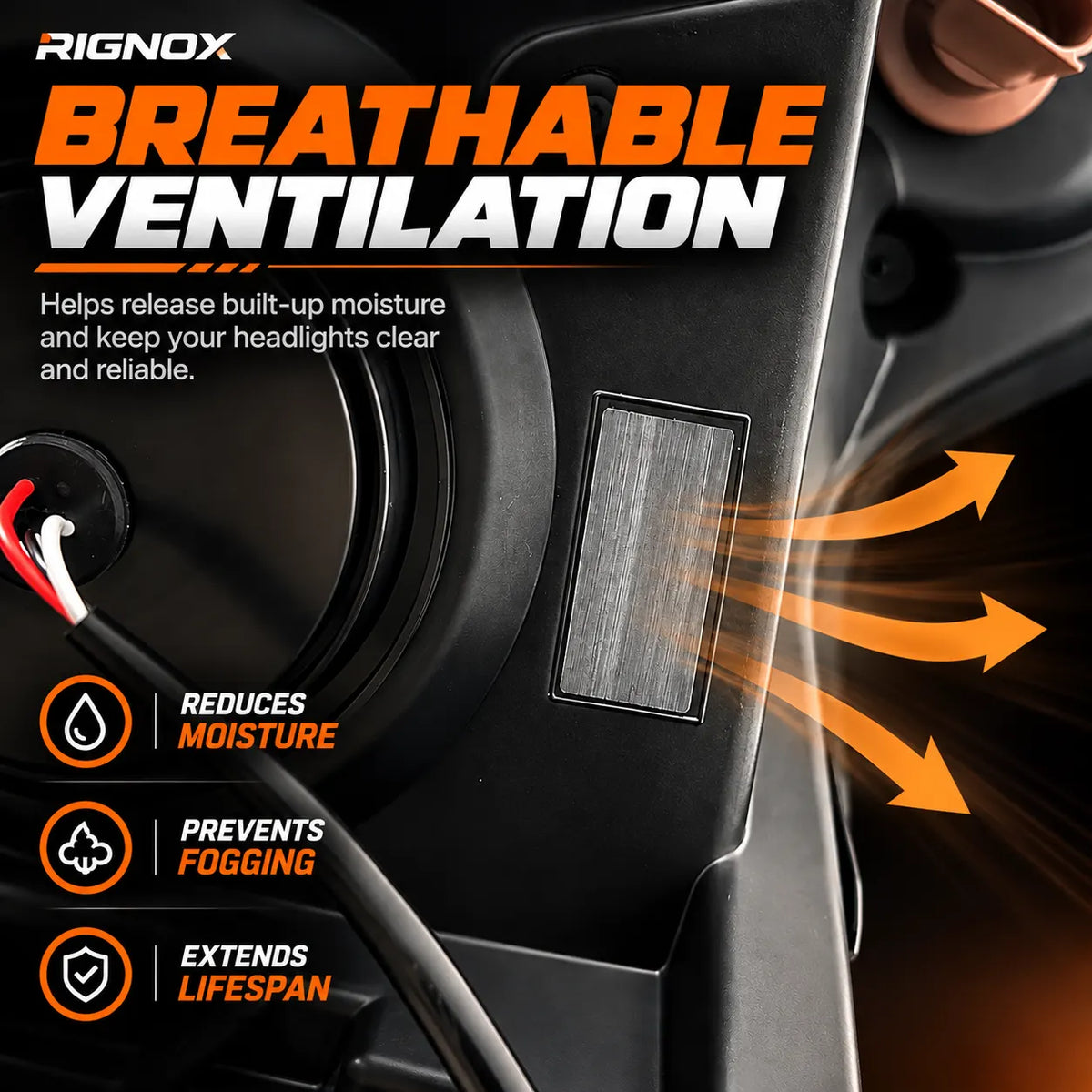

Black housing, clear polycarbonate lens, pressure-equalizing breather vents
Light Source
Solid-state LED — no filament to burn out, and no warm-up lag
LED Lifespan
50,000 hours
Power Draw
About one third the draw of halogen at the same output — a lighter load on an older charging system
Cooling
Active cooling on an aluminum base (MCPCB) with thermal control, so output holds steady instead of fading

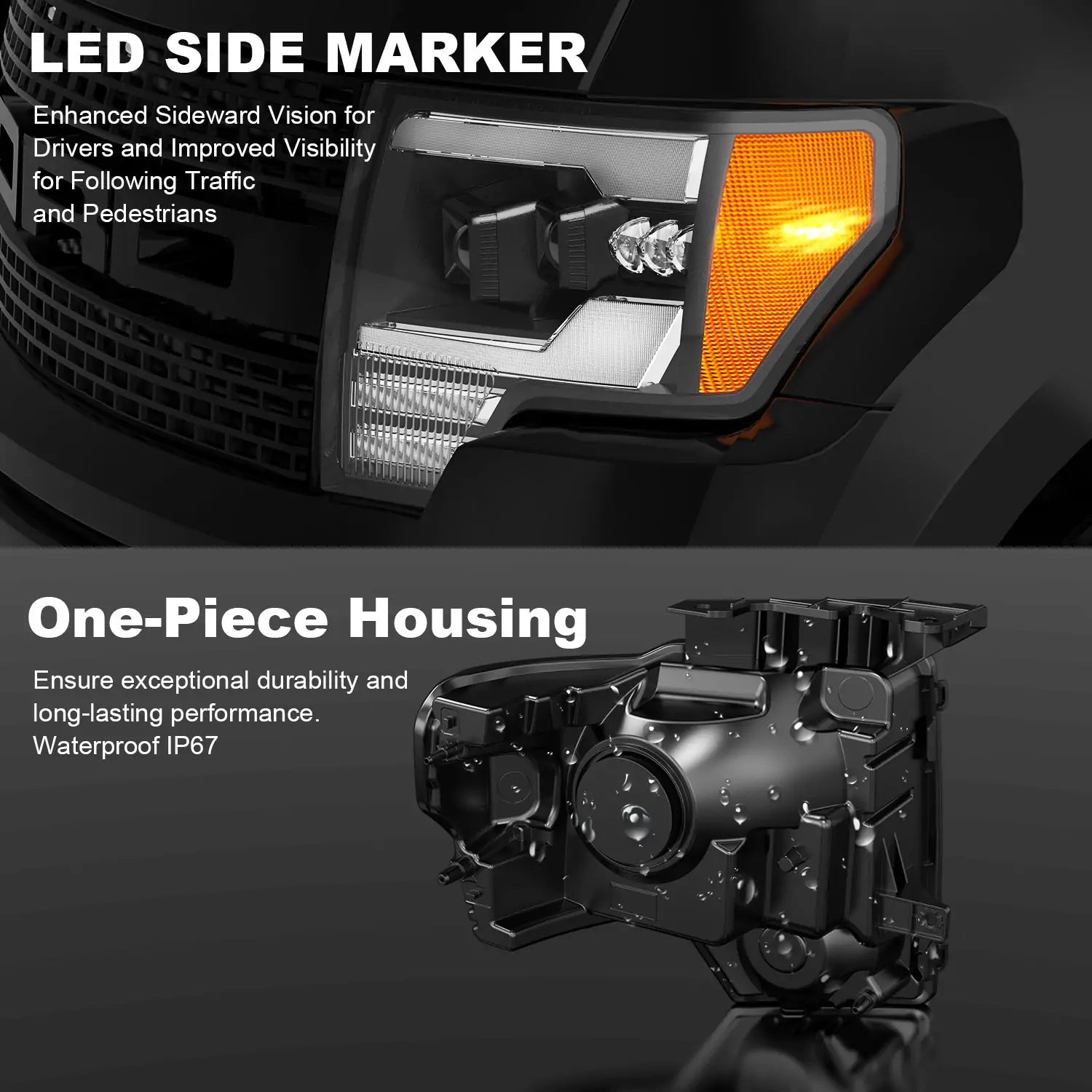

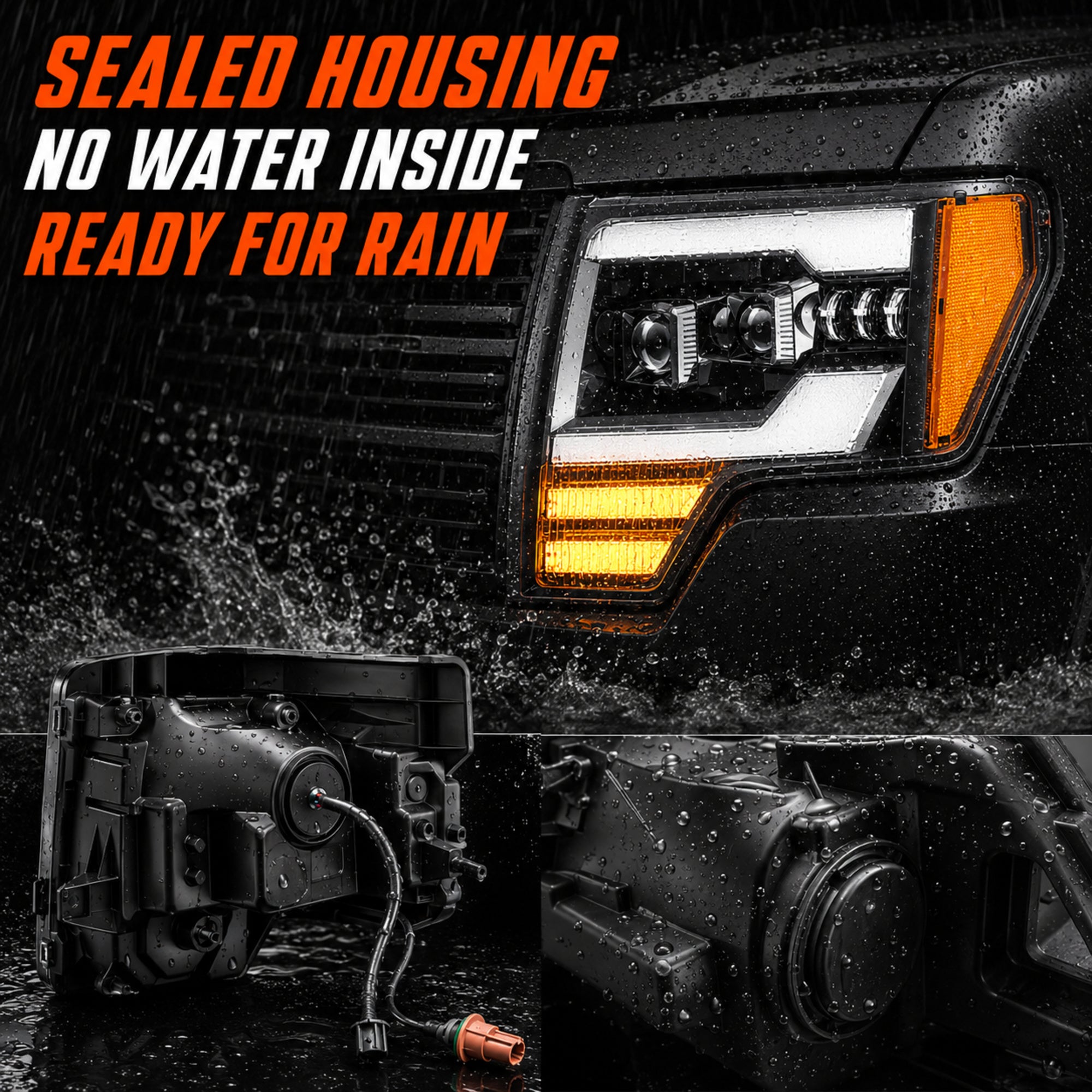

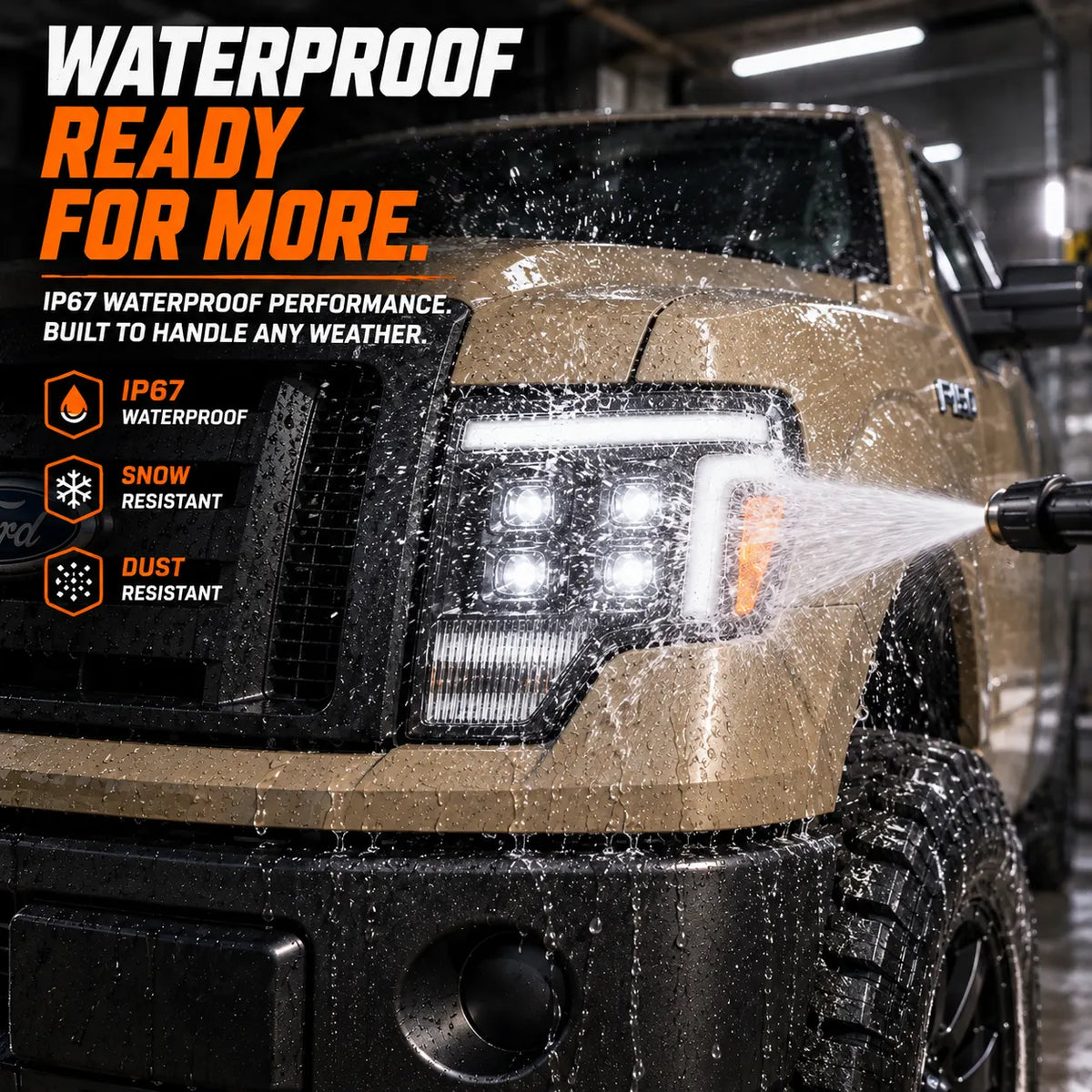

Weather Sealing
IP67 — sealed against rain, dust, and road spray
Tested For
Water, dust, corrosion, and shock resistance
Factory Functions
Keeps factory beam-height adjustment and auto-headlight operation where the vehicle was equipped with them
Installation

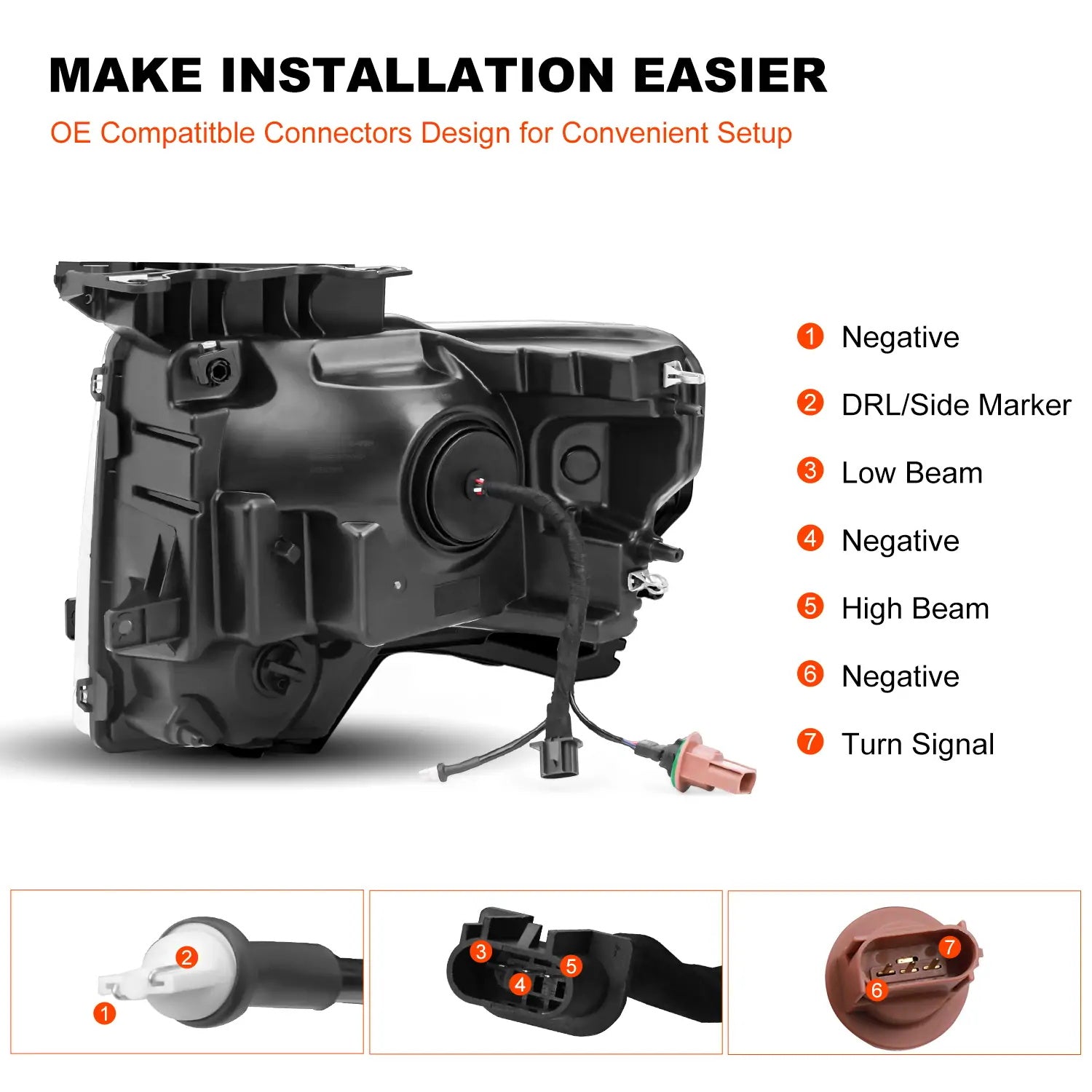

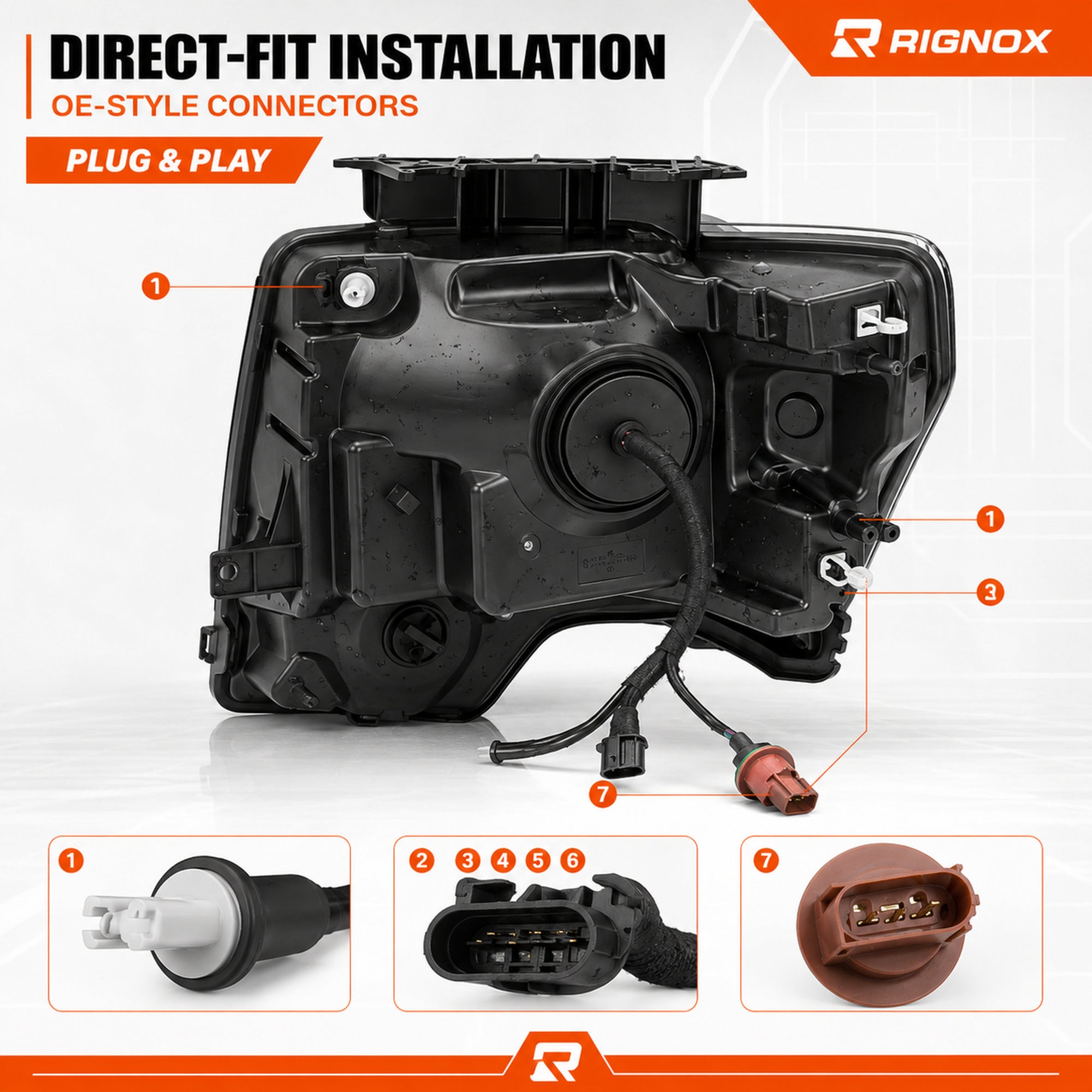

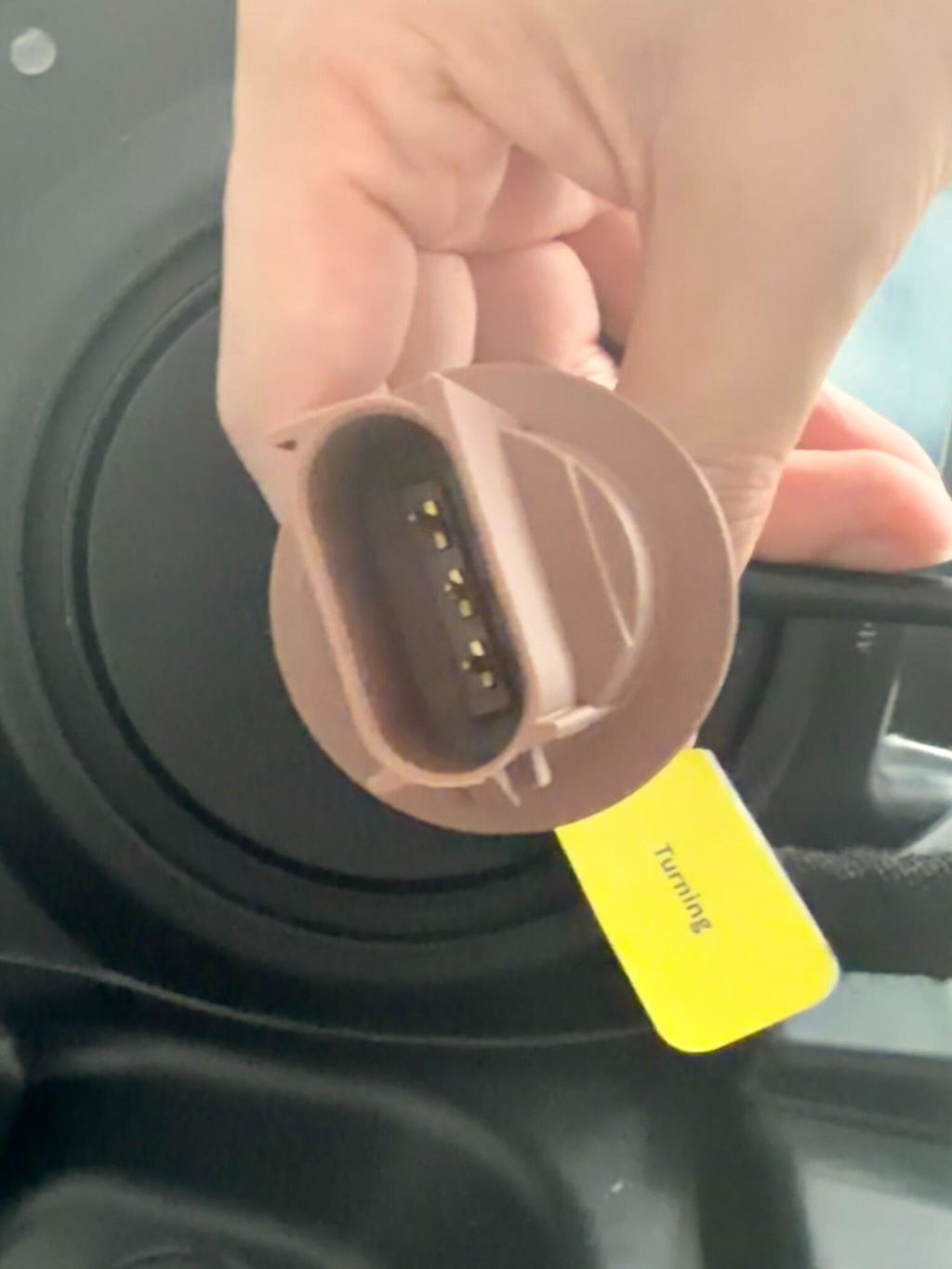

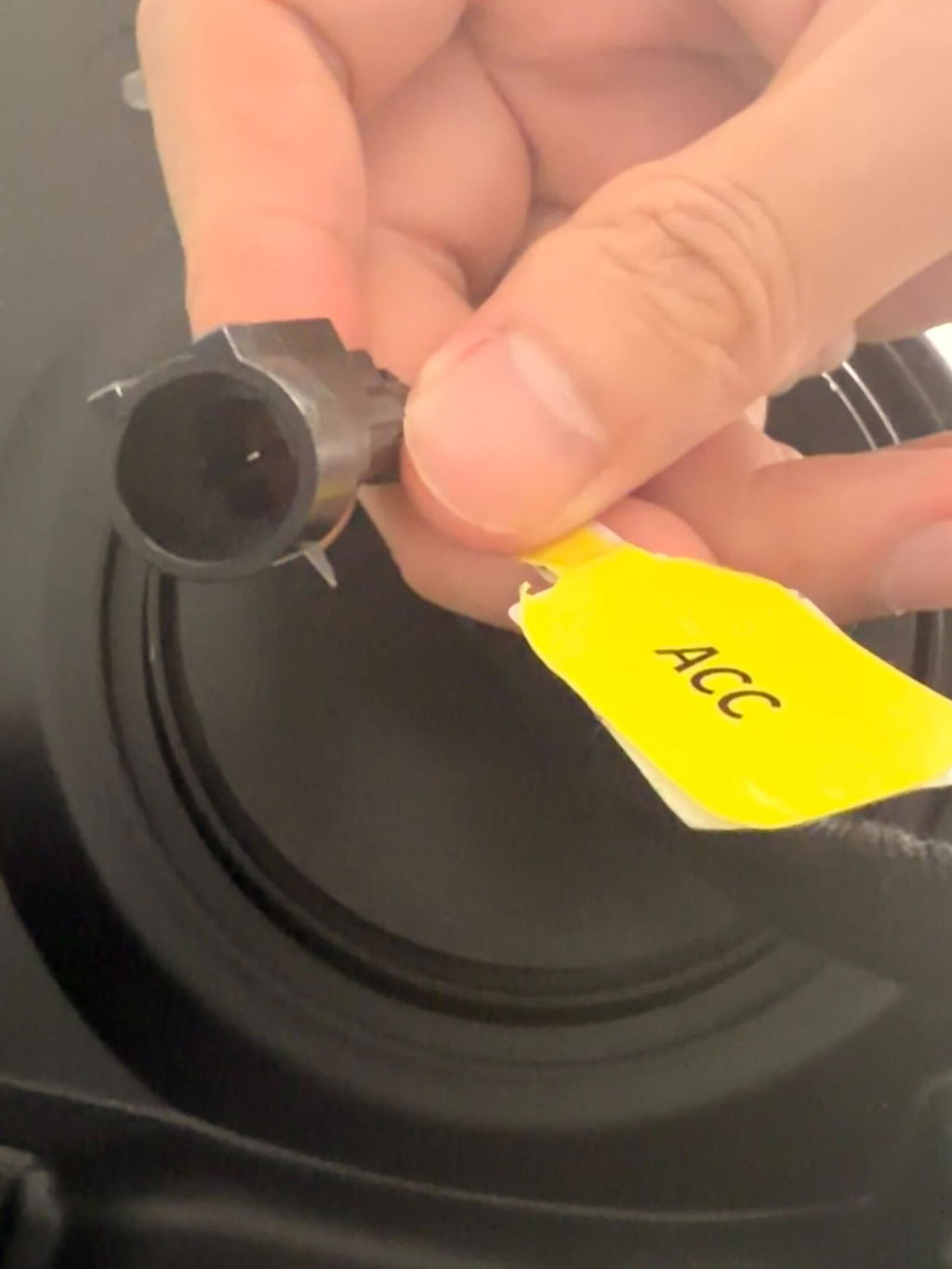

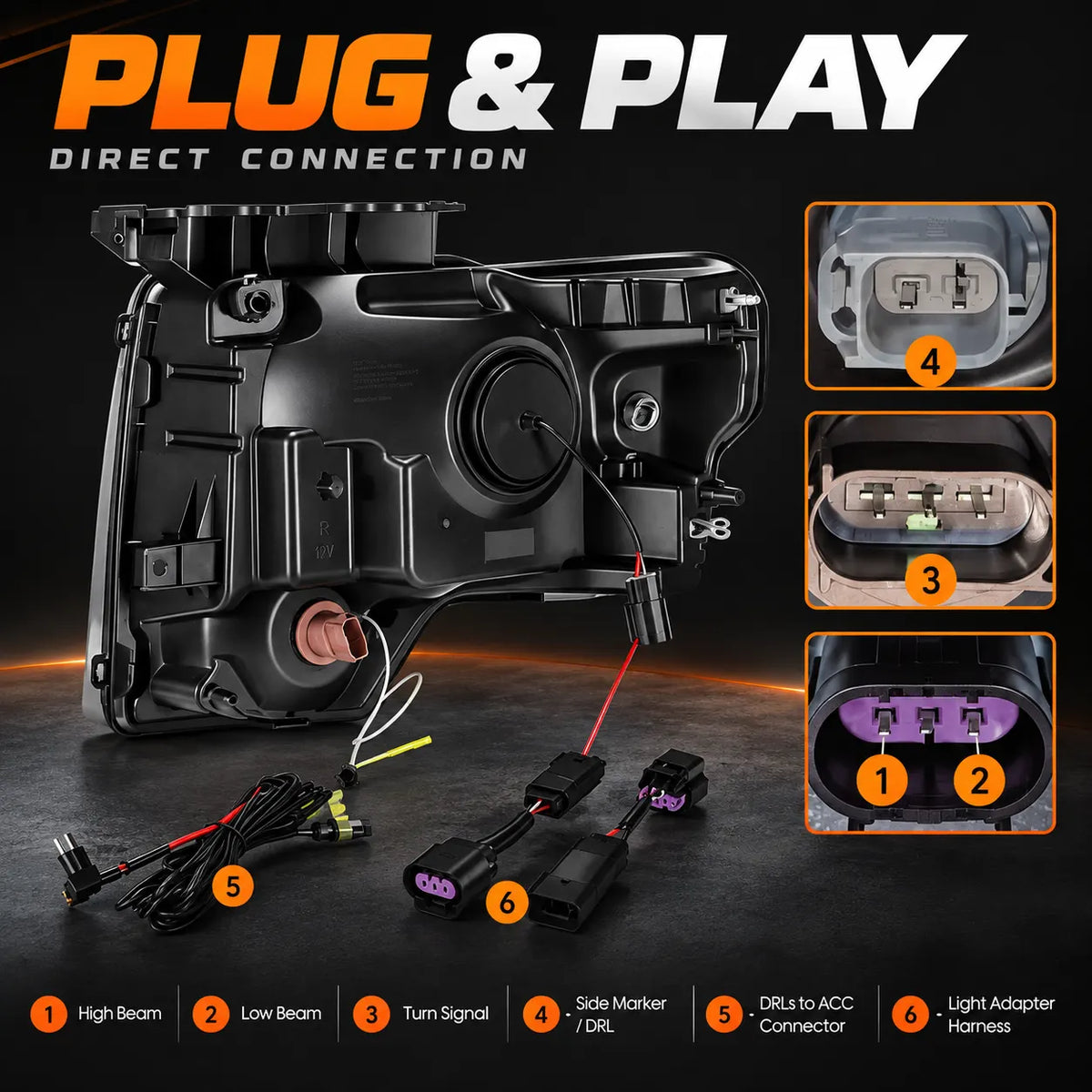

Plug-and-play into the factory harness, with a converter and built-in CANBUS decoders — no cutting, no splicing, no hyper-flashing, no dash errors
Product Guides and Documents
- Installation Instructions
- Fitment Guides
See More. Get Seen. Put On a Show.
Four things separate a RIGNOX headlight from a stock housing: the light you drive by, the distance you see, the face your rig wears by day, and the show it runs at night.

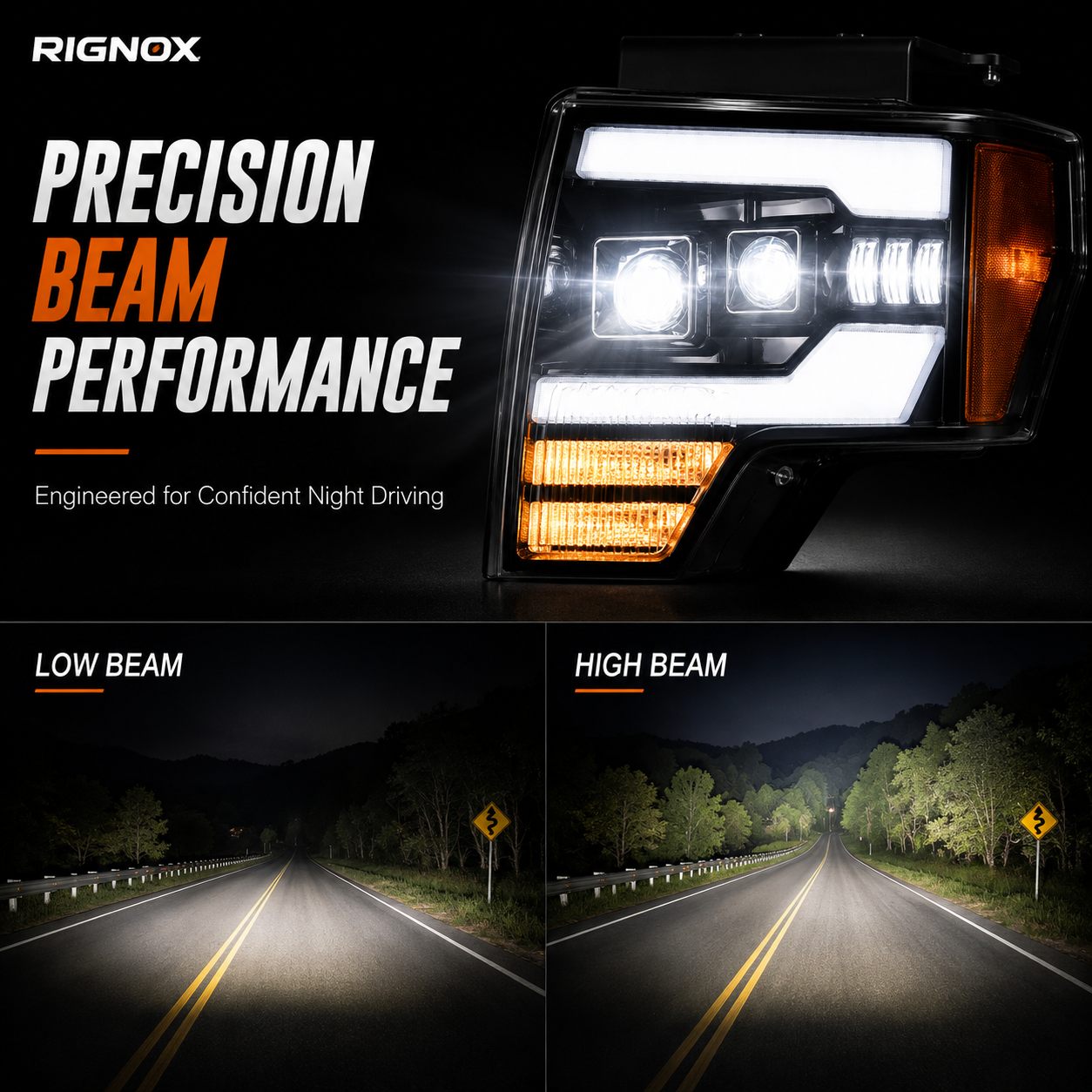

Precision Beam. Zero Compromise.
See Further Down the Road.

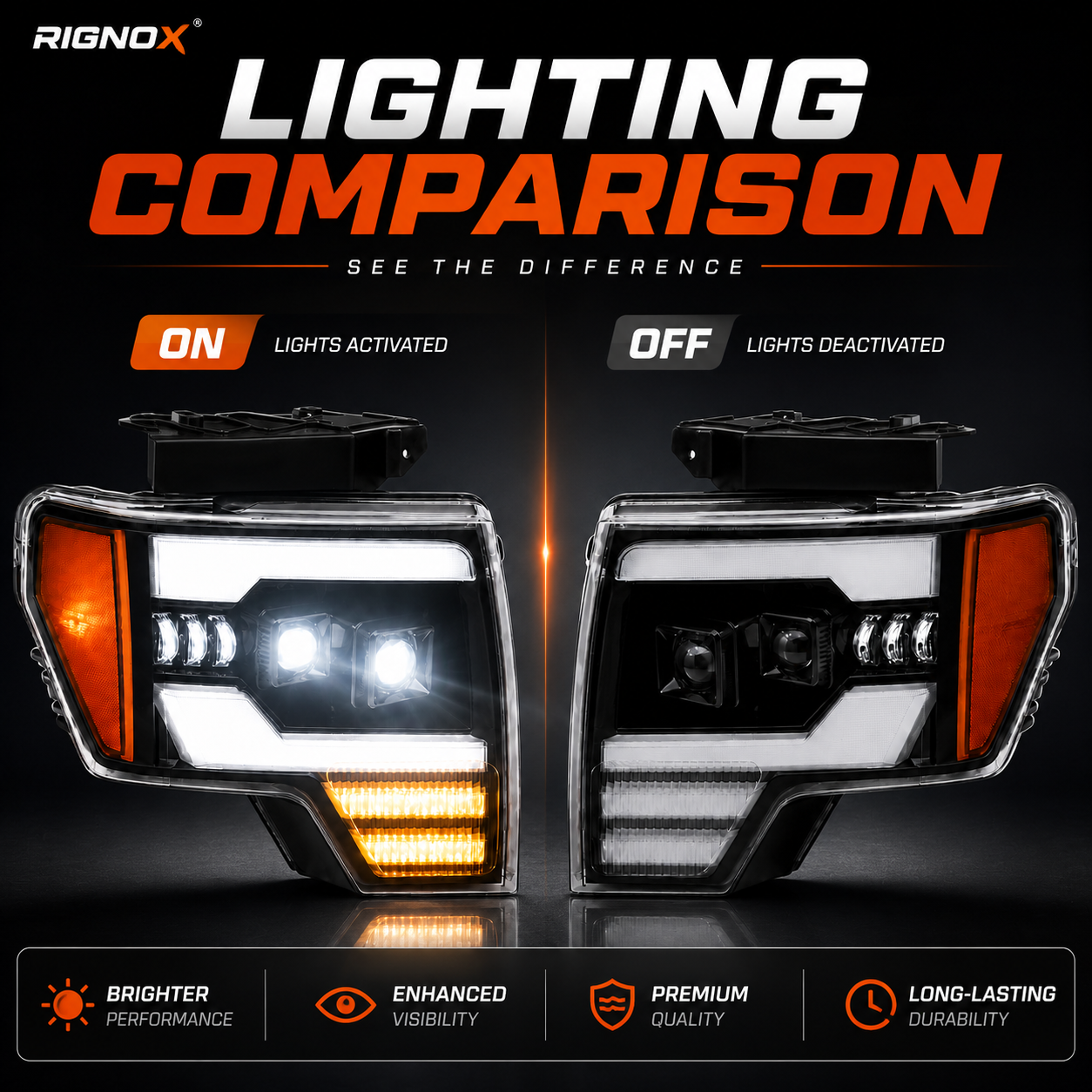

Blacked Out, Clear Lens.
Move With Purpose.
Unique Features
K
Cool White, Close to Daylight
Fogging
Breathing Vents
hrs
Rated LED Lifespan
W
Rated Power, Full Assembly
The RIGNOX Standard
- 10K+Orders shipped
- 20+Years in lighting
- 60+Vehicle fitments
- Complete assemblies, not bulb kits
- Factory mounts, factory harness
- Patented optical technology
- Vibration, shock & corrosion tested
- DOT / SAE compliant
- Decoders included, no dash errors
Fitment & Installation Notice
Installation was a lot easier than I expected. The factory-style connectors plugged right in, so there was no hassle trying to figure out the wiring. Everything fit well on my F-150, and the whole setup felt very straightforward.

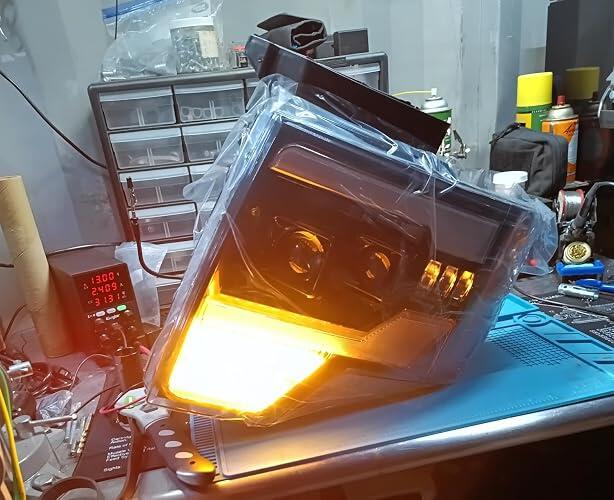

Just received these headlights and I’m really impressed with the quality. The packaging was secure, the materials feel solid, and I tested all the functions before installation — everything worked perfectly. The design looks great and I’m excited to get them installed on my F-150. So far, I’m very happy with this purchase.

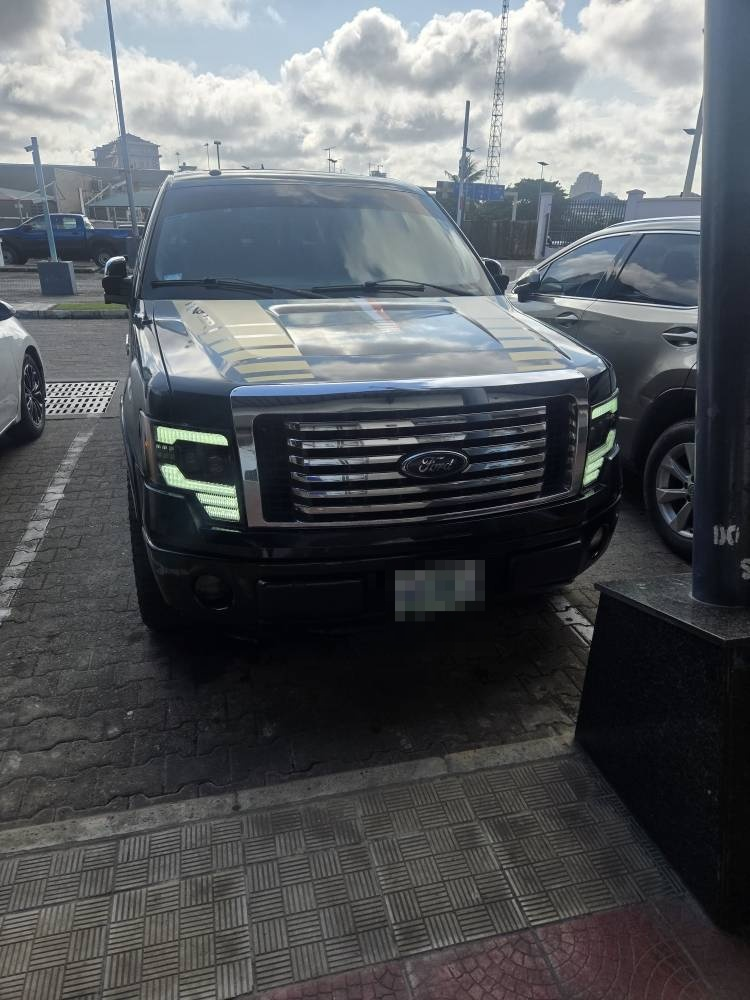

All I can say is, AWESOME headlights, easy to install, and the upgrade makes my 2013 look like a 2026.
I've tried other LED versions with the Halos, and this is, by far, the best.
These headlights were exactly what my F-150 needed. They give the truck a much cleaner and more aggressive look without feeling out of place. The whole buying process was smooth, and Rignox was great to deal with. Appreciate the quality and attention to detail.

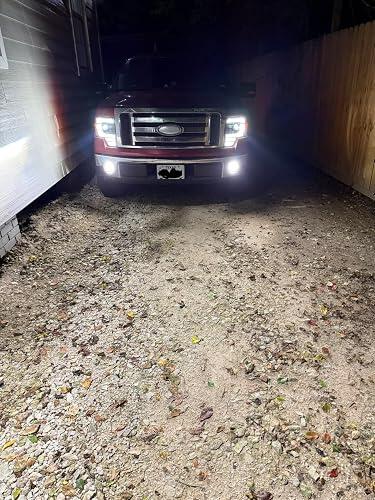

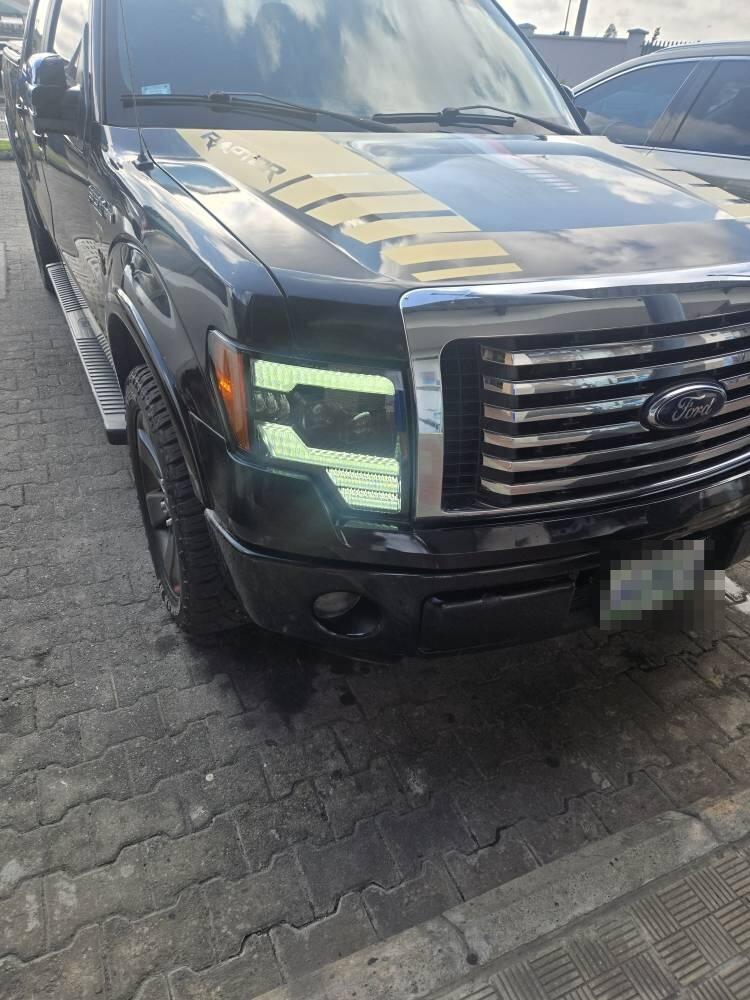

Wow!!! The lights have only been installed for a little over a week and I am very impressed. These highlights are so much better than the factory headlights. After getting the lights installed and aimed properly, the low beam lights are awesome bright and there is no need for the high beams at times. The lights were easy to install. These upgraded lights makes my 2010 F150 Lariat look like a stylish/modern day truck because of the Daytime Running Lights. Love that there are two separate slots for low and high beam.
Great product and a smooth experience with Rignox. The order was handled well, and the service was reliable. Very happy with my purchase.

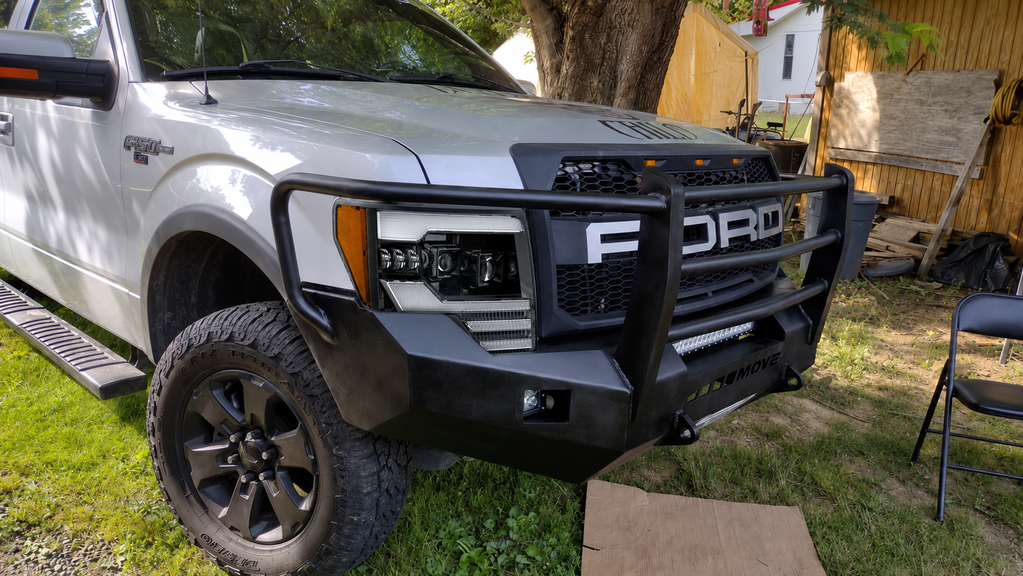

These headlights completely modernized the front end of my F-150. The beam pattern is bright and sharp, and the dual projectors provide excellent visibility at night. Installation was straightforward and everything fit perfectly.
