Important: This online guide is a product-image-verified overview for the matched RIGNOX product. It uses the product page, product reference images, and visible lighting-function details to guide product-side checks. Confirm hidden vehicle-side fasteners, trim clips, and wiring access points on your exact vehicle before removal.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product
- Product: 2009-2014 Ford F-150 & SVT Raptor LED Dual Projector Headlights
- Product type: headlights
- SKU: H-F150-09
- Fitment: Fits: 2009-2014 Ford F-150 (12th Generation) and 2010-2014 SVT Raptor - all trim levels and configurations. Both original configurations are 100% plug-and-play compatible. DRL: White
- Product page: View matching RIGNOX product details
- Printable manual: Download the PDF installation manual for this product

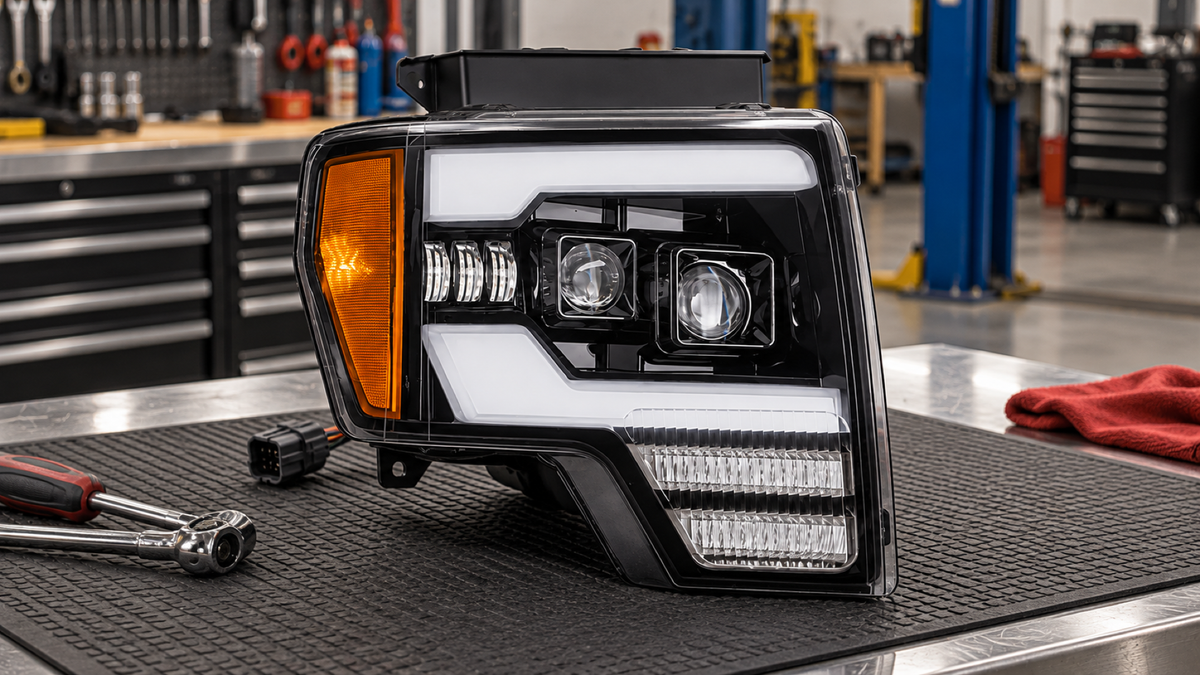

Product reference images
Use these images to compare the lamp shape, rear housing, visible plug layout, and lighting functions before final assembly.
Product image checkpoints
- The product reference images show direct-fit, plug-and-play style connection details. Match the supplied connector to the vehicle connector and confirm the lock tab seats fully before reinstalling trim.
- Back-side or plug detail images are available for this item. Compare those photos with the removed original lamp before routing the harness.
- The visible product-function references indicate projector beam output, low beam, DRL, sequential turn signal, white/amber switchback behavior checks for this product. Confirm beam pattern and function behavior before final bumper or grille reassembly.
- If the kit includes a decoder, resistor, control module, or relay, secure it away from heat, moving parts, water paths, and sharp metal edges. Do not add universal electrical parts unless support confirms they are needed.
Product notes
- Use the product reference images on this page as the product-side visual check for connector layout, rear housing shape, and lighting functions. The printable PDF manual linked above shows the vehicle-side fastener and connector positions.
- Original vehicle trim, clip style, and fastener locations can vary by year, trim, and previous repairs. Remove panels slowly and verify each fastener before pulling.
- Road-lighting compliance and off-road/show-use notes are product specific. Review the matching RIGNOX product page for the exact language for this item.
Before you begin
- Confirm the exact product: Compare the RIGNOX headlights to the product reference images, including rear housing, plug layout, lens style, and included modules.
- Work powered down: Park on level ground, switch the vehicle off, and disconnect the negative battery terminal when handling wiring.
- Protect body panels: Use clean towels or masking tape near painted edges around the hood, grille, bumper edge, or fender liner area.
- Do not force clips: If a lamp or trim panel does not move, stop and look for another fastener or locating pin.
- No grease on connectors: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; verify exact sizes on the vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape
- Electrical tape and zip ties for securing included harnesses only
- A wall or flat vertical surface for beam-pattern checking
Remove the original headlights
-
Remove the dust shield clip: Loosen and remove the plastic clip beside the headlight, then move the shield aside.
-
Remove the mounting bolts: Remove the hidden 10 mm side bolt and the two 10 mm bolts above the headlight.
-
Remove the factory headlight: Pull the headlight straight forward to release the two fender clips.
-
Disconnect the factory wiring: Turn the turn signal/DRL and side marker sockets counterclockwise to remove them, then unplug the main headlight connector. Remove the side marker bulb but keep its socket.
Install the RIGNOX headlights
-
Connect the adapter harnesses: Connect the side marker adapter to the factory side marker socket, then connect the main adapter to the factory headlight plug.
-
Install the new headlight: Lock the turn signal socket into the new headlight, align the fender clips, and push the assembly into place.
-
Secure the new headlight: Reinstall the two upper bolts, the side bolt, and the dust shield clip.
-
Adjust the beam height: Turn the rear adjustment screw until the left and right beams are properly aligned.
-
Test all lighting functions: Check the low beams, high beams, turn signals, and side marker lights.
Electrical and function test
- Confirm low beam and high beam operate on both sides.
- Confirm DRL, parking light, amber turn signal, hazard, sequential, and switchback behavior where supported by this product.
- Confirm startup animation or RGB/app functions only after normal road-light functions pass.
- Check for dashboard warnings, flicker, or intermittent operation before reinstalling final trim.
- Verify beam aim after installation so the cutoff is safe and even.
Final check
- All connectors are locked, dry, and routed without tension.
- Included modules or extra harnesses are secured away from heat, water paths, moving parts, and sharp edges.
- Both headlights sit flush with even body gaps and properly seated seals.
- All supported lighting functions pass on both sides.
- No warning lights, flicker, hyperflash, abnormal heat, moisture issue, or loose wiring remains after a short check drive.
Troubleshooting
- One lamp does not turn on: Recheck the main connector lock, related fuse, and battery connection.
- One function does not work: Compare the plug area to the product reference images and verify the connector is fully seated.
- Warning message, flicker, or hyperflash: Confirm the correct product variant was installed and that any included decoder, resistor, or relay is connected and secured.
- Moisture appears: Light condensation may clear as the lamp warms. Heavy or persistent moisture should be documented with photos before continued use.
- Beam pattern is too high or uneven: Recheck lamp seating first, then adjust aim on a flat surface.
Need help?
If the original lamp, vehicle connector, or included harness does not match the product reference images, stop before modifying wiring. Contact RIGNOX support with your order information, vehicle year/model/trim, product variant, and clear photos of the connector area, rear housing, beam output, and installed front-end gap.
End of installation guide. (c) RIGNOX - All Rights Reserved.
