SKU:T-RAM09-SR
2009-2018 Dodge Ram 1500/2500/3500 Sequential LED Tail Lights Assembly

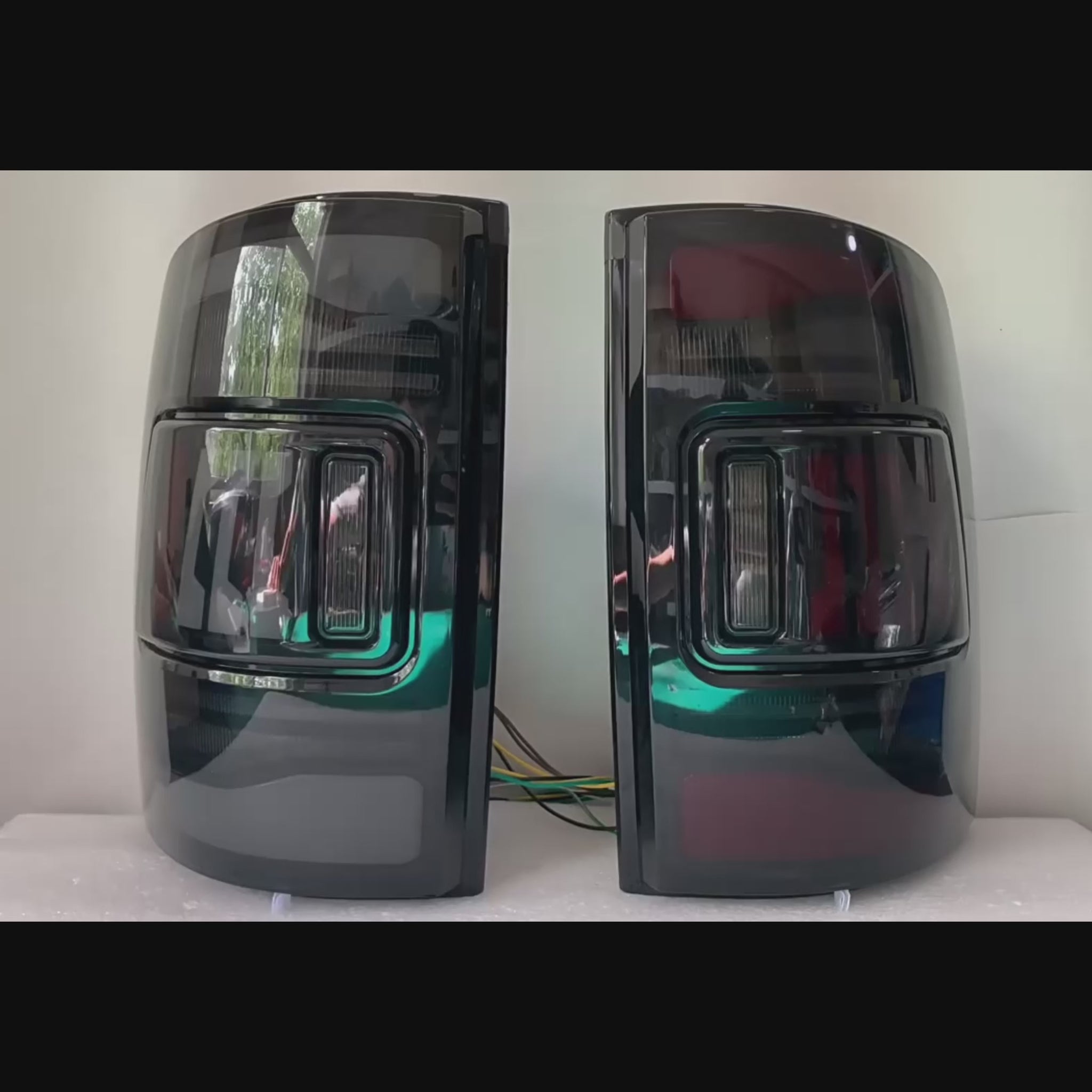

Product Videos
Smoked RGB w/ APP Control
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
$499.00
Fitment Check
Compatibility
Fits: 2009-2018 Dodge Ram 1500, 2019-2024 Ram 1500 Classic, 2010-2018 Ram 2500, and 2010-2018 Ram 3500.
Does not fit: 2009 Ram 2500 / 3500; Ram 4500 / 5500 unless separately confirmed.
Replaces OEM part numbers: Halogen Tail Lights: Left 55277415AC; Right 55277414AC. OEM LED Tail Lights: Left 68361817AA; Right 68361816AA.
Fitment Note: 2009 Ram 2500 / 3500 trucks are still the previous body generation, so they do not share this 4th-gen tail light fitment.
Not sure it fits? Check the fitment guide →
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
$499.00
Free Shipping & Returns
Free Shipping & Returns
Free U.S. shipping on every order. 30-day returns and exchanges, started from your order confirmation email. 2-year Warranty covering LED failure, moisture intrusion, and component malfunctions under normal use.
Standard Shipping · 2–5 business days
Free
Ships via FedEx from our East or West Coast warehouse. Delivery estimates may vary due to carrier or weather delays.
Pre-Order (New Release) · 1-2 Weeks
Free
Applies only to items marked "New Release." These ship about 1–2 weeks after the first batch lands — order now to lock today's price and your spot in line. In-stock items ship in 2–5 business days, as above.

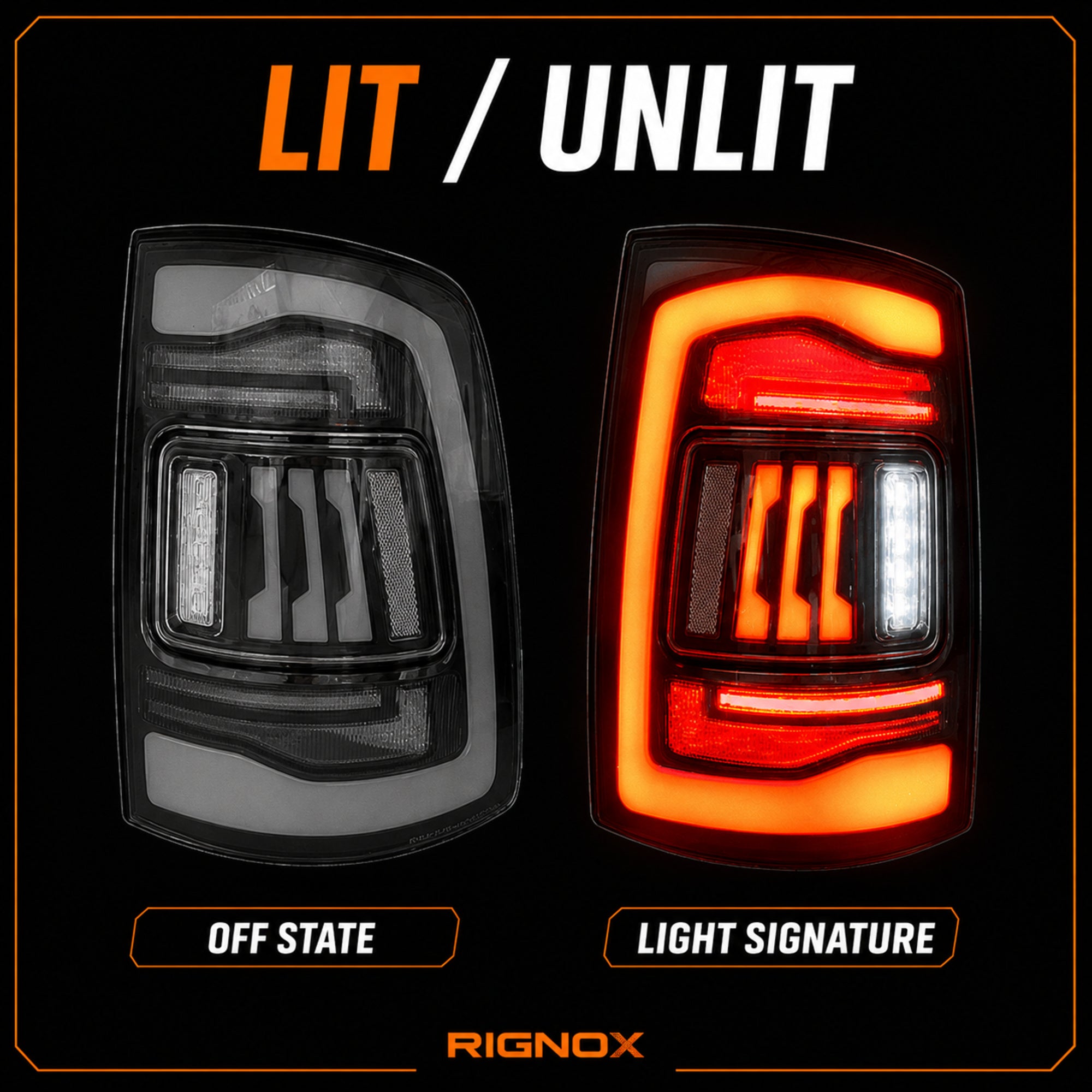

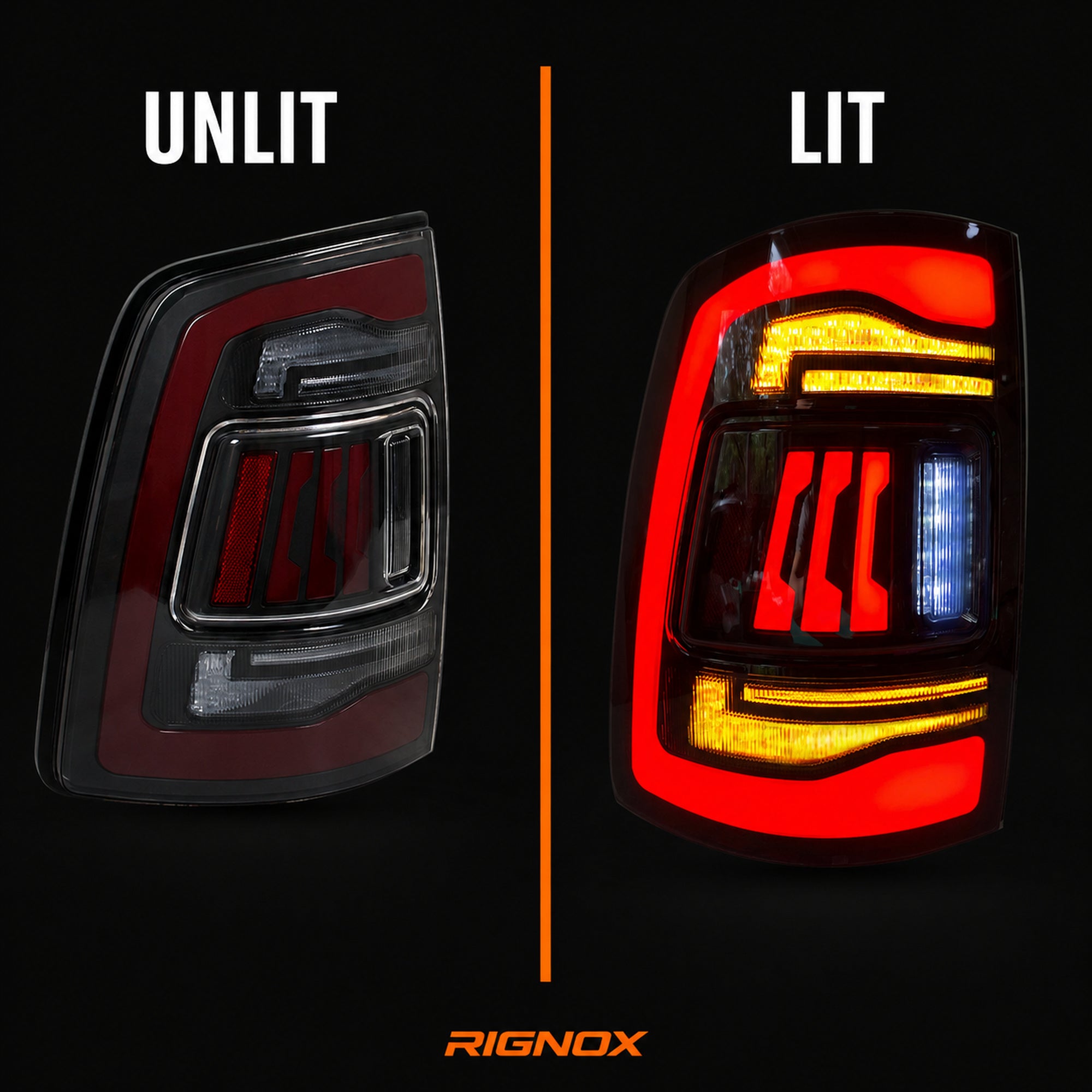

Redesigned from the Lens Out.

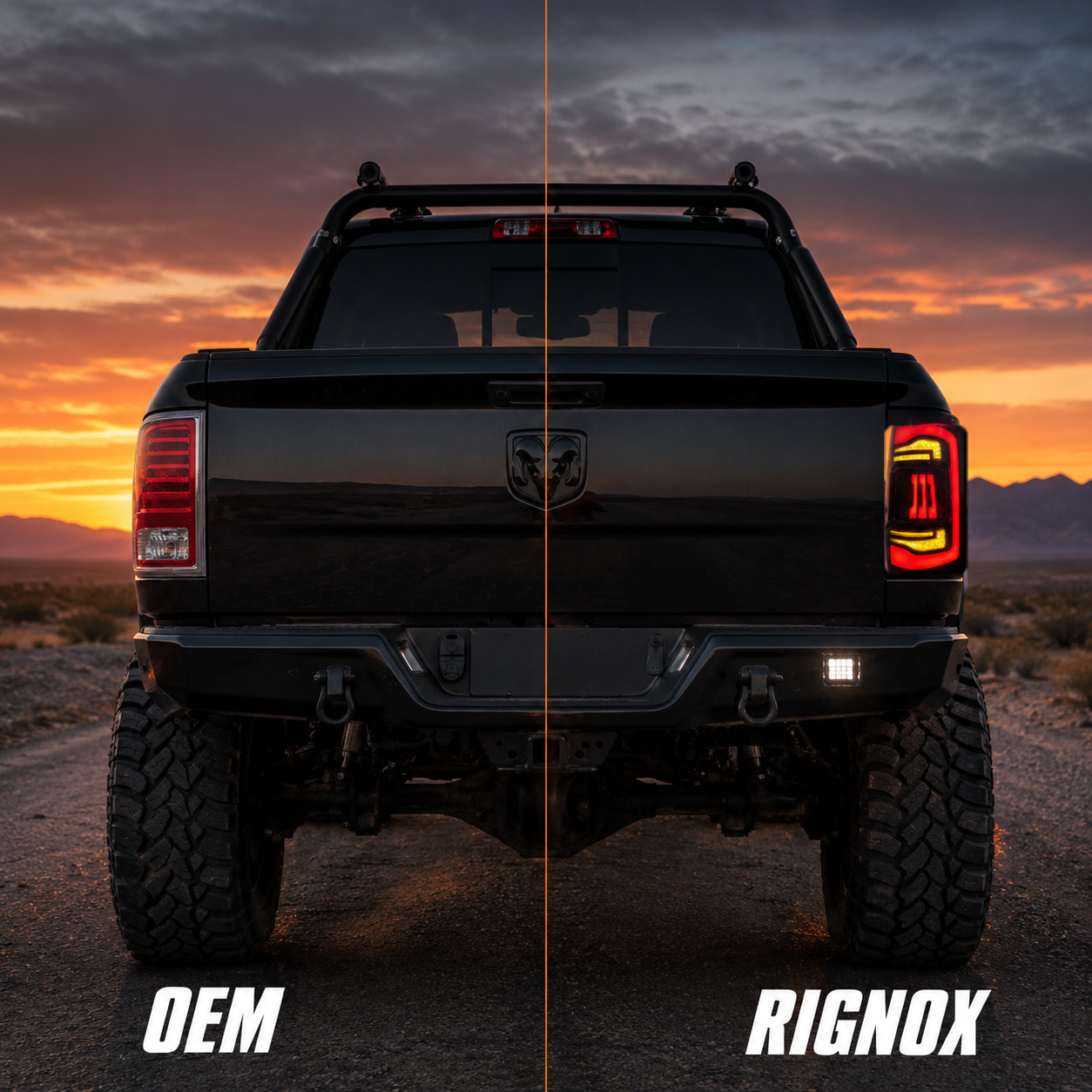

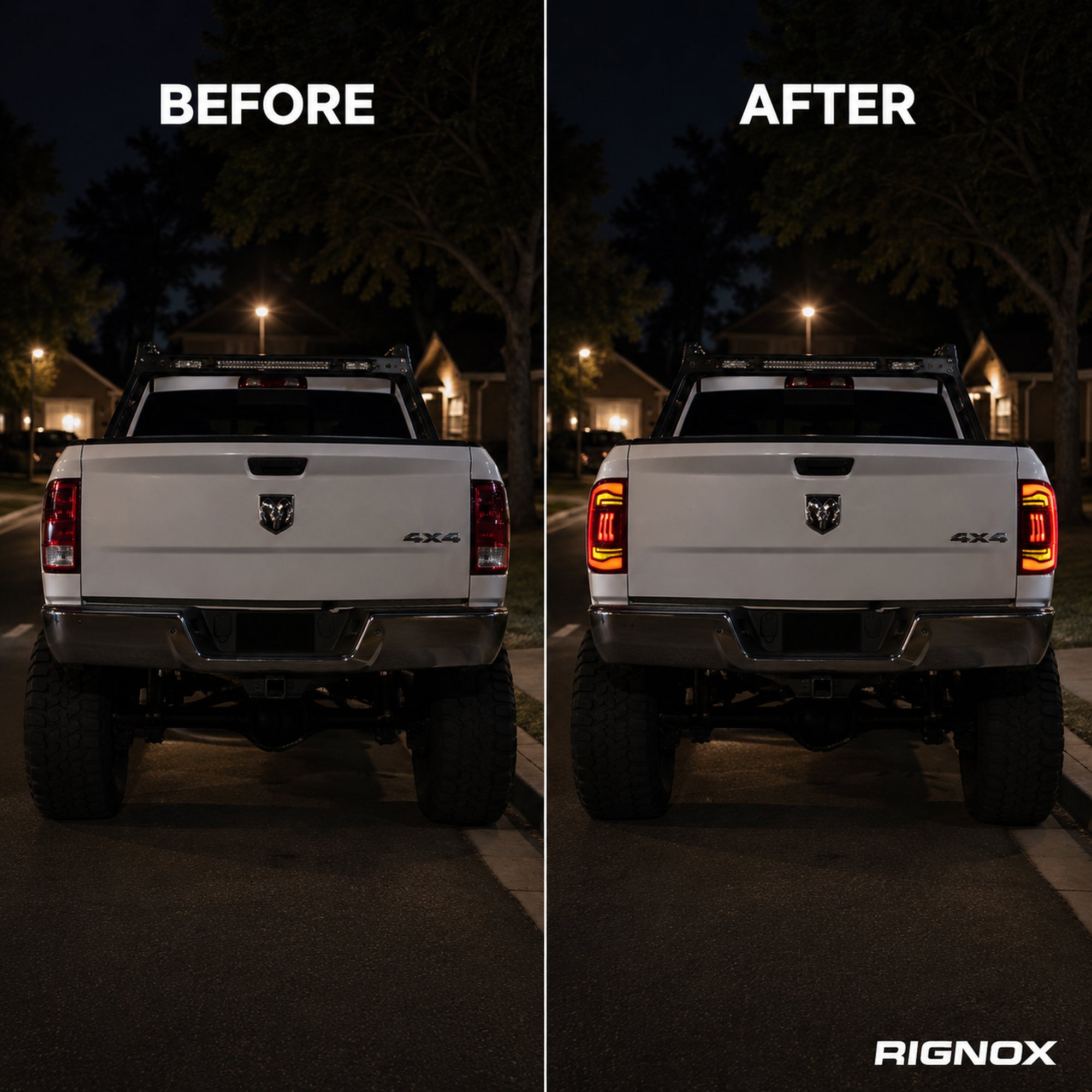

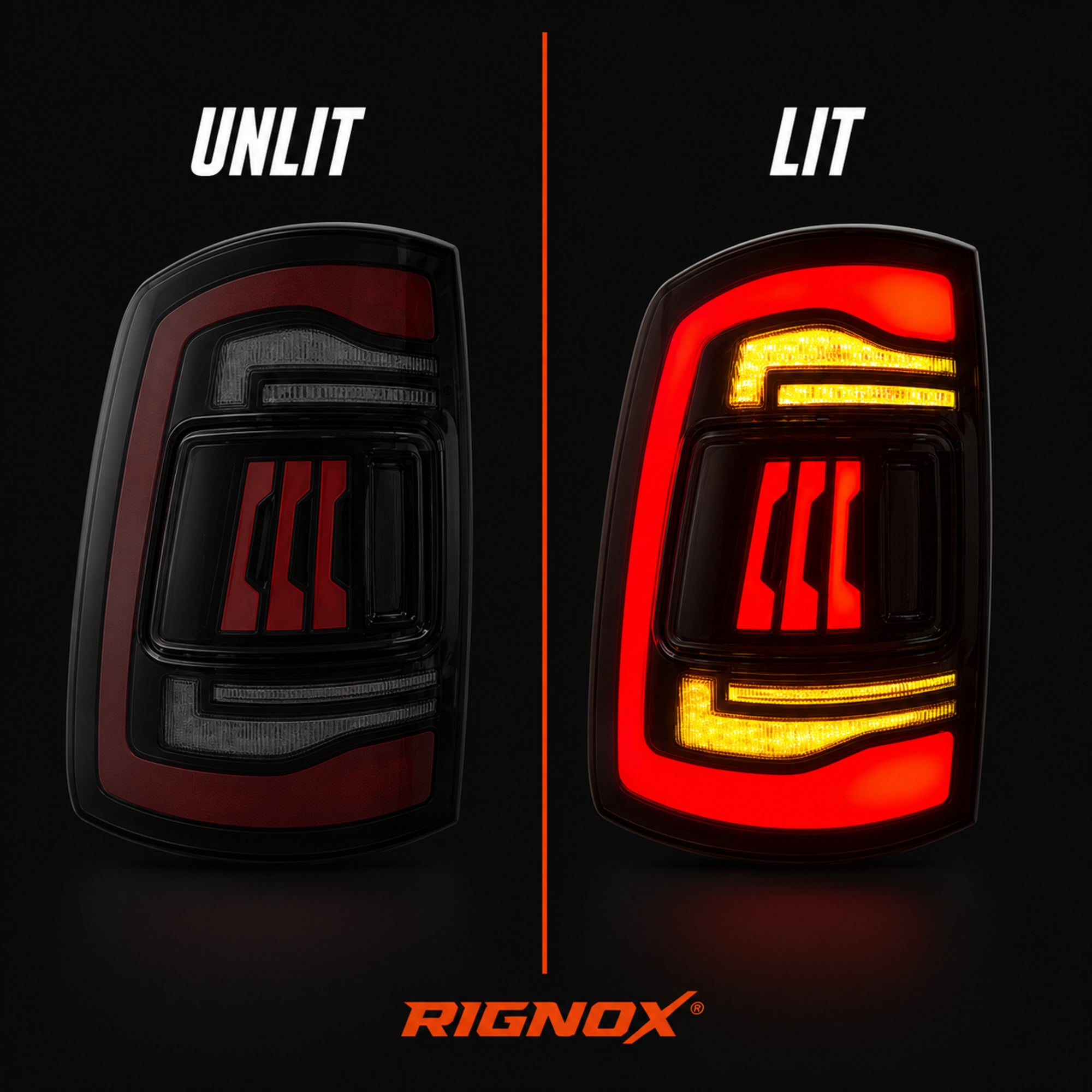

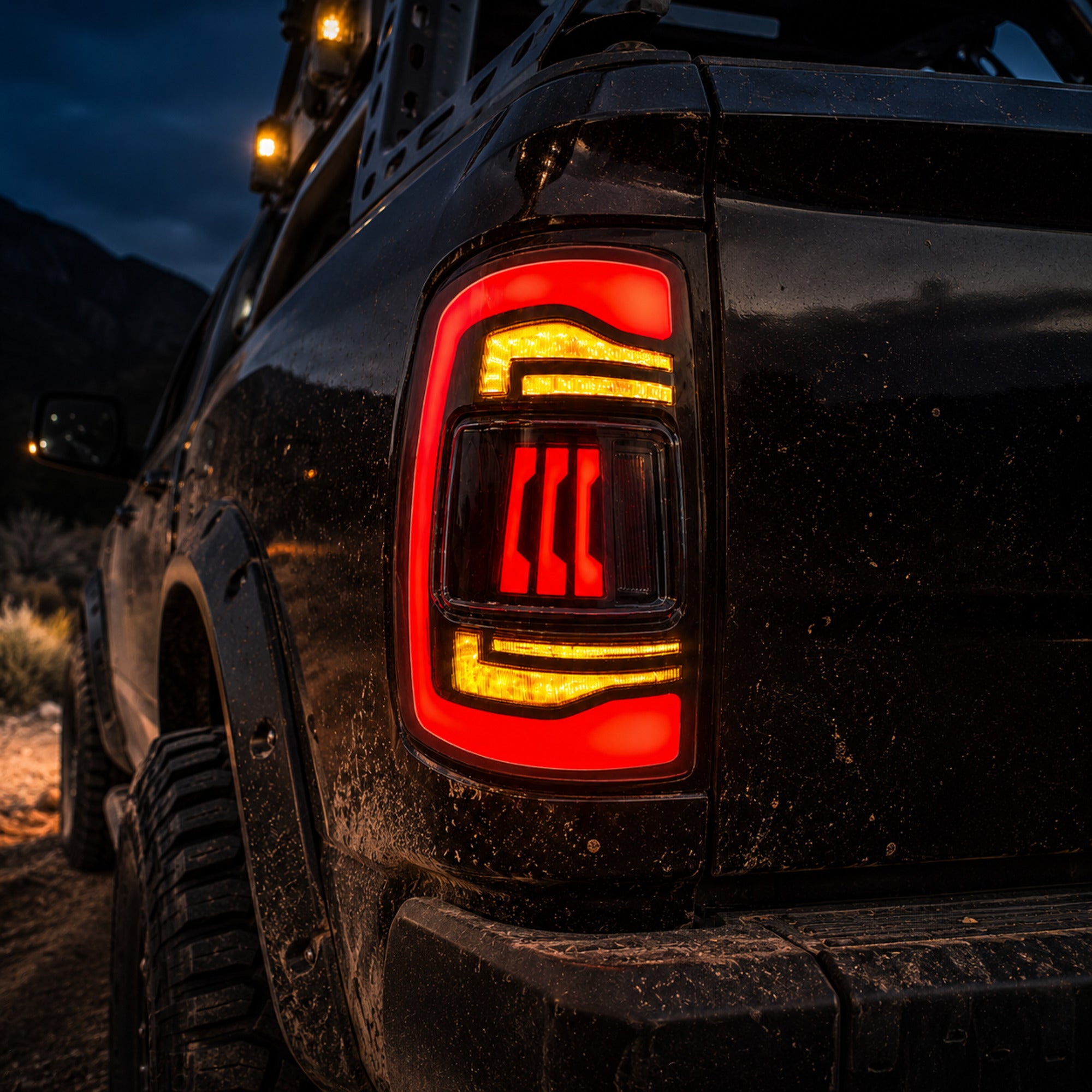

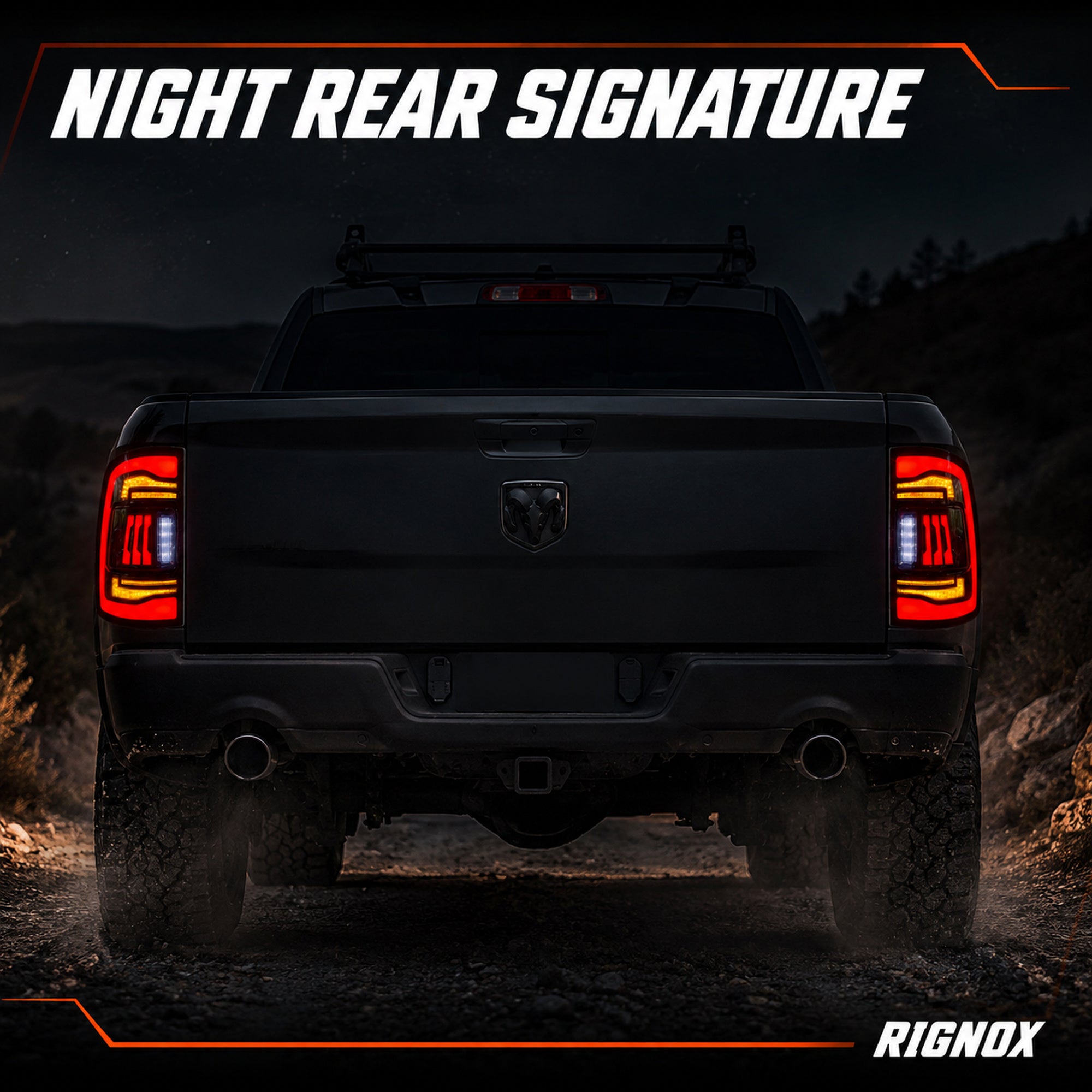

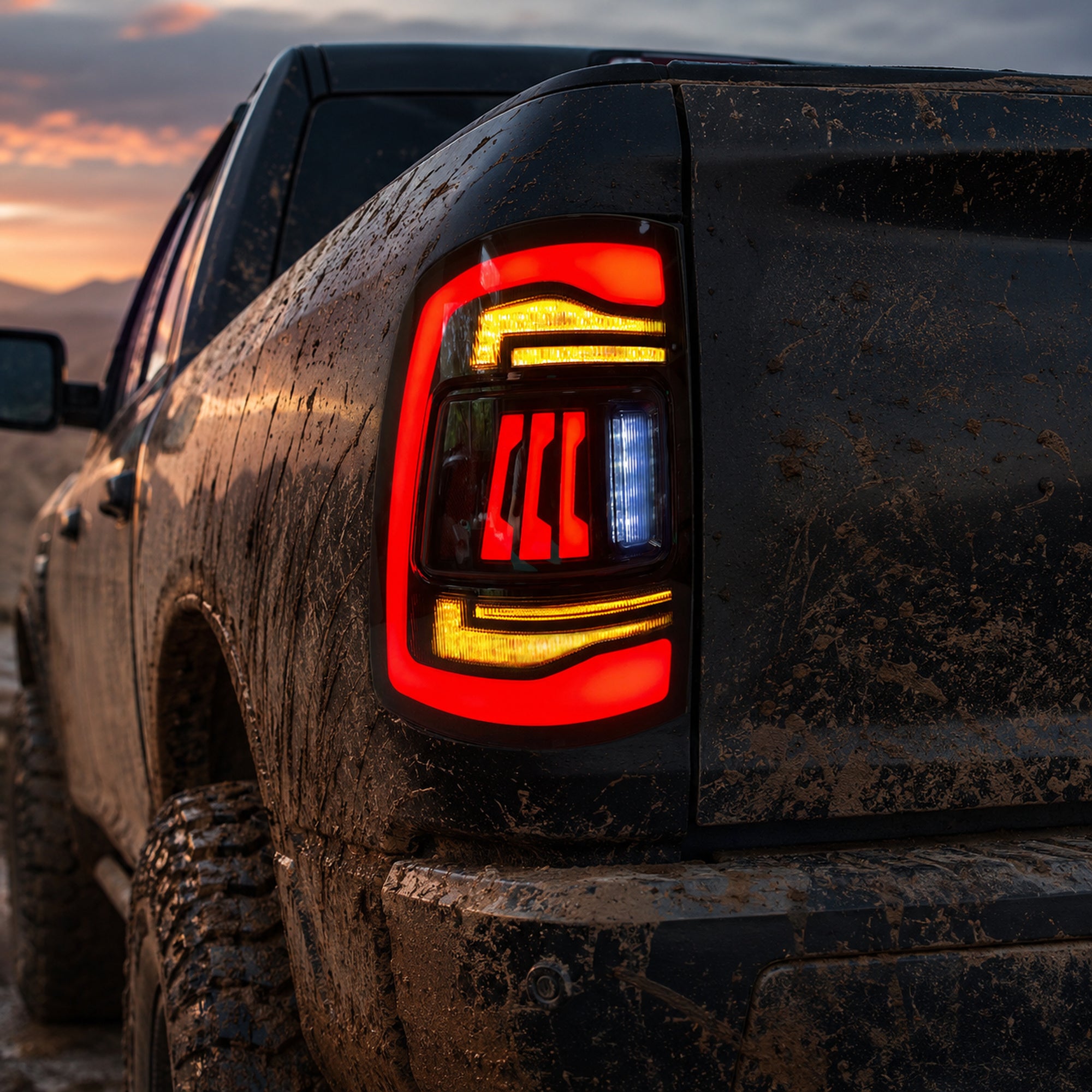

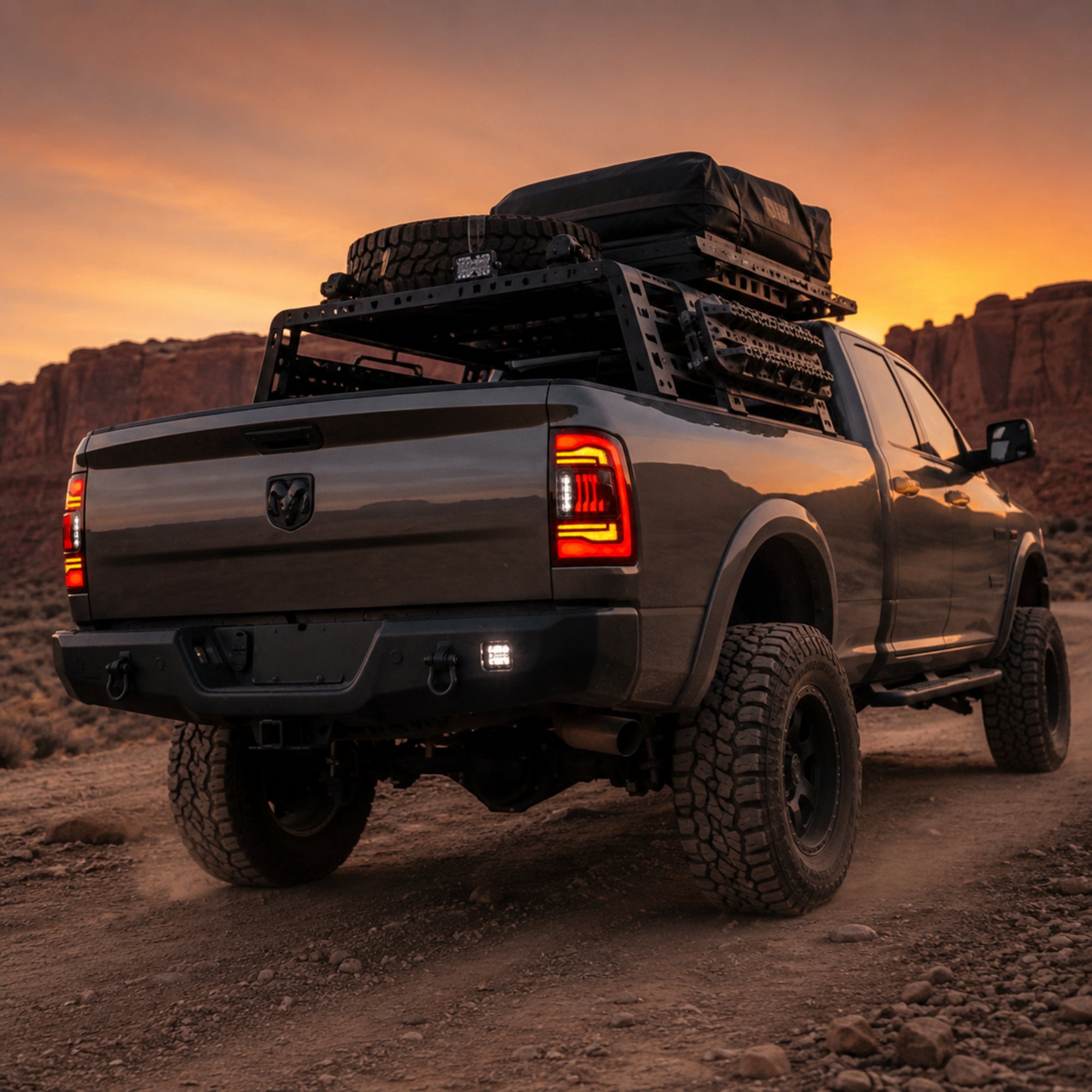

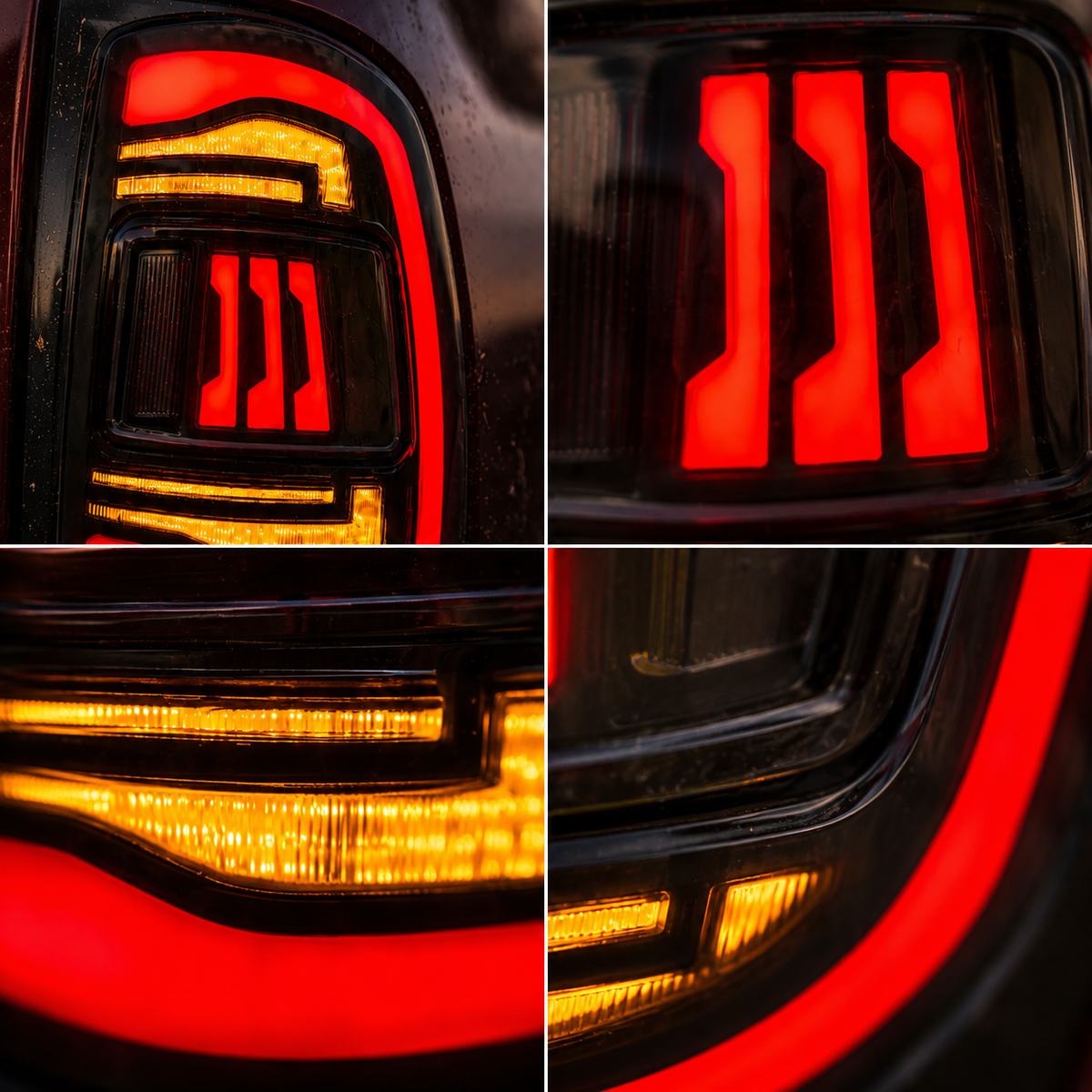

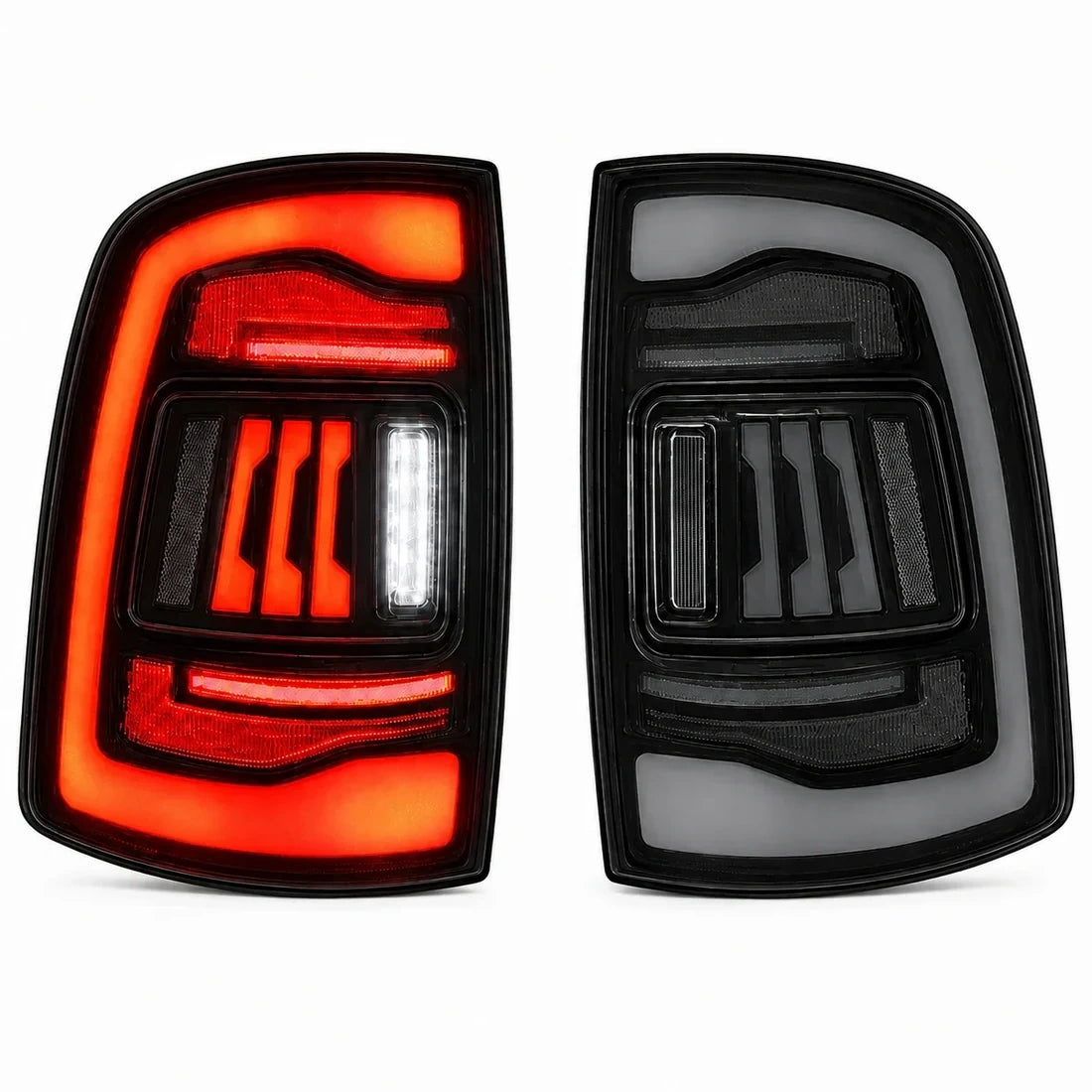

A bold LED bar runs the width of each housing and carries both the running and brake output — the detail that reshapes the back of a 4th-gen Ram from twenty feet away. Every function runs on LEDs, so the lens lights instantly and evenly, with none of the warm-up lag or burnout cycle of filament bulbs.
Built for your rig. Made for the night.

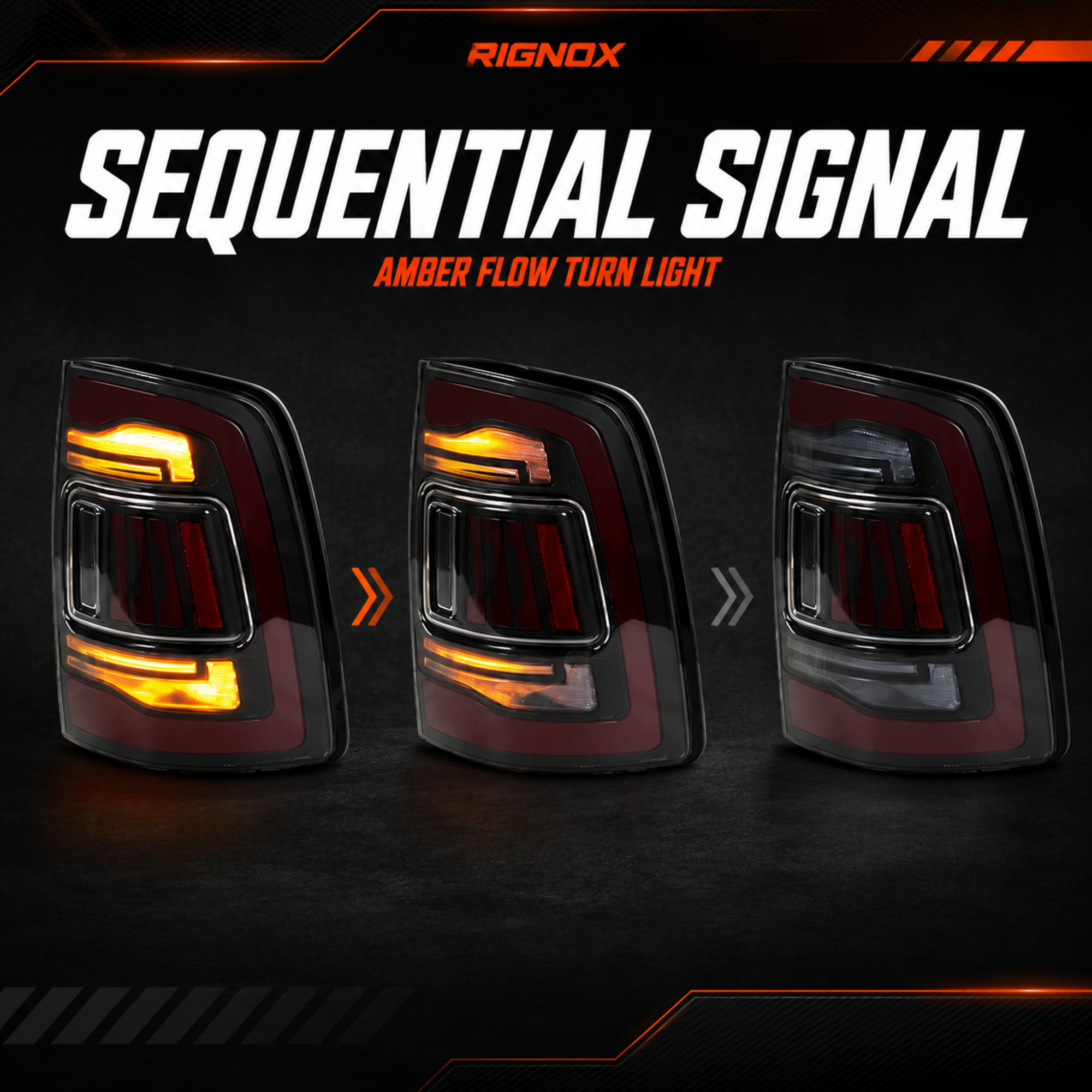

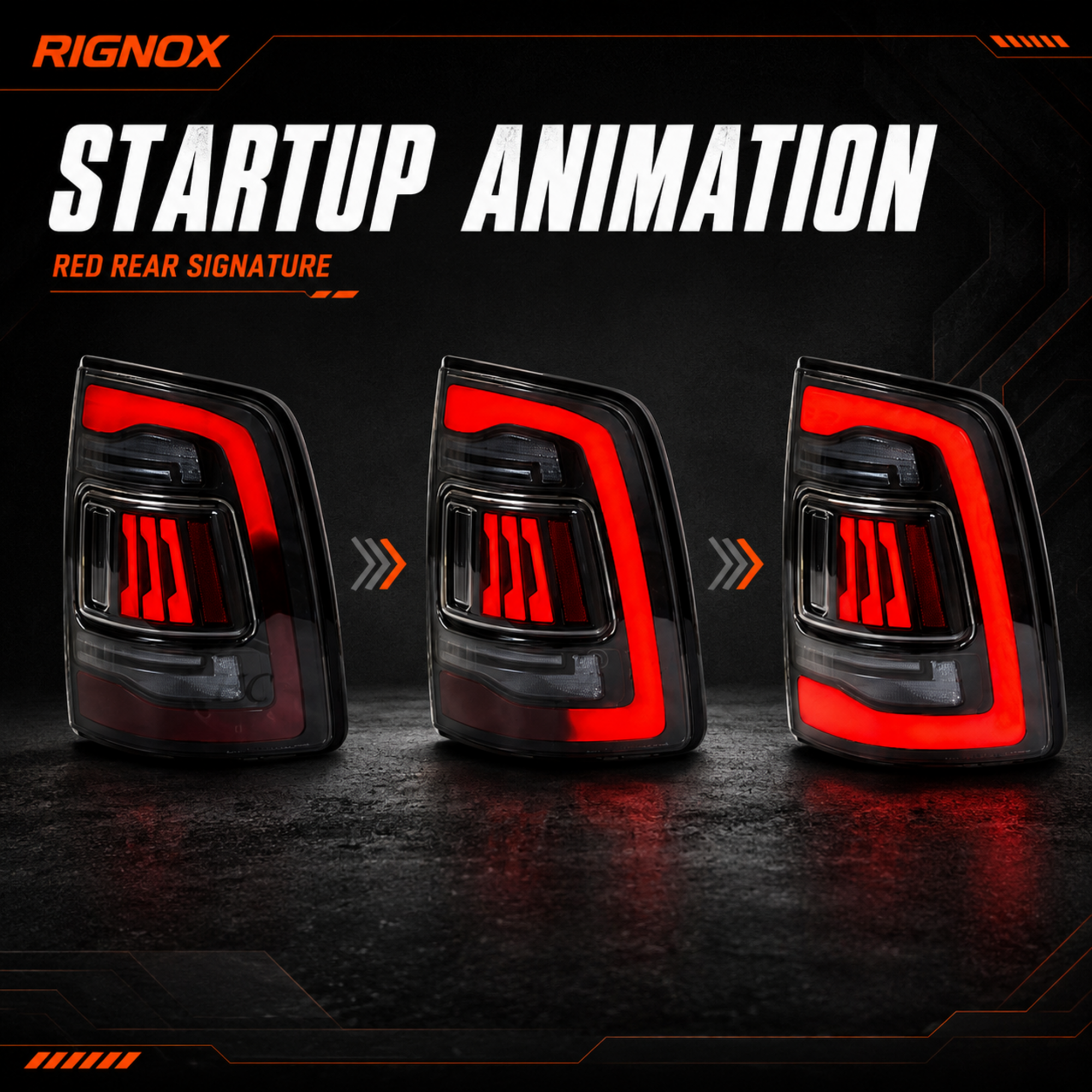

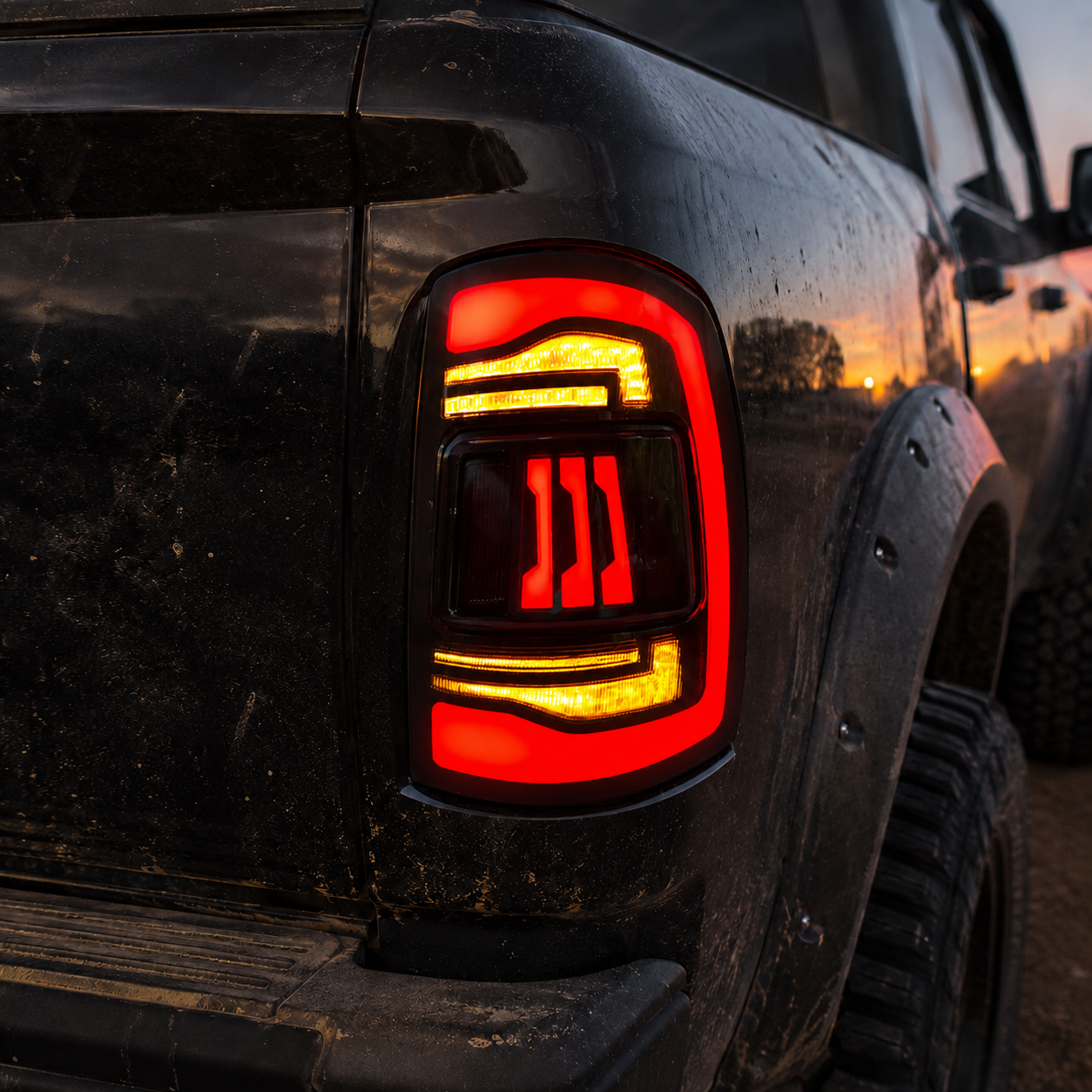

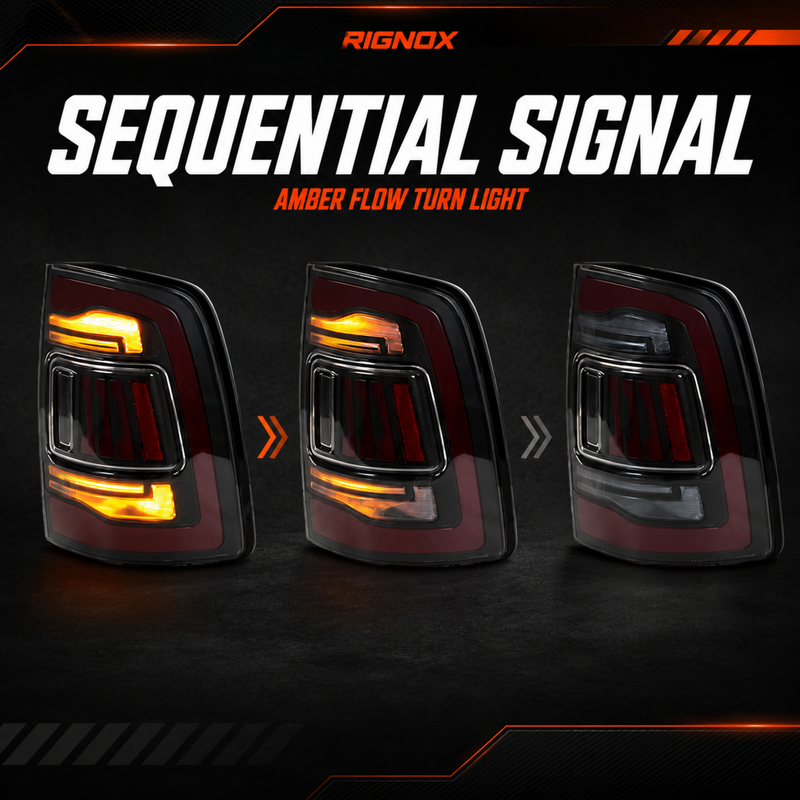

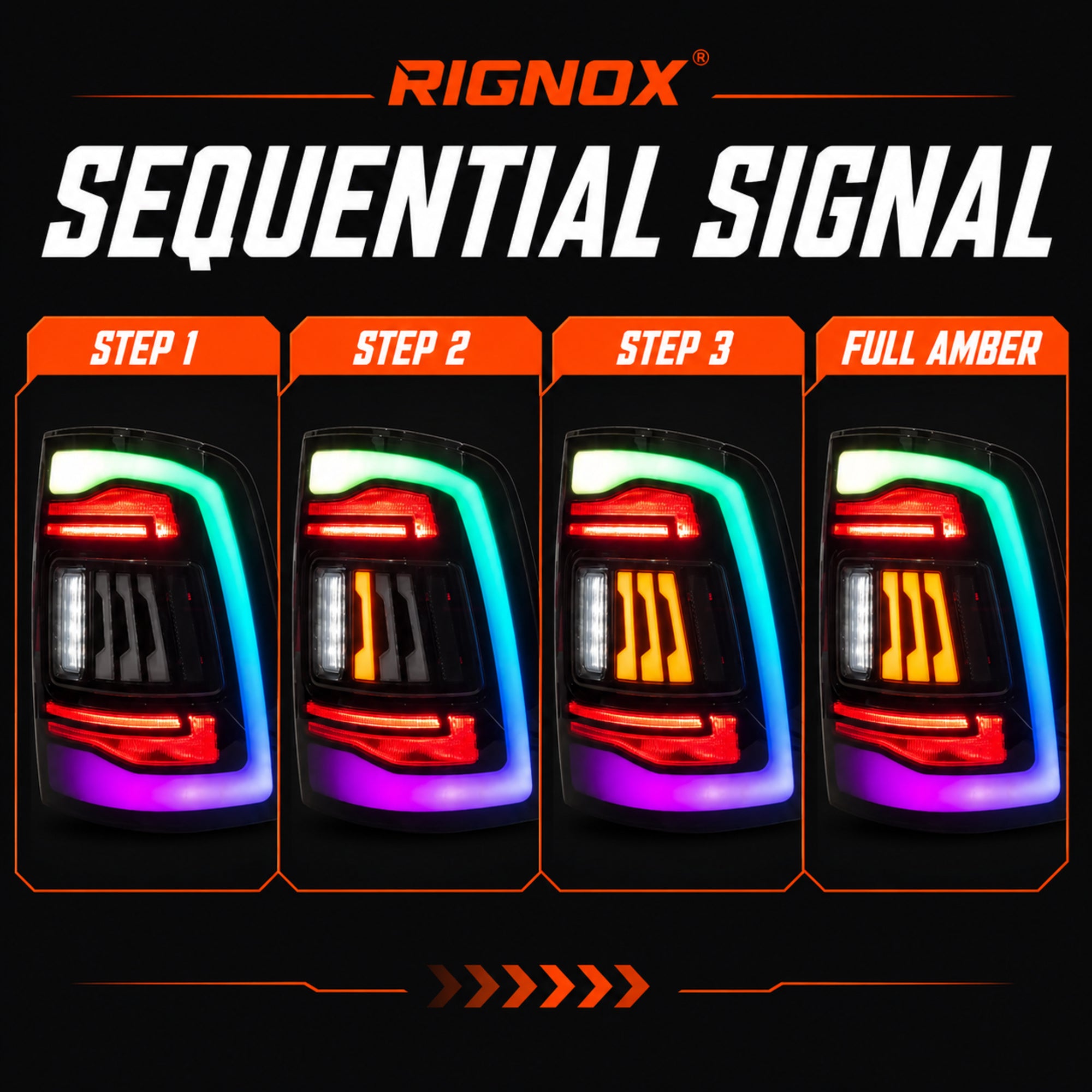

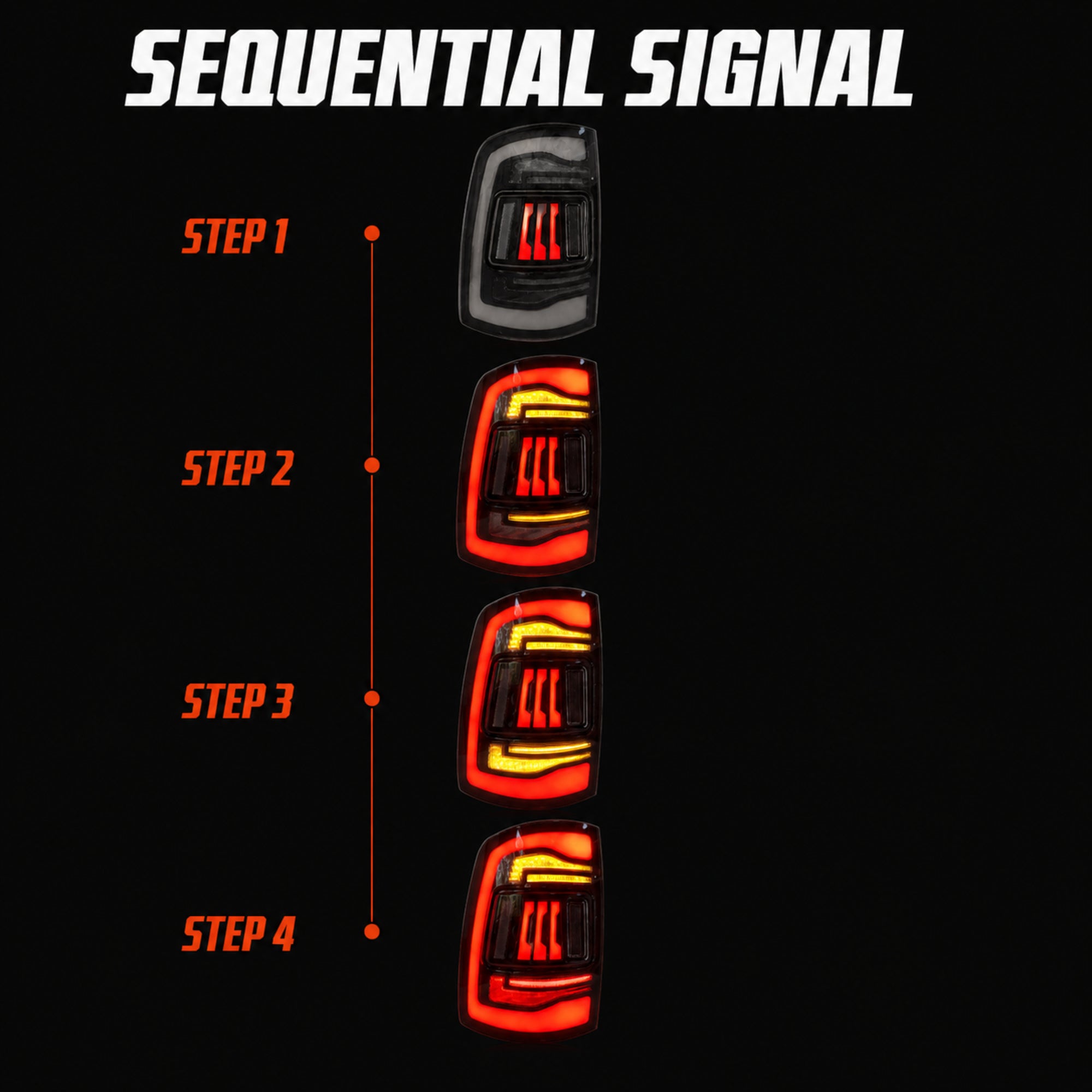

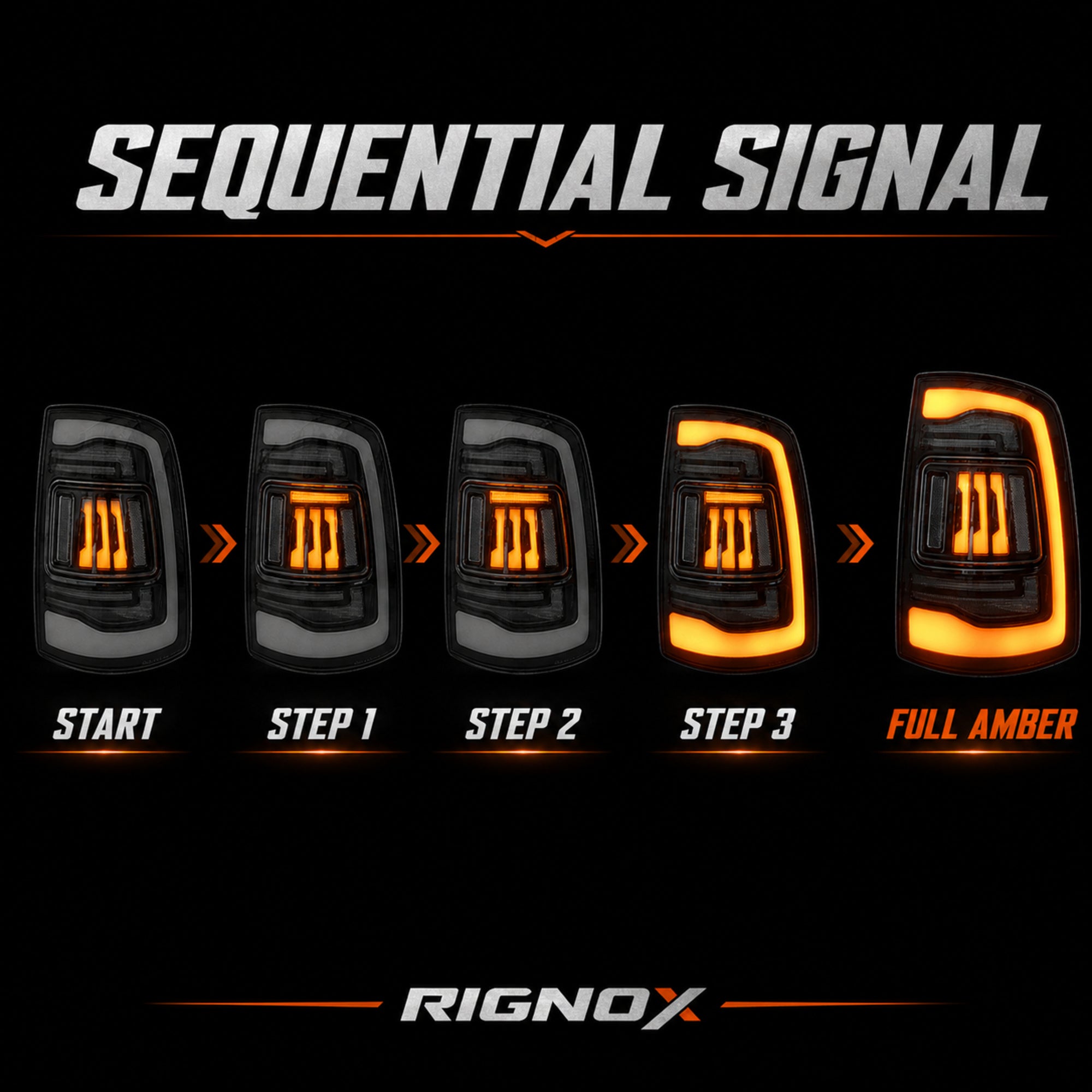

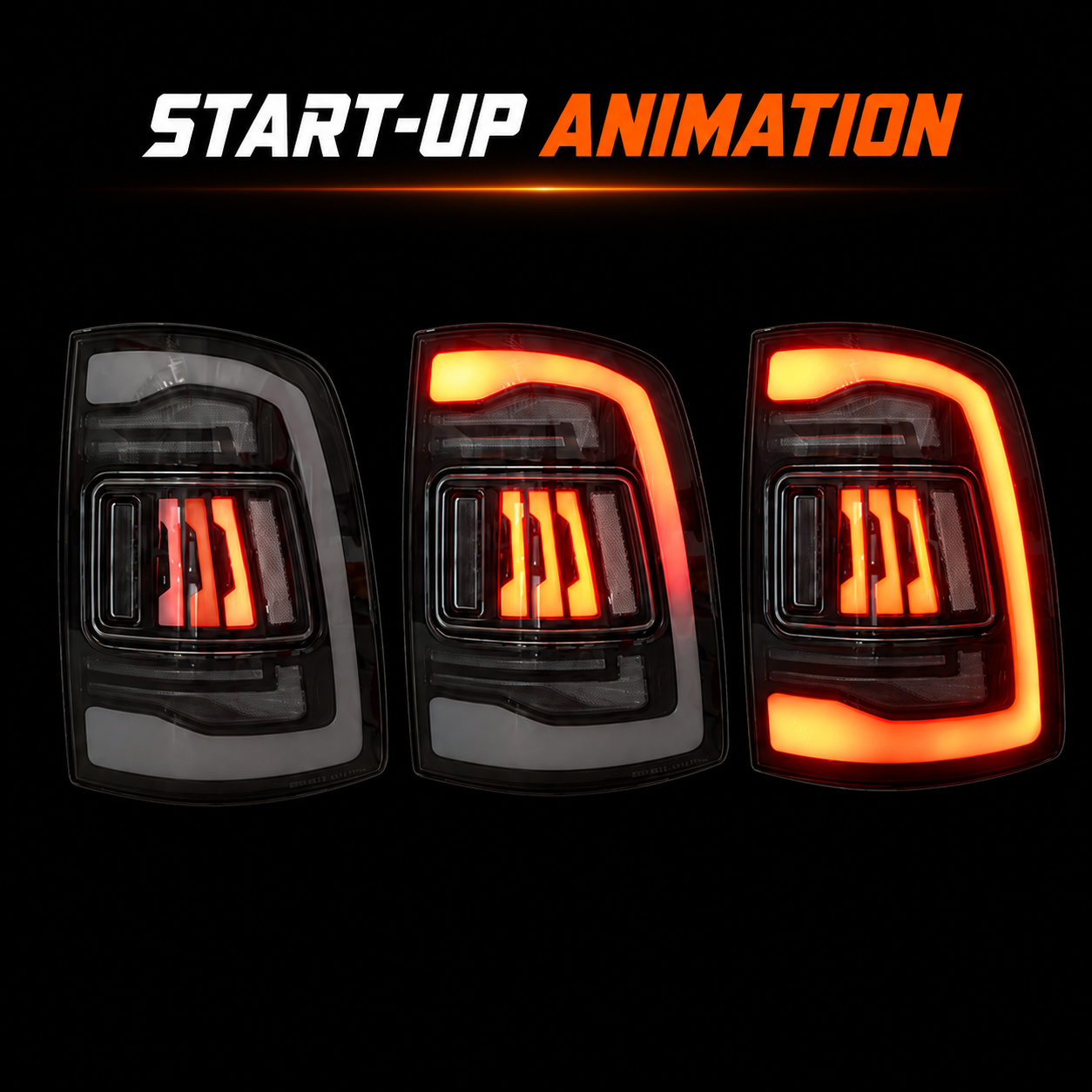

The turn signal fires as a sweep rather than a single flash, and the full pattern runs once on ignition as a startup animation. Both are built into the assembly — no external controller, nothing to configure once the harness is plugged in.

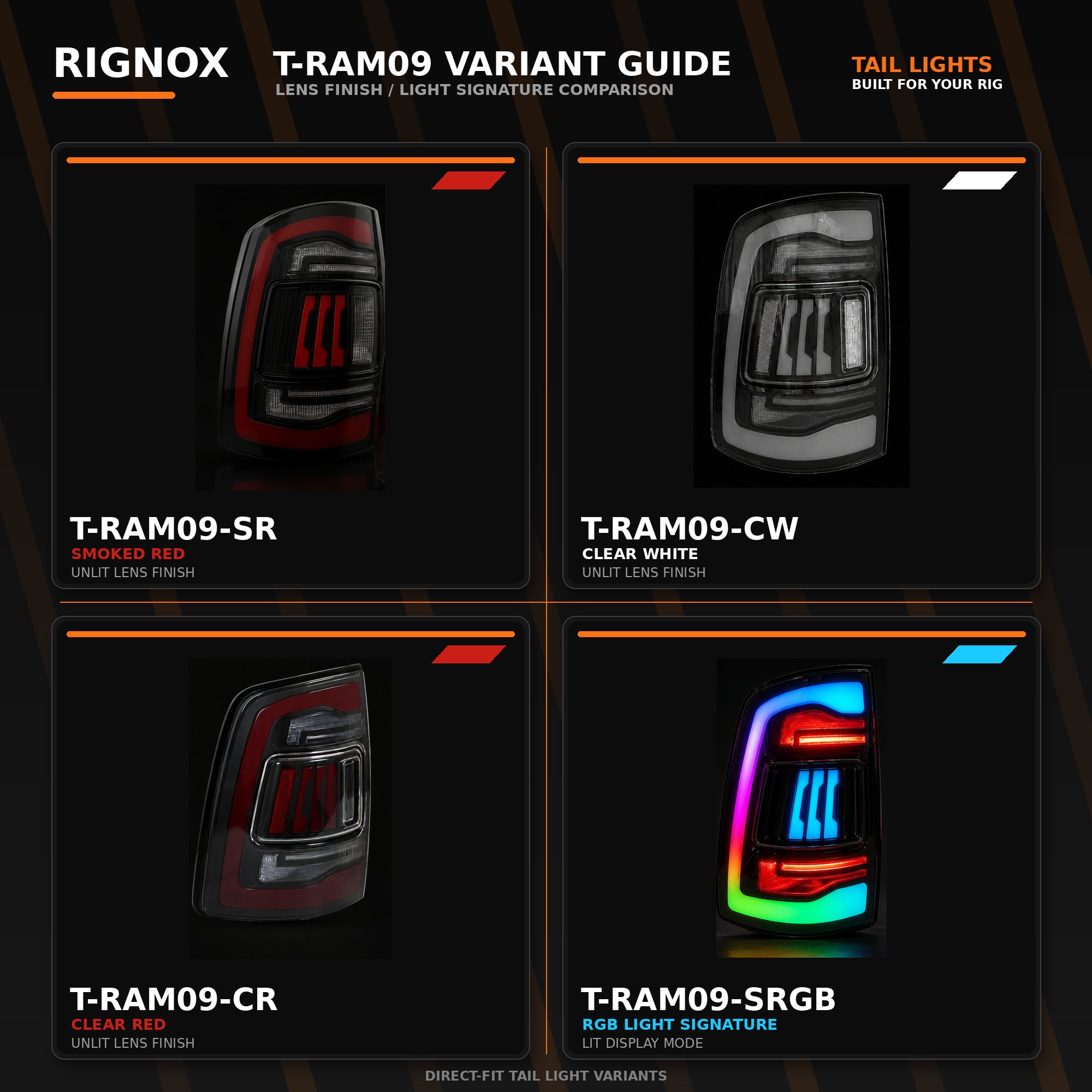

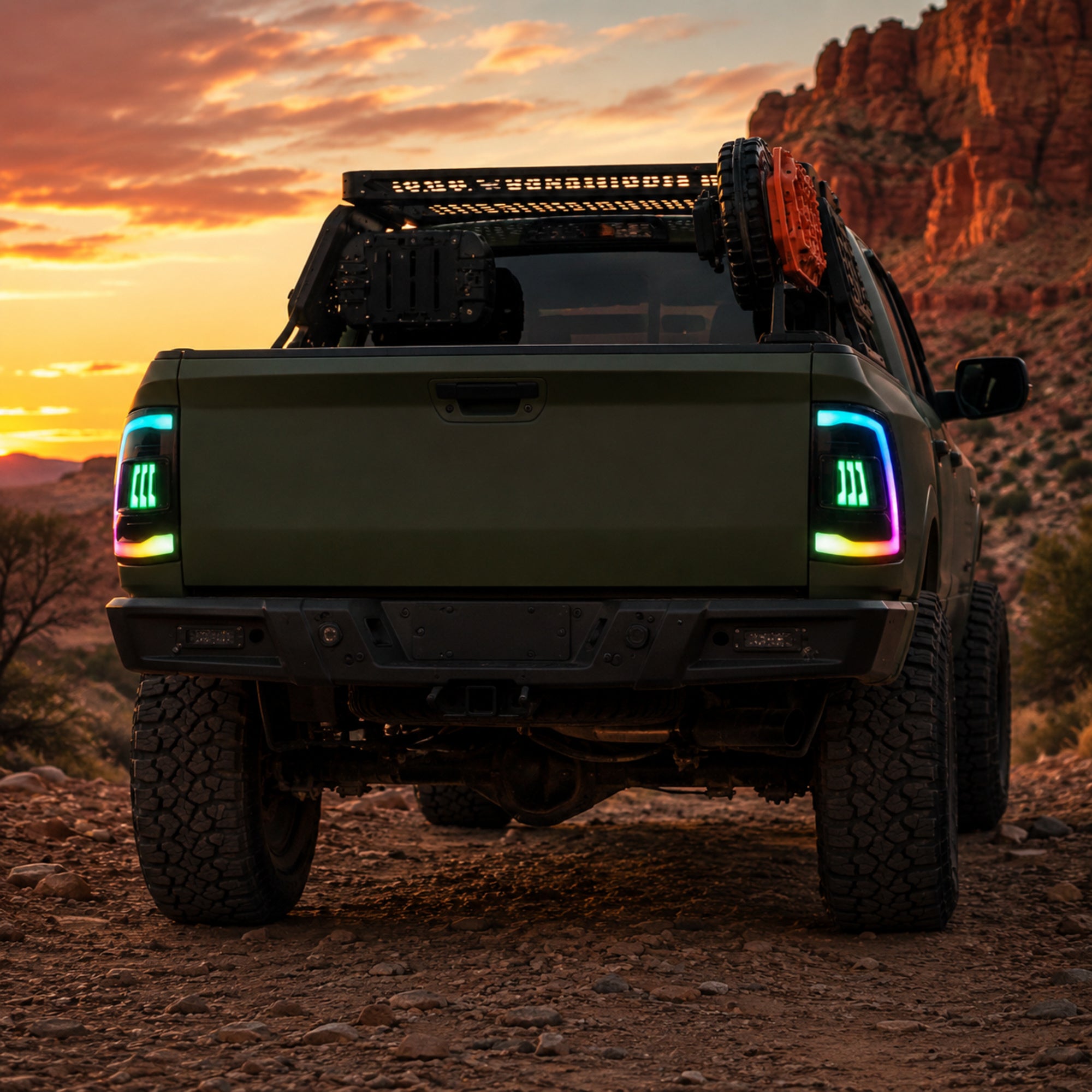

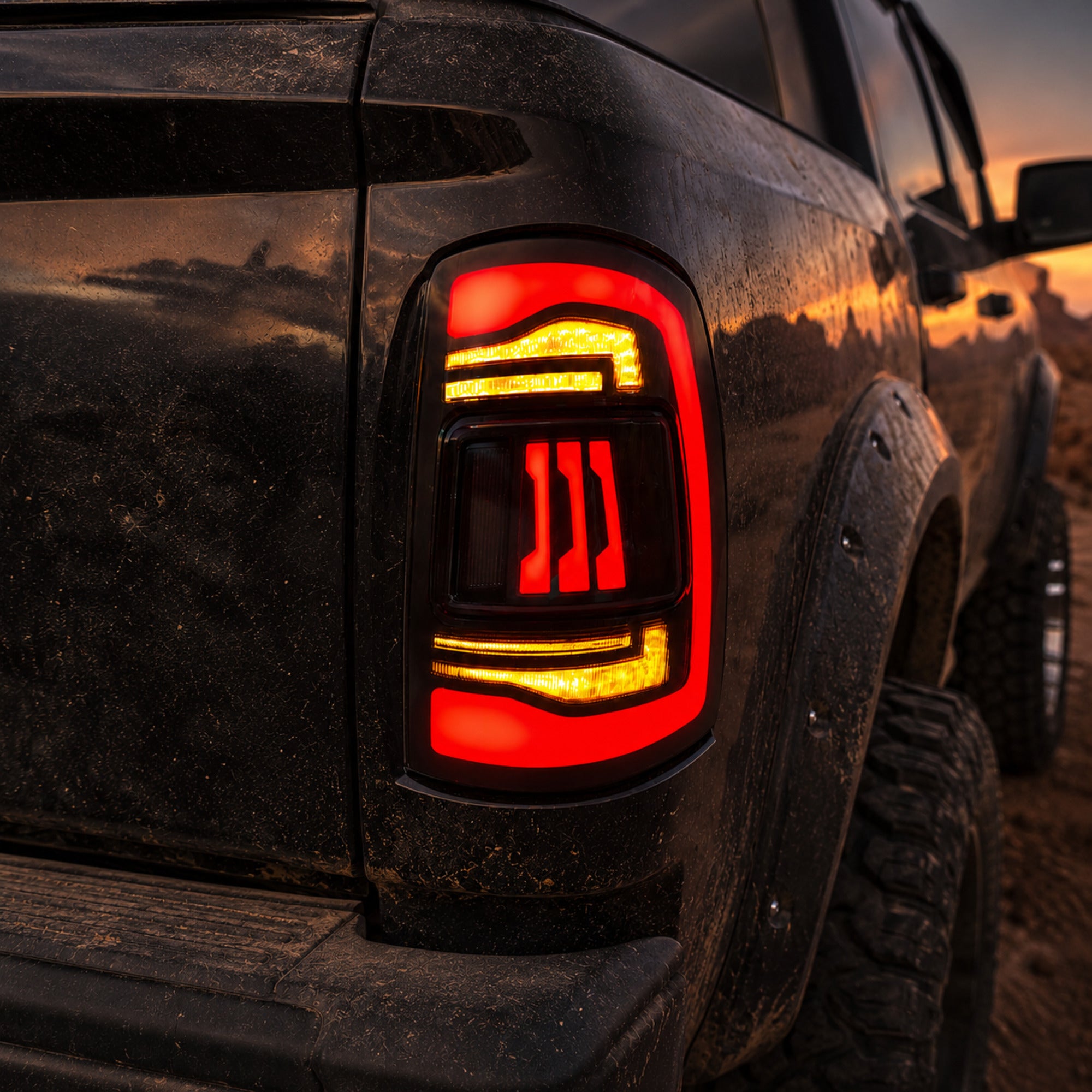

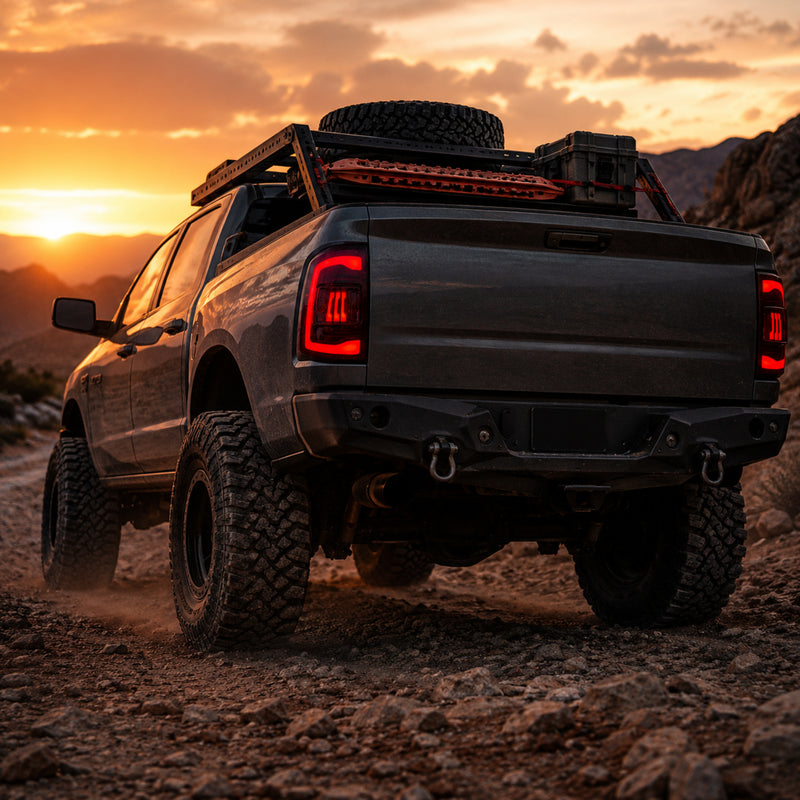

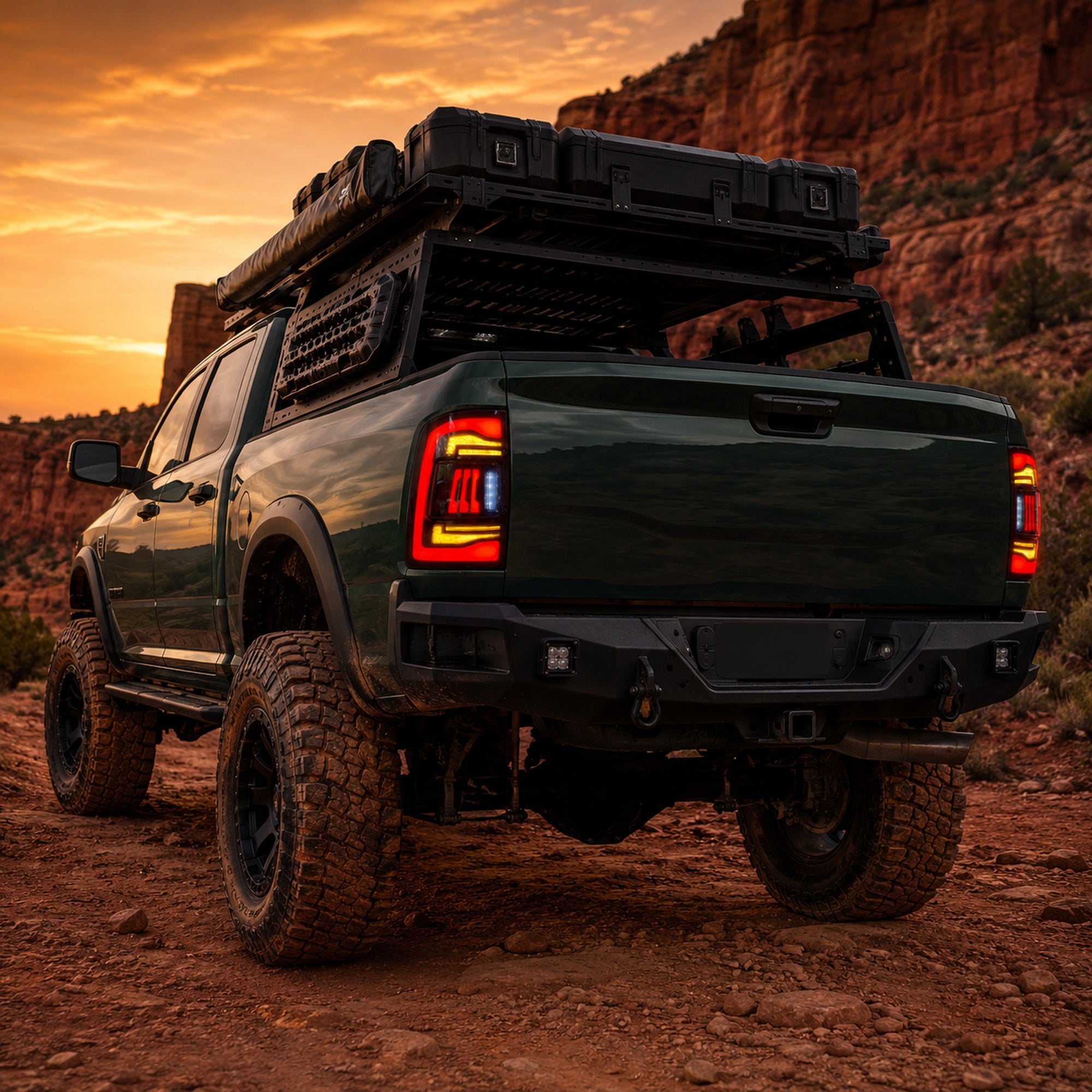

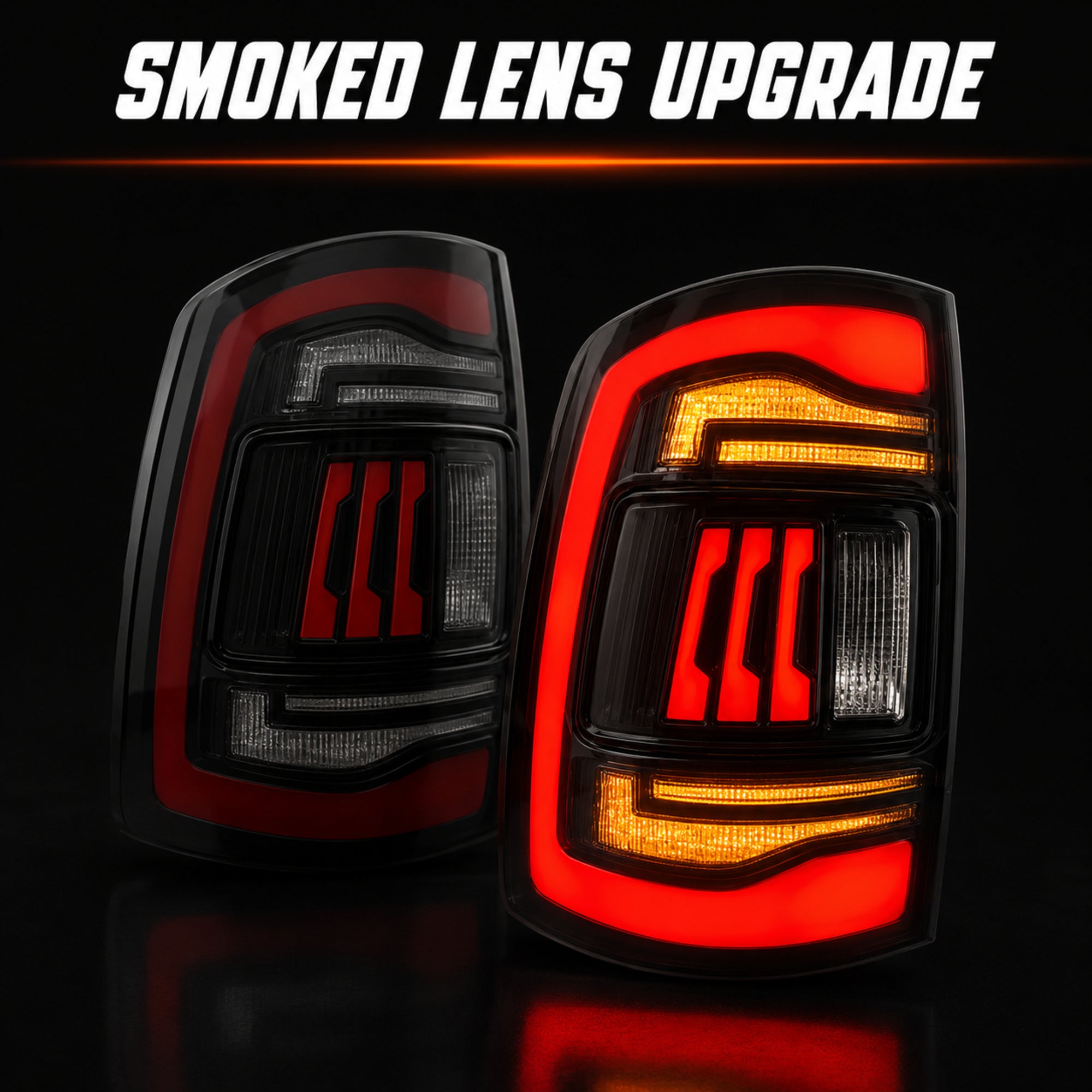

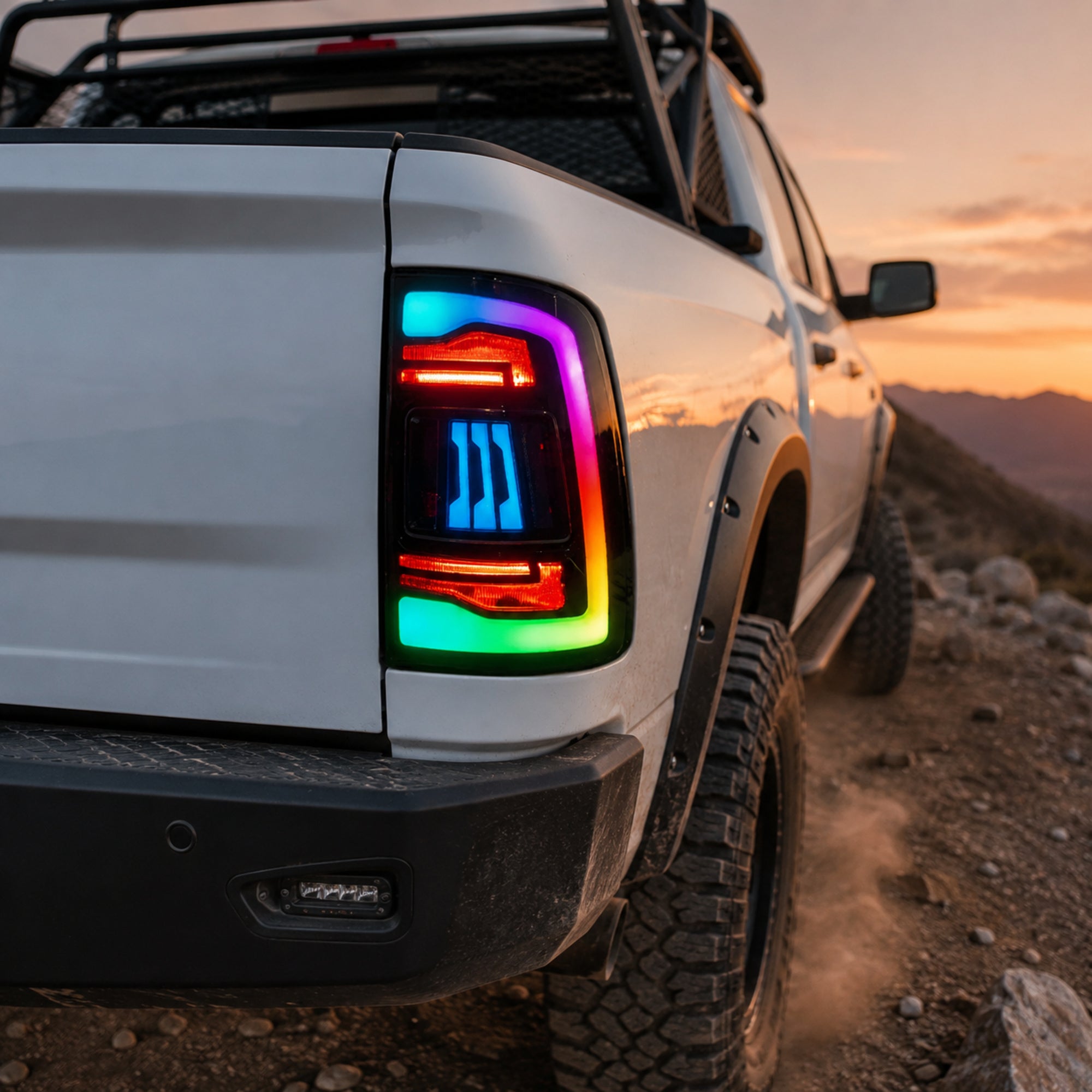

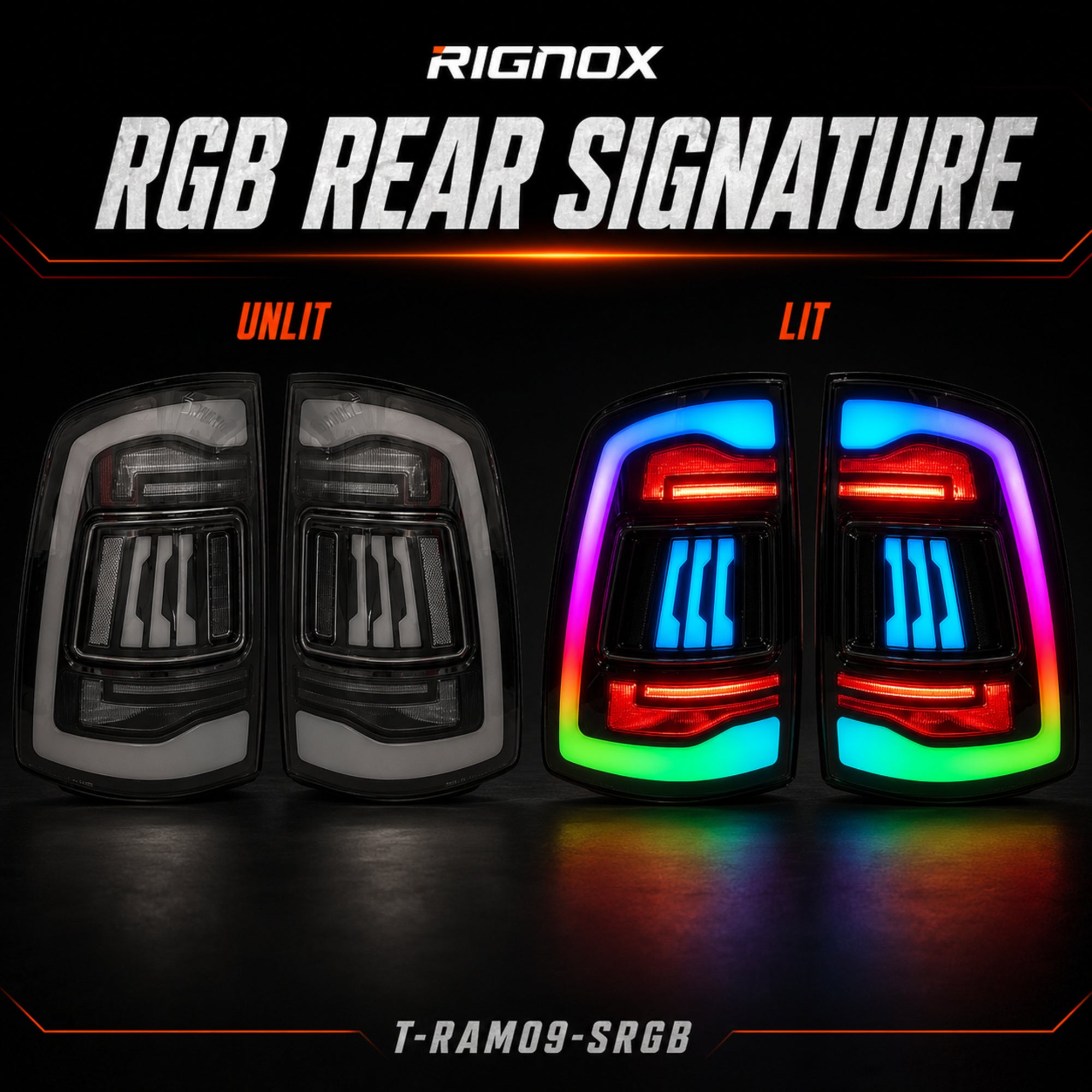

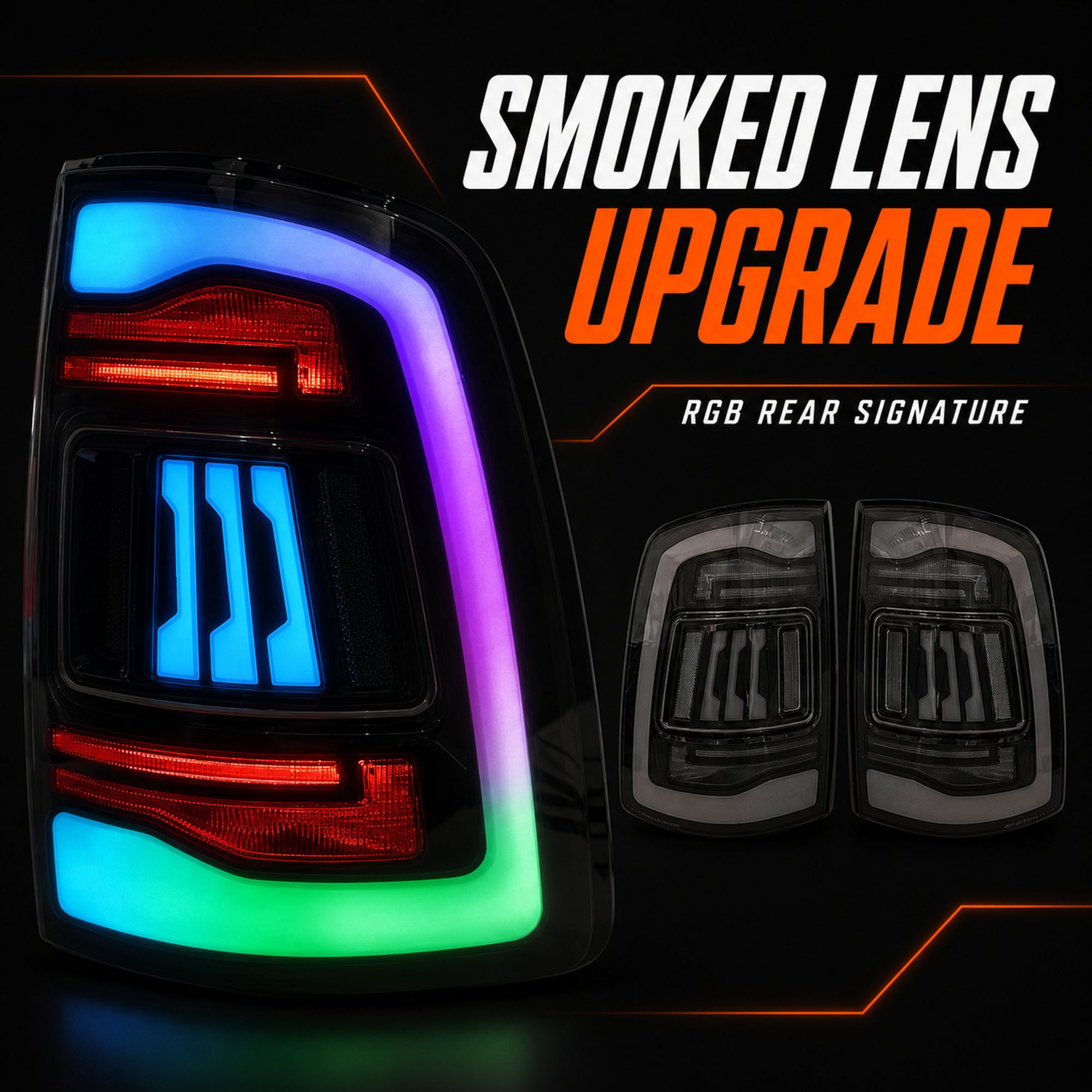

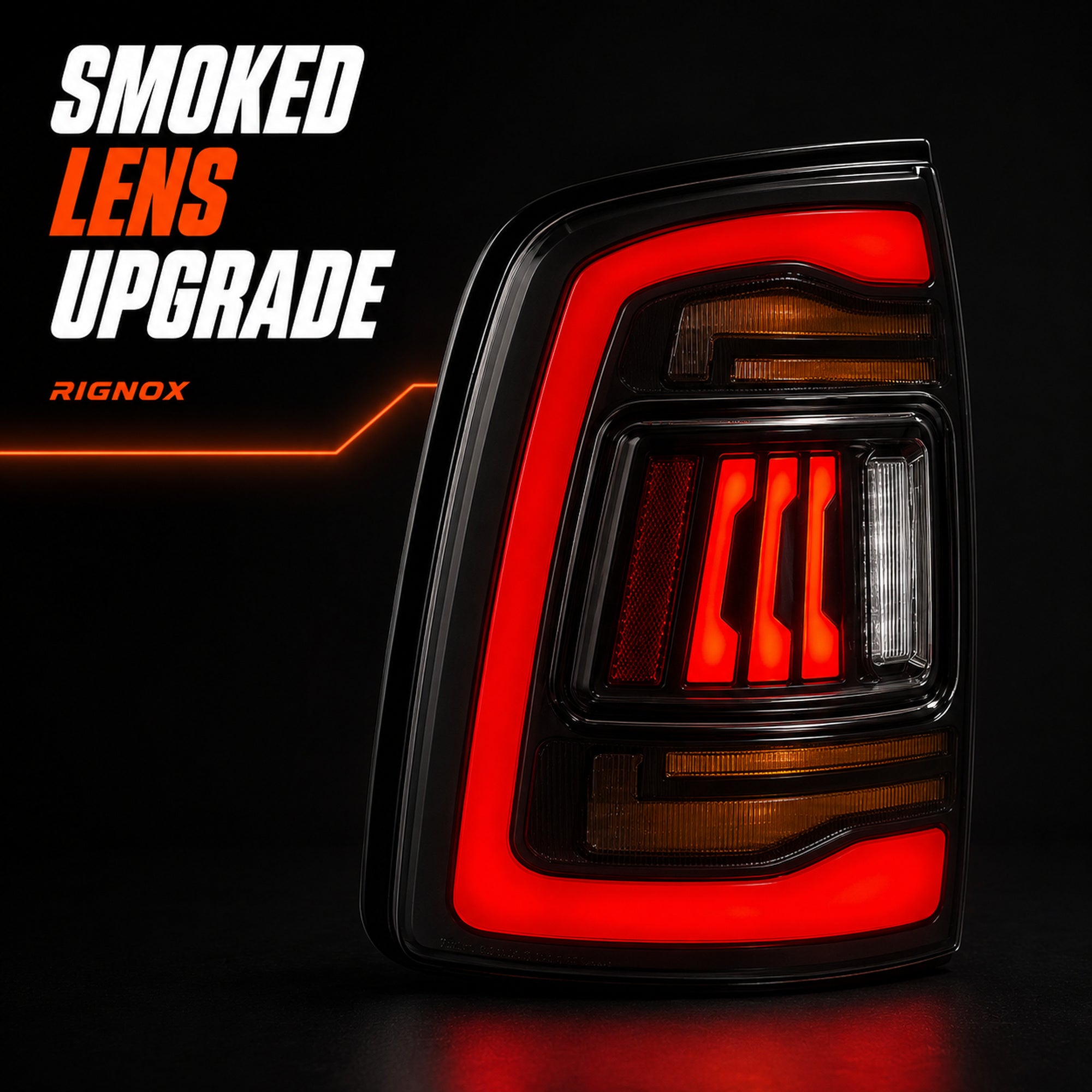

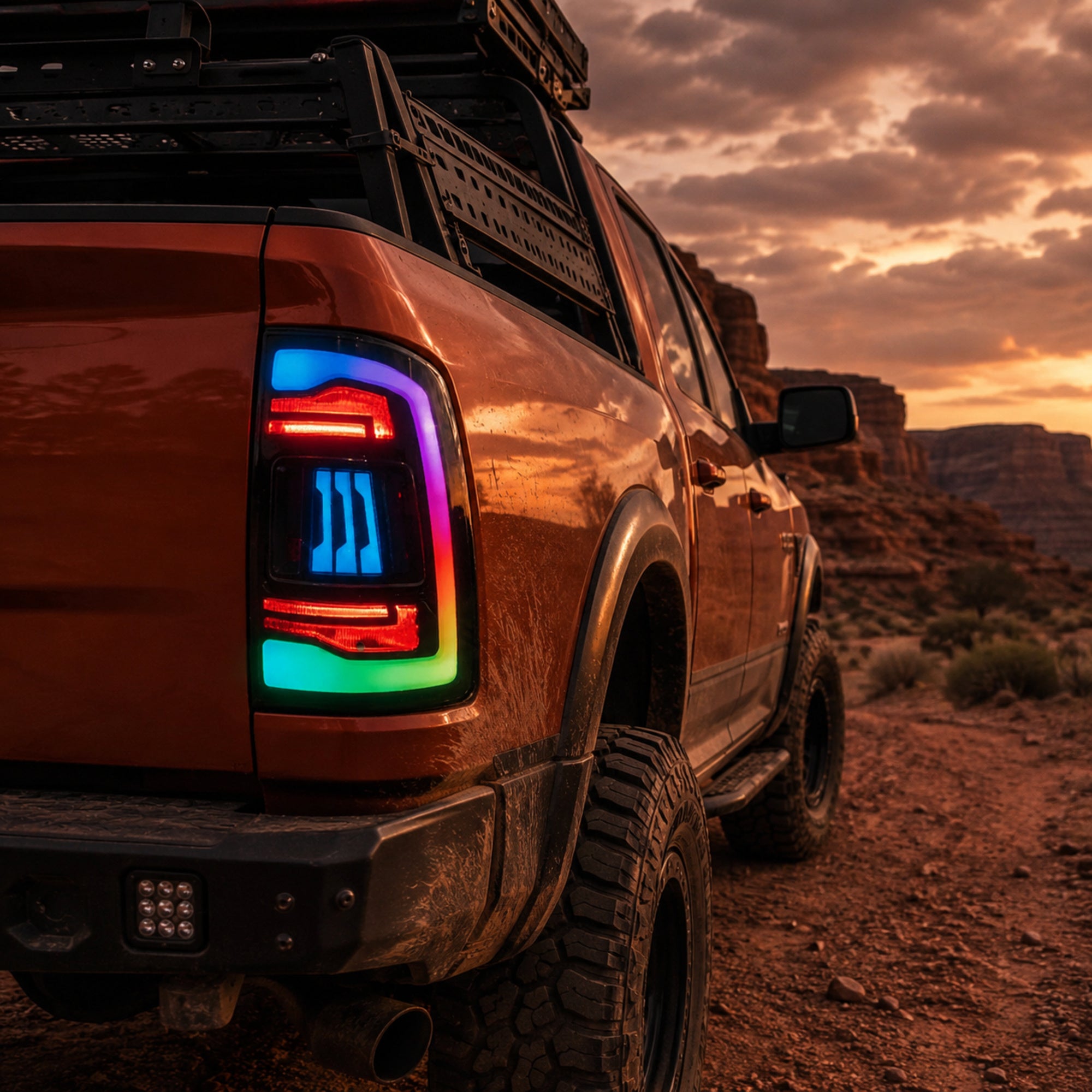

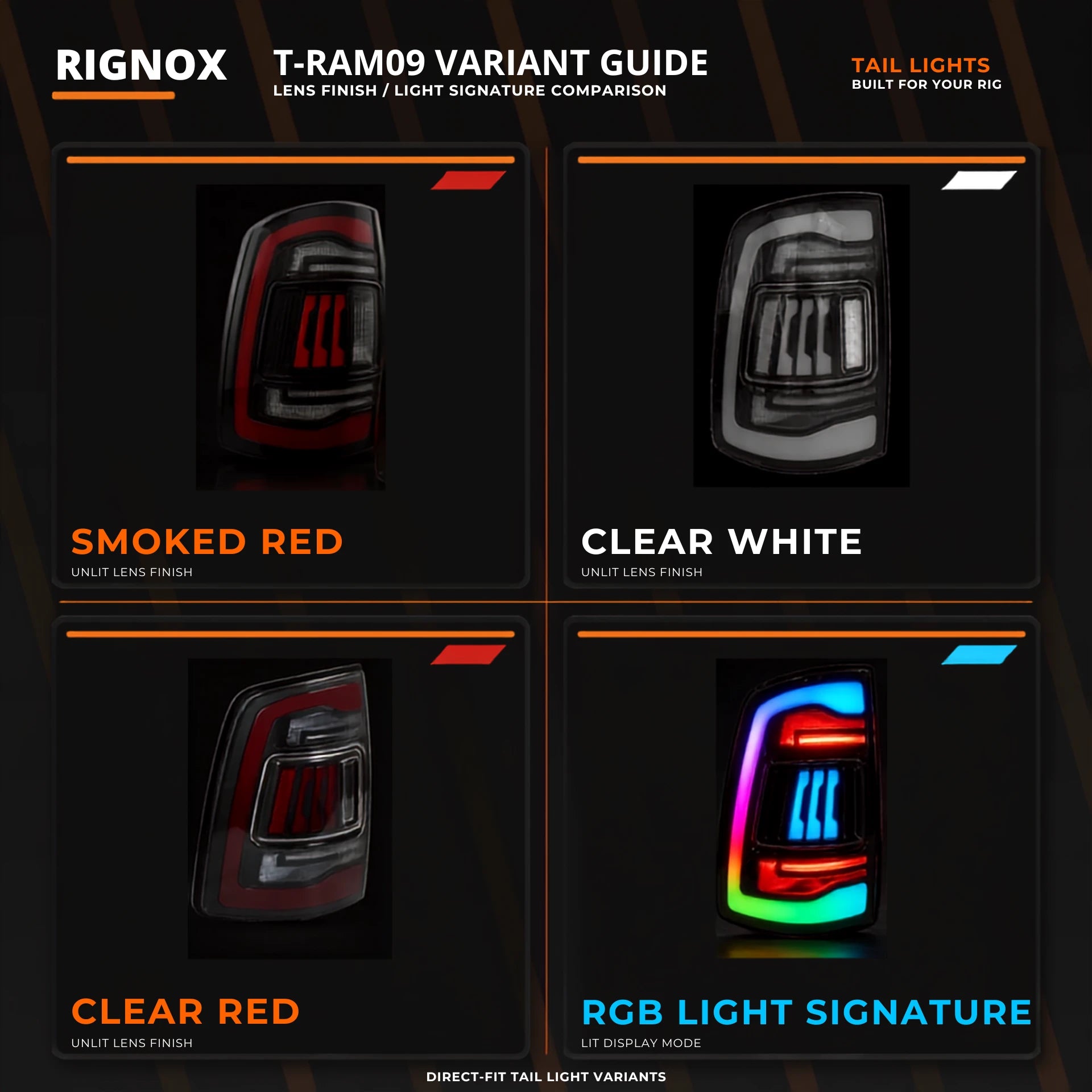

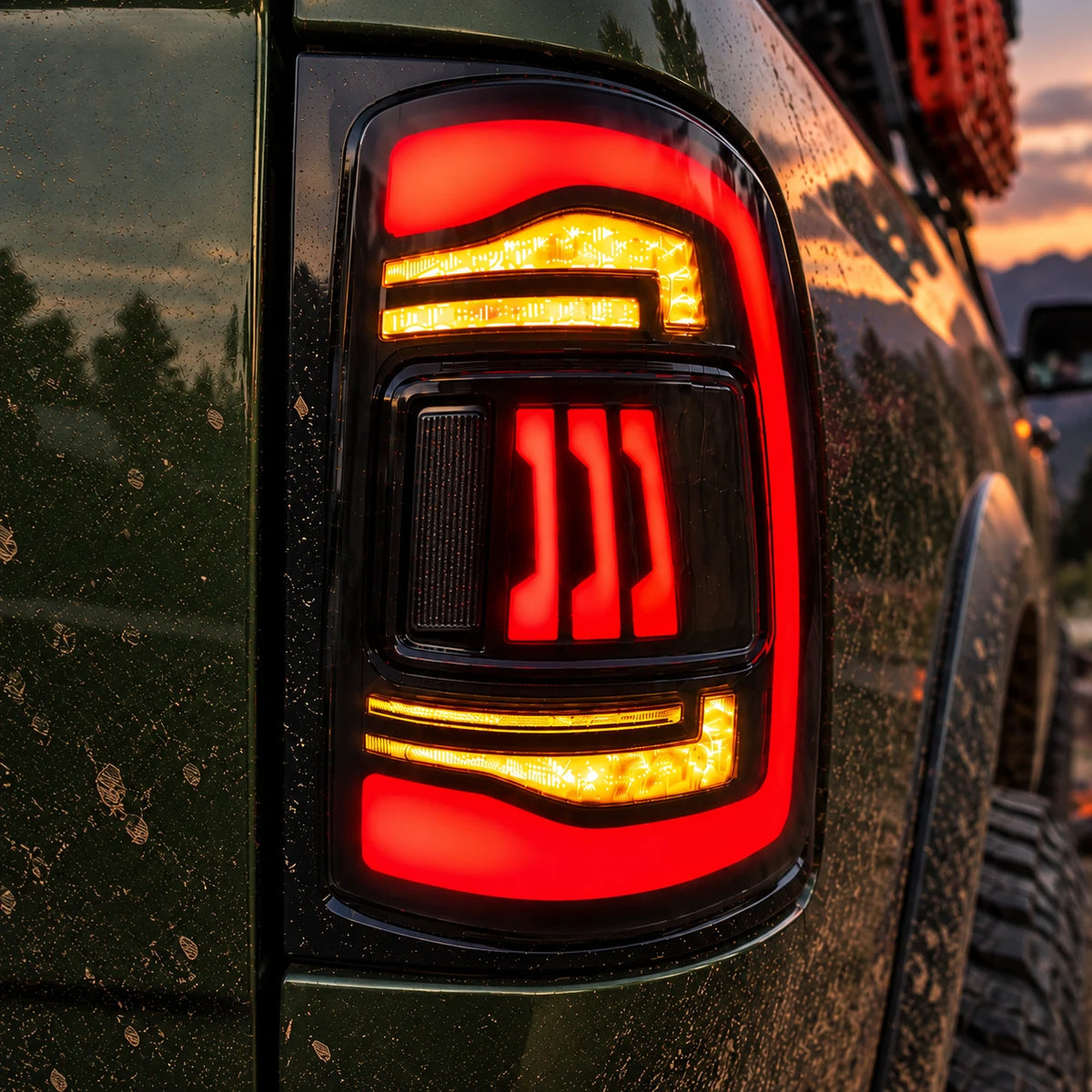

Four finishes. The lens comes smoked or clear, and the bar runs red or white. Smoked Red is the blacked-out build. Clear Red keeps a red bar behind a clear lens. Clear White runs a white bar for the sharpest contrast against a dark truck. Smoked RGB w/ APP Control puts a white bar behind the smoked lens and hands the color over to your phone, so the accent lighting can be set for shows and meets.
Built on patented optical technology and independently tested for vibration, mechanical shock, and corrosion resistance. The lens is UV-stable polycarbonate, so it holds its clarity instead of yellowing after a few summers.

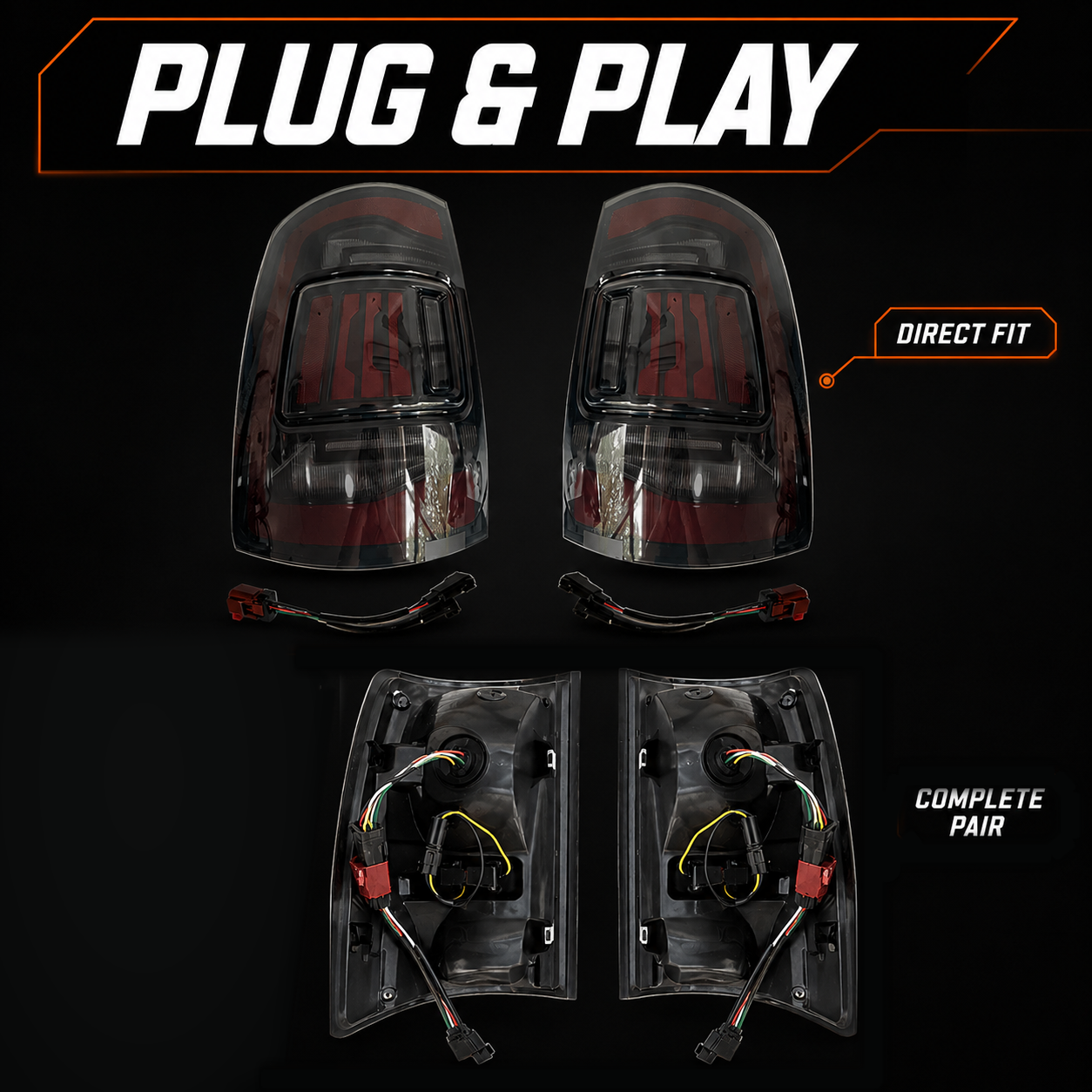

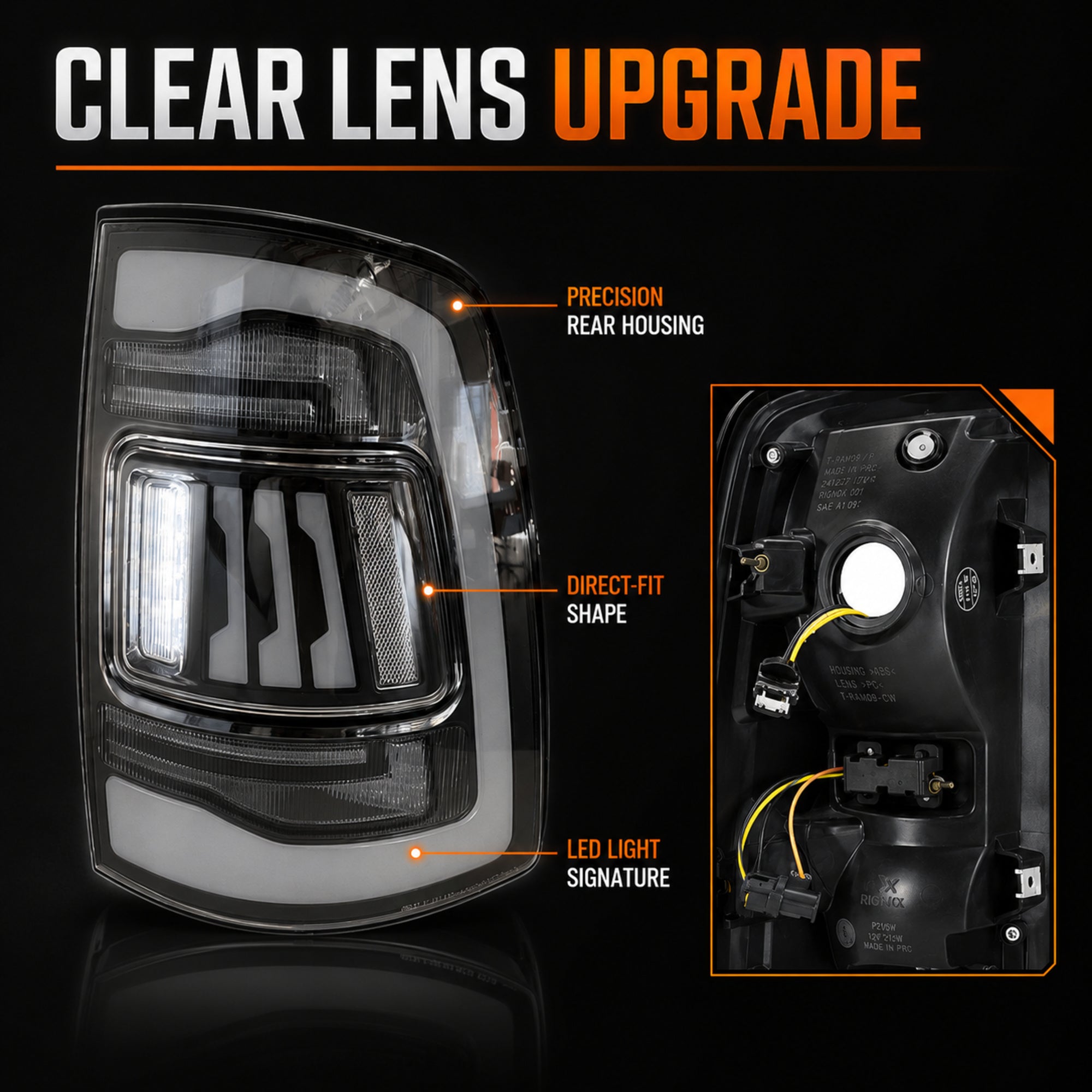

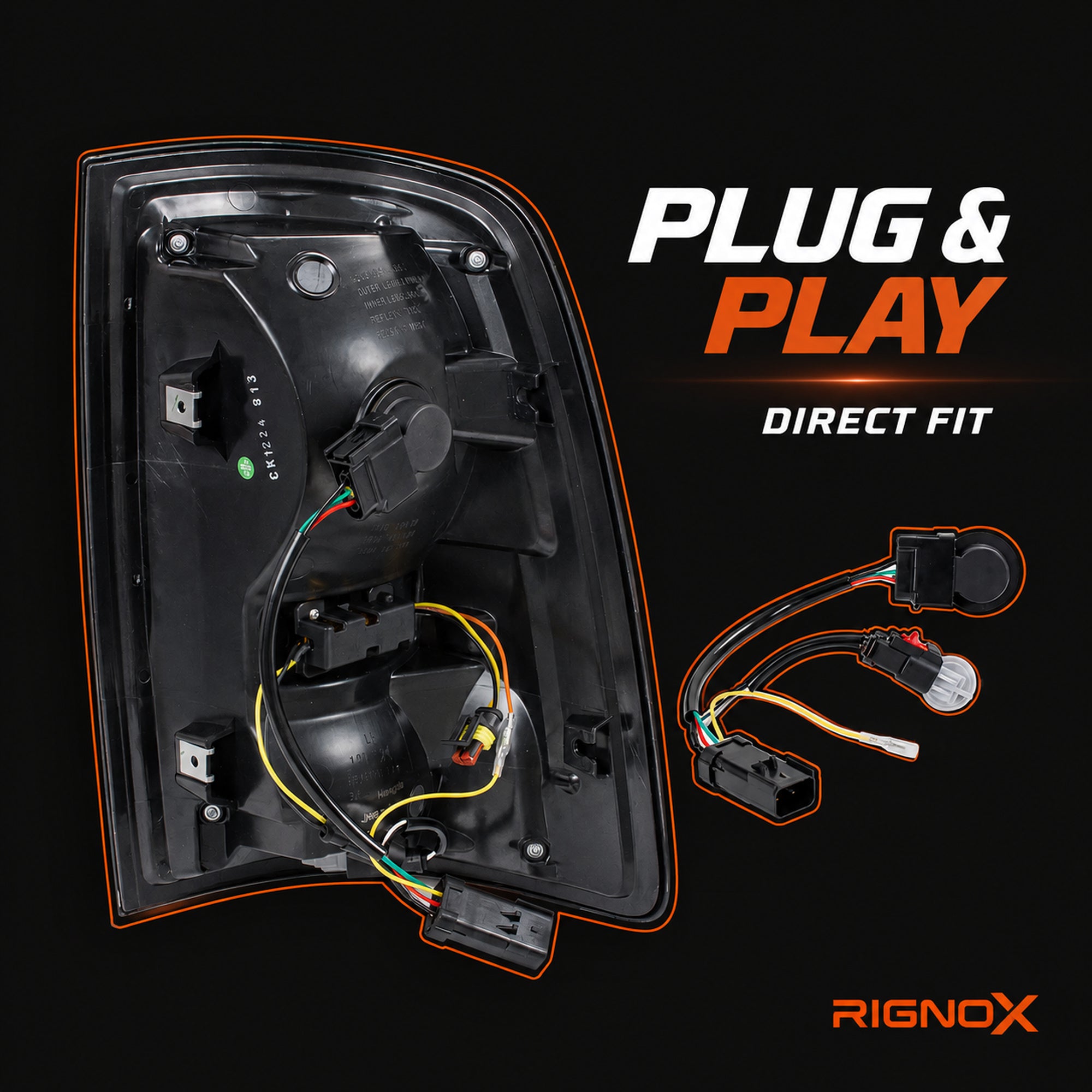

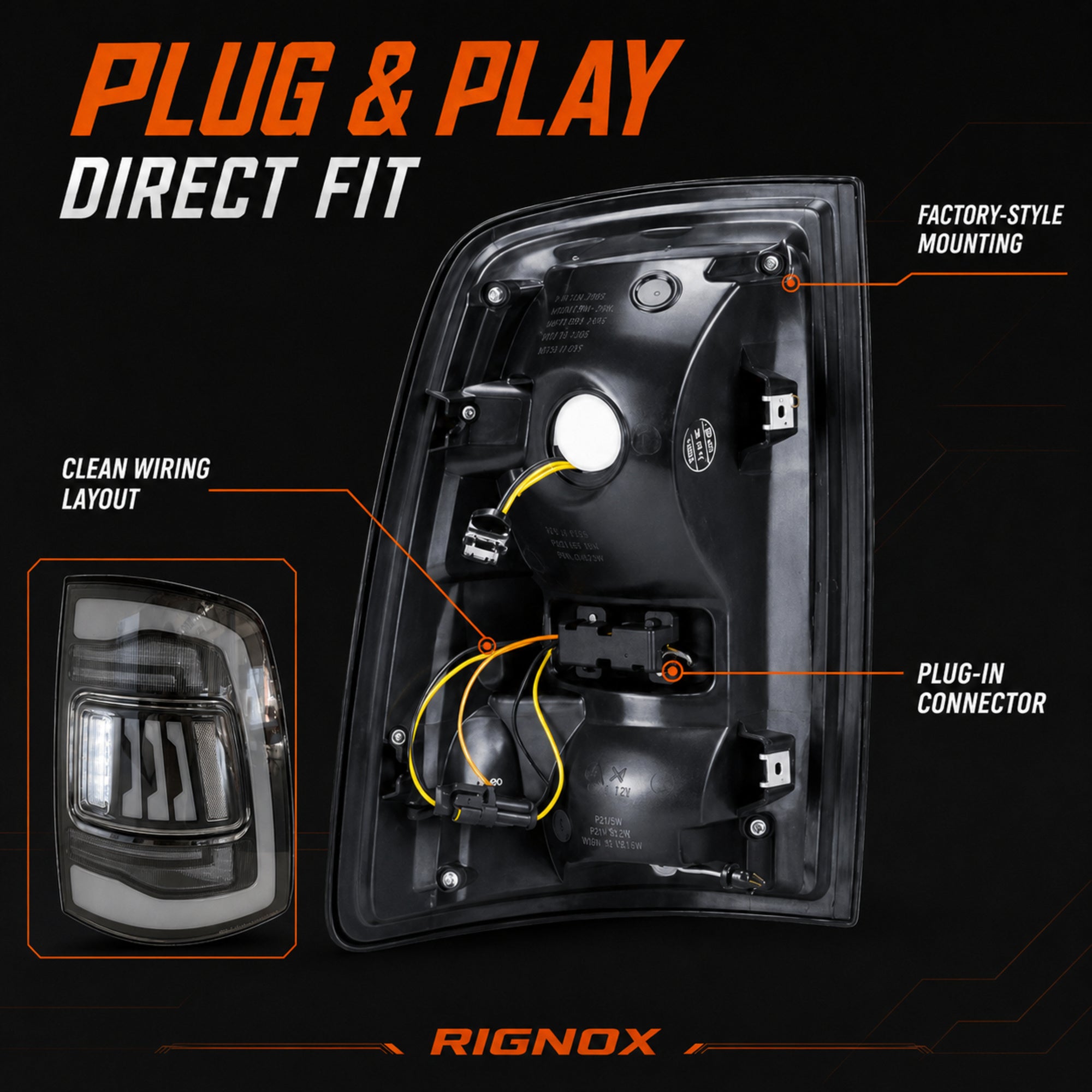

Installation is plug-and-play into the factory harness. Integrated decoders and an LED flash relay hold the correct flash cadence — no hyper-flashing, no dash errors.
Compatibility
Fits: 2009-2018 Dodge Ram 1500, 2019-2024 Ram 1500 Classic, 2010-2018 Ram 2500, and 2010-2018 Ram 3500.
Does not fit: 2009 Ram 2500 / 3500; Ram 4500 / 5500 unless separately confirmed.
Replaces OEM part numbers: Halogen Tail Lights: Left 55277415AC; Right 55277414AC. OEM LED Tail Lights: Left 68361817AA; Right 68361816AA.
Fitment Note: 2009 Ram 2500 / 3500 trucks are still the previous body generation, so they do not share this 4th-gen tail light fitment.
Main Characteristics

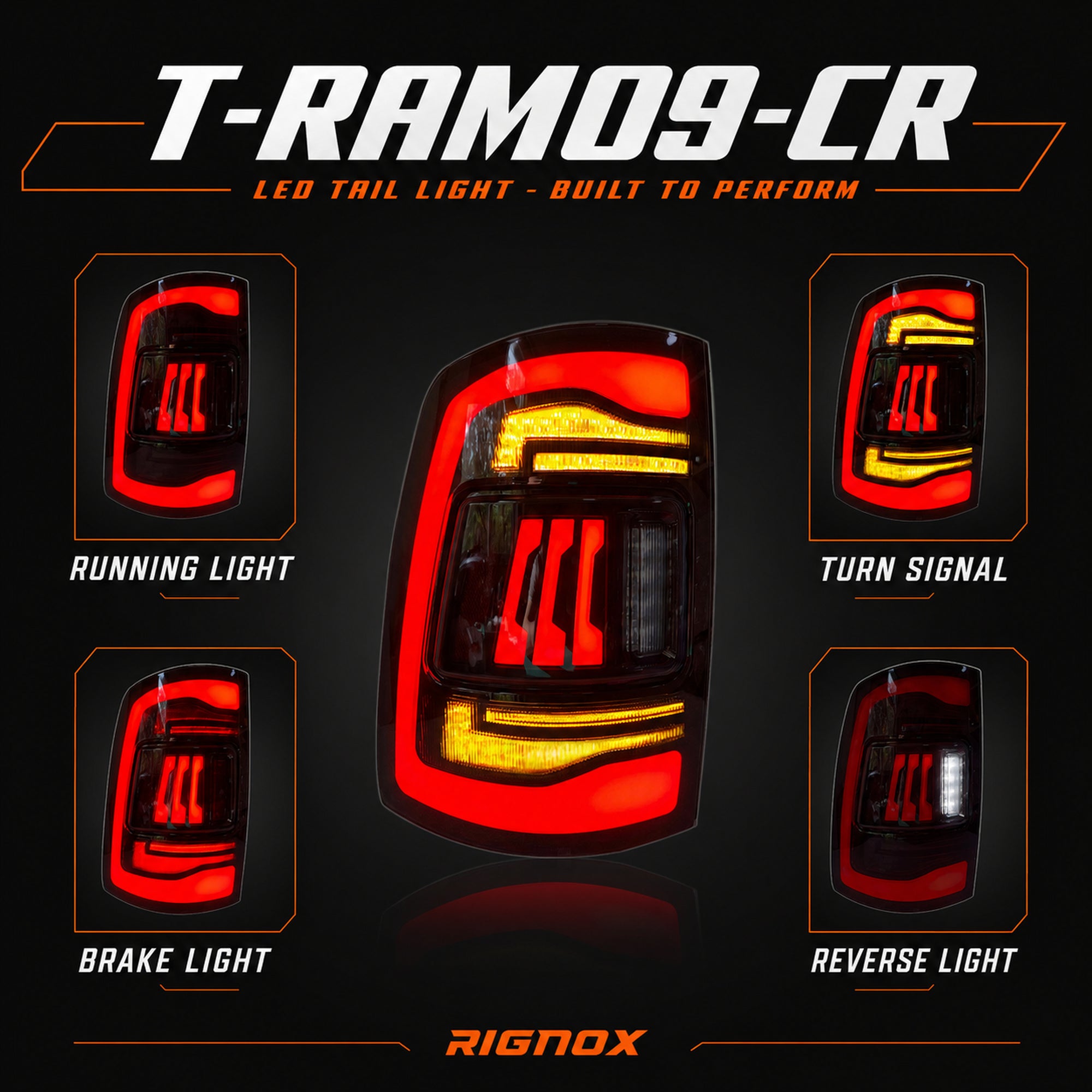

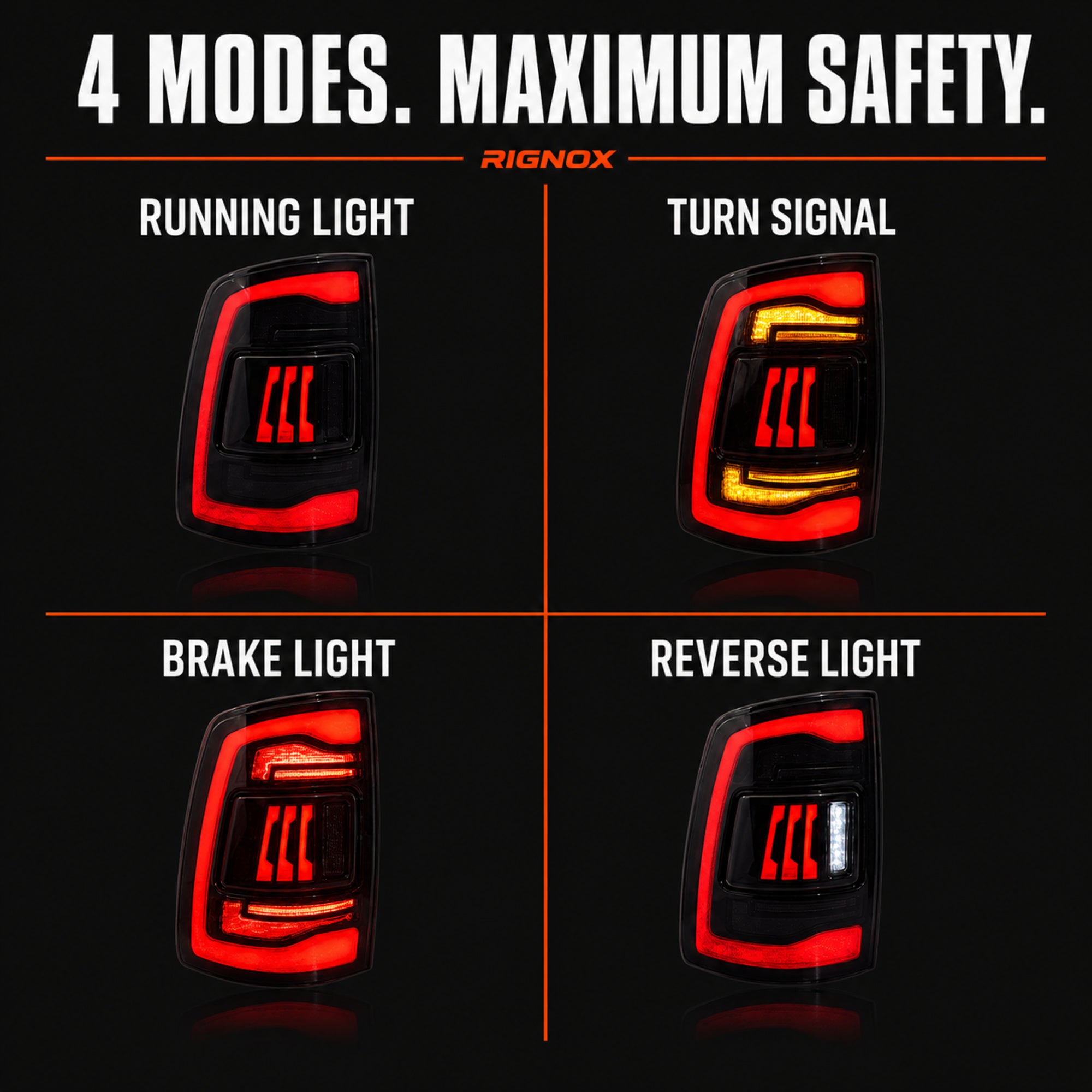

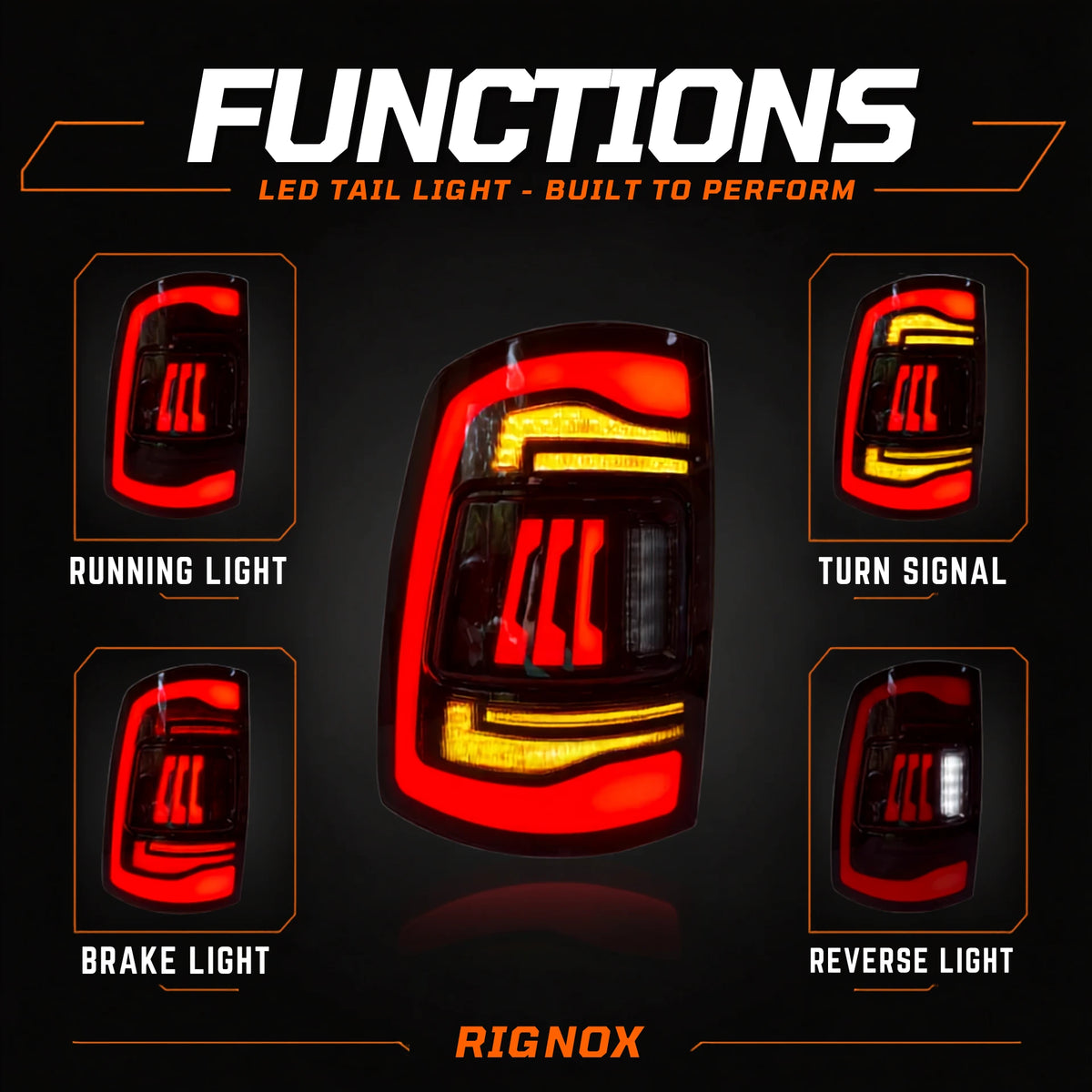

Light Output
Functions
Tail, brake, turn, and reverse — all LED, 25W
Brightness
Up to 6× brighter than halogen, with even output across the lens and no dark spots

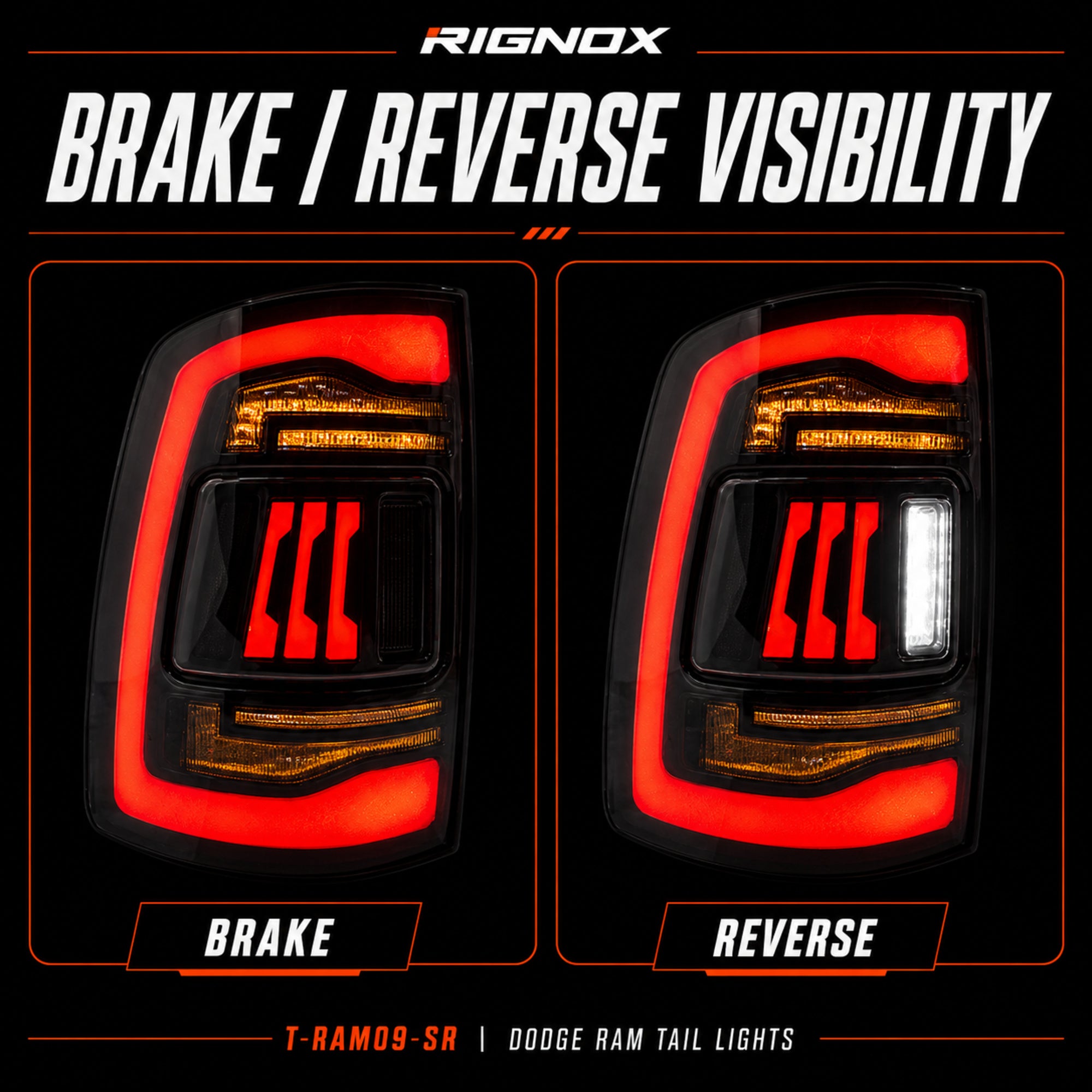

Brake Response
Reaches full brightness 200ms sooner than halogen — about 18 feet of extra reaction room for the driver behind you at 60 mph

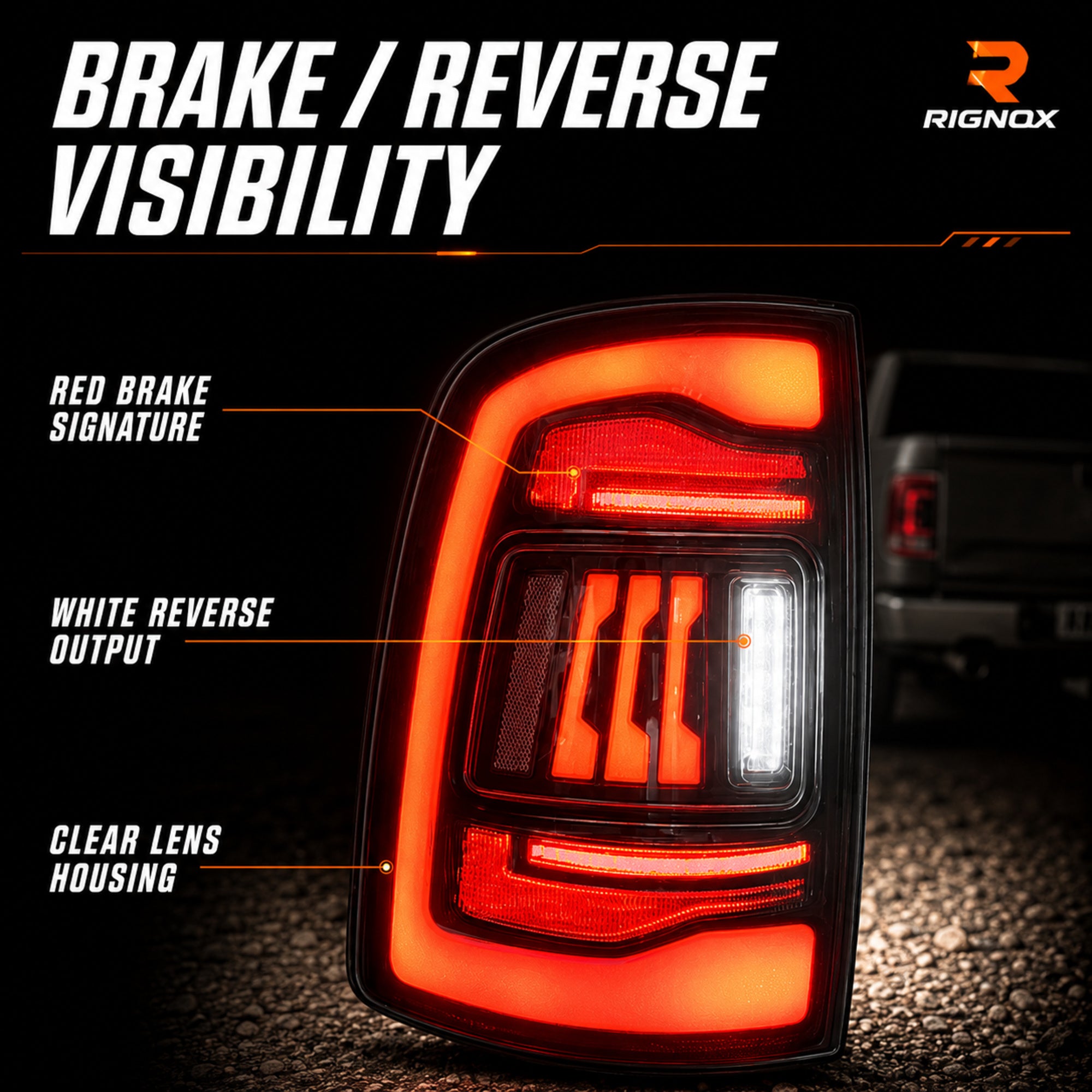

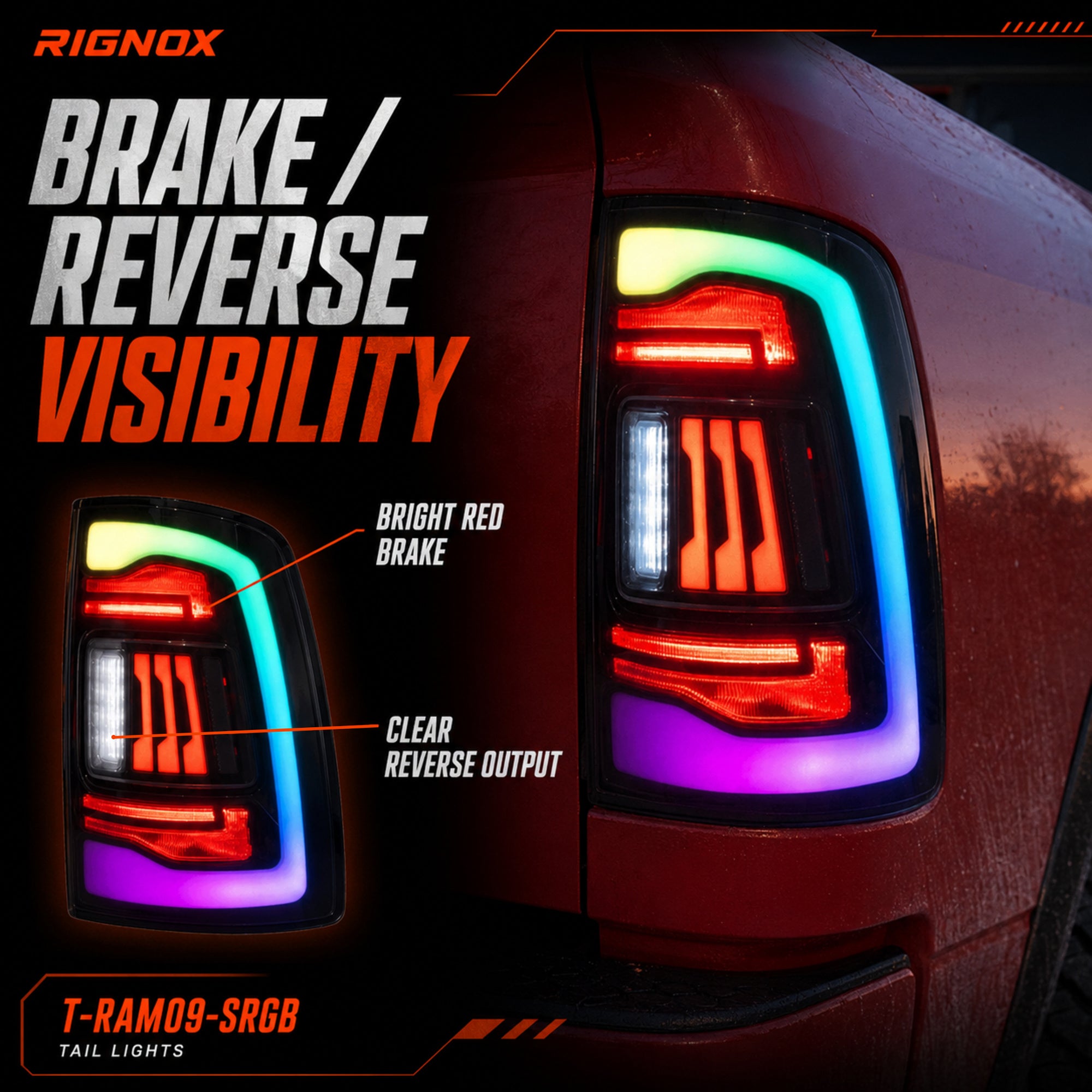

Reverse
High-output white LED for real backup visibility at night
Street Legal
DOT and SAE compliant (FMVSS 108)
Light Signature

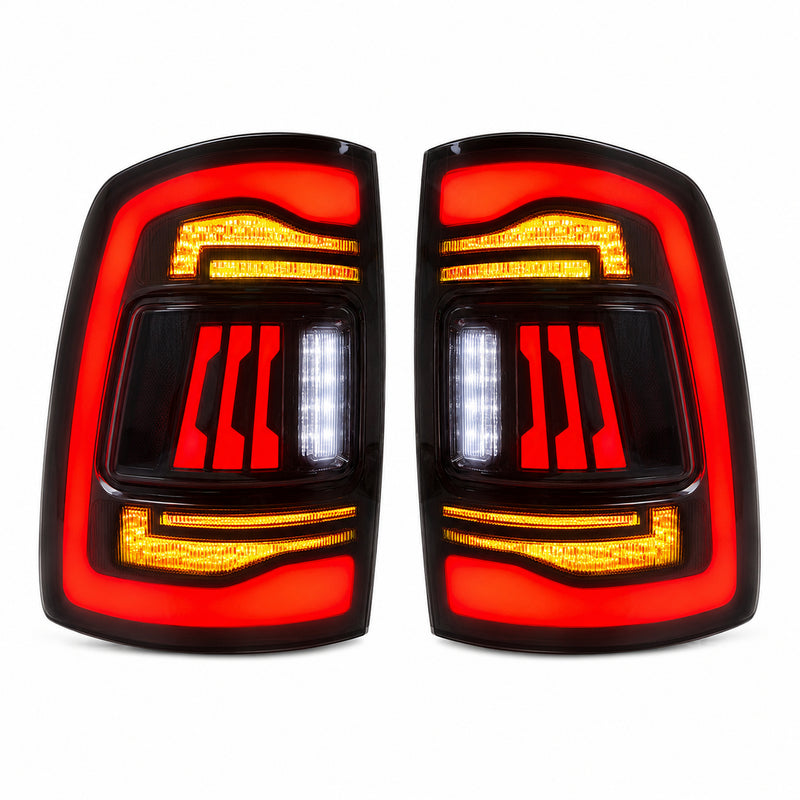

Turn Signal & Animation
Amber sequential sweep, plus a startup animation on ignition
App Control
Controlled from your phone with the Star Light Running app, plus a one-touch red-light remote, with left and right locked in sync
Color

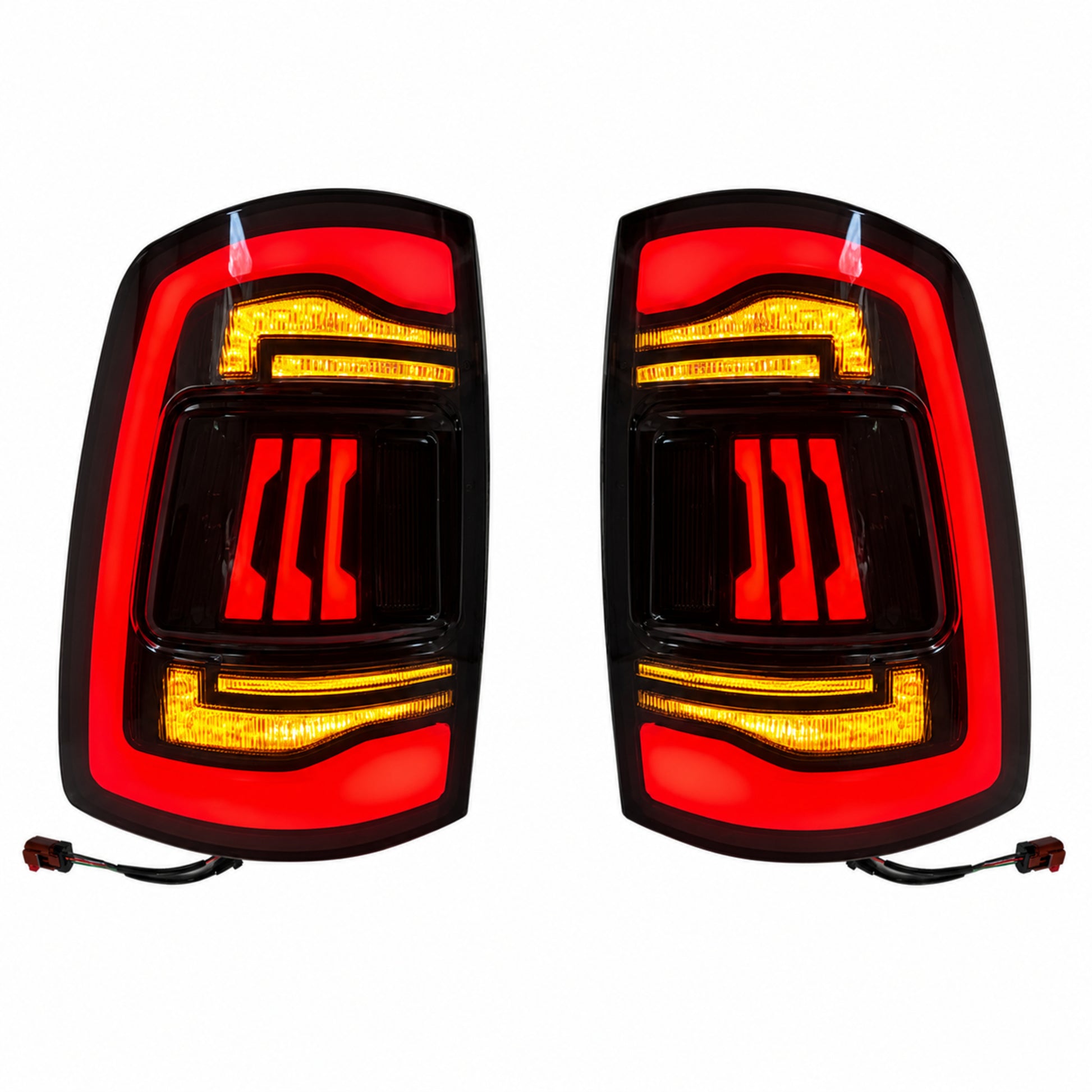

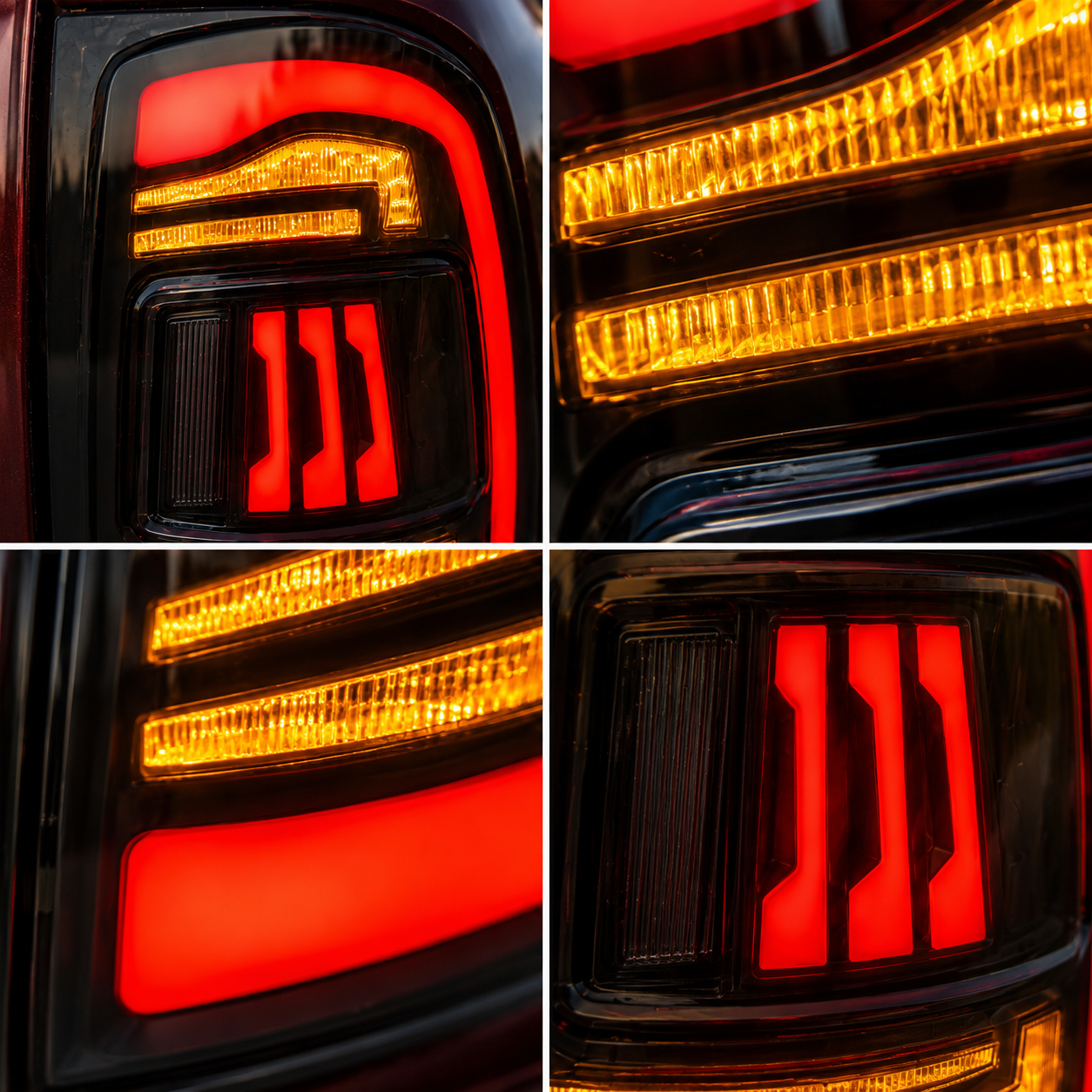

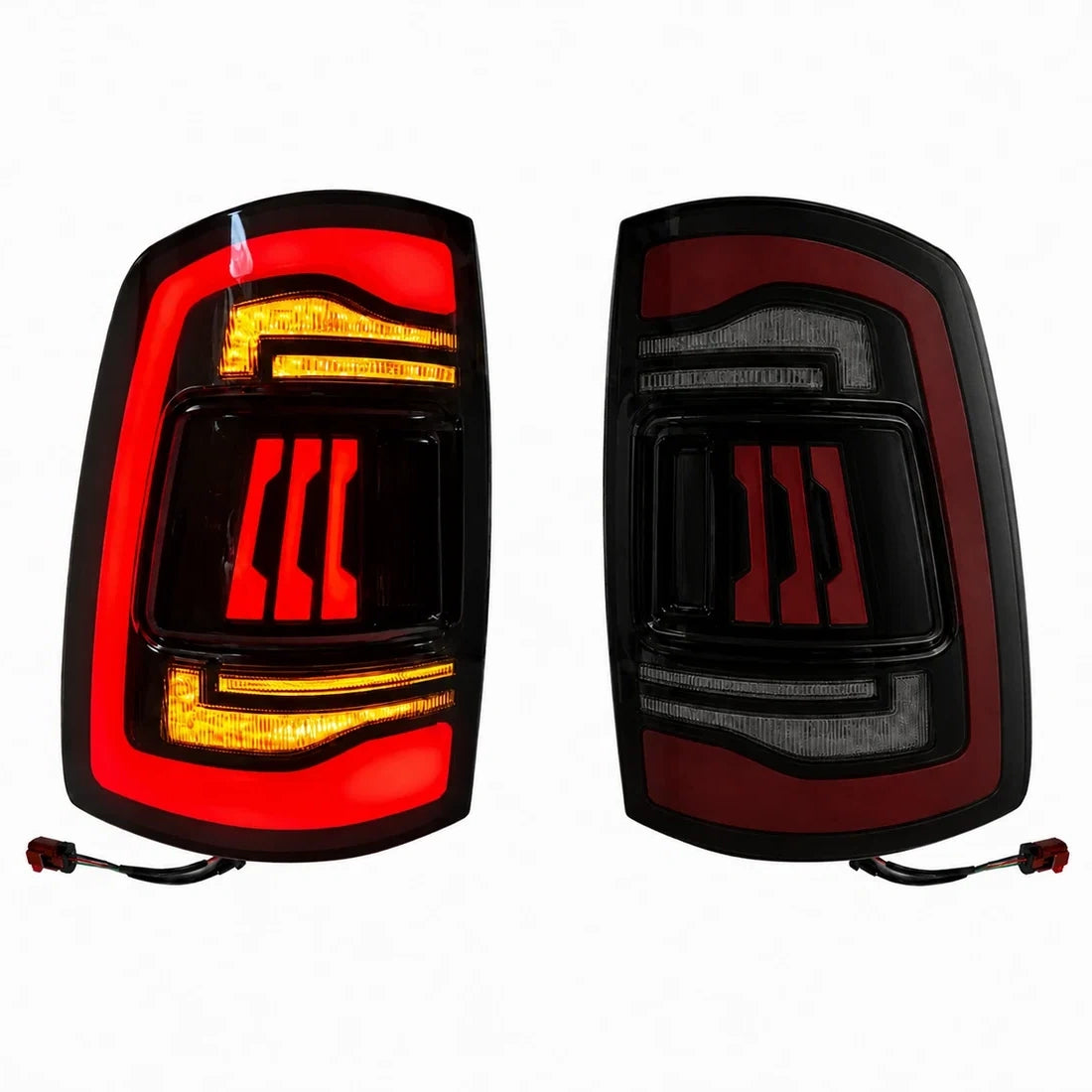

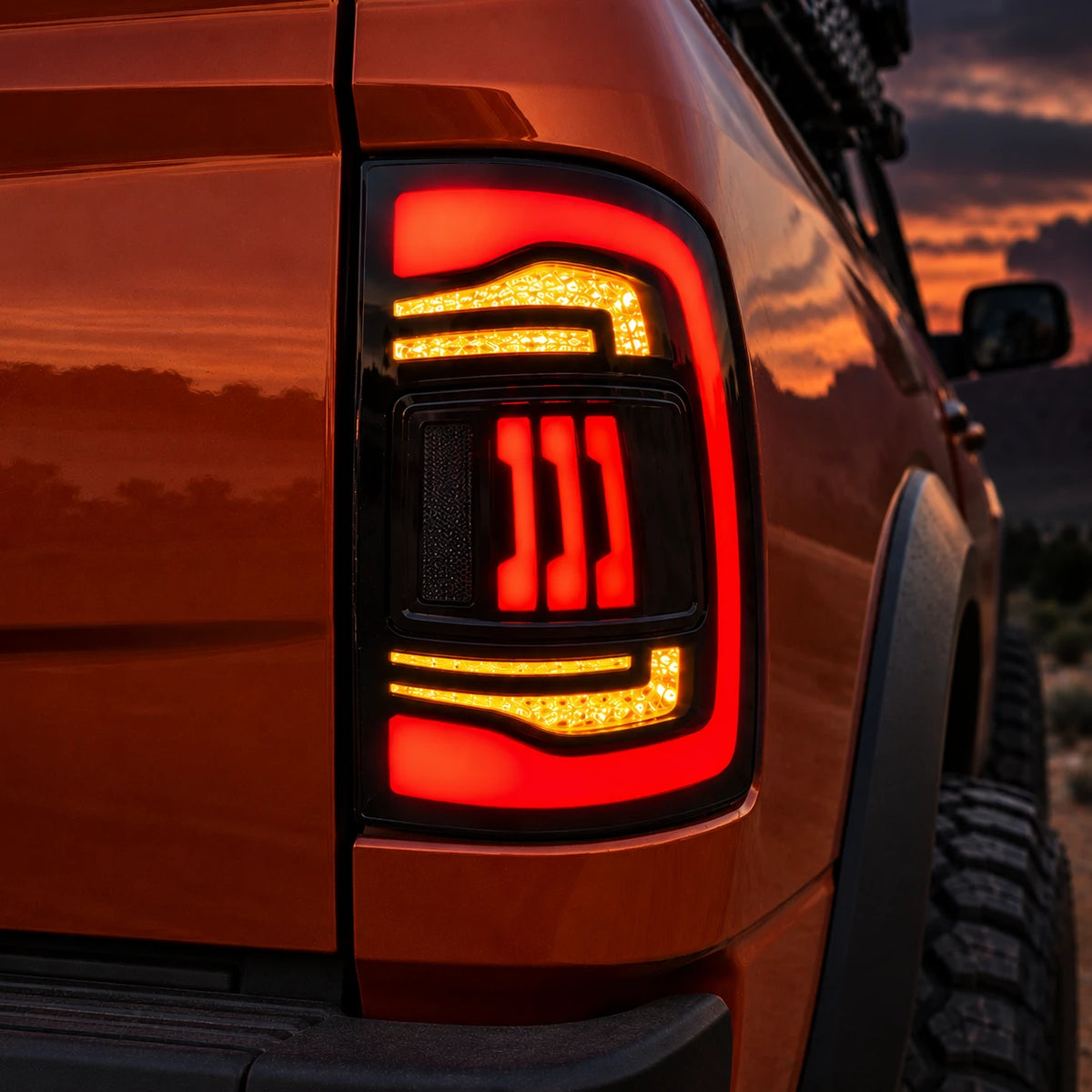

Smoked Red · T-RAM09-SR
Smoked lens, Red LED bars

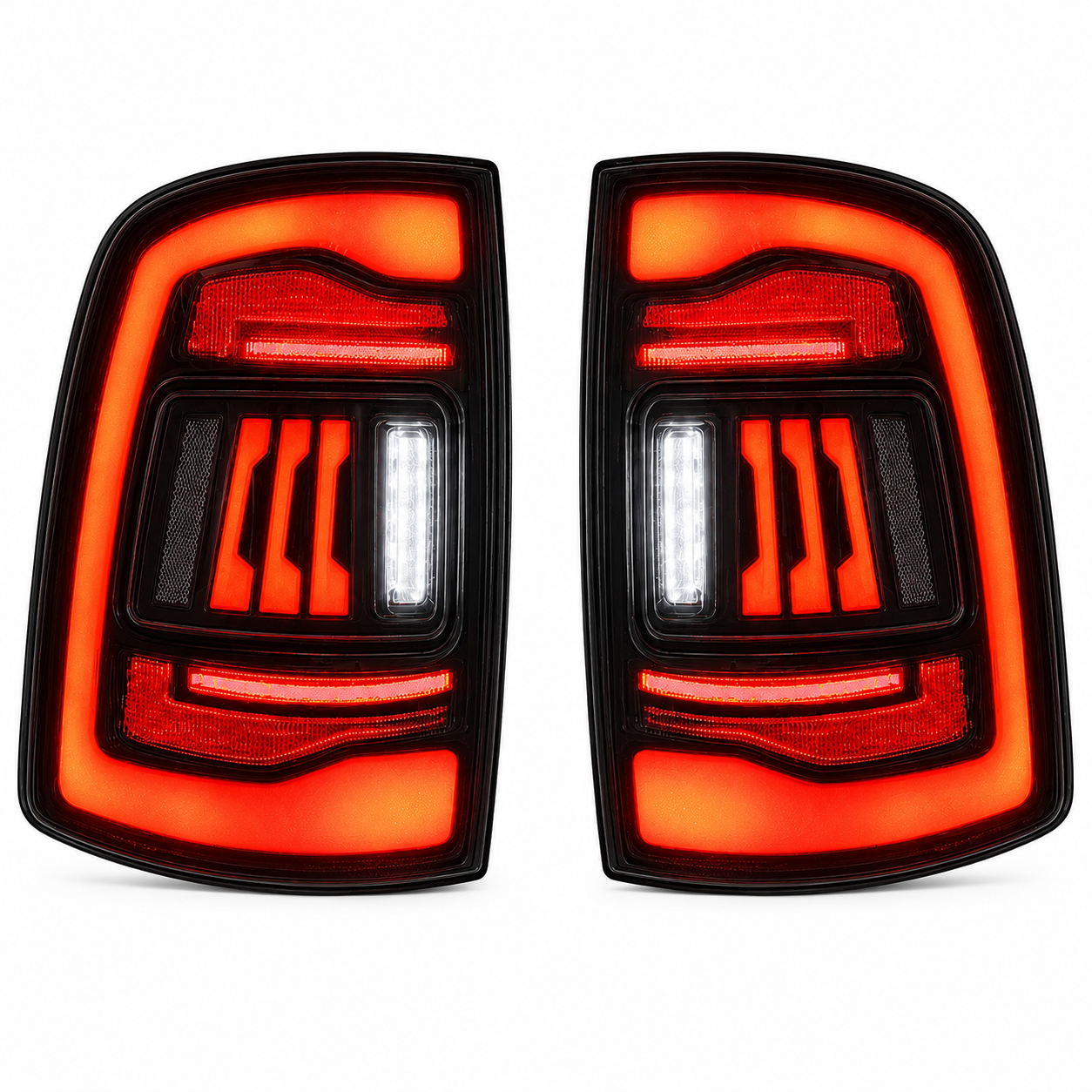

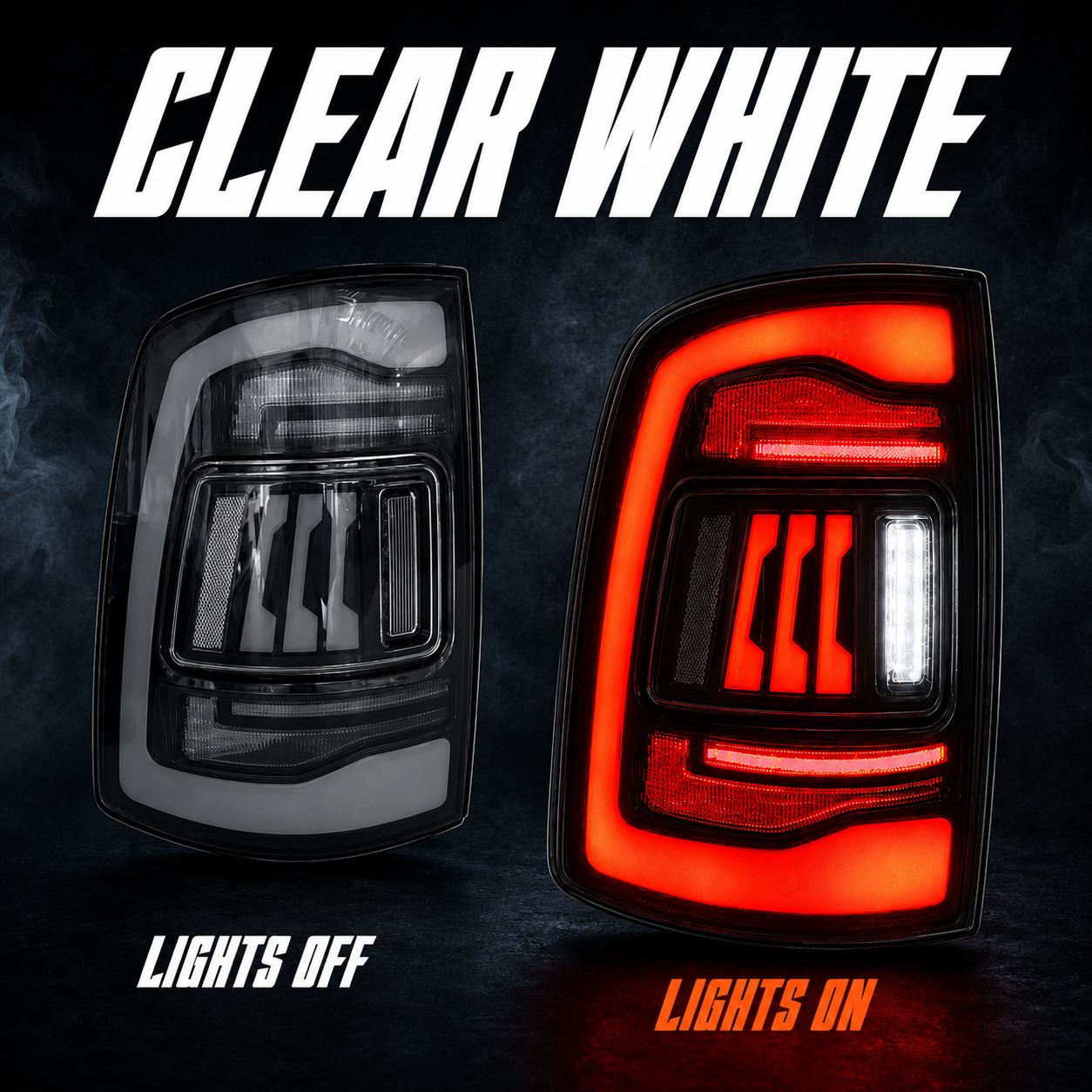

Clear White · T-RAM09-CW
Clear lens, White LED bars

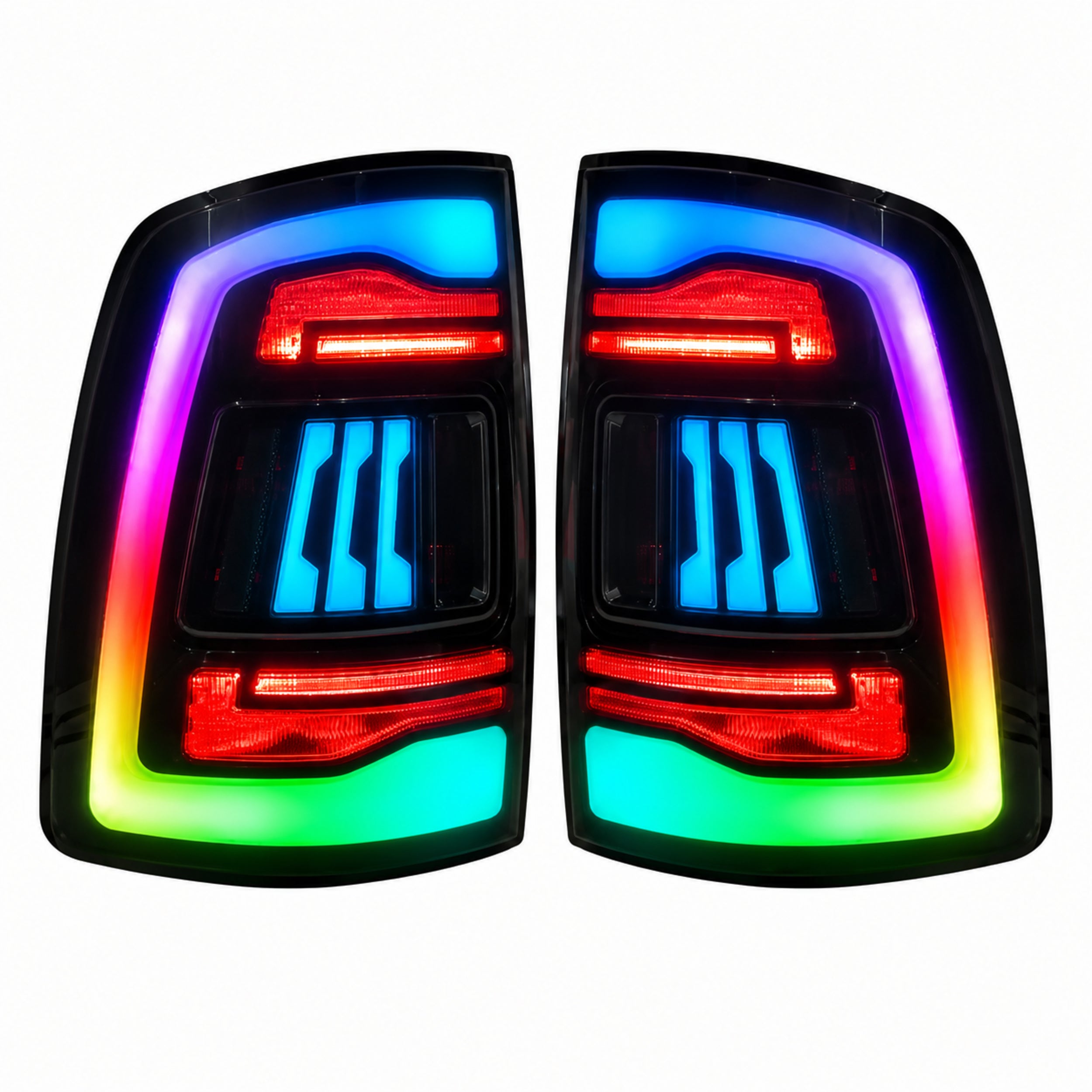

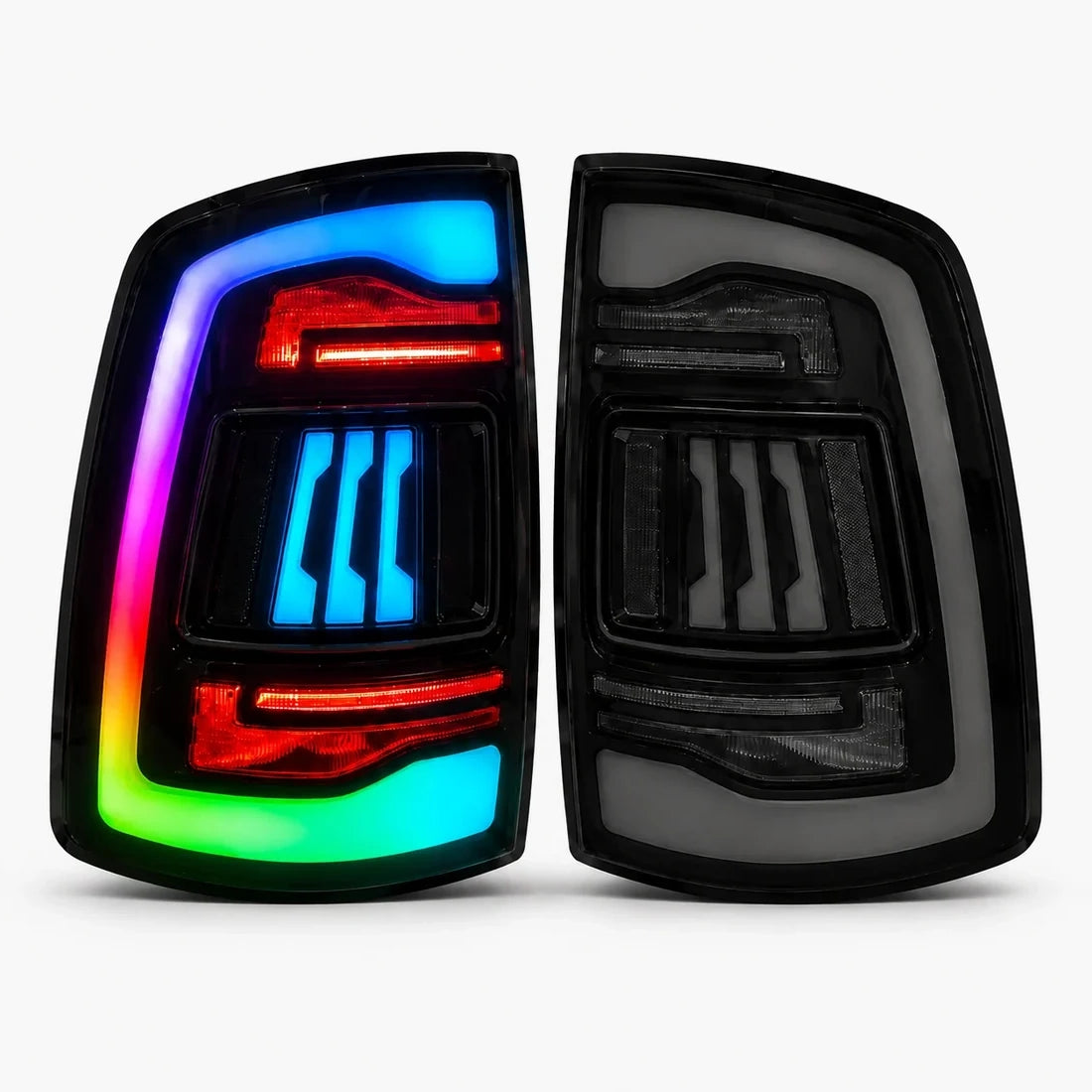

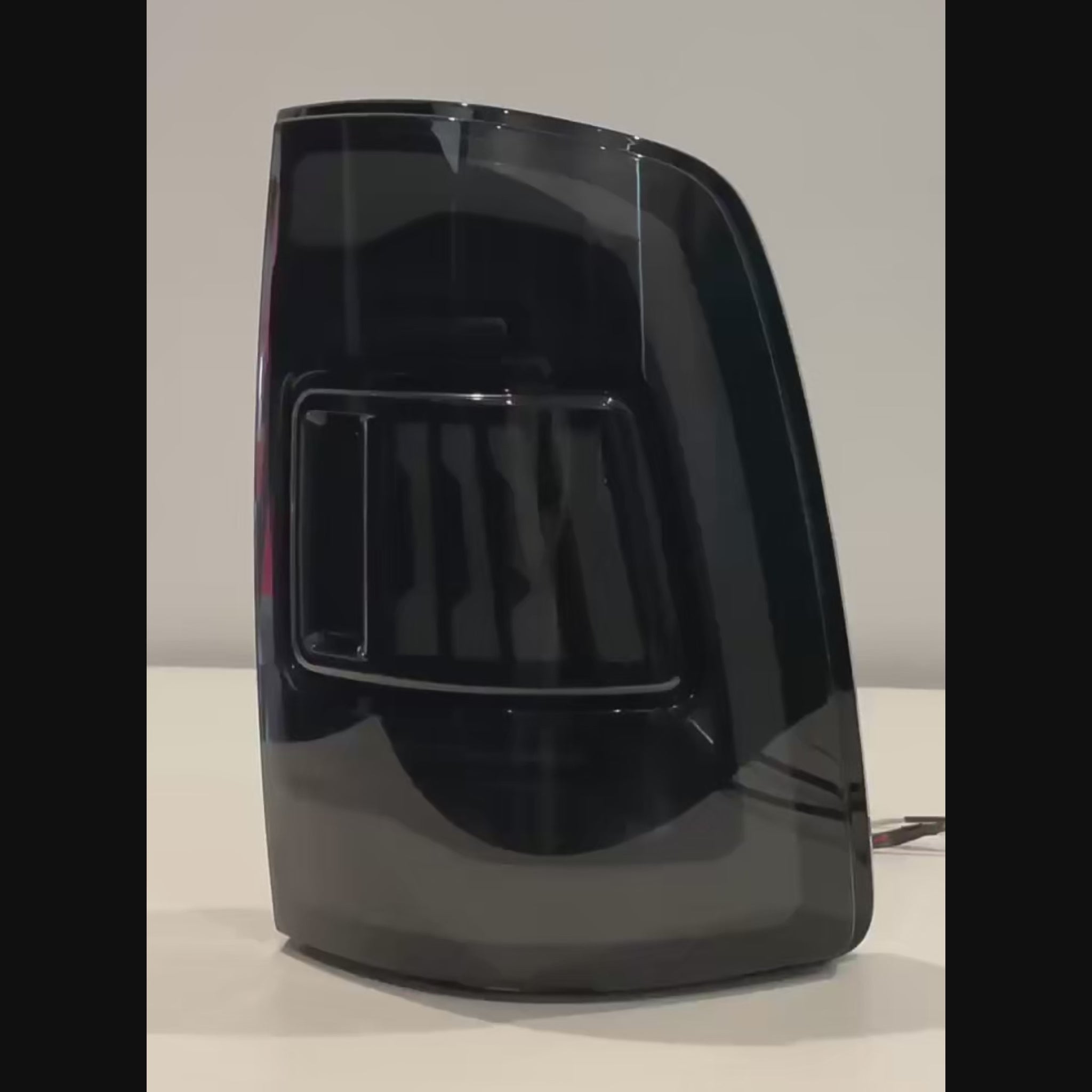

Smoked RGB w/ APP Control · T-RAM09-SRGB
Smoked lens, RGB LED bars — Star Light Running app

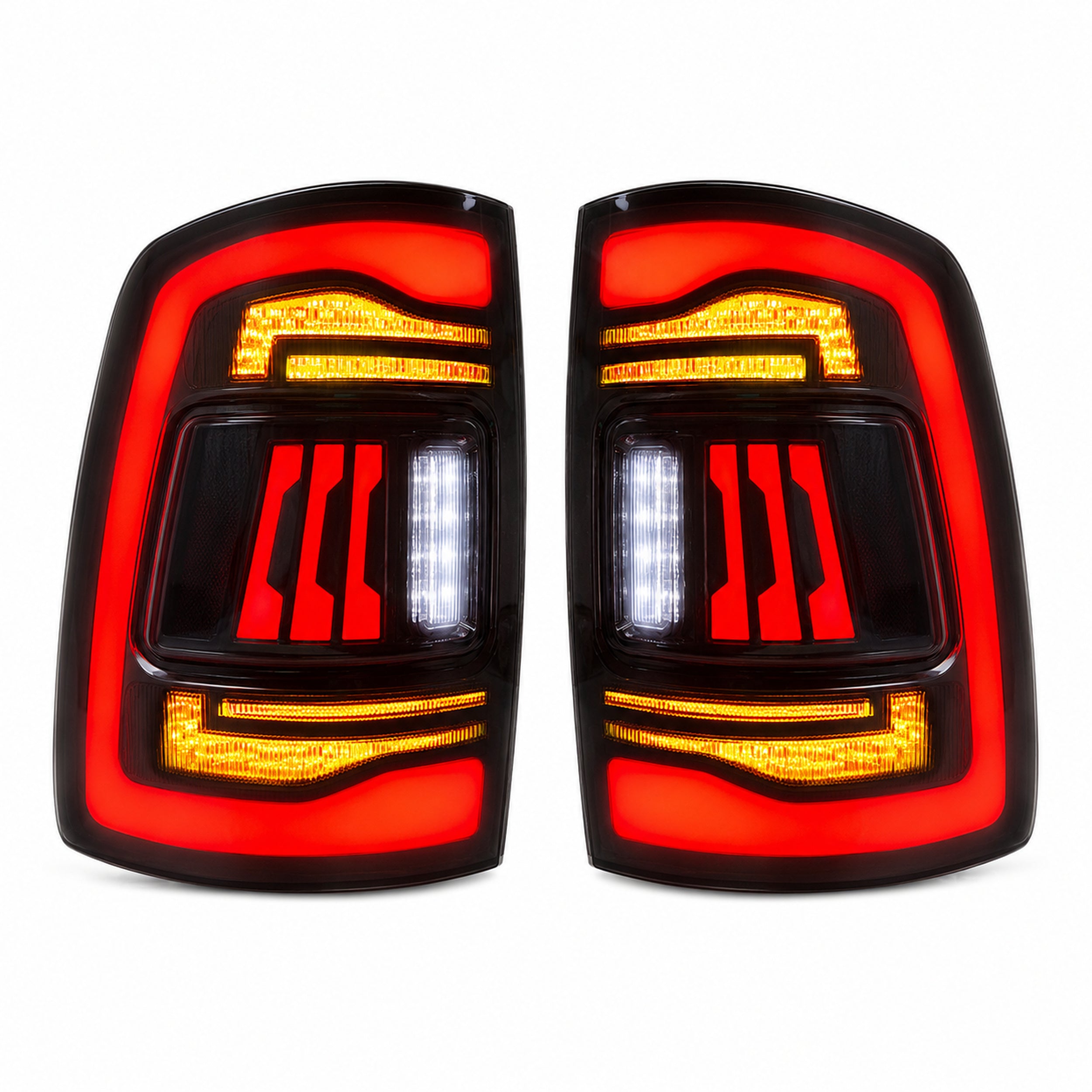

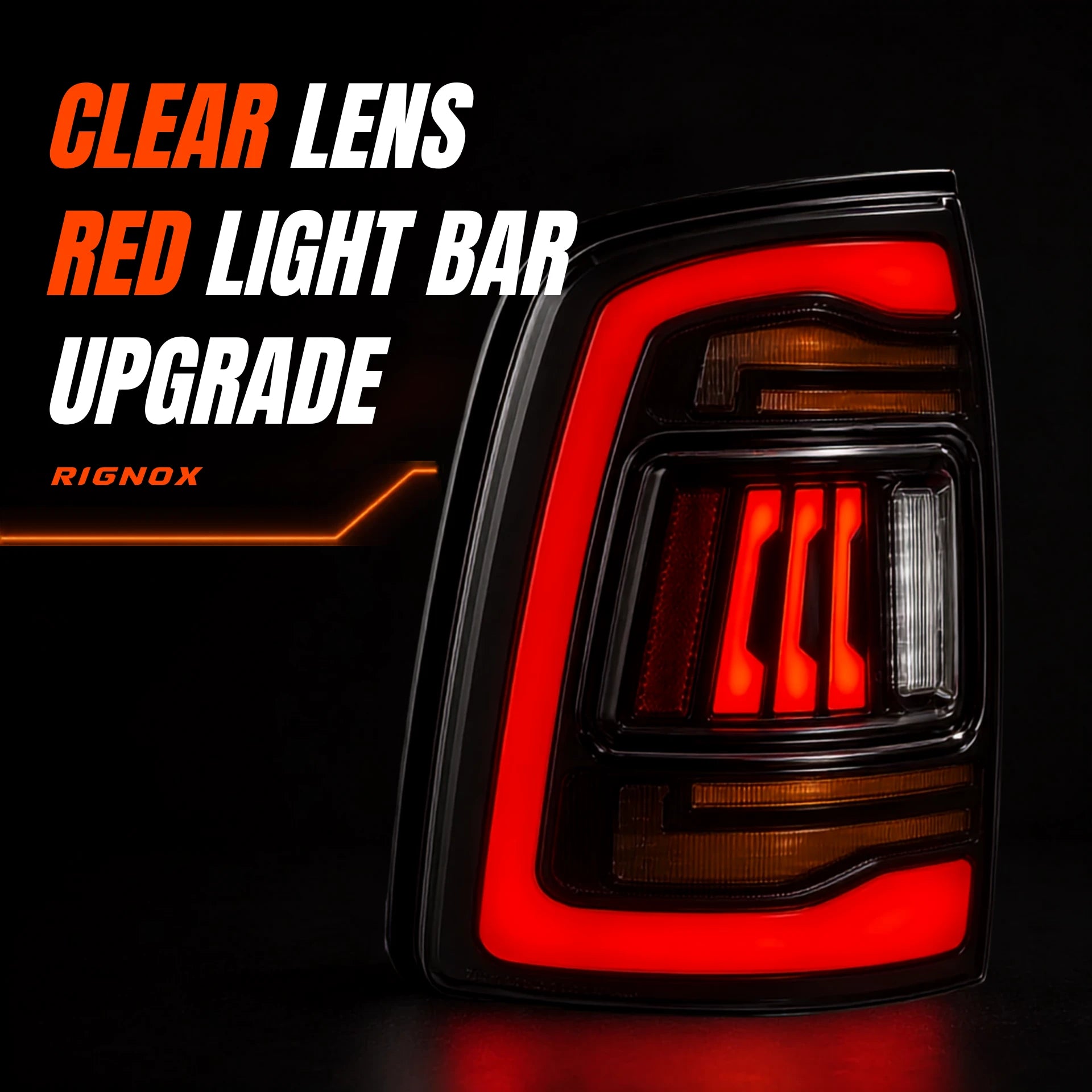

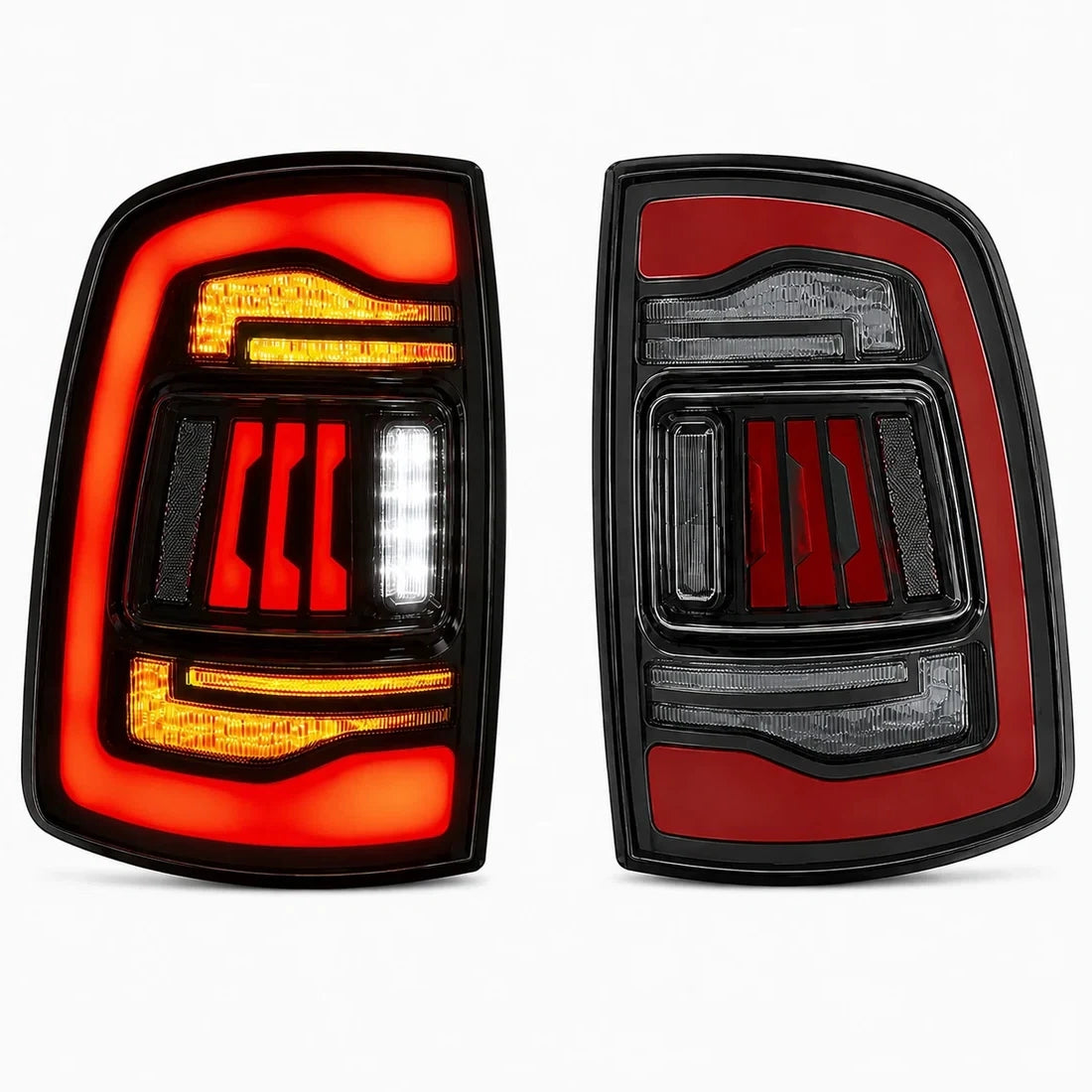

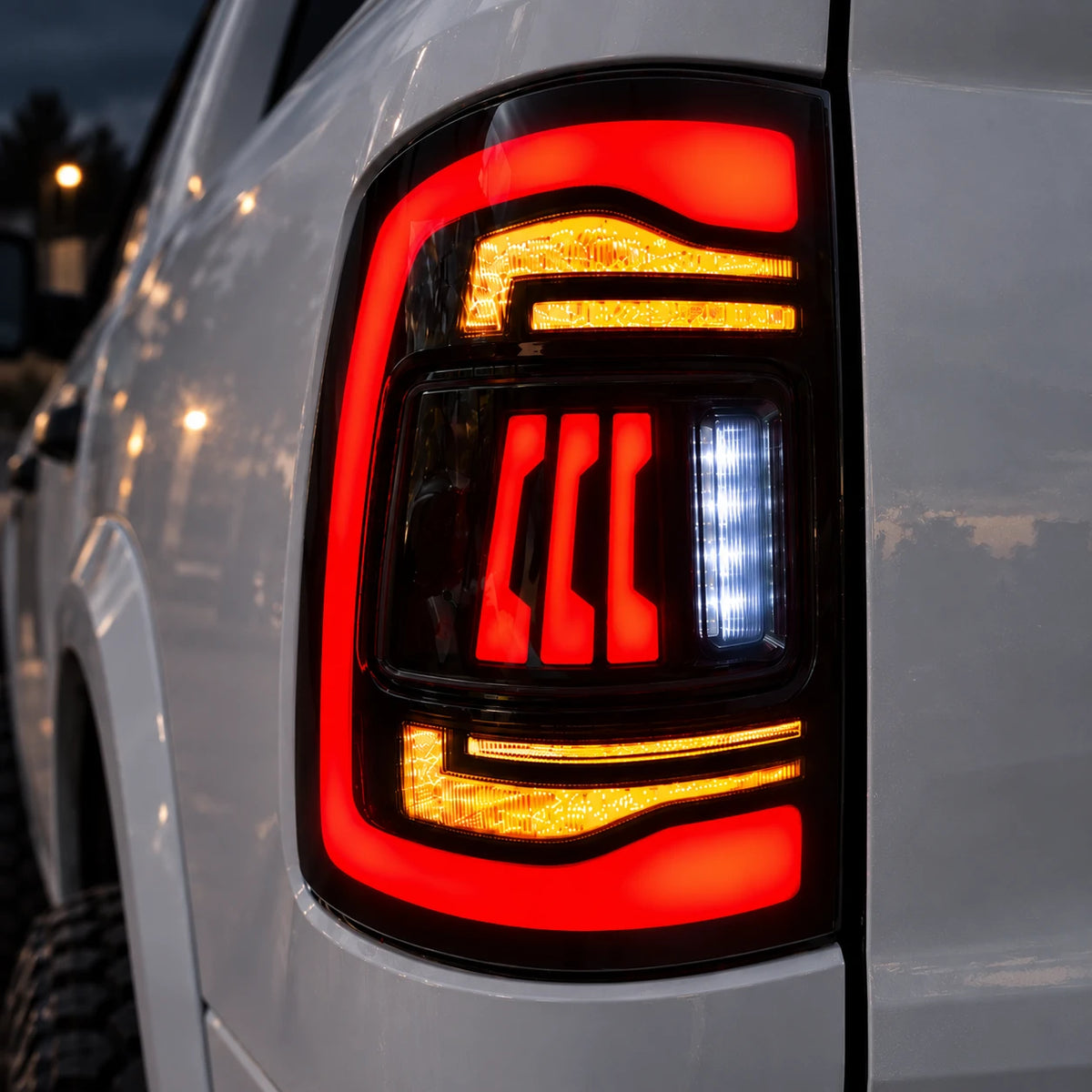

Clear Red · T-RAM09-CR
Clear lens, Red LED bars
Build
Housing & Materials
Black housing, anti-UV polycarbonate lens that won't yellow, pressure-equalizing breather vents
Light Source
Solid-state LED — no filament to burn out, and no warm-up lag
LED Lifespan
50,000 hours
Power Draw
Uses 70% less power than an equivalent halogen assembly
Cooling
Aluminum heat-sink base with a temperature-control IC that holds output steady over time
Weather Sealing
IP67 — sealed against rain, dust, and road spray
Tested For
Water, dust, corrosion, and shock resistance

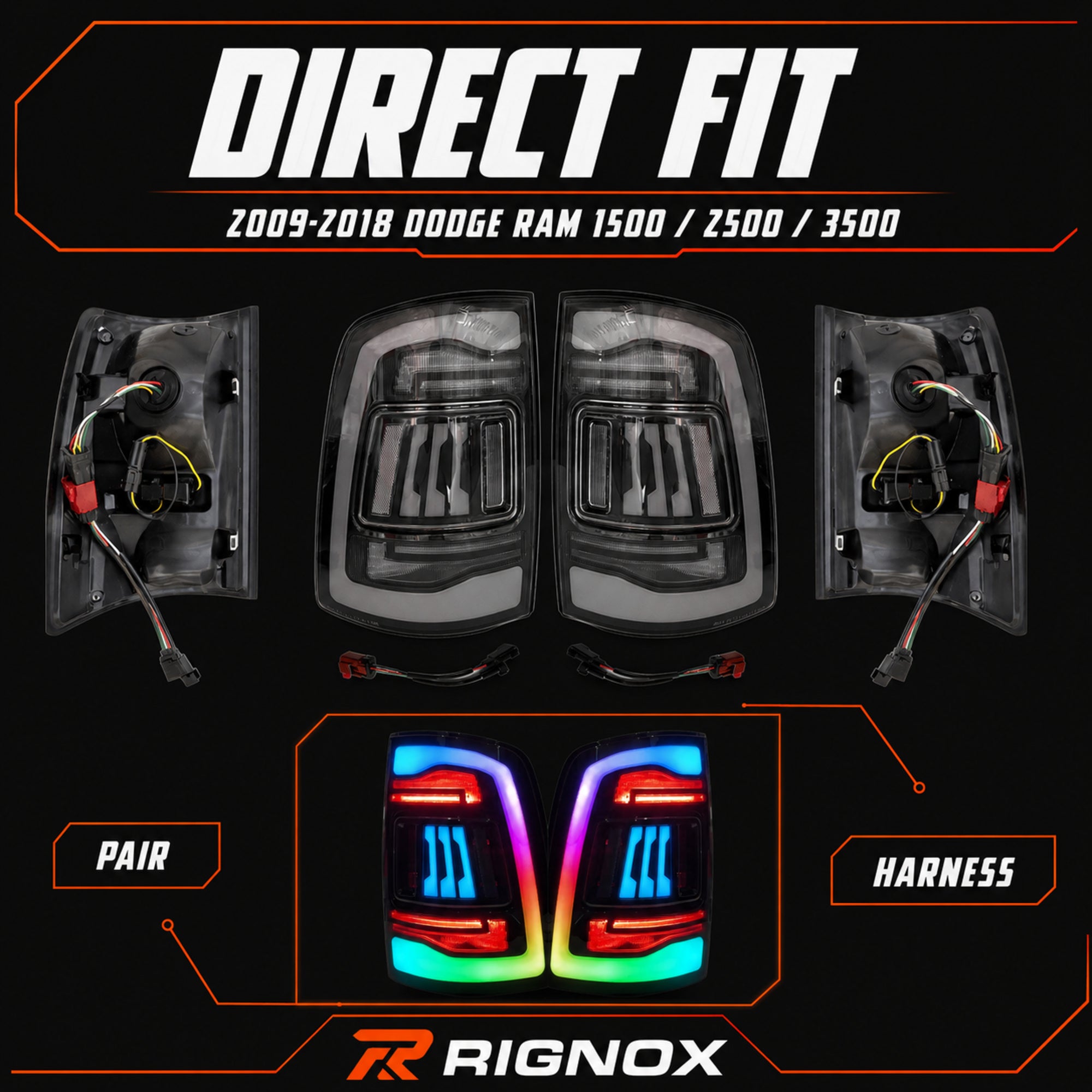

Installation

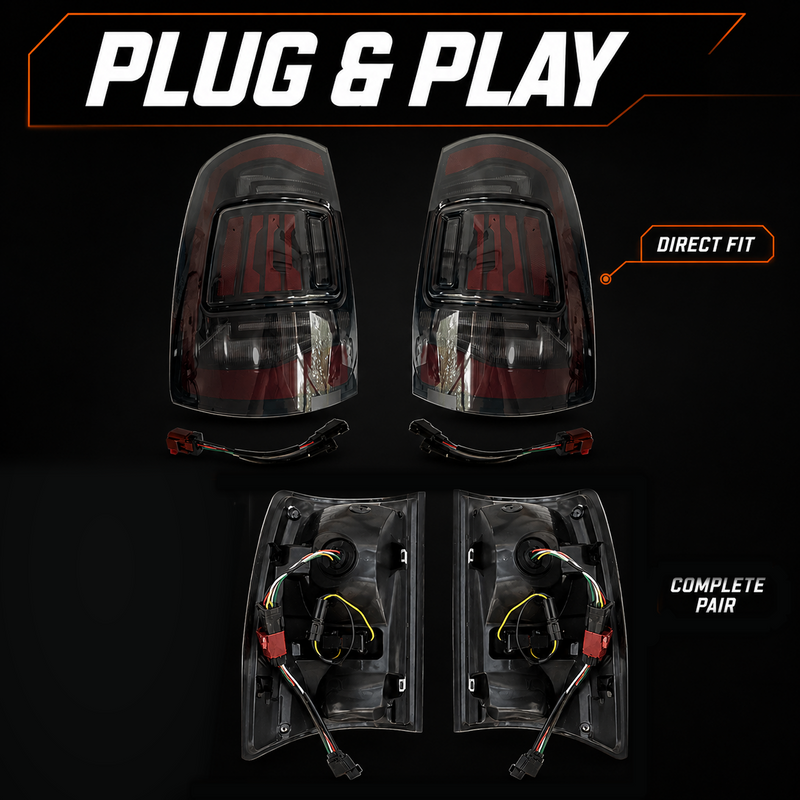

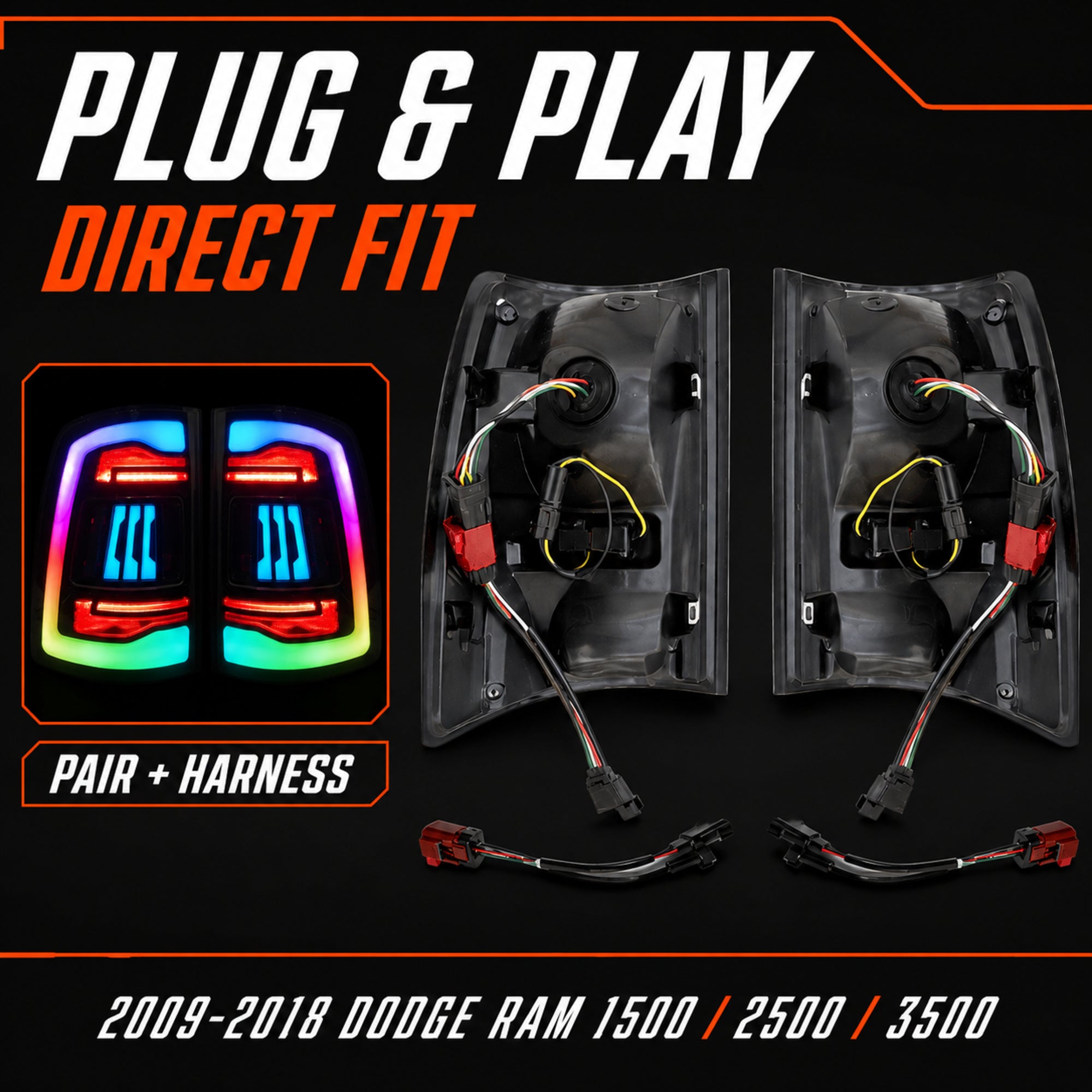

Plug-and-play into the factory harness, with built-in CANBUS decoders and an LED flash relay — no cutting, no splicing, no hyper-flashing, no dash errors
Guides and Documents
- Installation Instructions
- Fitment Guides
Get Seen. Get Noticed. Put On a Show.
Four things separate a RIGNOX tail light from a stock housing: the signature you wear, the finish that lasts, the brake light that registers sooner, and the show it runs at night.App + Remote, Mode by Mode

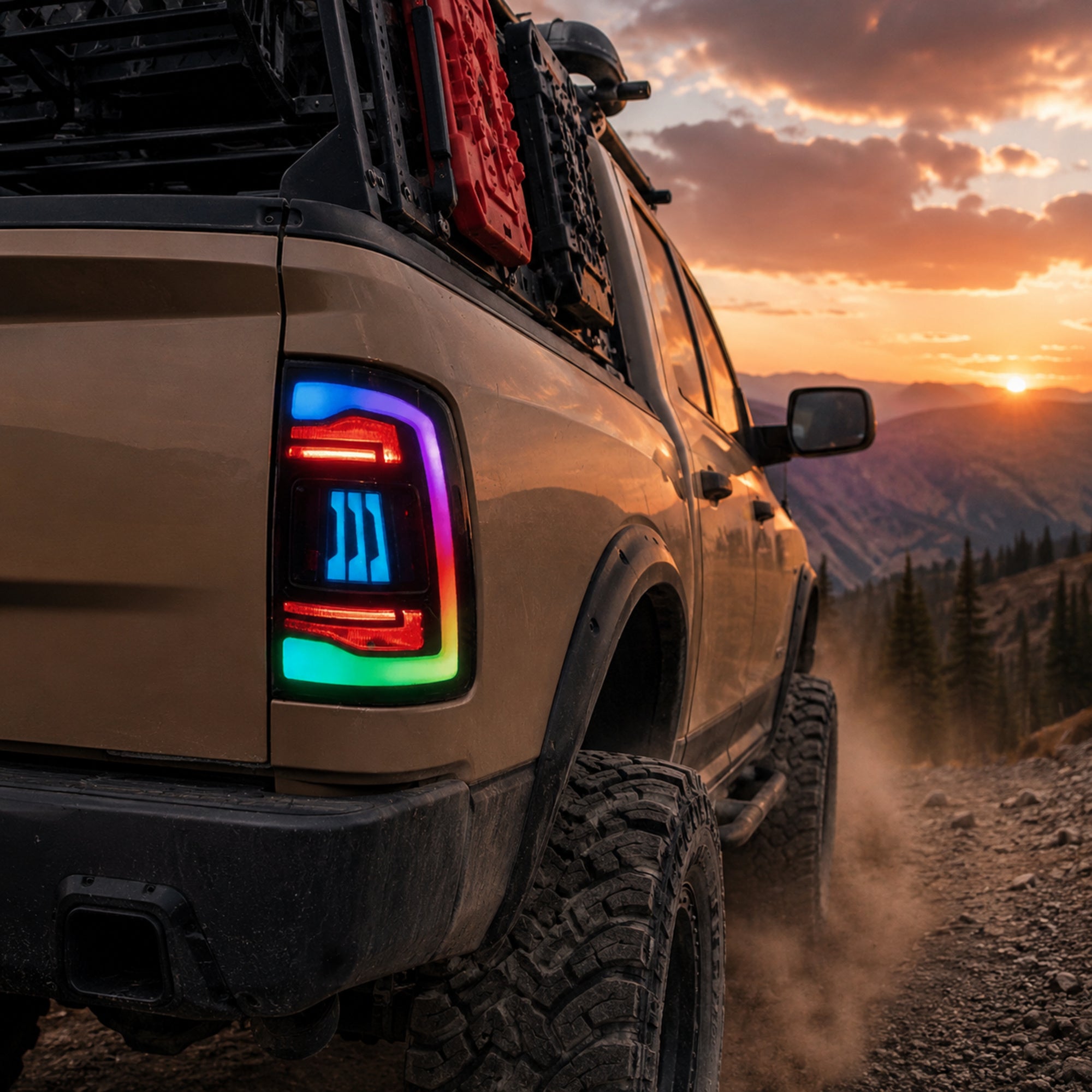

Applies to: Smoked RGB w/ APP Control

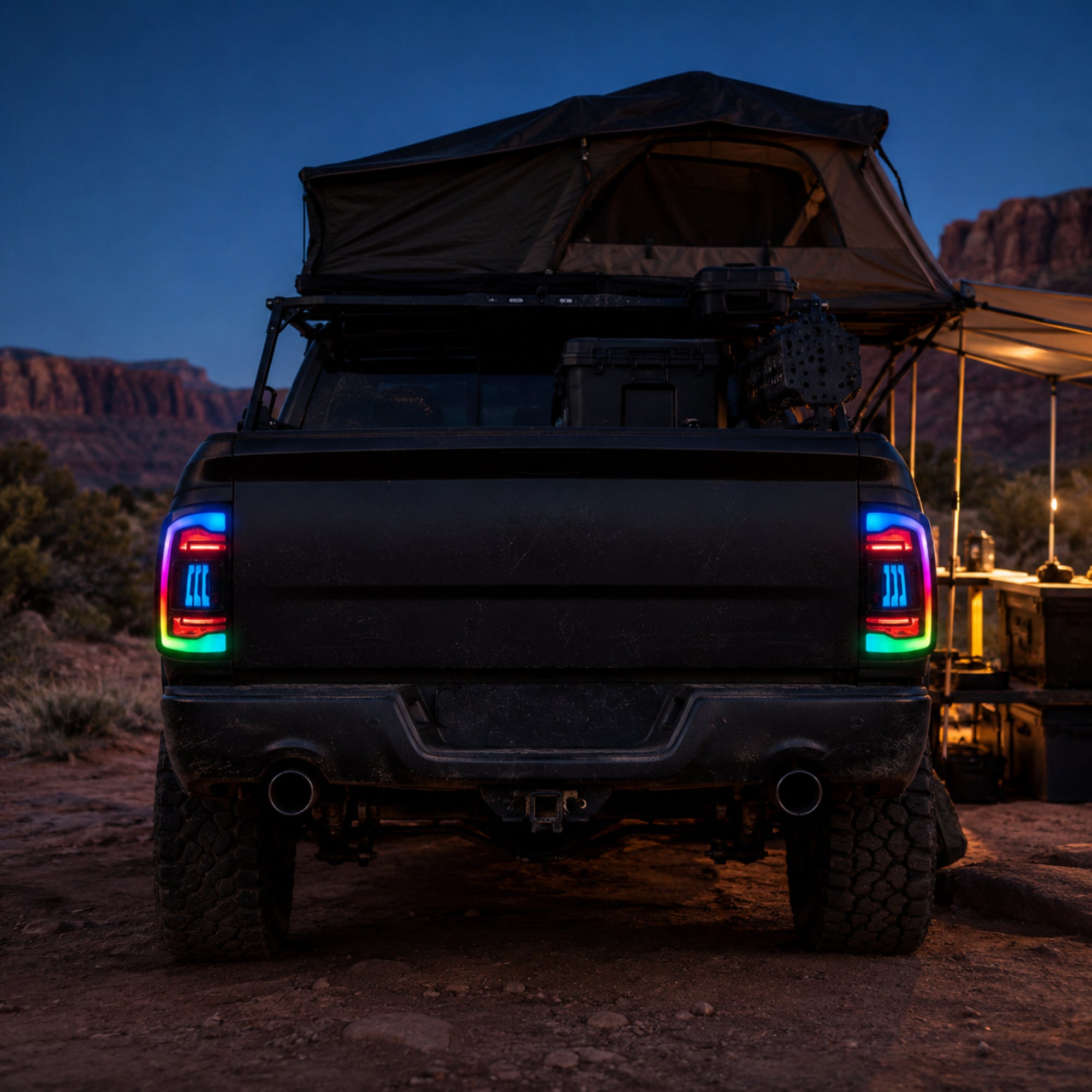

App + Remote
Dial it in from the free Starlight Running app, then switch to a static red driving light with one tap on the included remote — no phone needed when you're rolling.
Mode by Mode
Set distinct effects for Driving, Startup, and Turn-Signal lighting — each its own show, not one effect for everything.
Any Color, Any Effect
Pick any color from the wheel, run dynamic animations, or auto-cycle them all across the full bar — your build, your palette.
Locked Left to Right
Master-and-slave signal cabling keeps both sides perfectly synced for one seamless light show.
Full App Setup & Pairing Guide →
Images show lighting concepts for illustration only and may differ from actual output. The app interface shown is representative — see the full app guide for real setup and controls.
Unique Features
hrs
Rated LED Lifespan
% less
Less Power Than Halogen
Matte Black
Aggressive and Sporty Aesthetic
Splicing
Plug-and-Play Harness
The RIGNOX Standard
- 10K+Orders shipped
- 20+Years in lighting
- 60+Vehicle fitments
- Complete assemblies, not bulb kits
- Factory mounts, factory harness
- Patented optical technology
- Vibration, shock & corrosion tested
- DOT / SAE compliant
- Decoders included, no dash errors
