Important: This online guide is a product-image-verified overview for the matched RIGNOX product. It uses the product page, product reference images, and visible lighting-function details to guide product-side checks. Confirm hidden vehicle-side fasteners, trim clips, and wiring access points on your exact vehicle before removal.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product
- Product: 2018-2023 Ford Mustang S550 Facelift LED Triple Projector Headlights | Blade DRL
- Product type: headlights
- SKU: H-MUS18-CW, H-MUS18-CRGB
- Variants: Clear White; Clear RGB w/ App Control
- Fitment: Fits: 2018-2023 Ford Mustang S550 Facelift, all original light sources - EcoBoost, GT, Bullitt, Mach 1, Shelby. DRL: White
- Product page: View matching RIGNOX product details

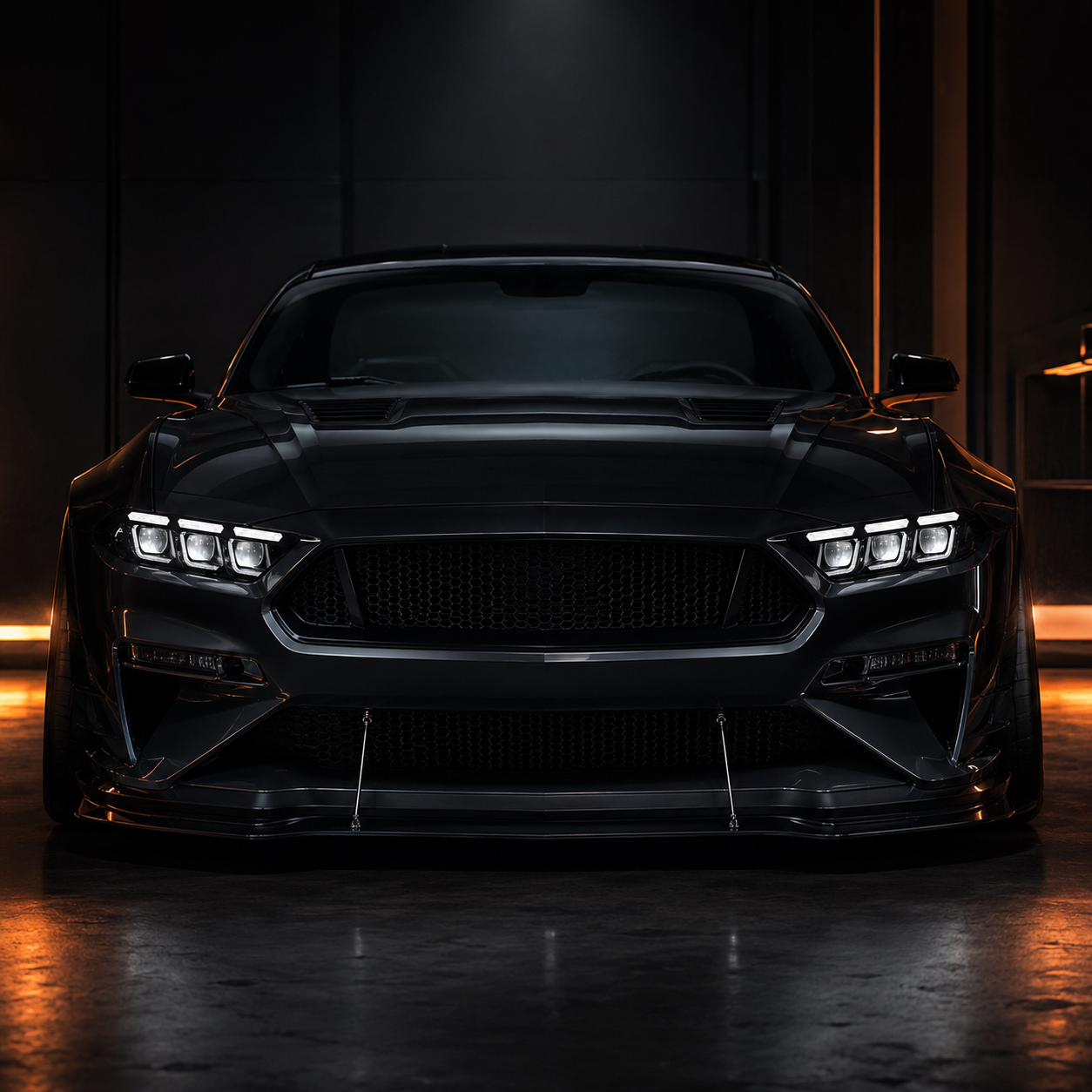

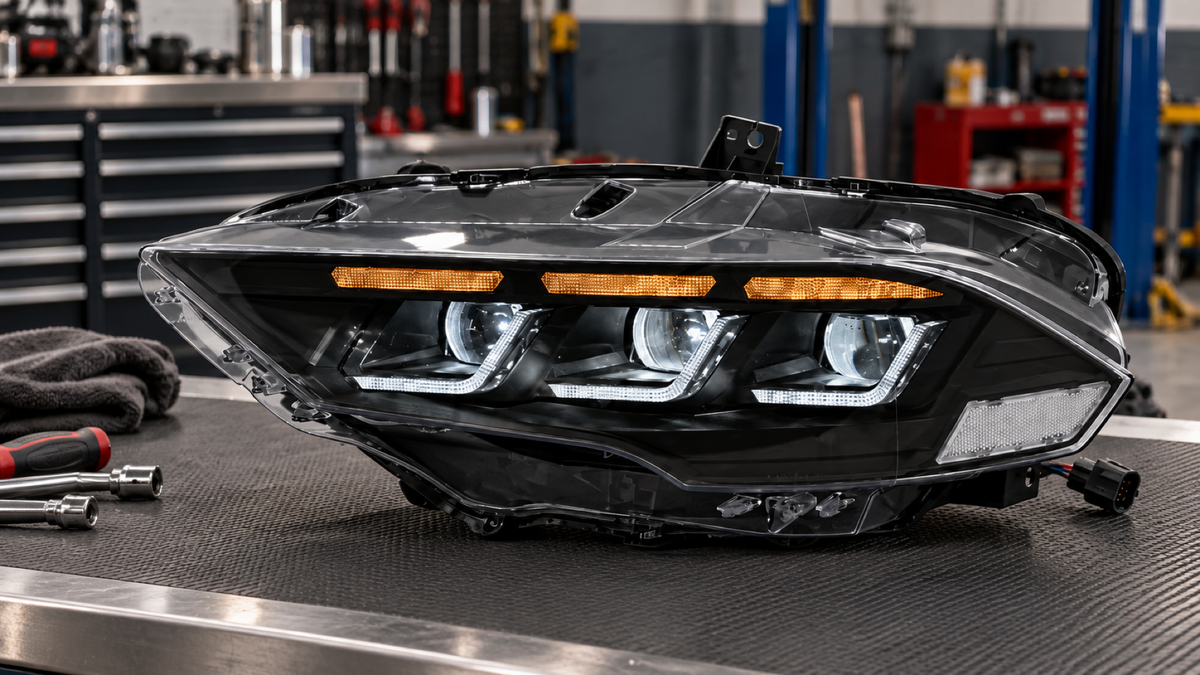

Product reference images
Use these images to compare the lamp shape, rear housing, visible plug layout, and lighting functions before final assembly.
Product image checkpoints
- The product reference images show direct-fit, plug-and-play style connection details. Match the supplied connector to the vehicle connector and confirm the lock tab seats fully before reinstalling trim.
- Back-side or plug detail images are available for this item. Compare those photos with the removed original lamp before routing the harness.
- The visible product-function references indicate projector beam output, low beam, high beam, DRL, sequential turn signal, white/amber switchback behavior, RGB/app function checks for this product. Confirm beam pattern and function behavior before final bumper or grille reassembly.
- If the kit includes a decoder, resistor, control module, or relay, secure it away from heat, moving parts, water paths, and sharp metal edges. Do not add universal electrical parts unless support confirms they are needed.
- RGB or app-controlled lighting is for show/display use where allowed. Confirm standard road-light functions operate normally before using any color mode.
Product notes
- Use the product reference images on this page as the product-side visual check for connector layout, rear housing shape, and lighting functions.
- Original vehicle trim, clip style, and fastener locations can vary by year, trim, and previous repairs. Remove panels slowly and verify each fastener before pulling.
- Road-lighting compliance and off-road/show-use notes are product specific. Review the matching RIGNOX product page for the exact language for this item.
Before you begin
- Confirm the exact product: Compare the RIGNOX headlights to the product reference images, including rear housing, plug layout, lens style, and included modules.
- Work powered down: Park on level ground, switch the vehicle off, and disconnect the negative battery terminal when handling wiring.
- Protect body panels: Use clean towels or masking tape near painted edges around the hood, grille, bumper edge, or fender liner area.
- Do not force clips: If a lamp or trim panel does not move, stop and look for another fastener or locating pin.
- No grease on connectors: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; verify exact sizes on the vehicle before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape
- Electrical tape and zip ties for securing included harnesses only
- A wall or flat vertical surface for beam-pattern checking
Remove the original headlights
-
Remove the upper radiator cover: Use a screwdriver or pliers to remove the eight plastic push clips. Lift off the cover.
-
Remove the upper bumper fasteners: Remove the six large bolts along the top of the bumper. Remove one small screw from each side.
-
Release the belly pan: Raise the vehicle safely. Remove the six lower bolts and the push clips on both sides. Leave the belly pan attached to the bumper.
-
Release the wheel well liner: Remove the wheel well clips and pull the liner back. Press the center of each inner retainer and remove it. Use a 10mm socket to remove the two hidden nuts securing the bumper to the fender.
-
Disconnect and remove the front bumper: Disconnect the parking light connector on each side. Lift the bumper off the five upper locating pins. Carefully pull the bumper forward and remove it.
-
Remove the factory headlights: Remove the three headlight bolts. Use a 13mm socket for the side bolt and a 10mm socket for the other two. Disconnect the main wiring connector and remove the headlight.
Install the RIGNOX headlights
-
Connect and secure the Rignox headlights: Connect the factory wiring harness to the Rignox headlight. Place the headlight in the factory position. Reinstall the locating clip and the three mounting bolts. Repeat on the other side.
-
Test the lights and reassemble the vehicle: Turn on the headlights and test all lighting functions. Reinstall the bumper, belly pan, wheel well liners, and upper radiator cover in reverse order.Â
Electrical and function test
- Confirm low beam and high beam operate on both sides.
- Confirm DRL, parking light, amber turn signal, hazard, sequential, and switchback behavior where supported by this product.
- Confirm startup animation or RGB/app functions only after normal road-light functions pass.
- Check for dashboard warnings, flicker, or intermittent operation before reinstalling final trim.
- Verify beam aim after installation so the cutoff is safe and even.
Final check
- All connectors are locked, dry, and routed without tension.
- Included modules or extra harnesses are secured away from heat, water paths, moving parts, and sharp edges.
- Both headlights sit flush with even body gaps and properly seated seals.
- All supported lighting functions pass on both sides.
- No warning lights, flicker, hyperflash, abnormal heat, moisture issue, or loose wiring remains after a short check drive.
Troubleshooting
- One lamp does not turn on: Recheck the main connector lock, related fuse, and battery connection.
- One function does not work: Compare the plug area to the product reference images and verify the connector is fully seated.
- Warning message, flicker, or hyperflash: Confirm the correct product variant was installed and that any included decoder, resistor, or relay is connected and secured.
- Moisture appears: Light condensation may clear as the lamp warms. Heavy or persistent moisture should be documented with photos before continued use.
- Beam pattern is too high or uneven: Recheck lamp seating first, then adjust aim on a flat surface.
- RGB/app feature does not respond: Confirm the product variant supports RGB, the controller has power, and the app/controller pairing has been completed.
Need help?
If the original lamp, vehicle connector, or included harness does not match the product reference images, stop before modifying wiring. Contact RIGNOX support with your order information, vehicle year/model/trim, product variant, and clear photos of the connector area, rear housing, beam output, and installed front-end gap.
End of installation guide. (c) RIGNOX - All Rights Reserved.
