Important: This online guide is a fitment-aware overview for the matched RIGNOX product. Before removing original parts or connecting wiring, review the installation reference images on this page and confirm the connector layout, transferred parts, wire routing, and vehicle-specific fastener locations for your exact vehicle.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product

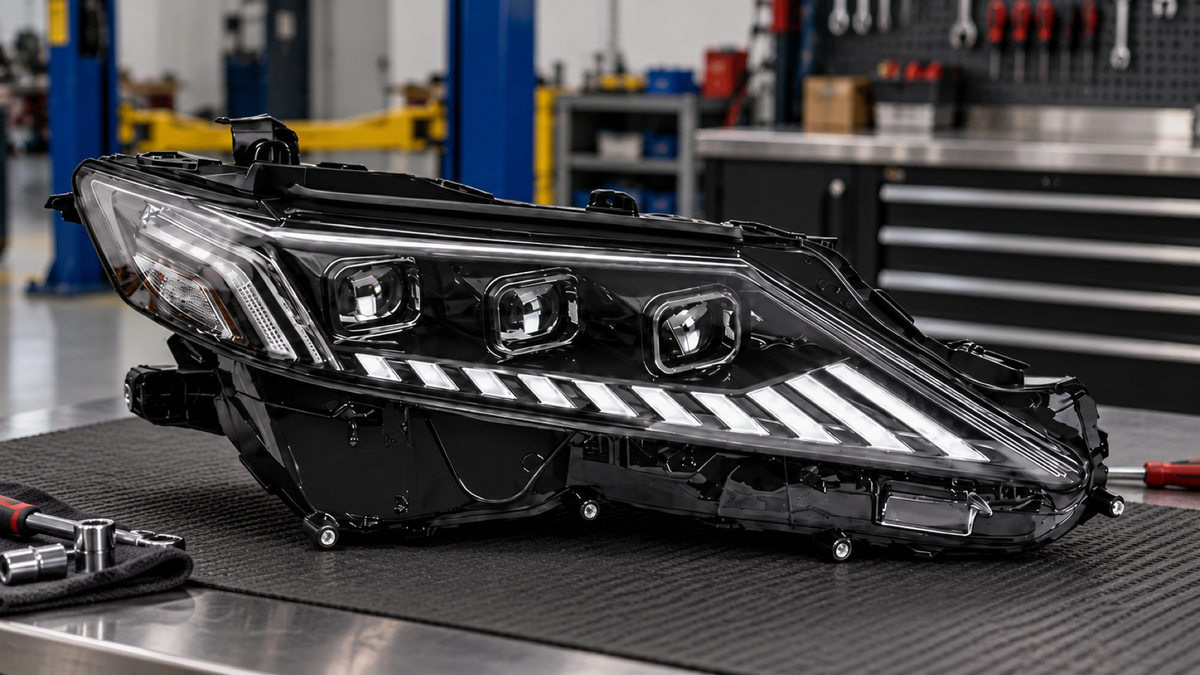

- Product: 2018-2024 Toyota Camry LED Triple Projector Headlights
- Product type: Headlights
- SKU: H-CAM18-CW, H-CAM18-CRGB, H-CAM18-SWD-CW, H-CAM18-SWD-A
- Variants: Clear White; Clear RGB w/ App Control
- Fitment: Fits: 2018-2024 Toyota Camry 8th Gen (XV70) - all trims. DRL: White
- Product page: View matching RIGNOX product details
Product notes
- Sequential, startup, or animation functions are product/variant dependent. Test them before final reassembly.
- RGB/app-controlled functions apply only to RGB variants and should be used according to local road-lighting regulations.
- The matched product page references road-lighting compliance information. Review the product page for the exact compliance language for this item.
Installation reference images
Before you begin
- Vehicle/product: 2018-2024 Toyota Camry LED Triple Projector Headlights.
- SKU check: Confirm your kit SKU or variant matches H-CAM18-CW, H-CAM18-CRGB before removing original parts.
- Reference-first workflow: Review the installation reference images on this page before removing trim or connecting wiring. This guide includes confirmed details from the available reference text and images.
- Power and safety: Switch the vehicle off before unplugging connectors. Disconnect the negative battery terminal when handling wiring, fuse taps, or exposed circuits.
- Protect the vehicle: Use clean towels or masking tape around painted panels and trim edges. Do not force clips or pry against painted surfaces.
- No connector grease: Do not apply dielectric grease or weather-sealing grease to connectors or sockets.
- Headlight note: Keep bumper and liner hardware organized by position, and leave access open until the beam and DRL tests pass.
Reference image checkpoints
- Connector layout: Compare the vehicle connector count, pin count, and adapter harness shown in the reference images before plugging in the RIGNOX headlight.
- Trim level differences: If the reference images show low, mid, high, halogen, LED, or ACC differences, match the page that corresponds to your vehicle before powering the lamp.
- Harness routing: Route DRL, turn-signal, decoder, fuse-tap, or adapter harnesses exactly along the path shown. Keep wiring away from sharp bumper brackets, radiator support edges, and hot components.
- Beam adjustment: Identify the vertical and horizontal adjusters before the bumper is fully reinstalled so beam aim can be corrected after testing.
- RGB/app variants: Confirm controller power, pairing, mode change, and local road-lighting use before final trim reassembly.
Confirmed reference details
- Lighting functions: The reference identifies high beam, low beam, DRL/turn signal, side light, and triple dual-lens lighting.
- USA version harness: The reference shows a USA-version DRL plug, low-version high/low beam plug, DRL/turn plug, and low-to-high connection wire.
- ACC connection: Connect the ACC/fuse-box lead only as shown in the reference image and secure it before closing the fuse-box cover.
- Dynamic control wires: The orange wire controls running-light dynamic function, and the purple wire controls turn-signal dynamic function.
- Beam adjustment: The reference marks left/right and up/down adjustment points. Check beam aim after installation.
Tools and supplies
- Trim removal tool or panel clip tool
- Metric socket and ratchet set; confirm the exact socket sizes against the reference images before removal
- Phillips and flat screwdrivers
- Clean microfiber towels and masking tape for painted bumper and fender edges
- Electrical tape and zip ties for securing included harnesses only
- A wall or flat vertical surface for beam-pattern checking after installation
- A helper for brake, turn, high-beam, and low-beam testing
Remove the original headlights
-
Remove the upper cover: Use a trim removal tool to remove the plastic clips securing the upper radiator cover, then lift off the cover to expose the upper bumper and headlight fasteners.
-
Loosen the fender liner: Turn the front wheel outward for additional access, then remove the clips and screws securing the fender liner near the bumper corner.
-
Remove the lower bumper fasteners: Remove the bolts and clips along the lower edge of the bumper, including the splash shield or undertray fasteners where necessary.
-
Remove the front bumper cover: Release the bumper corner clips near both fenders, carefully pull the bumper cover forward, and disconnect any fog light or parking sensor connectors if equipped.
-
Remove the headlight mounting bolts: Remove the mounting bolts from the top and side of each factory headlight assembly, keeping the removed hardware organized for reinstallation.
-
Disconnect the factory headlight connectors: Carefully pull the headlight assembly slightly forward, press the locking tabs, and unplug the factory electrical connectors without pulling on the wires.
Install the RIGNOX headlights
-
Connect and position the new headlights: Depending on the product version purchased, the rear housing and connector layout may vary slightly, but all versions use direct plug-and-play connections. Connect the new headlight harnesses to the corresponding factory connectors until each locking tab engages, then place the headlights into position and align all mounting tabs before installing the bolts.
-
Test all lighting functions: Reconnect the battery if it was disconnected, then test the low beams, high beams, daytime running or parking lights, and turn signals. Correct any loose or incomplete connections before continuing.
-
Reinstall the bumper and liners: Reconnect any bumper wiring, reinstall the front bumper cover, engage the corner clips first, and then reinstall the lower fasteners, fender liner fasteners, and upper radiator cover.
-
Complete the installation and inspect the final fitment: Confirm that the headlights, bumper, liners, and upper cover are properly aligned and securely installed, then inspect the completed vehicle appearance.
Electrical and beam test
- Test low beams, high beams, DRL, parking/position lights, left and right turn signals, hazards, side markers if equipped, and startup animation if equipped.
- Confirm there is no flicker, warning message, hyperflash, or inactive side.
- If a fuse-tap or ACC harness is shown, confirm it is seated in the correct fuse position and secured before closing the fuse box.
- Check beam aim against a flat wall and adjust vertical/horizontal aimers as needed before final bumper reassembly.
- For RGB/app variants, confirm controller power, app pairing, normal mode, RGB mode, speed/brightness controls, and the mode required for road use.
- After all tests pass, reinstall bumper covers, liners, clips, and trim panels.
Final check
- All connectors are fully seated and locked.
- All included harnesses are secured away from movement, sharp edges, water paths, and heat sources.
- Headlight beams are aimed correctly and both sides sit with even bumper and fender gaps.
- All headlights functions test correctly on both sides with a helper operating the controls.
- No warning lights, hyperflash, flickering, abnormal heat, moisture entry, or loose modules remain after a short function check.
Troubleshooting
- One headlight does not turn on: Recheck the main connector, adapter harness, fuse tap if used, and ground connection shown in the reference images.
- DRL or turn signal does not work: Confirm the DRL/turn harness or ACC connection matches the vehicle trim shown in the reference images.
- Warning, flicker, or hyperflash appears: Recheck any decoder, resistor, or trim-specific adapter before adding universal parts.
- Beam pattern is too high, low, or uneven: Re-seat the lamp, confirm all retainers are tight, then adjust vertical and horizontal aimers.
- RGB/app feature does not respond: Confirm the product variant supports RGB, the controller has power, and the app or remote is paired before closing trim.
Need help?
If the connector, transferred part, or trim layout does not match the reference images, stop before modifying the vehicle and contact RIGNOX support with your order number and your vehicle's year, model and trim. We'll walk you through it.
End of installation guide. (c) RIGNOX - All Rights Reserved.
