Important: This online guide is a fitment-aware overview for the matched RIGNOX product. Before removing original parts or connecting wiring, review the installation reference images on this page and confirm the connector layout, transferred parts, wire routing, and vehicle-specific fastener locations for your exact vehicle.
Safety warning: Do NOT use dielectric grease or weather-sealing grease on connectors or sockets. Grease can cause connection problems and may affect warranty coverage.
Matched product

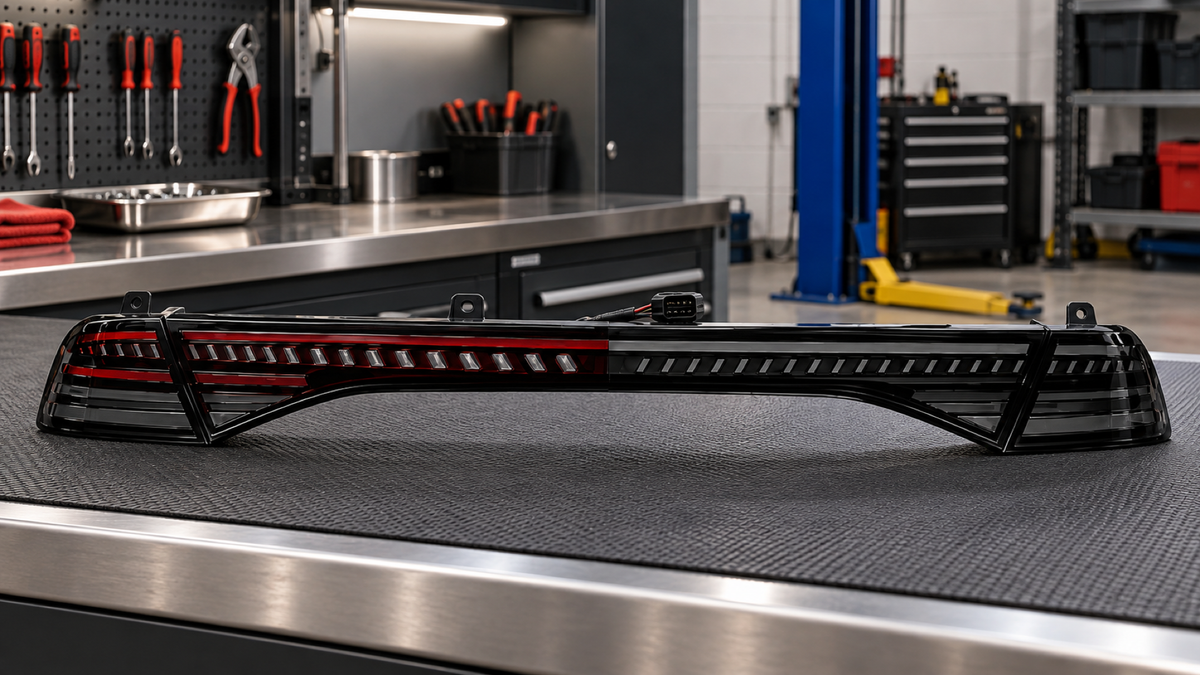

- Product: 2023-2026 Honda Accord 11th Gen Sequential LED Tail Lights | Trunk Lid Light Bar
- Product type: Tail lights
- SKU: T-ACC11-SW, T-ACC11-SR, T-ACC11-SRGB
- Variants: Smoked White; Smoked Red; Smoked RGB w/ APP Control
- Fitment: Fits: 2023-2026 Honda Accord 11th Gen Sedan trims: LX; EX (2024) / SE (2025-2026, EX renamed by Honda - same vehicle); Sport Hybrid; EX-L Hybrid; Sport-L Hybrid; Touring Hybrid. Includes outer tail lamps and the integrated trunk lid light bar.
- Product page: View matching RIGNOX product details
Product notes
- Sequential, startup, or animation functions are product/variant dependent. Test them before final reassembly.
- RGB/app-controlled functions apply only to RGB variants and should be used according to local road-lighting regulations.
- The matched product page references road-lighting compliance information. Review the product page for the exact compliance language for this item.
Installation reference images
Before you begin
- Vehicle: 2023-2026 Honda Accord 11th Gen sedan tail light and trunk-lid light-bar installation.
- Tools confirmed from the reference images: ratchet wrench, 10mm socket, 8mm socket, and pry/trim removal tool.
- Protect the trunk trim: The installation requires removing trunk trim, PE foam, license-plate-opening fasteners, and the original camera from the trunk-lid assembly.
- Low-trim note: The reference shows separate low-trim harness adapters for the cornering lamps and through-light. Confirm whether your vehicle needs the supplied low-trim harness before final assembly.
Remove the original trunk-lid through-light assembly
- Open the trunk and remove trim clips: Remove the plastic clips, then lift the PE foam to access the fasteners behind the trunk-lid panel.
- Loosen the two marked screws: Loosen the two screws marked in the reference image.
- Remove the center screw: Remove the one screw at the center of the license plate light opening. Do not remove the nut marked as not required in the reference image.
- Remove the side screws: Remove the screws on the left and right sides of the license plate light opening. The reference image shows six total side screws.
- Unplug the wire clip and connector: Remove the wire clip and connector. The left side may include an additional camera connector.
- Remove the original trunk-lid light assembly: Support the assembly as it releases so it does not scratch the trunk-lid paint.
- Transfer the camera: Use a flathead screwdriver to release the camera tabs, then install the camera onto the RIGNOX light assembly.
Remove the original outer cornering lamps
- Access the lamp connector and wire clip: Open the trunk trim area enough to reach the connector and wire clip on each outer lamp.
- Unplug the connector and clip: Disconnect by the connector body and remove the wire clip before removing the lamp.
- Remove the original outer lamp: Release the original cornering lamp from the body. Repeat the same process on both sides.
Install the RIGNOX through-light and outer lamps
- Install the trunk-lid through-light: Seat the RIGNOX assembly into the white clips shown in the reference image.
- Hold the through-light position while tightening: When tightening the through-light screws, hold the light upward by hand as shown in the reference note so the final position sits correctly.
- Route the flat/curved light connecting wire: Follow the trunk-lid routing diagram and secure the flat/curved light wire to the trunk hinge/rocker arm area with zip ties. Make sure the wire does not bind when the trunk opens and closes.
- Install both outer lamps: Connect and seat the left and right outer lamps, then confirm the body gaps and seals are even.
- Reconnect camera and lamp connectors: Reconnect the camera connector, lamp connector, and wire clips before reinstalling trunk trim.
Low-trim harness notes
- Outer cornering lamp low-trim harness: For low-trim vehicles, find the supplied low-trim cornering-light harness, unplug the high-trim harness connector at the marked location, and plug the low-trim harness into the light assembly. Repeat on both sides.
- Through-light low-trim harness: Find the supplied low-trim through-light harness, unplug the high-trim harness connector at the marked location, and plug the low-trim harness into the light assembly. Repeat on both sides.
- Do not force unmatched connectors: If the low-trim or high-trim connector does not match the reference, stop and confirm the vehicle trim and supplied harness before powering the lamps.
Function test before final trim
- Reconnect power temporarily and test running lights, brake lights, turn signals, hazards, reverse lights if applicable, startup animation, and RGB/app control if equipped.
- Confirm the rear camera image works after the camera is transferred and reconnected.
- Open and close the trunk slowly to confirm the routed connecting wire does not stretch, pinch, or rub on the hinge/rocker arm.
- After all functions pass, reinstall the PE foam, trunk clips, license-plate-opening trim, and trunk-lid panels.
Troubleshooting
- Through-light does not sit flush: Recheck the white clips and hold the assembly upward while tightening the screws.
- Camera does not work: Recheck the camera transfer, connector lock, and left-side connector shown in the reference.
- One side does not light: Recheck whether the vehicle needs the low-trim harness adapter or the standard harness connection.
- Wire rubs when the trunk moves: Re-route the flat/curved light connecting wire and secure it with zip ties along the path shown in the reference.
Need help?
If your trunk-lid connector, camera connector, or low-trim harness does not match the reference images, stop before modifying the vehicle. Contact RIGNOX support with vehicle year/trim, product variant, and clear photos of the connectors and trunk-lid assembly.
